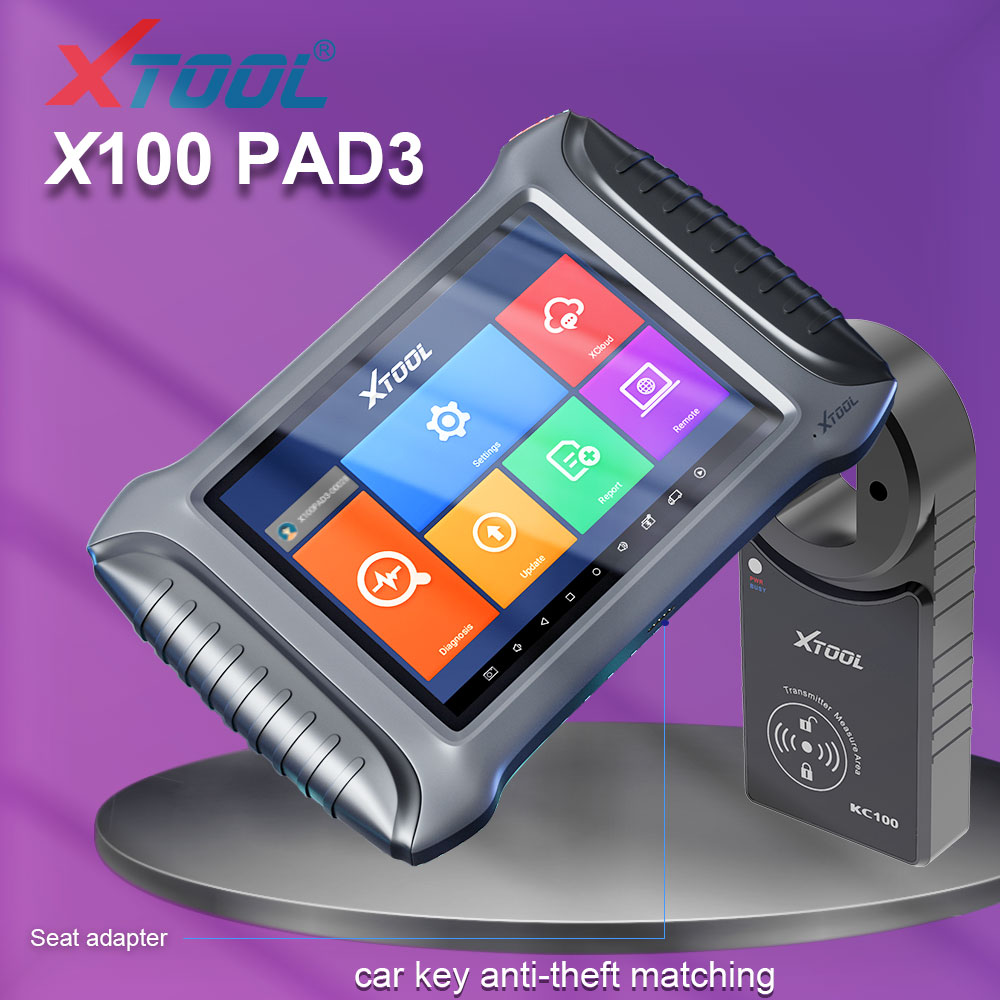

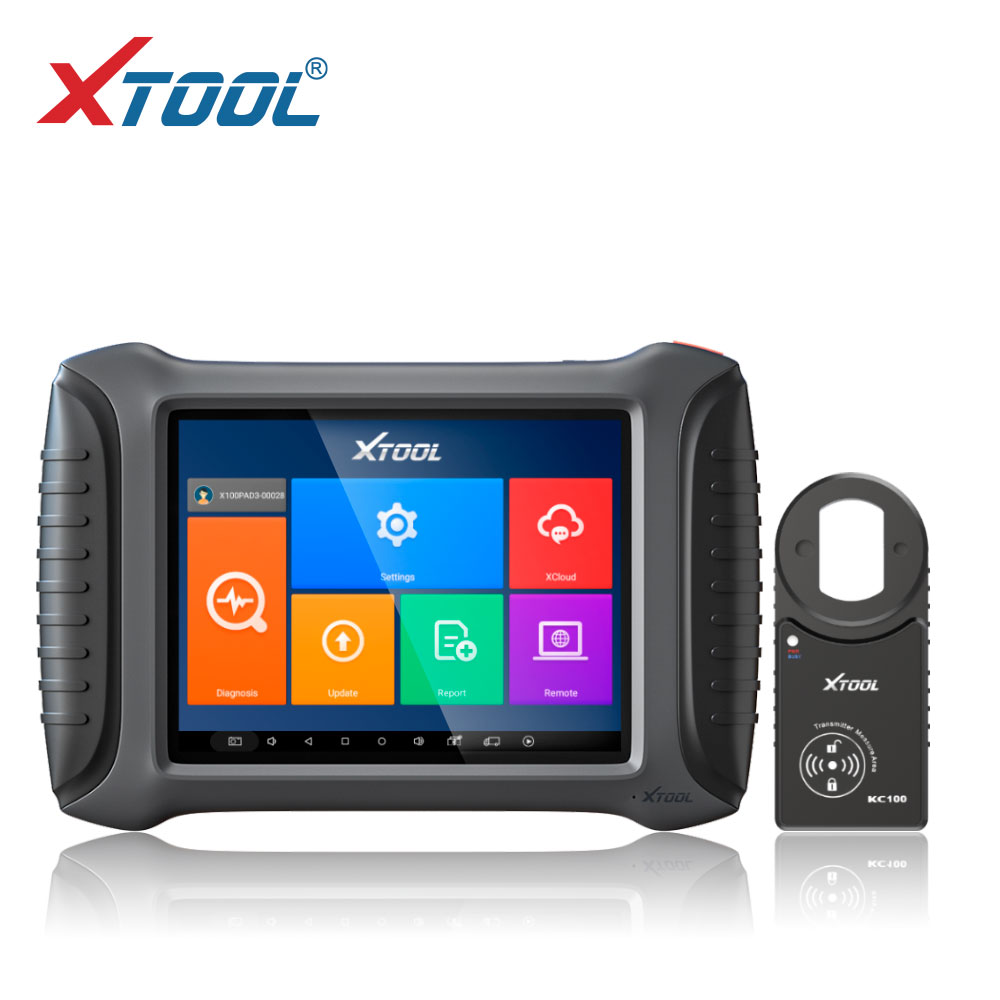

XTOOL X100 PAD3 Professional Tablet Key Programmer With KC100 No Vehicle Limitation
XTOOL X100 PAD3 which is also called X100 PAD Elite, is a professional tablet key programmer which not only provides customers with key programming, but also supplies advanced special functions including Key programming, oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, DPF reset, battery reset, steering angle calibration and OBD-II engine diagnosis, etc.

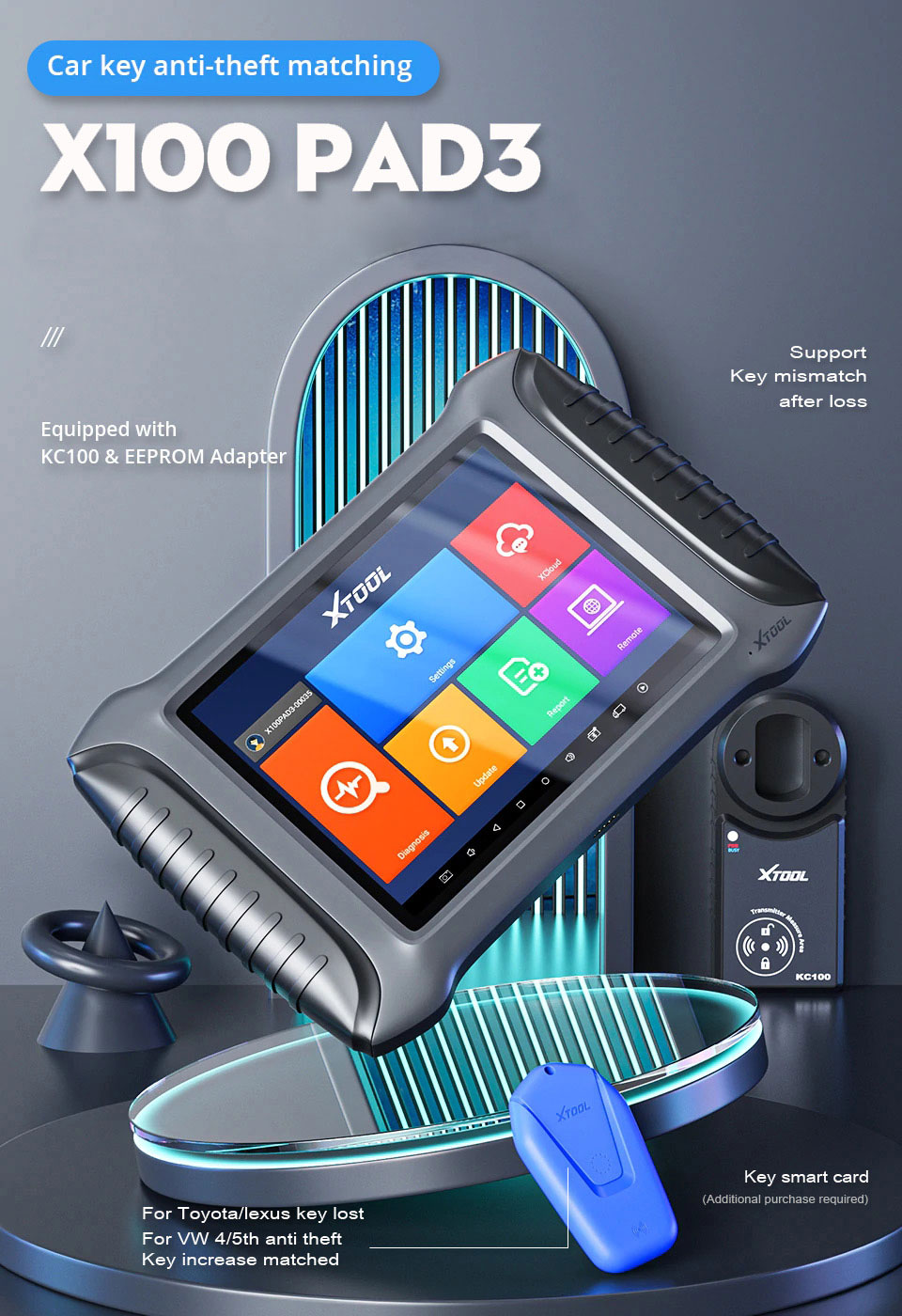

Highlights of Xtool X100 PAD3:
1. Support key mismatch after loss
2. Work on VW 4/5th anti theft
3. Support Toyota/Lexus All Lost No Need Disassembly with KS-1 Smart Key Simulator
4. Support key increase matched
5. Multi-Language: English, Spanish, French, Turkish, Indonesian, Thai and Portuguese
6. One-Click Free Update Online for Two Years
7. Support 16 Special Functions
8. Update Version of X100 Pad2 PRO (Xtool X100 PAD3 and PAD2 Pro Comparison Table)
XTOOL X100 PAD 3 Functions:
* Key programming (immobilization)
* Odometer Adjustment
* Common OBDII Diagnosis
* Special Service Functions
* PIN Code reading with EEPROM

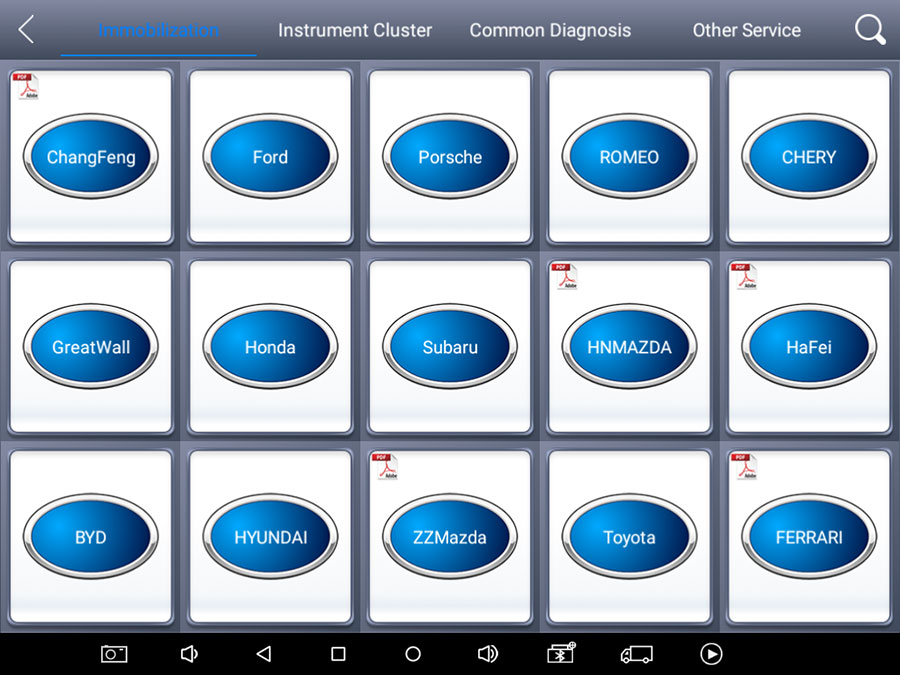

Immobilization Functions:
XTool X100 PAD3 Key Programming Vehicle Coverage:
Asia: for Toyota,for Lexus, for Honda, forAcura,for Mazda,forNissan, for Infiniti, for Mitsubishi, for Subaru, for Suzuki, for Kia, for Hyundai, for Daewoo, for SSANGYONG, for Proton, etc
Europe: for Audi, for VW, for Skoda, for Seat, for Porsche, for Opel, for Citroen, for Peugeot, for Jaguar, for Land Rover, for Lincoln, for Renault, etc
America:forGM,for Cadillac, for Buick, for Chrysler, forFord etc
China:for Great Wall, for Chery, for Brilliance-auto, for Geely, for LIFAN, for HAFEI, for CHANGAN, for LANDWIND, for BYD,for BYD , for JAC, etc.
With KC100
Support for Volkswagen for Audi for Skoda 4th generation, 5th generation, MQB key matching
Support for Volkswagen for Audi for Skoda 4-generation 96-bit online, 5-generation online, MQB online key matching
Support for BMW CAS1-CAS3 + key matching
Support for Land Rover's smart key write start function after 2015
Support for Fiat, for Fischer, 500, for Palio and other models
Support for Toyota for Lexus all lost and disassembly-free, can realize 94, 98, 88, A8, A9, 39 simulation key generation
With KS-1 Key Smart Card
Support Toyota/Lexus All Key Lost
Odometer Adjustment:
for VW /for AUDI/for SEAT/for SKODA, for BUICK, for CADILLAC, for CHEVROLET, for CHRYSLER, forFORD, for MAZDA, forNISSAN, for SUZUKI, for KIA, for HYUNDAI, for JAGUAR, for LAND ROVER, for PORSCHE and more…
OBD2 Diagnostic Functions:

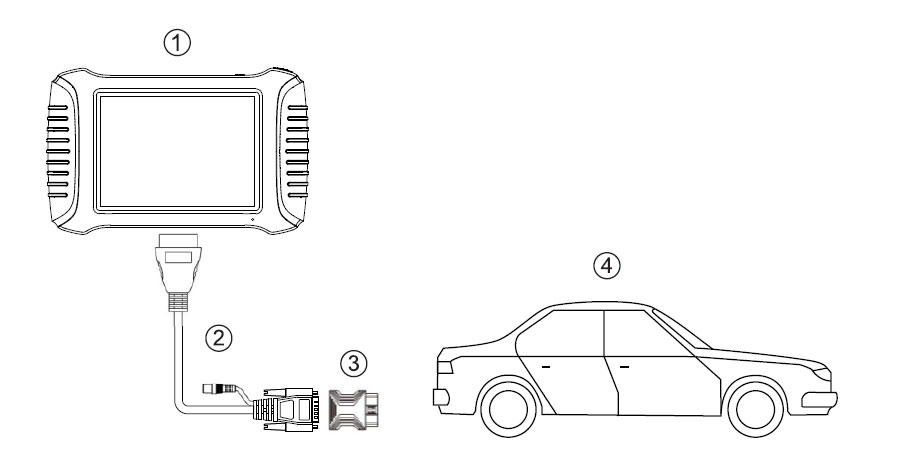

XTool X100 Pad3 Vehicle Diagnosis Connection:
a. Turn on X100 PAD3 tablet
b. Connect cables and X100PAD3 in following order: ①→②→③→④
c. Switch on the ignition and tap on X100PAD3 application to test vehicles. (Shown as
follows)
① X100PAD3 Tablet
② Main cable
③ OBDII-16 Adapter (Select other adapters if needed)
④ Measured vehicle

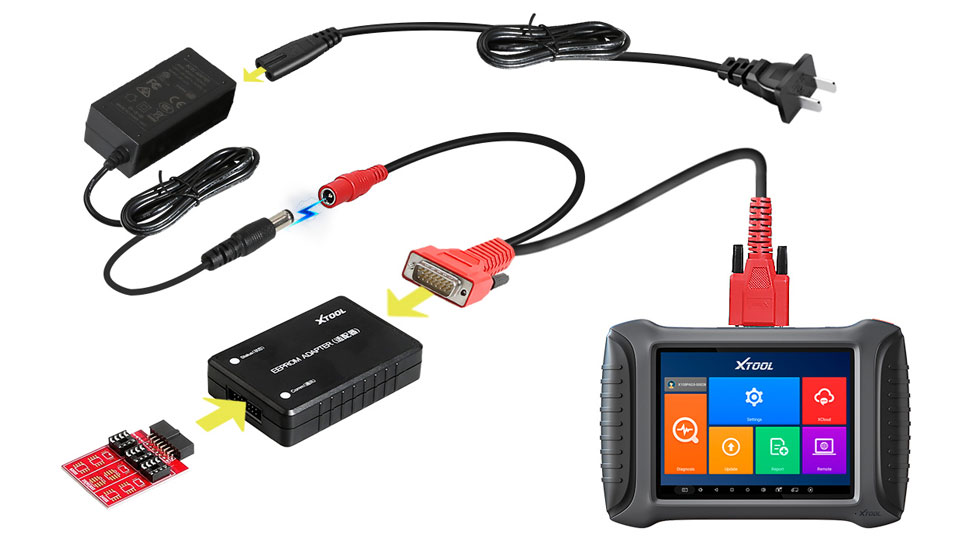

XTool X100 Pad3 EEPROM Adapter Connection:
Special Functions:
Oil Reset Functions Feature:
Innovative one-click oil reset for for VW, for Audi, for BMW, for Mercedes for Seat, for Skoda, for Volvo, etc.
Support engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid, vehicle checking , etc. resetting for BMW. And the supported for BMW models are F01 / F02 / F03 / F04 / F07 / F10 / F11 / F12 / F13 / F18 / F20 / F30 , etc.
Support for Mercedes for Benz new C Class, E Class models and for Mercedes Benz VITO/for VIANO/for SPINTER.
Support the lifespan percentage resetting of engine oil for Buick, for Cadillac etc.
Support for Porsche Cayenne, for Panamera till 2012
Support for maintenance light reset for Volvo, for Land Rover.
Oil Service Light Reset Coverage:
America: for Buick, for Cadillac,for Chevrolet, for Chrysler, for Chevrolet/forG MC, forFord/for Mercury/for Lincoln, for Oldsmobile, for Pontiac, for Saturn, forGM, for Jeep and more…
European: for VW, for Audi, for Porsche, for BMW, for Mercedes-Benz, for Volvo,for Land Rover, for Peugeot, for Citroen, for SAAB, for Seat, for Skoda and more…
Asia:for Toyota/for Lexus, forNissan/for Infiniti,for Honda, forAcura,for Isuzu, for Chery, forFord Transit, for Roewe, for MG and more…
EPB Electrical Parking Brake Adaptation:
for VW ( R36, CC, Magotan etc.), for Audi ( A4L, A6L, Q5 etc.), for Seat, for Skoda and more…
Tire Pressure Warning Light Reset (Manual Operation):
for Mercedes-Benz, forGM,for VW, for BMW, for Toyota and more…
Timing Belt Light Reset (Manual Operation)
XTOOL X100 Pad3 vs X100 Pad2:
|
Item
|
Xtool X100 PAD3
|
Xtool X100 PAD2 Pro
|
|
|
|
|
|
Brand
|
Xtool
|
Xtool
|
|
Release year
|
2020
|
2016
|
|
Hardware
|
Operating system: Android Processor: quad core processor 1.8GHz Memory: 2G RAM, 64G ROM Display / touch screen: 1024•768 resolution,8
inch LED Compatible touch screen Camera: rear camera, 8 million
pixels,with flash autofocus. Sensor: gravity sensor Audio input /
output: microphone, 4 band 3.5 millimeter stereo. Interface: USB3.0, DC charging port, MINI HDMI, DB15 interface. Battery: 10000mAh 3.7V lithium polymer battery Input voltage: +9~+36VDC, compatiblewith 12V and 24V voltage system
|
Wi-Fi：WIFI 2.4Ghz Memory：2GB RAM，32GB Flash Sensors：Gravity Sensor, Light Sensor Power Consumption：29.6W CPU：Quad Core, 1.6 GHz Operating System：Android 4.4.4 Bluetooth：100 Meters Display：8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution Battery：4000mAh, 7.4V Dimension：(L*W*H): 240*177*30mm Power Voltage：12V
|
|
UI
|
Much more clearer (the car brand logo is blue and the background is white)
|
The car logo is white and the background is black.
|
|
Communication
|
USB 3.0, WIFI 2.4Ghz
|
USB,WIFI 2.4Ghz
|
|
Immobilization
|
Asia: Toyota, Lexus, Honda, Acura, Mazda, Nissan, Infiniti,
Mitsubishi, Subaru, Suzuki, Kia, Hyundai, Daewoo, SSANGYONG, Proton, etc
Europe: Audi, VW, Skoda, Seat, Porsche, Opel, Citroen, Peugeot, Jaguar,
Land Rover, Lincoln, Renault, etc America: GM, Cadillac, Buick,
Chrysler, Ford etc China: Great Wall, Chery, Brilliance-auto, Geely,
LIFAN, HAFEI, CHANGAN, LANDWIND, BYD, BYD , JAC, etc.
|
America:Buick, Cadillac, Chevrolet, Dodge, GM, GMC, Hummer,
Pontiac, Saturn, Ford Asia:Acura, Honda, Hyundai, Infiniti, Isuzu, KIA,
Lexus, Mazda, Mitsubishi,Nissan, Ssangyong, Subaru, Suzuki, Toyota
China：BYD, Great Wall Motor, Brilliance, JAC, Geely Cars, Lifan Cars,
Chery Europe:Audi, Benz, Citroen, Ford, Fiat, Jaguar, Lancia, Land
Rover, Opel, Peugeot,Porsche, Renault, Romeo, Seat, Skoda, Smart, VW
|
|
VAG 4th 5th IMMO
|
yes, when working together with KC100 adapter that comes in the package.
|
yes, when working together with KC100 adapter that comes in the package.
|
|
Toyota Smart Key All Keys Lost
|
Yes, when working together with the KS-1 emulator (need to buy additionally)
|
Yes, when working together with the KS-1 emulator (need to buy additionally)
|
|
Odometer adjustment
|
VW / Audi/ Seat/ Skoda, Buick, Cadillac, Chevrolet, Chrysler,
Ford, Mazda, Nissan, Suzuki, Kia, Hyundai, Jaguar, Land Rover, Porsche
And More…
|
VW /Audi/Eat/Skoda, Buick, Cadillac, Chevrolet, Chrysler, Ford,
Mazda, Nissan, Suzuki, Kia, Hyundai, Jaguar, Land Rover, Porsche And
More…
|
|
Common diagnosis
|
Yes, can access to all system of all car models from Europe, Asia, America
|
Yes, can access to all system of all car models from Europe, Asia, America
|
|
Full-functional diagnosis
|
Yes. I.e VW diagnosis: basic OBD diagnosis + coding + adaptation
|
No. i.e VW diagnosis: basic OBD diagnosis, no coding, no adaptation
|
|
Special Service
|
Service/Maintenance Light Steering angle sensor adjustment Window initialization Throttle relearn DPF BMS reset Seat match EPB (Electric Parking brake) Cylinder Airbag repair Air suspension Injector coding Eeprom adapter Headlight Tyre pressure reset Gearbox Match
|
EEPROM adapter BMS reset Electric parking brake Steering angle
sensor adjustment DPF Service / Maintenance light Air Suspension
Headlight Tyre pressure reset Throttle relearn.
|
|
Update
|
X100PAD3 updates directly via the Internet using WiFi or wired
connection. To access the update application open the X100PAD3
application and click UPDATE
|
One-click update via WIFI.
|
|
Language
|
Persian, Arabic, Indonesian, Greek
|
English, Spanish, French, Turkish, Indonesian, Thai, Portuguese
|
|
Package
|
Main Units: Mini B to USB 3.0 Type C Cable X100 PAD3 Cable KC100 EEPROM 2 Adapter Charger For tablet Charger US Adapter Charger EU Adapter Test Connectors: OBDII-16 HONDA-3 MAZADA-17R KIA20 HYUNDAI/KIA-10 DB15 Main Cable USB3.0 Main Cable (1m)Accessories: Certificate of quality Packing List User Manual Tool Case Carton
|
Main Units: X-100 PAD2 USBTYPE-C and Mini_USB shift cable Charger
for Tablet US Power Adapter KC100 EEPROM adapter EU Power AdapterTest
Connectors: HYUNDAI/KIA-10 KIA-20 HONDA-3 DB15Male To VGA_Male USBTYPE-C
OBD II-16 MAZDA-17RAccessories: Carton Packing List User Manual
Certificate of Quality
|

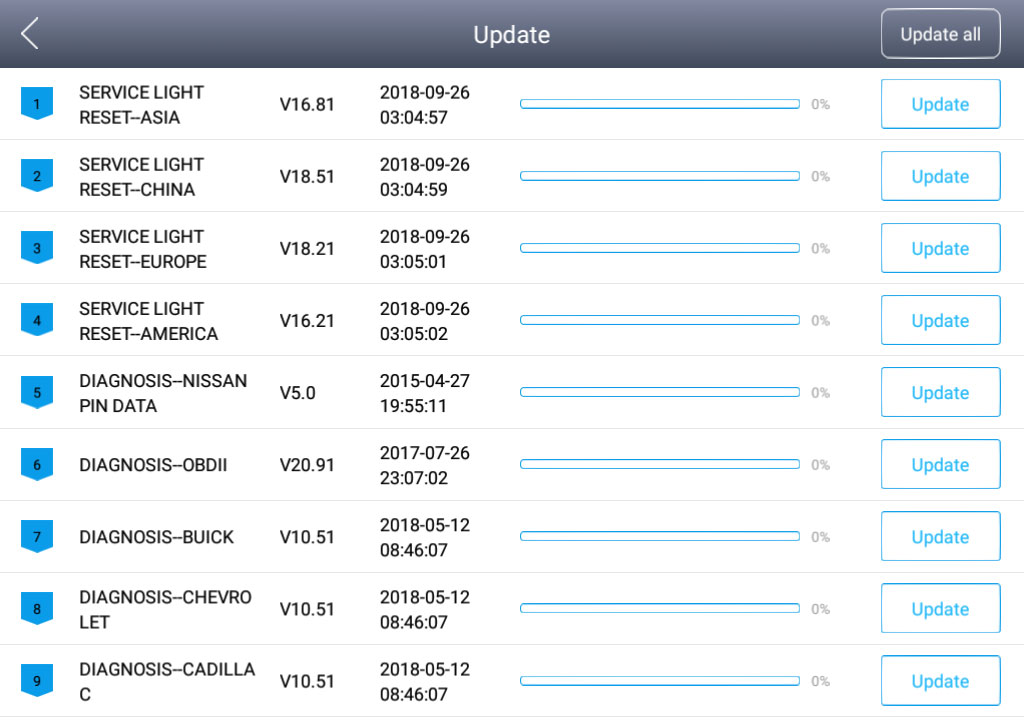

How to Update XTool X100 Pad3 ?
XTool X100 X100 PAD 3 updates directly via the Internet using WiFi or wired connection. To access the update application open the X100 PAD3 application and click Update ,shown below.

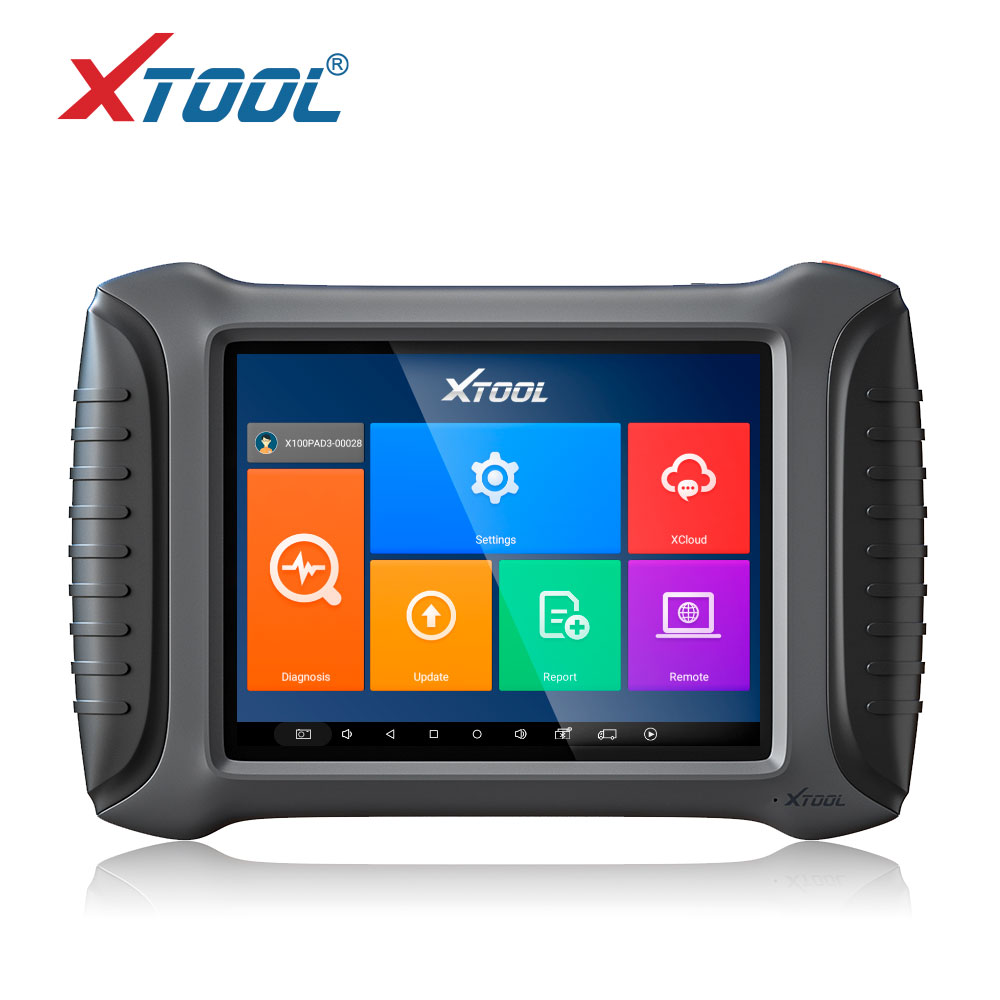

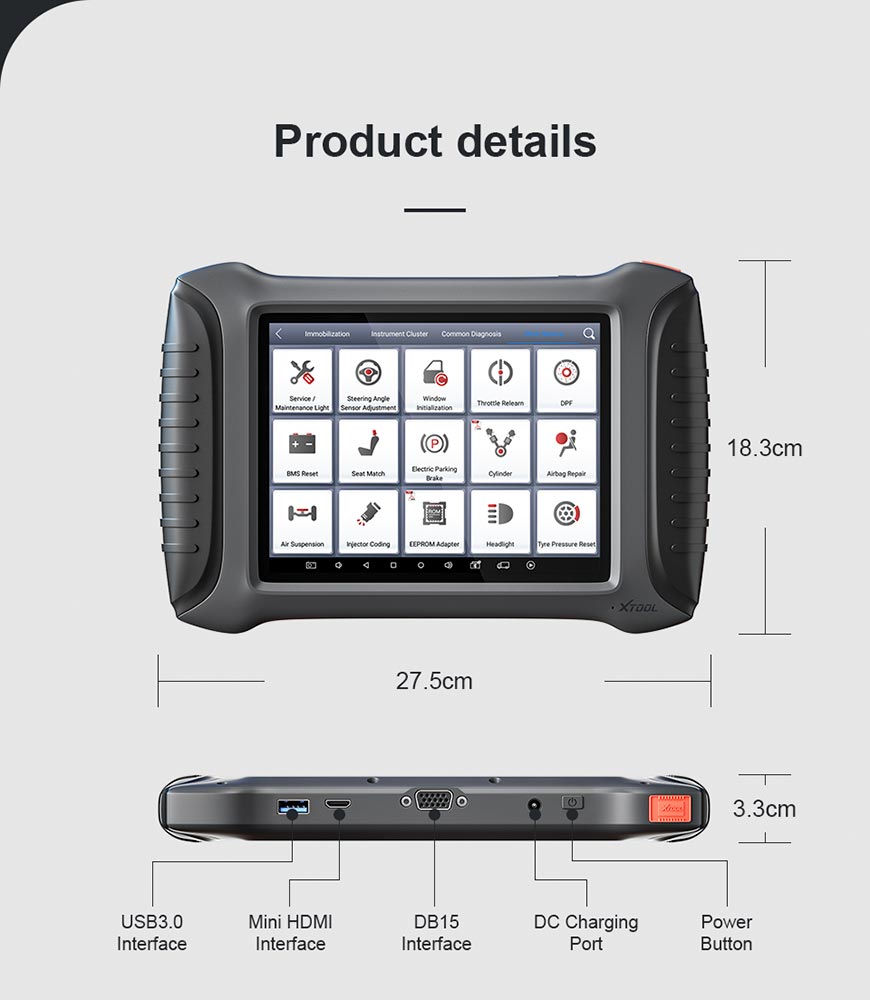

Xtool X100 PAD3 Display:

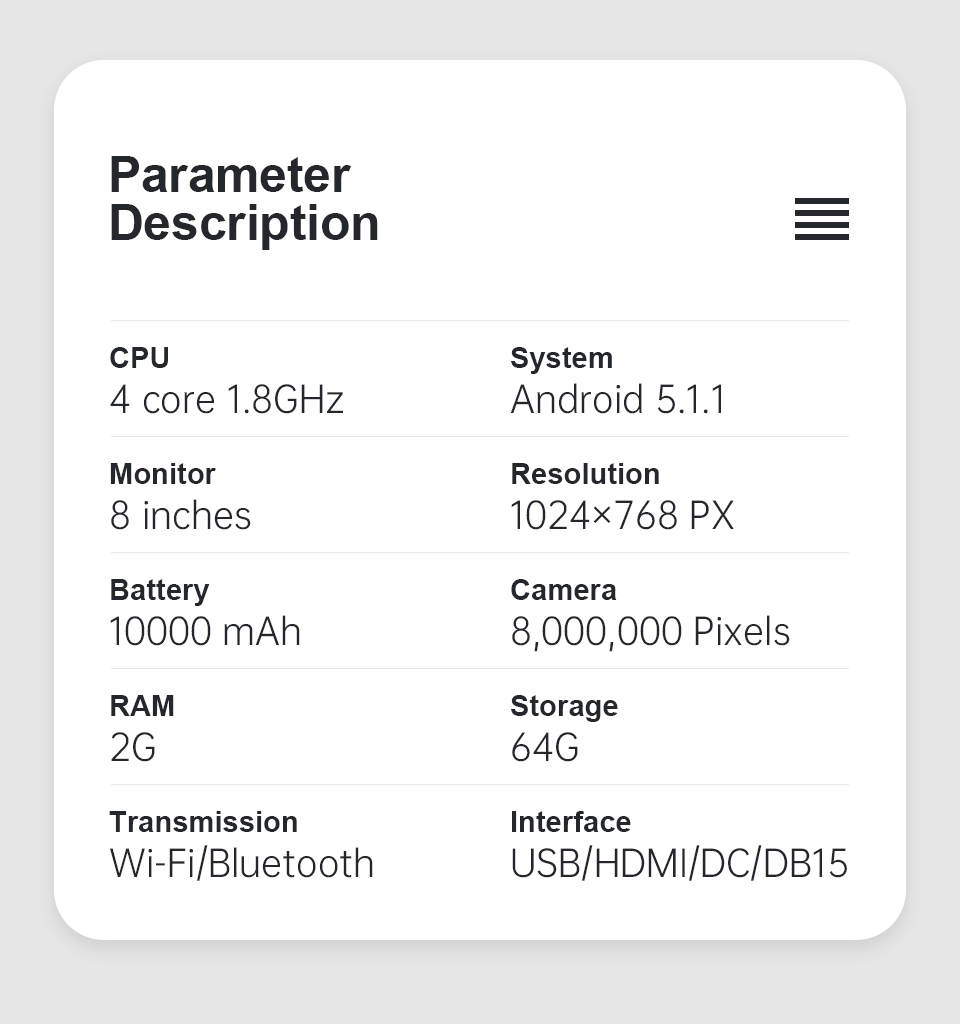

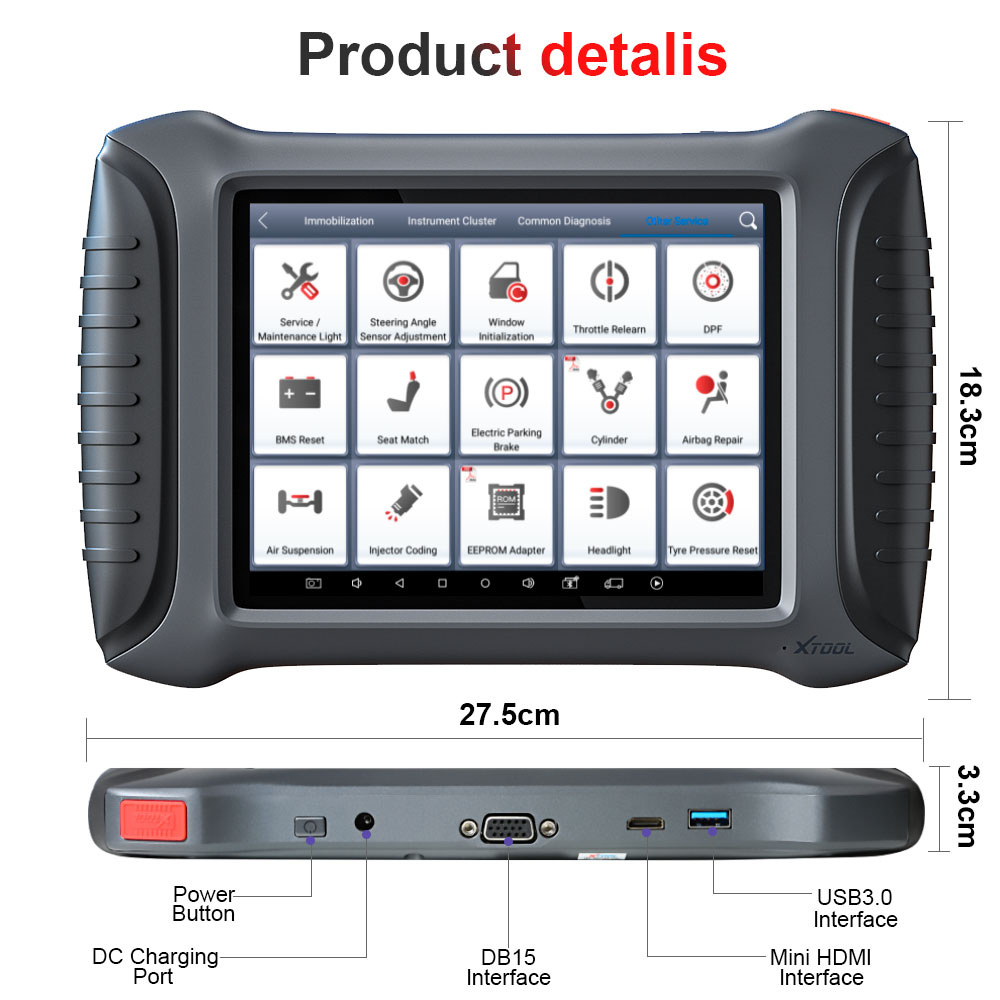

Xtool X100 PAD 3 Specifications:

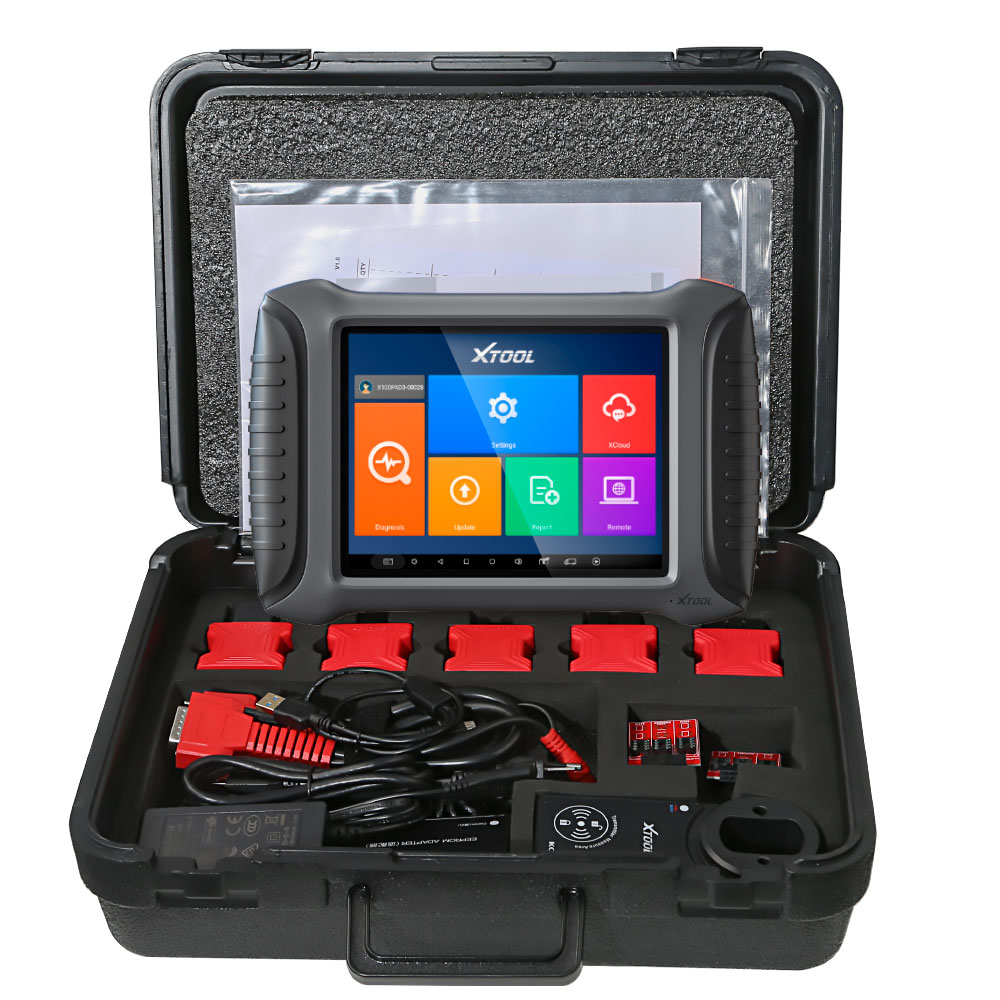

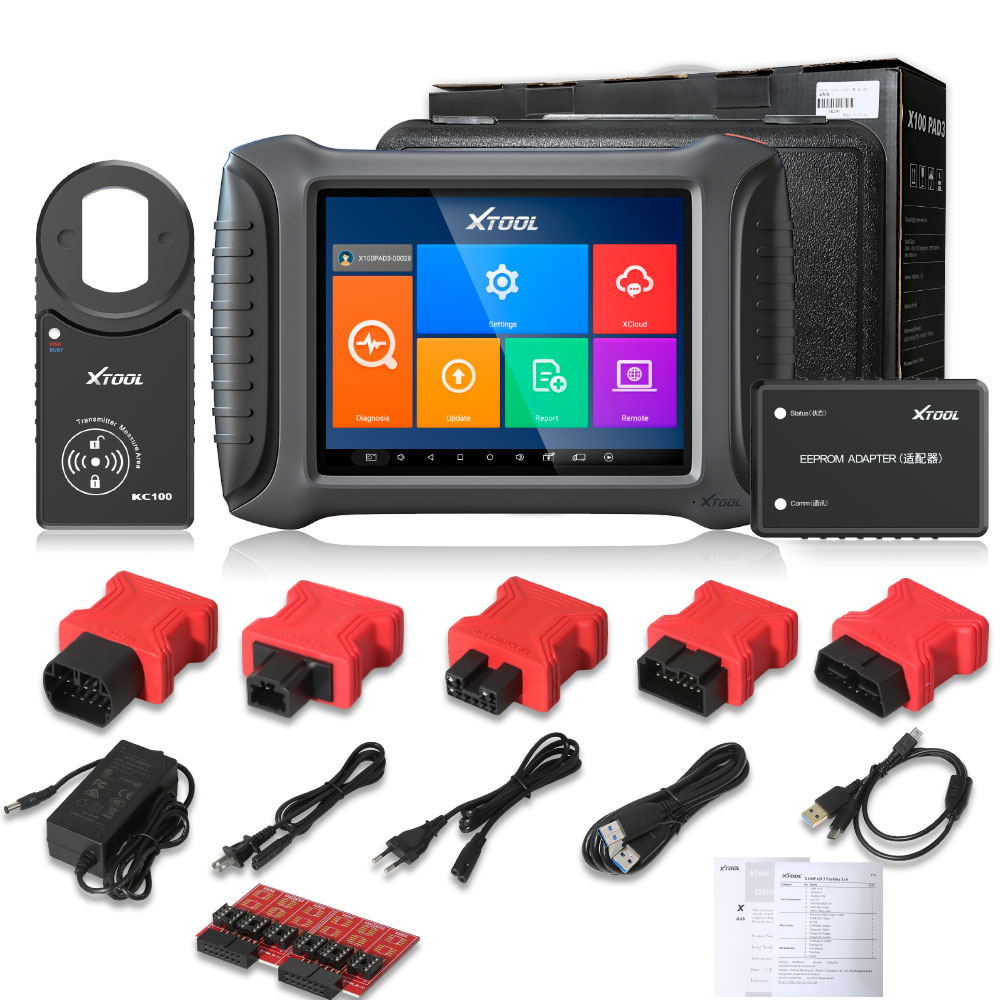

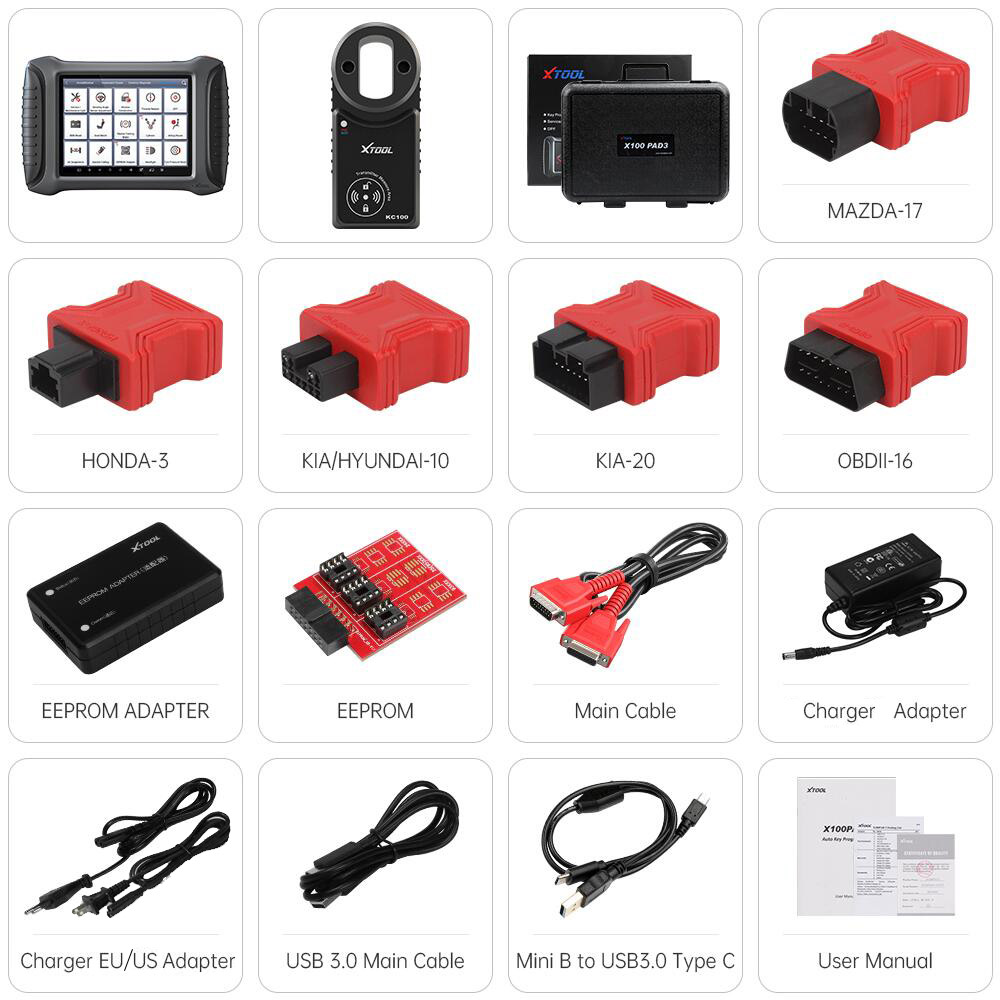

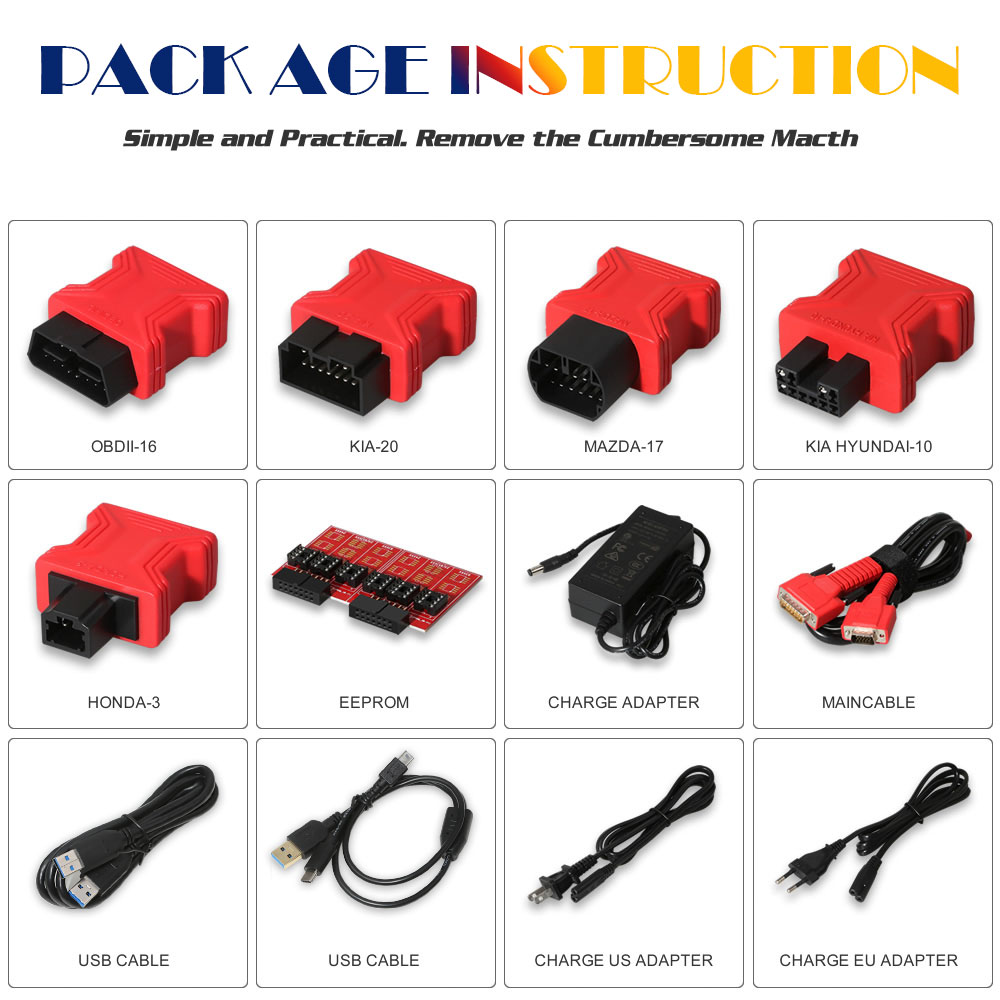

XTOOL X100 Pad 3 Package List:
Main Units:
Mini B to USB 3.0 Type C Cable,X100 PAD3 Tablet,KC100,EEPROM 2 Adapter, Charger For tablet, Charger US Adapter, Charger EU Adapter
Test Connectors:
OBDII-16, HONDA-3,MAZADA-17,KIA20,HYUNDAI/KIA-10, DB15 Main Cable, USB3.0 Main Cable (1m)
Accessories:
Certificate of quality,Packling List,User Manual,Tool Case,Carton
