2023A 2019C CAT Caterpillar ET Diagnostic Adapter III CAT ET 3 truck Diagnostic With WIFI

In Stock. Item No. YA2409










Buy Now: US$153
If you have any questions, please do not hesitate to contact us, below is our contact information:

Email: Sales@yobdii.com
Whatspp: +86-17737073650
Shipping:
Express Shipping Service    Estimated delivery time: 5-7 working days.See details »
Weight:
2.5KG
Returns:
Return for refund within 30 days,buyer pays return shipping. Read details »


Related Products

Product Description


2023A 2019C CAT Caterpillar ET Diagnostic Adapter III CAT ET 3 truck Diagnostic With WIFI

Pls note: CAT 2023 version software includes Caterpillar Cat factory password generator 10 digit pw, you can press the ctrl+f2 shortcut to bring it up.

Top 5 Reasons To Get CAT Caterpillar ET Diagnostic Tool Adapter 3
1. Software Version: 2023A/2019C(option)
2. Supported Operating System: Windows 7 32 bit, Wnidows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit, windows 11 64 bit
3. We will activate it after installing 2023A/2019C version software.(After the installation , please contact us help you active the software by remote)
4. Supported Language: Chinese(Simplified), Danish, German(Germany), French(France), Portuguese (Portugal), Japanese, Spanish (tradition), Italian(Italy), English(America)
5. Support WIFI

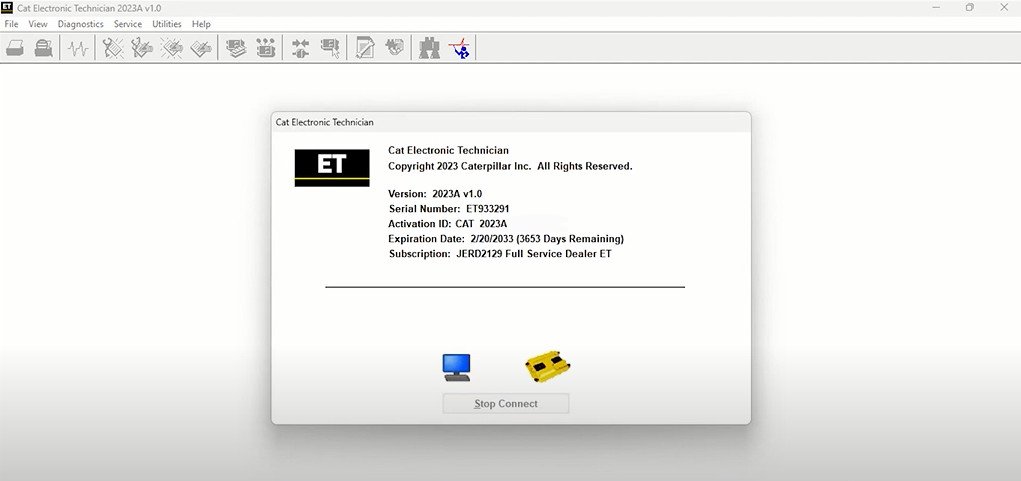

Caterpillar electronic technician 2023A (replaces CAT ET 2022C, 2022B, 2022A, 2021A, 2019C) with WinFlash future is an updated version of the caterpillar dealer diagnostic software that can help technicians to diagnose existing and potential problems with their electronically controlled Caterpillar Engines and Machines.

2023A Caterpillar Electronic Technician softwarer With CAT ET 3 Cat caterpillar adapter 3 support caterpillar diagnostic till 2023.  Caterpillar ET 2022A (replaces CAT ET 2019C, 2021B) Electronic Technician Diagnostic Software :
Brand: Caterpillar
Region: WorldWide
Support Multi-languages:English, Chinese, Danish, French, German, Italian, Japanese, Portuguese, Russian, Spanish
Compatible OS: Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit
Support All cars of CAT

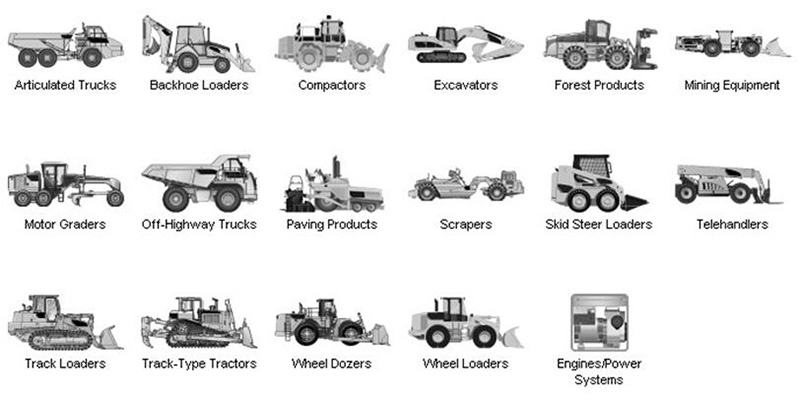

Support car list of CAT Caterpillar ET Diagnostic Tool:


With the CAT Diagnostic Tool, you can:

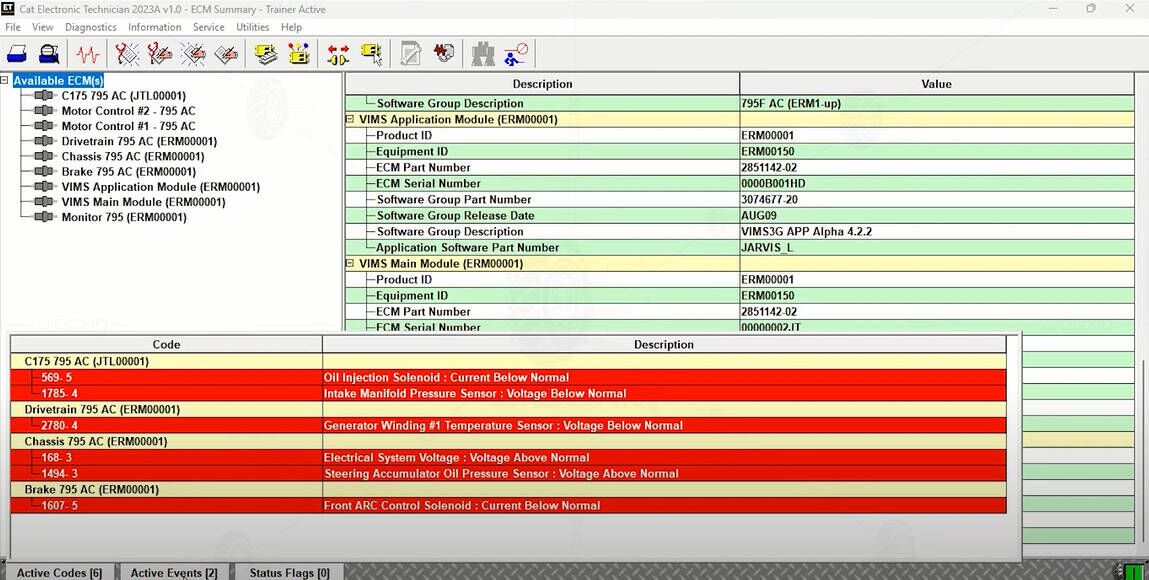

View active and logged diagnostics
View events where irregularities occurred and were logged by the ECM
View the status of a group of parameters (temperatures, pressures, etc.) simultaneously
Record and log performance data

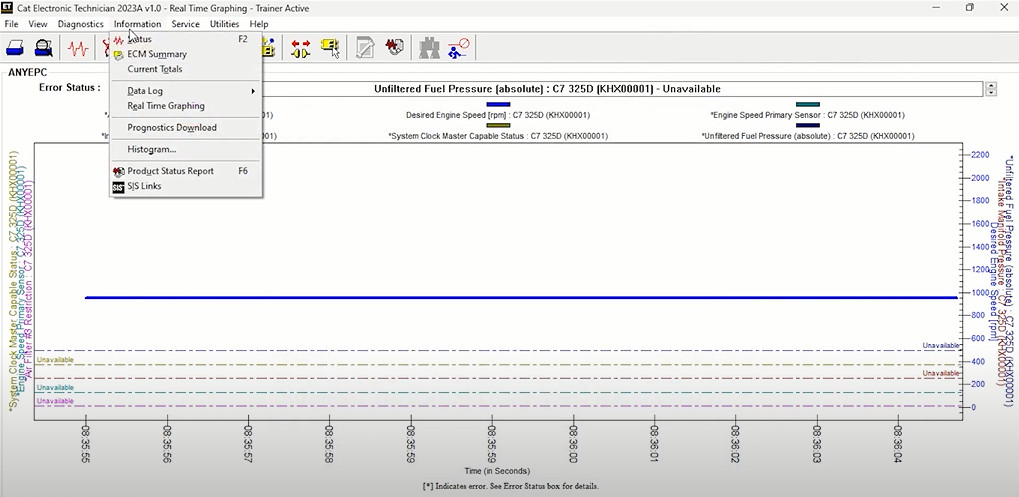

Graph a group of status parameters

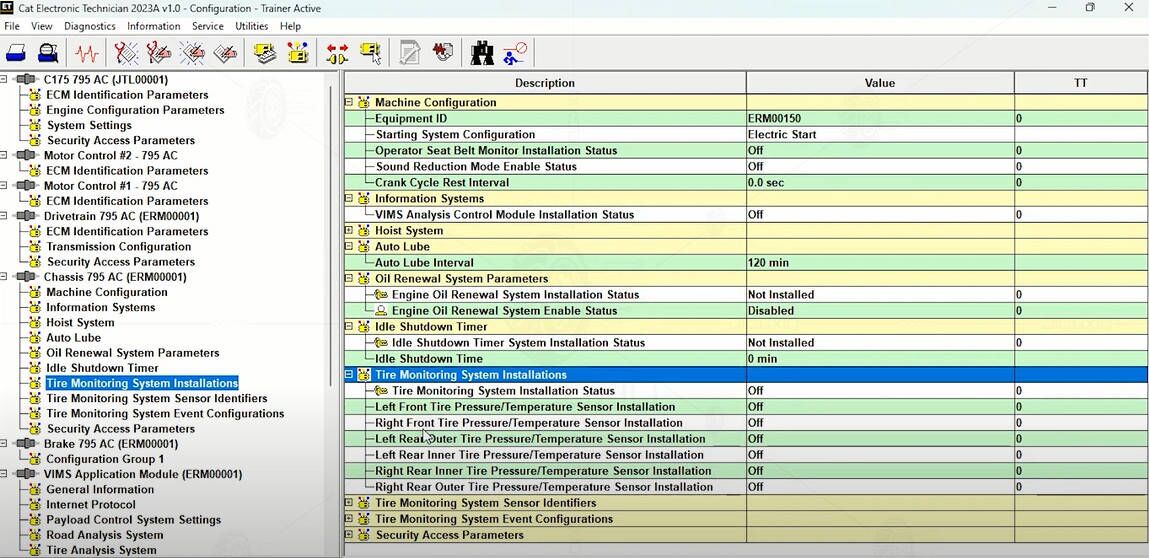

View the current configuration of an ECM
Change ECM configurations
Perform diagnostic tests
Perform calibrations
Print reports and diagnostic results
For some machine and engine products, additional functionality has been included with the service tool program

Product Description
CAT Caterpillar ET Diagnostic Tool from Caterpillar provide the capability to access Electronic Control Modules (ECMs) from a personal computer. Many job-critical tasks can be performed with an electronic service tool. The user can display the status of a group of parameters (temperatures, pressures, etc.) simultaneously, view active and clear logged diagnostics, display the current configuration of an ECM and much more. The service tool works with a communication adapter to allow connection to an ECM. A graphical interface makes this software quick to learn and easy to use. A separate pull-down menu for each function enhances the "ease of use." The version and identification of the ECM is automatically retrieved and is displayed on a summary screen when the program is started. Diagnostic tests and calibrations can also be performed.

CAT Caterpillar ET Diagnostic Tool enable service technicians to reprogram ECMs, reconfigure control system parameters, fine tune performance or diagnose the root cause of a failure the first time. These powerful tools allow service personnel to display and analyze vital performance and health information from any system quickly and accurately. The service tool communicates with any system using ATA (J1708), J1939 or the Caterpillar proprietary data link networks. The service tools provide information and features needed to help a technician diagnose problems and perform repairs and to customize and personalize the operation of a product. By allowing customers to design flexibility and configurability into a product, Caterpillar service tools stretch beyond the capabilities of preprogrammed ECMs or onboard display systems.

Features
Display, graph and log status parameters.
Retrieve prognostic data including histograms, engine totals for fuel used and miles traveled.
View active diagnostics and clear logged diagnostics. View events where irregularities have occurred and have been logged by the ECM.
 Perform calibrations to enhance performance of the ECM.
 Customize the ECM with application-specific settings.
 Over 100 custom Diagnostic, Information and Service features including:
  - 2D and 3D Histogram plotting capability (engine software
    support required).
  - Custom Status screen groups
  - Snapshots (Download and display snapshot data recorded by the
    ECM)
  - Configuration Aid that allows upload/download of same
    configuration to multiple control modules

Customised Service Tool Options
Customized service tool name
Customized graphics for the splash screen and icons
Customized installation
Aftermarket differentiation, i.e., the tool for one customer does not work on the product of another customer.
Licensing options for customer management
Flash programming of the ECM(s)
Training demonstration allows familiarity with the tool's primary functions without connecting to ECM(s)
Perform customized diagnostic tests to identify harness problems, cylinder or component failures (Automatic Cylinder Cutout with cylinder to cylinder fueling comparison)

PC Requirements
Recommended Configurations
PC containing a 2.0 GHz dual-core processor
3GB RAM
3GB of the available hard disk drive
DVD-ROM drive (optionally)
15.4-inch XGA Screen (1280x1024 compatible)
Microsoft Windows™ 7 Professional or Windows 8 Professional, Windows 10 Professional (Not tested with Home Edition) (Note: Windows 8 RT is not supported)
RS232 port with 16550AF UART or compatible (for use with Comm Adapter II)
USB 1.1 or 2.0 port (for use with Comm Adapter 3)
Ethernet RJ45 connector
Built-in pointing device or mouse
For security purposes, Microsoft Internet Explorer version 11 or newer or Microsoft Edge is recommended.
Note: The most recent version of Microsoft Internet Explorer may not be validated to work with the service tool.
Wi-Fi (for the Wireless Comm Adapter 3)

Minimum Configurations
PC containing a Pentium 2 GHz processor or greater
1GB RAM
500MB of an available hard disk drive
CD-ROM drive
Super VGA monitor or display (1024x768)
Microsoft Windows™ 7 Professional or Windows 8 Professional, Windows 10 Professional (Not tested with Home Edition) (Note: Windows 8 RT is not supported)
RS232 port with 16550AF UART or compatible (for use with Comm Adapter II)
USB 1.1 or 2.0 port (for use with Comm Adapter 3)
Ethernet RJ45 connector
Built-in pointing device or mouse
For security purposes, Microsoft Internet Explorer version 9 or newer is recommended. Note: The most recent version of Microsoft Internet Explorer may not be validated to work with the service tool.

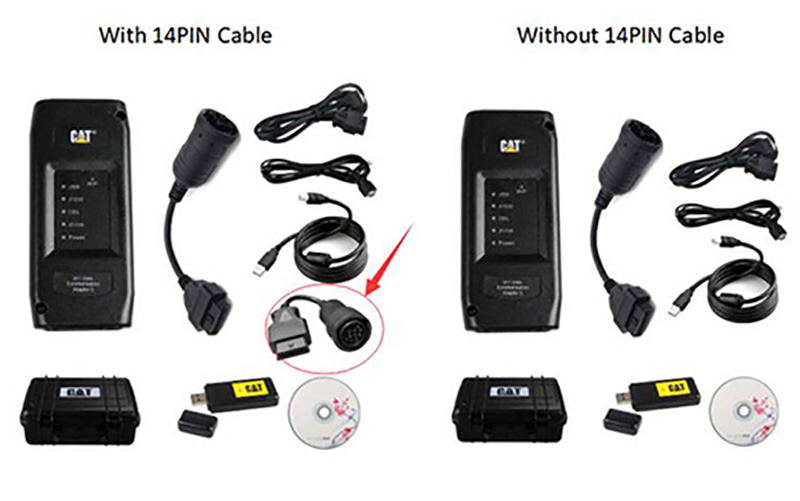

Option 1:

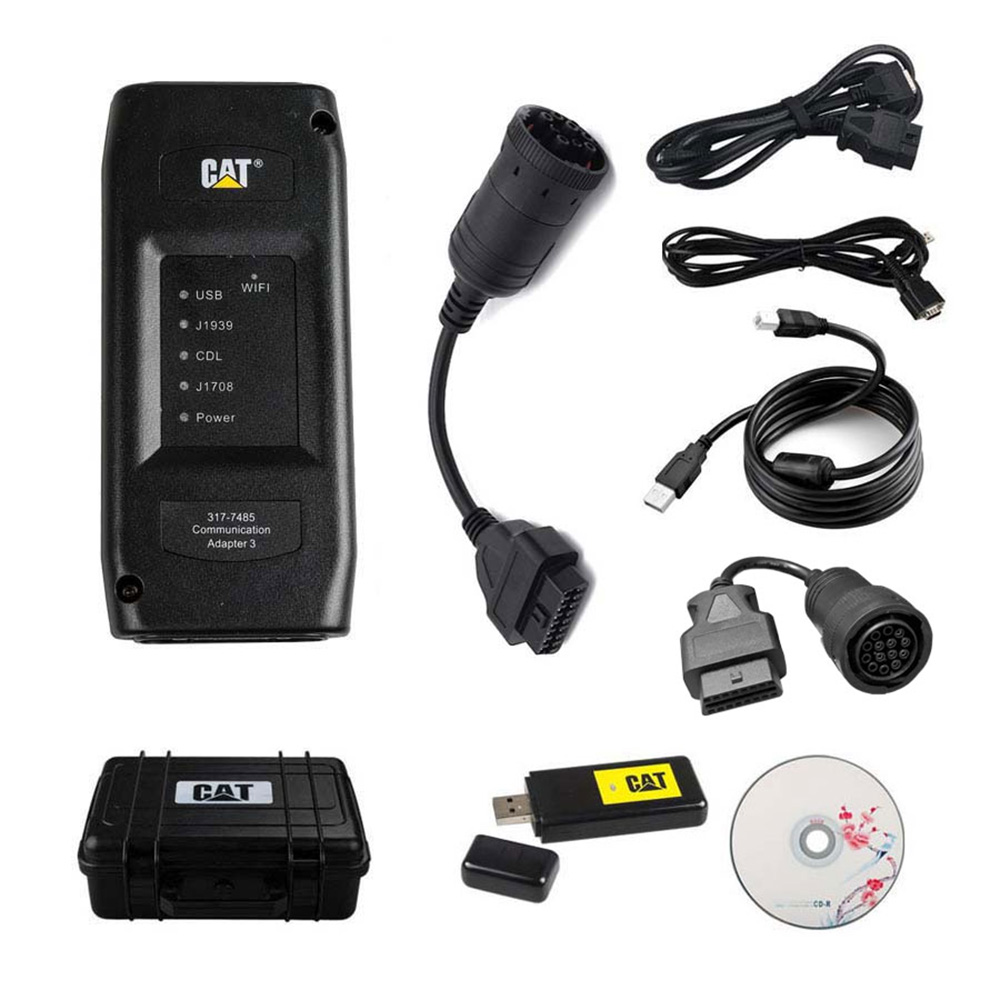

Package including:

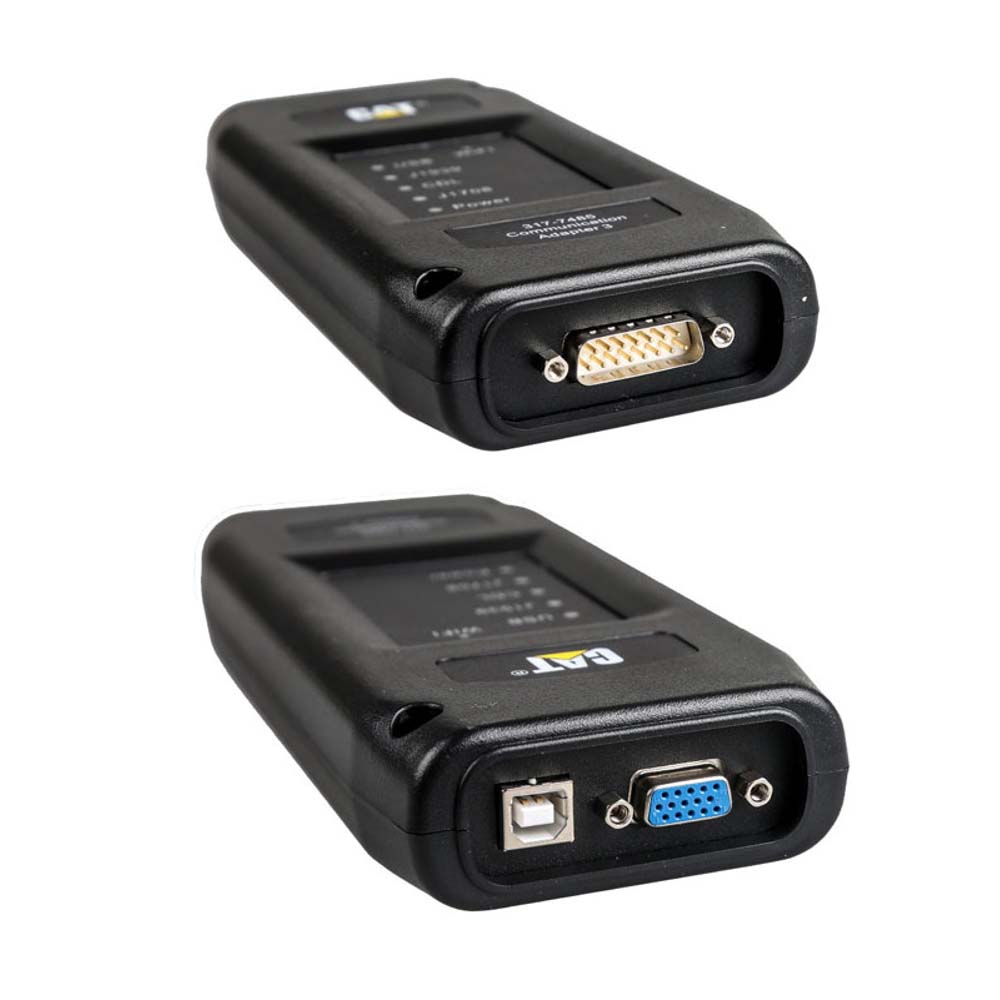

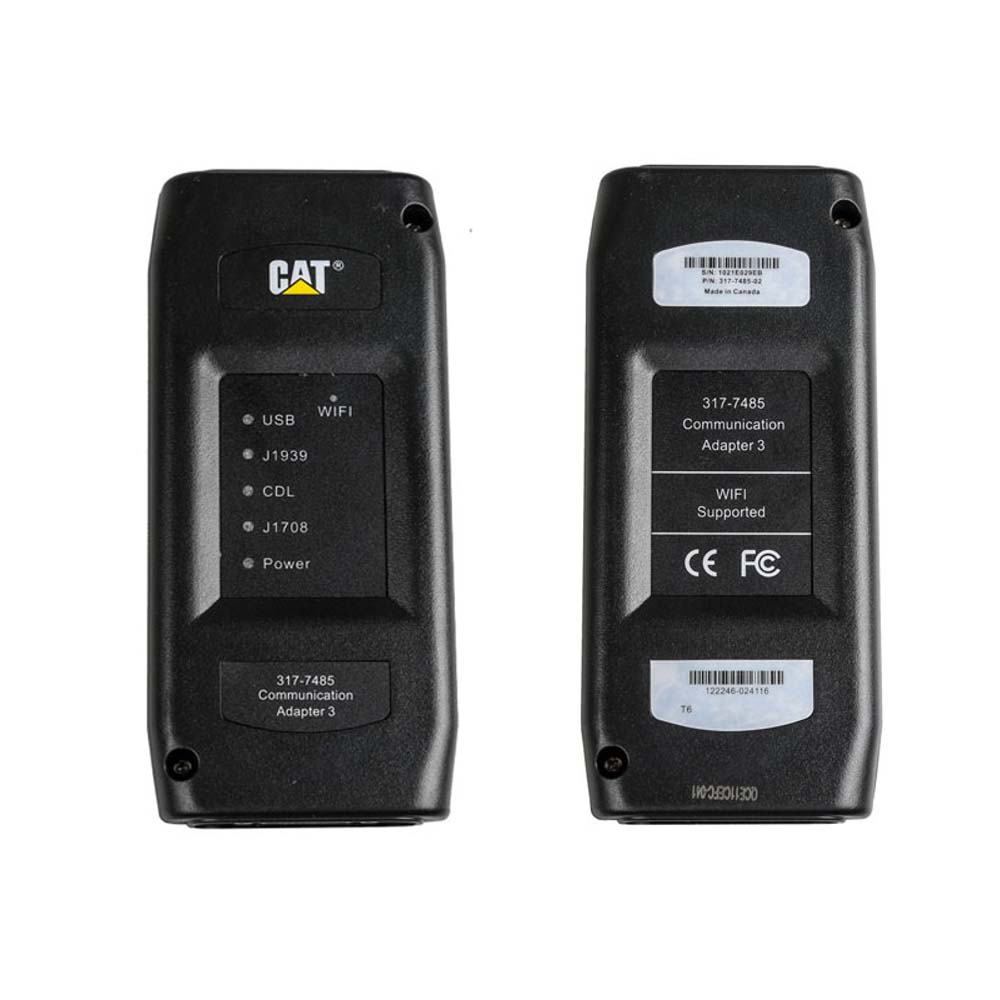

1.CAT et3 Comm Adapter III

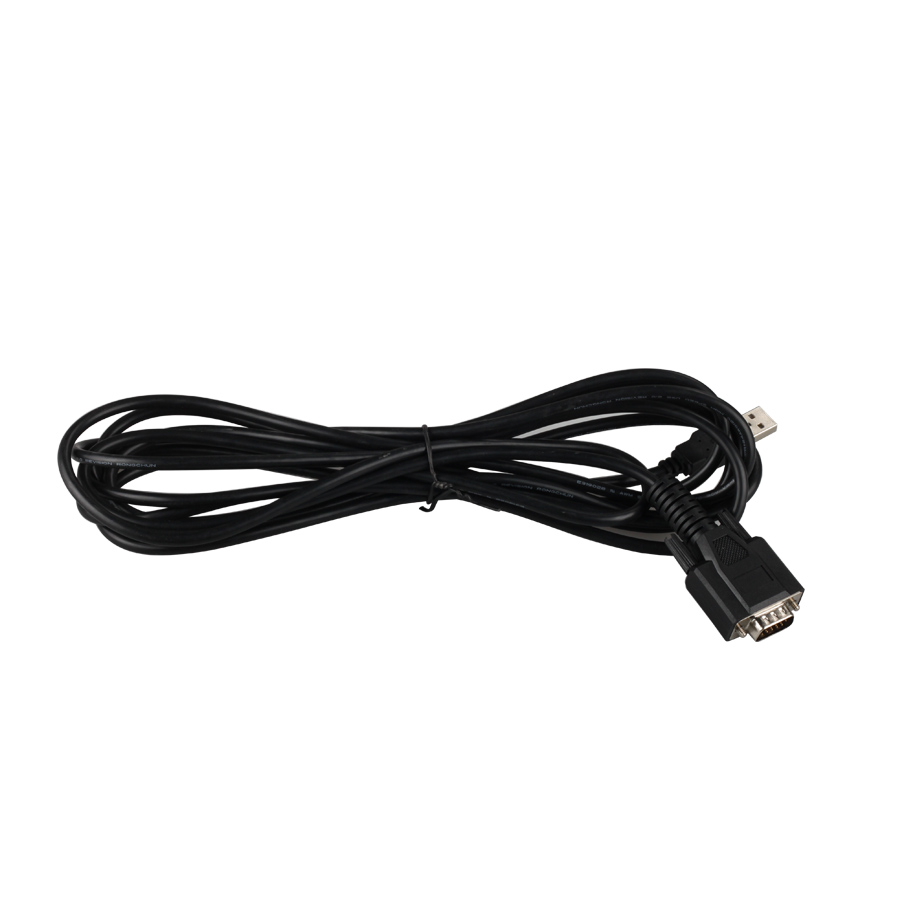

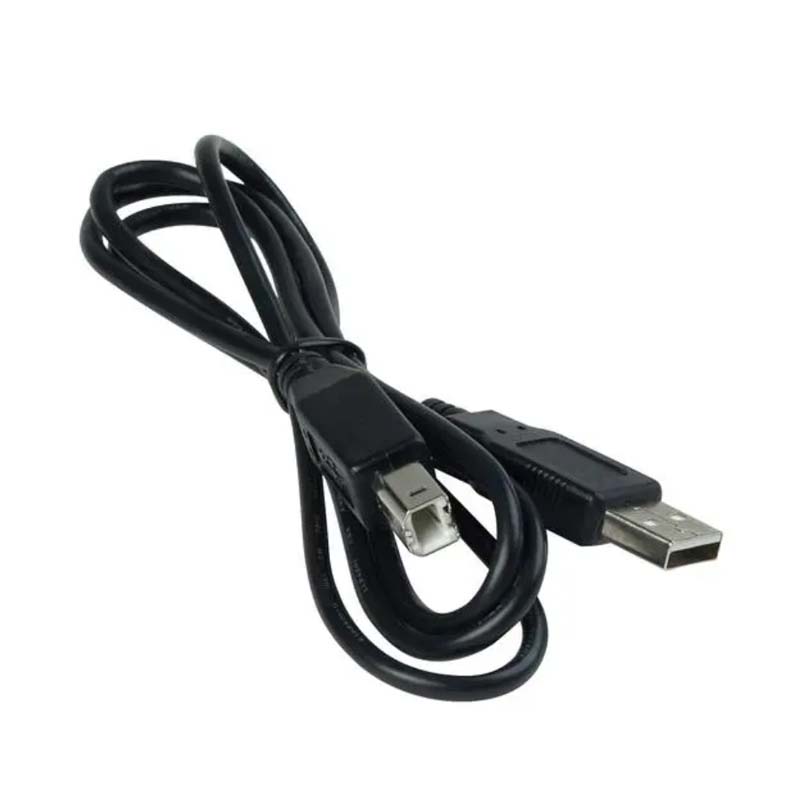

2.2PC x USB Cable(From device to your computer)

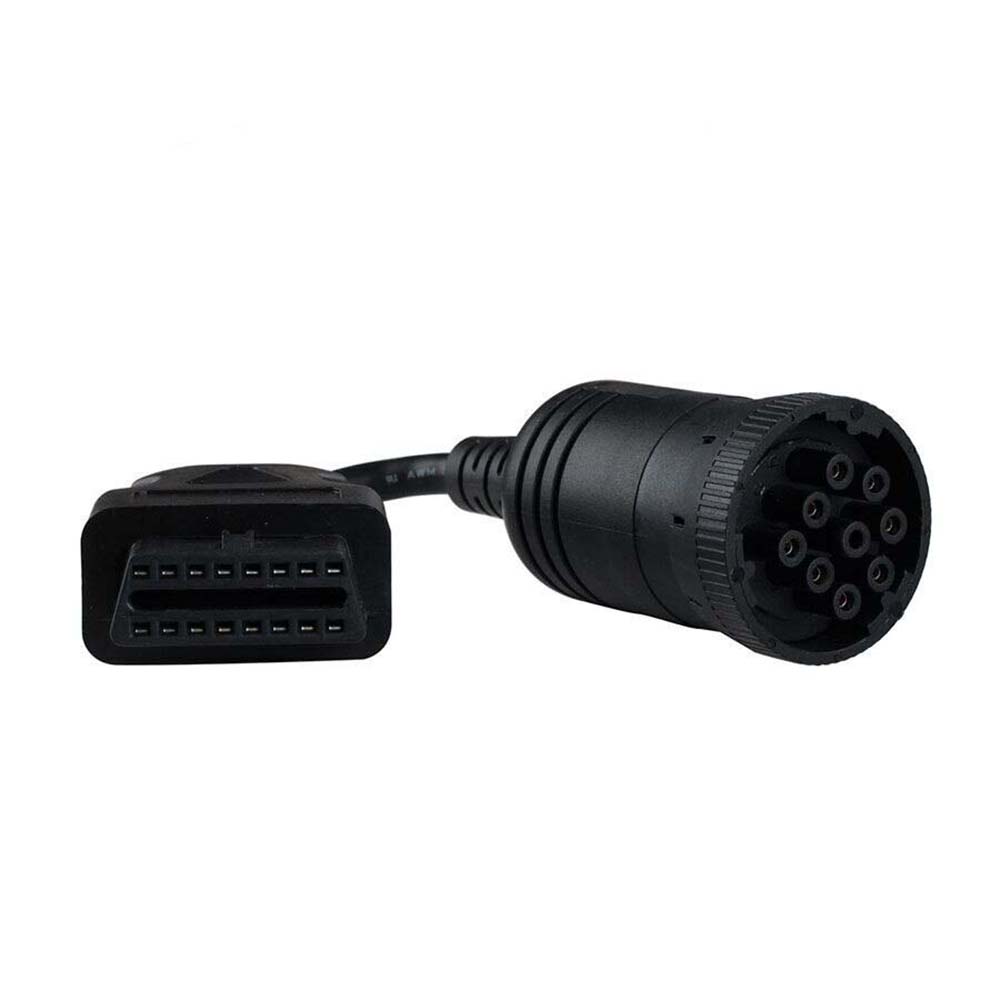

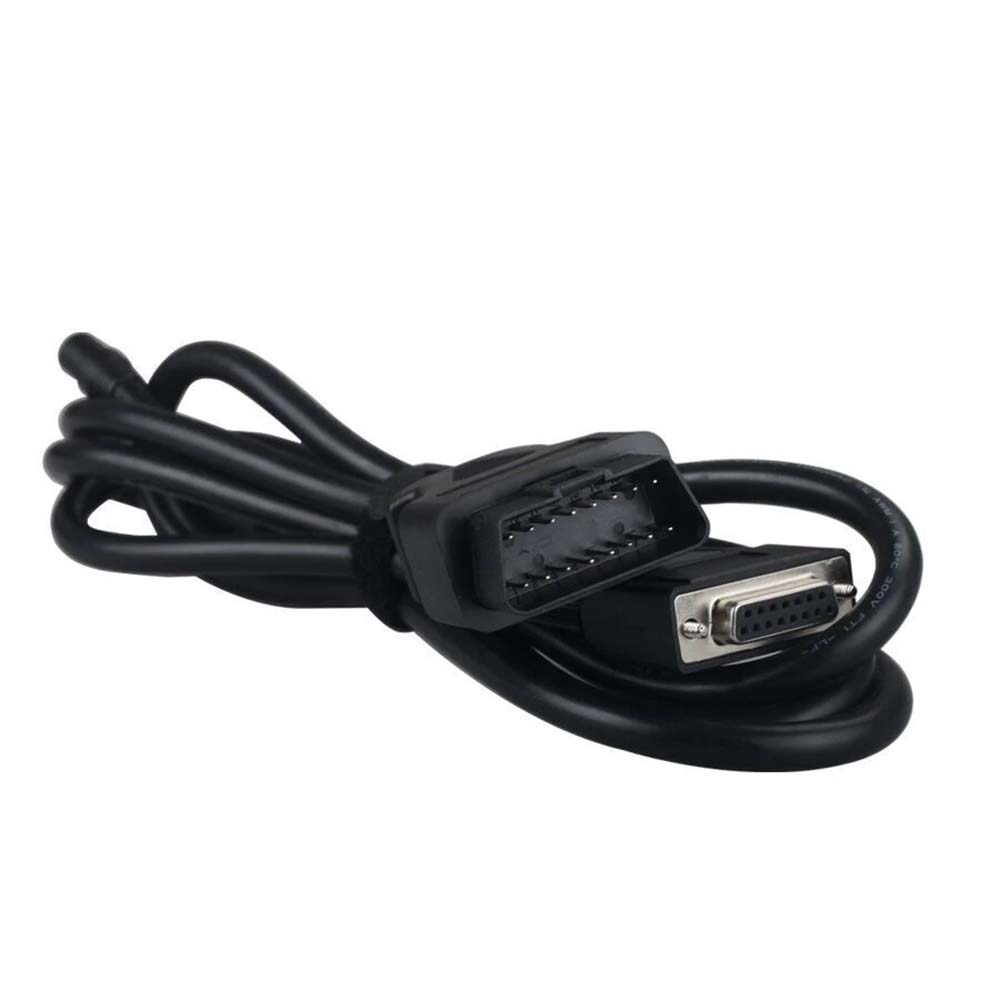

3.J1939/J1708 9PIN Cable
4.2019C software DVD

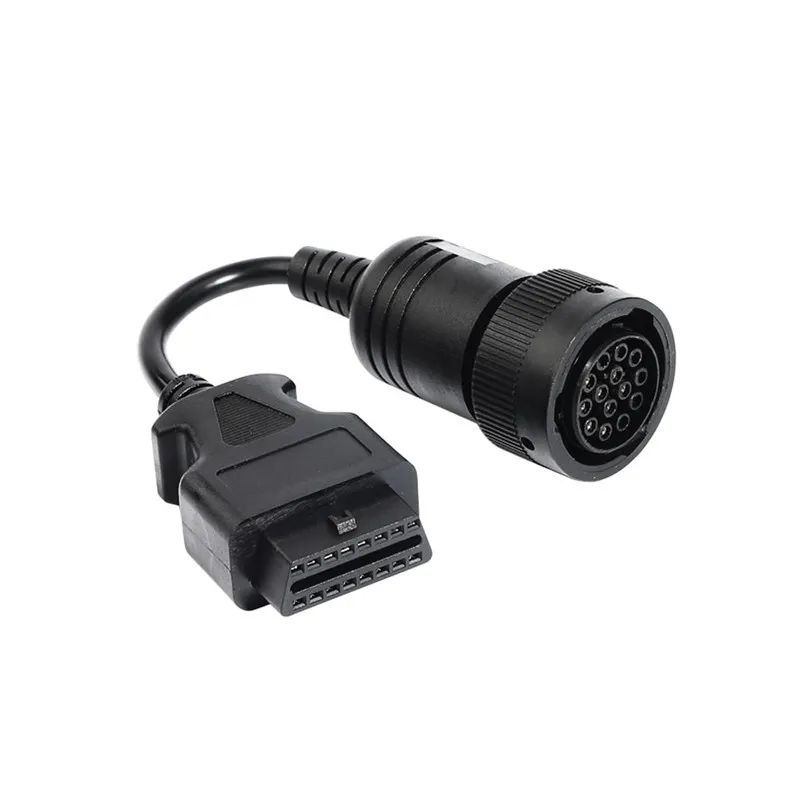

5.14PIN Cable(for new truck)(Option)
6.6PIN Cable(for old truck)
7.WIFI adapter

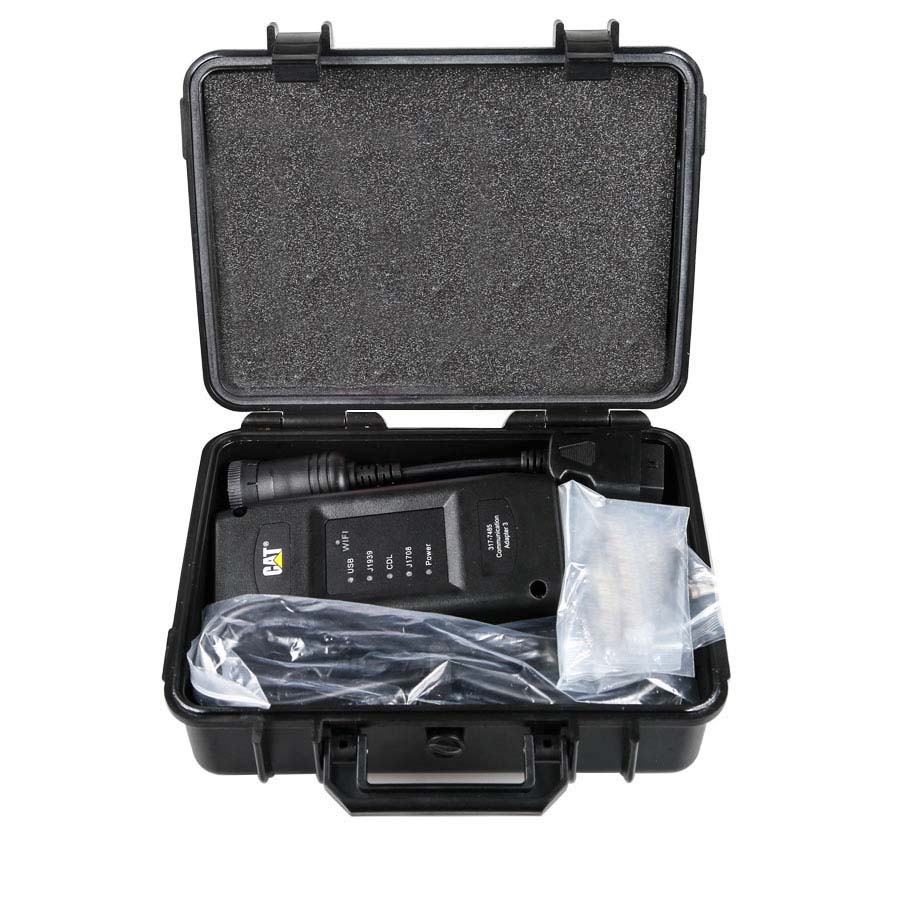

8.Plastic box

Option 2:
Package including:
1.CAT et3 Comm Adapter III
2.2PC x USB Cable(From device to your computer)
3.J1939/J1708 9PIN Cable
4.2023A software DVD
5.14PIN Cable(for new truck)(Option)
6.6PIN Cable(for old truck)
7.WIFI adapter
8.Plastic box

Option 3:
Package including:
1.CAT et3 Comm Adapter III
2.2PC x USB Cable(From device to your computer)
3.J1939/J1708 9PIN Cable
4.2023A software DVD
5.14PIN Cable(for new truck)(Option)
6.6PIN Cable(for old truck)
7.WIFI adapter
8.Plastic box

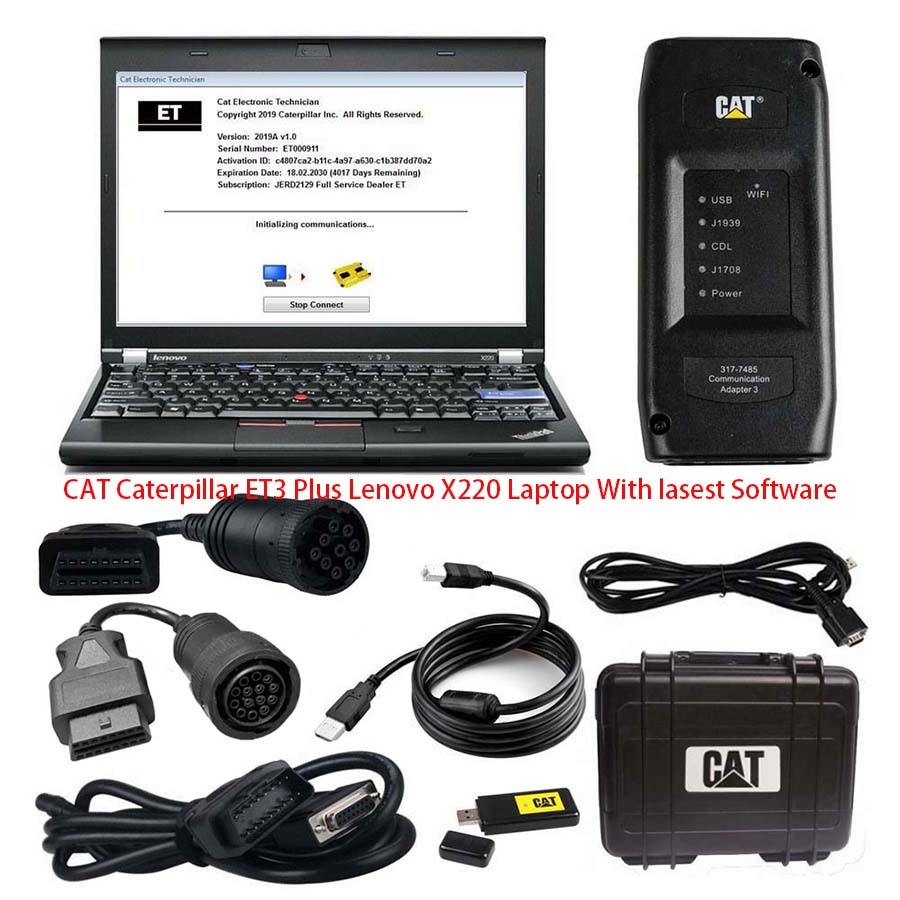

9.1pc x Second Hand Laptop Lenovo X220 Laptop (Software installed and activated well ready to use)

The Second Hand Lenovo X220 Laptop:
Brand: Lenovo
Screen Size: 12.5
Memory: 4GB
Memory (RAM): Intel(R)Core(TM)I5 CPU
Type: Laptop/Notebook
Condition: Used
Processor Speed: 2.53GHz

Option 4:
Package including:
1.CAT et3 Comm Adapter III
2.2PC x USB Cable(From device to your computer)
3.J1939/J1708 9PIN Cable
4.2023A software DVD
5.14PIN Cable(for new truck)(Option)
6.6PIN Cable(for old truck)
7.WIFI adapter
8.Plastic box

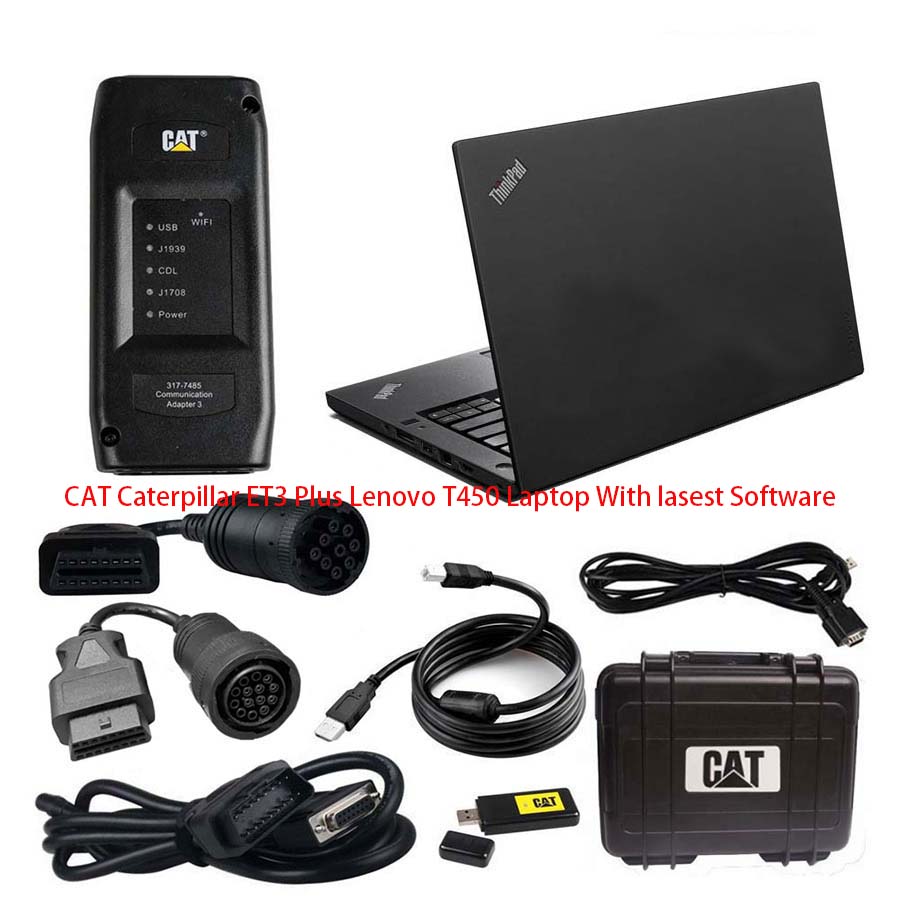

9.1pc x Second Hand Laptop Lenovo T450 Laptop (Software installed and activated well ready to use)

The Second Hand Lenovo T450 Laptop:
Specification:
Brand: Lenovo
Condition: Used
Type:Laptop/Notebook
Screen Size:12.5
Processor Type:Intel (R) Core(TM) I5-5200U CPU
Memory: 8GB

Option 5:
Package including:
1.CAT et3 Comm Adapter III
2.2PC x USB Cable(From device to your computer)
3.J1939/J1708 9PIN Cable
4.2023A software DVD
5.14PIN Cable(for new truck)(Option)
6.6PIN Cable(for old truck)
7.WIFI adapter
8.Plastic box

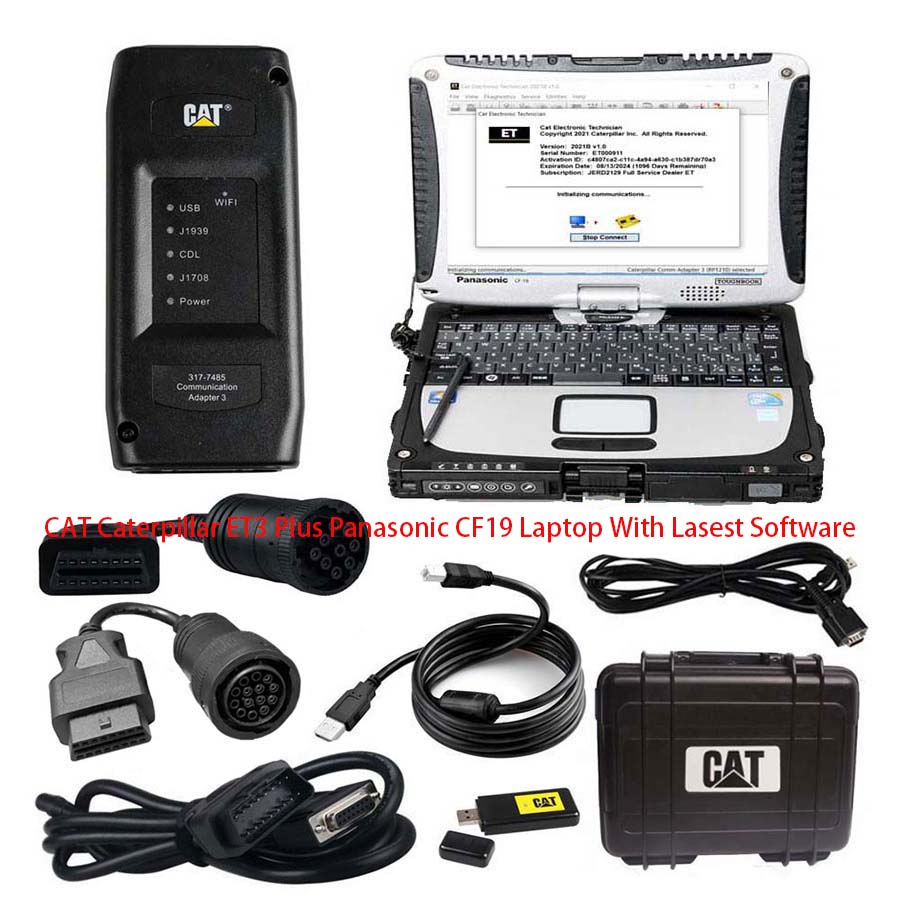

9.1pc x Second Hand Panasonic CF19 Laptop(Software installed and activated well ready to use)

Second Hand Panasonic CF19 I5 4GB Laptop:
Model No: CF-19
Processor Type: Intel(R) Core(TM)I5 CPU i5-3320
Memory Size: 4096 MB
Available Memory: 3893 MB
Condition: Used

Option 6:
Package including:
1.CAT et3 Comm Adapter III
2.2PC x USB Cable(From device to your computer)
3.J1939/J1708 9PIN Cable
4.2023A software DVD
5.14PIN Cable(for new truck)(Option)
6.6PIN Cable(for old truck)
7.WIFI adapter
8.Plastic box

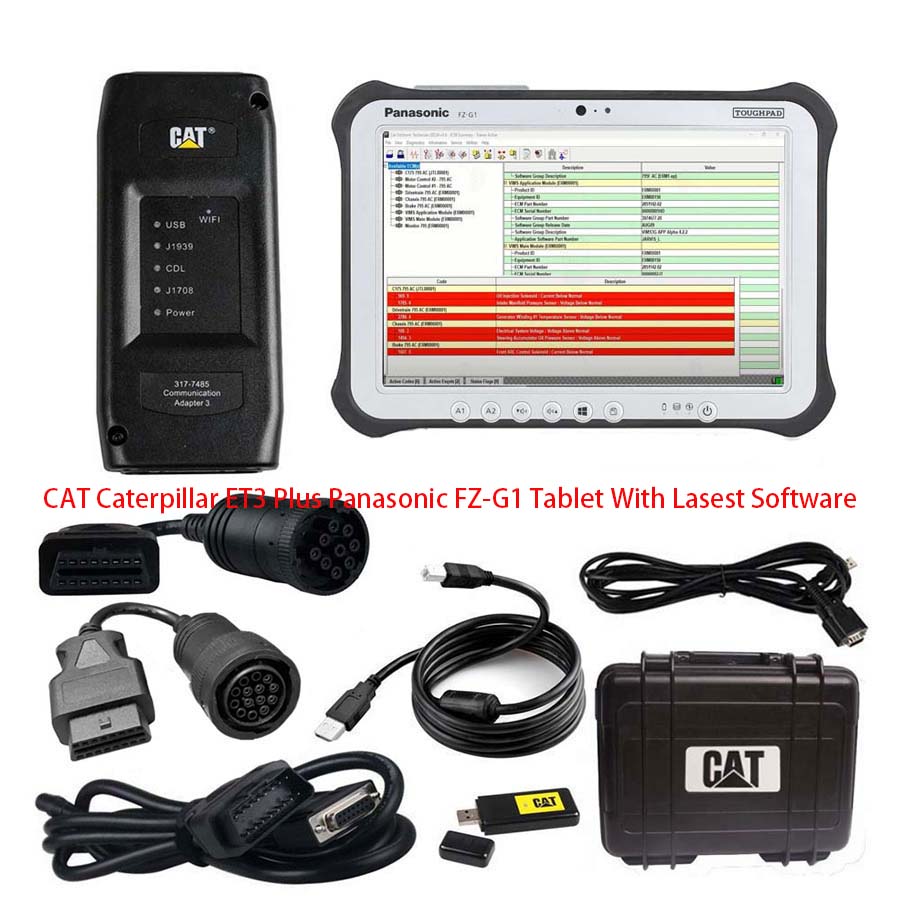

9.1pc x Second-hand Panasonic FZ-G1 I5 4rd generation Tablet(Software installed and activated well ready to use)

Second Hand Panasonic FZ-G1 Configuration:
10.1" HD Screen
Intel Core i5-6300U Processor
8GB Memory
Windows 10 Pro (Refurbished)
Wifi
Display Resolution Maximum 1920 x 1200

What's New - 2022A
Microsoft® Windows™ 11 Compatibility

Service tool testing has been performed and the service tool is compatible with Windows 11.

ECM File Replacement Compare Feature


The service tool now has an ECM Replacement File Compare feature for troubleshooting purposes. This feature allows the user to compare one ECM replacement file with another from within the ECM Replacement feature screen. The feature will highlight the differences between the selected files as a whole or the user may select the “only show differences” checkbox.

Configuration Group Headings on ECM Replacement Feature

In order to help the user find ECM replacement configuration items easier, configuration items in the ECM Replacement, Fleet Configuration, and Product ECM features are now grouped under their group sub-headings, as is done in the main configuration feature.

What's New - 2021C
Feature Protection System Password Copy

The Feature Protection System (FPS) has a new "Easy Copy" link to copy passwords in a single operation. The service tool can automatically obtain the passwords from the clipboard and populate the FPS dialog. The service tool dialog also has a new "Easy Paste" button that allows the user to paste data of the correct format from the clipboard. Passwords can still be pasted using customary copy/paste operations, such as the context menu or the CTRL + V hotkey combination.

Screen Resolution Requirement Update

The minimum requirement for screen resolution has been updated to 1366x768, or at least 1366 pixels horizontally and at least 768 pixels vertically. The recommended screen resolution is at least 1600x1200. The service tool window displays with a minimum size of 1024x680.

What's New - 2021B
End of Support for Windows 8

Microsoft is ending extended support for Windows 8 as of January 2023. The service tool will be ending support for Windows 8 after the 2021C release.

Calibration Images

Images attached to calibration instructions will no longer need to be opened manually to be viewed by a technician. The service tool will now have split user interface windows for calibrations that display pictures. This will allow the technician to see the images without having to navigate away from the instructions. Images may be opened into individual windows and resized for better clarity. The user interface for calibrations that do not display pictures will remain unchanged.

Default PC Browser

The service tool will no longer automatically launch web pages in Microsoft Internet Explorer. Web pages will now launch in whatever application is configured as the default internet browser. Certain web pages require a specific browser and may launch in a different browser.

What's New - 2021A
No significant new features or feature enhancements

What's New - 2020C
No significant new features or feature enhancements

What's New - 2020B
Trainer Update – 299D3

The 299D3 Skid Steer Loader has been added to the Trainer application.

What's New - 2020A
Product Status Report Updates

The Product Status Report has been updated to include throttle configuration information.

Built-in Factory Password Generator

The experimental feature allows you to decode (18-Bit passwords not supported) factory passwords

What's New - 2019C
Indication of Selected Communications Adapter

The service tool now displays the selected communications adapter when the service tool is disconnected. The adapter name is displayed in the status area at the bottom right of the service tool window.
