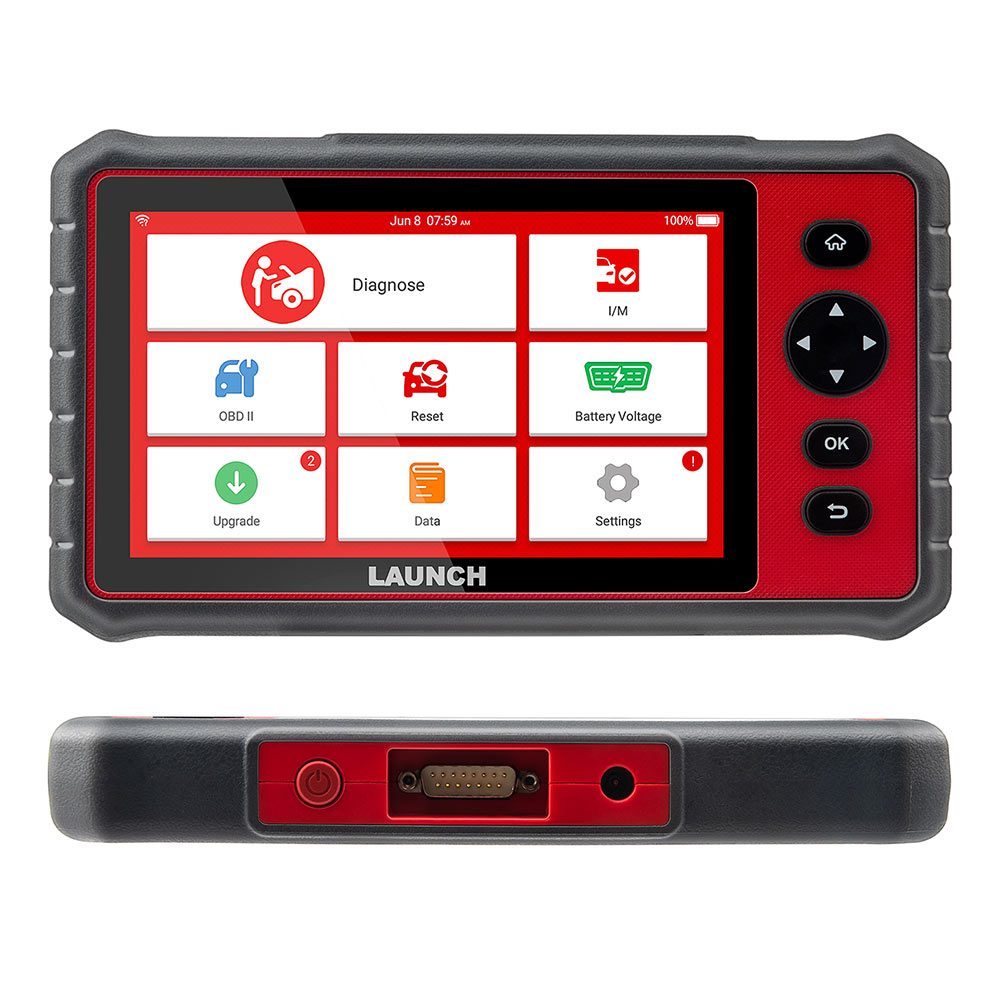

LAUNCH X431 CRP909E Full system OBD2 Car Diagnostic Scanner with 15 Reset services Functions
Top 10 Reasons to Choose Launch CRP909E :
1. 2021 Newest Arrival ALL-IN-ONE LAUNCH CRP909E :
LAUNCH CRP909E Scan Tool is the Newest LAUNCH CRP series product.It’s the first car code reader which can do Full system diagnosis and support 15 special service functions in the world.Quickly generate and store a vehicle Health Diagnostic Report as a reference for vehicle inspection and maintenance.When you have some technical questions, you can share and print the Health Reports in Seconds to friends or mechanic to ask for solutions.
2. LAUNCH CRP909E supports All System Diagnostics :
LAUNCH CRP909E full system car code is a powerful car scan tool.It can read/clear codes,Text & Graph Live data for all vehicle systems including Engine,Transmission,Chassis and Safety control system,Body control system,Communication and Entertainment system .
3. LAUNCH CRP909E supports 15 Maintenance&Reset Function :
Reset function of Oil Lamp,EPB,DPF,SAS,TPMS,Sunroof,Suspension,
Gearbox,AFS.And do BAT service,IMMO Key Programming,ABS Bleeding,Injector Coding,Throttle Adaptation,Gear Learning.
4. Launch CRP909E supports AutoDetech VIN One-Click I/M checking , One-Click Battery Health test and Remote Technical support function.
5. LAUNCH CRP909E is with 9 Languages Supported :
English, French, Spanish, Russian, Japanese, German, Italian, Portuguese, Korean.
6. LAUNCH CRP909E is with Wide Vehicle Coverage :
LAUNCH CRP909E automotive car scanner can work onover 57 car brands,over 10000+ carsin the world,including Asian,European,American,Australian,Malaysia,Japan,Korea,Russia car brands.This scanner compatible with OBDII,EOBD and JOBD protocols and also supports cars whichmade in 2018/2019/2020.Can work on 12V passenger cars,pickup and light trucks

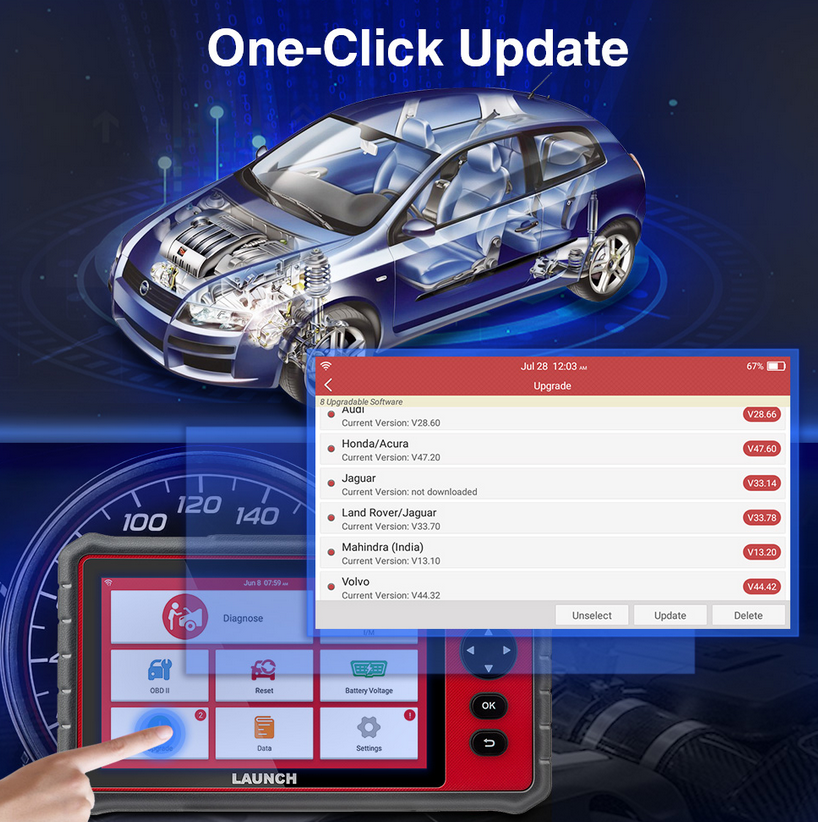

7. LAUNCH CRP909E supports One-Click WiFi Update and 5 years warrnty !

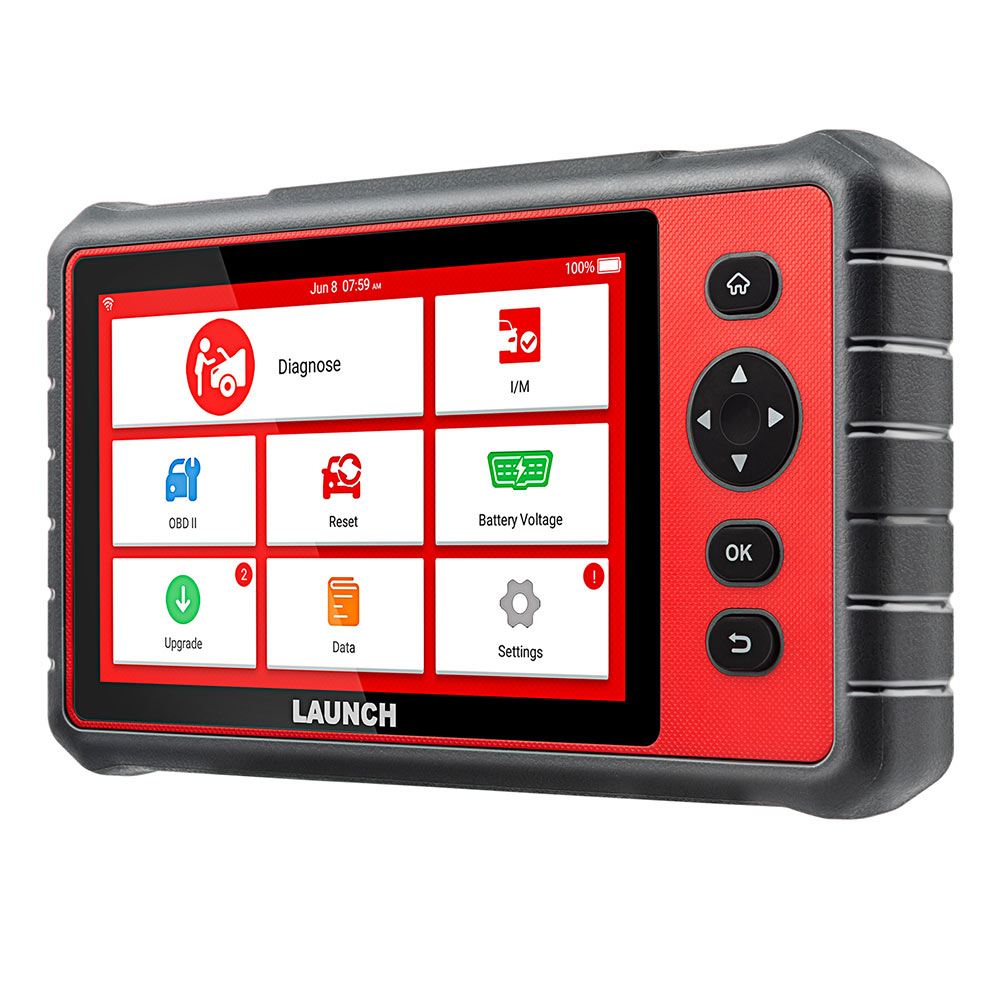

8. LAUNCH CRP909E is with Android 7.1 systems + 7inch HD Screen + 6000mAh battery .
7.0 inch IPS capacitive touch screen,a bigger,brighter Screen,let you "deep dive" into Tons of live data PIDs.
Longer Battery Life:Equipped with 6000mAh rechargeable lithium battery, longer running and standby time.

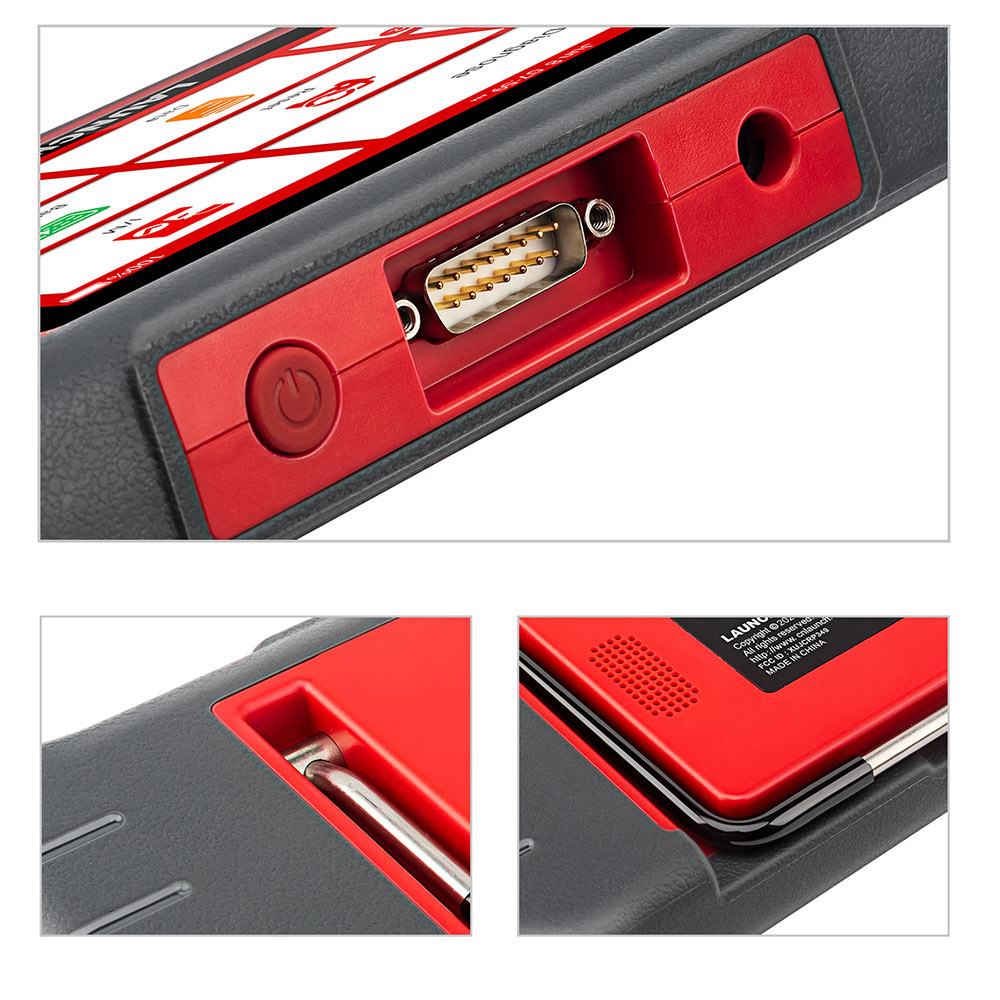

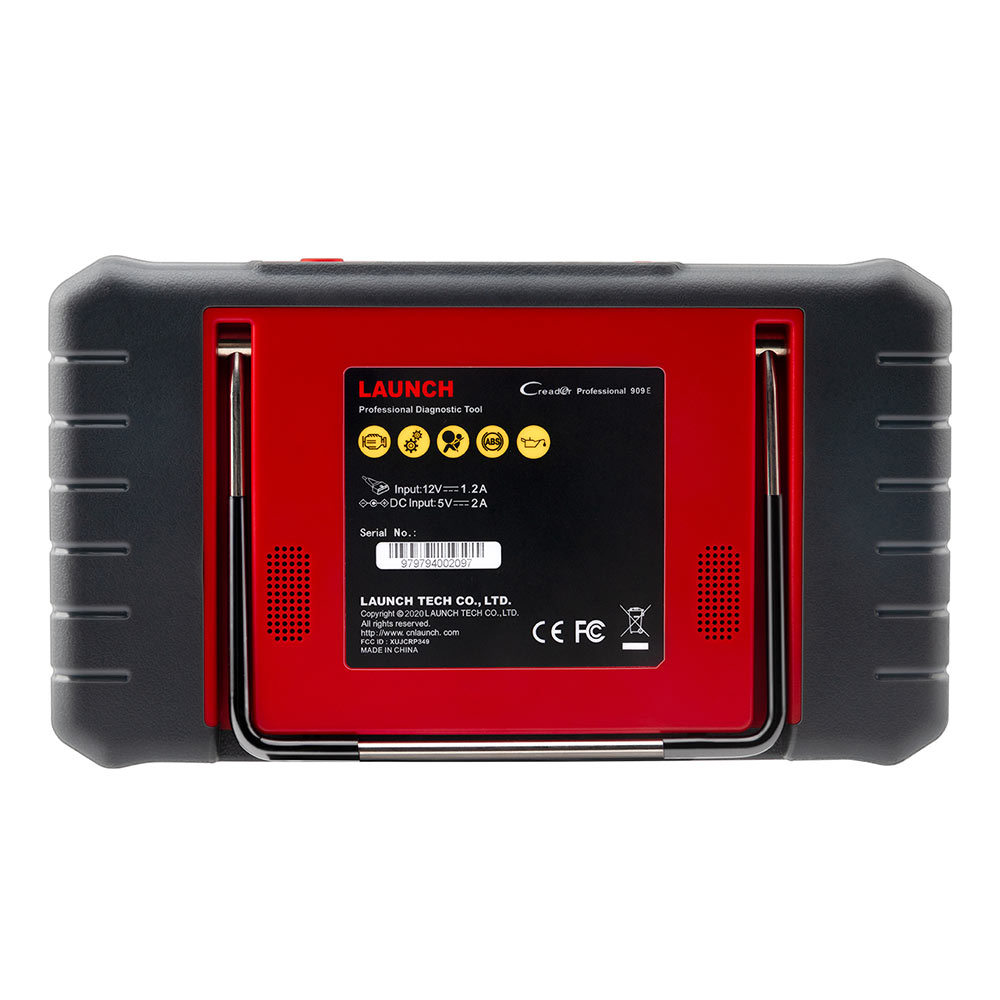

9. LAUNCH CRP909E is with Stent Design, it is better to you put it in the tabel to operate , also can hang it if your hands do not free to take it !

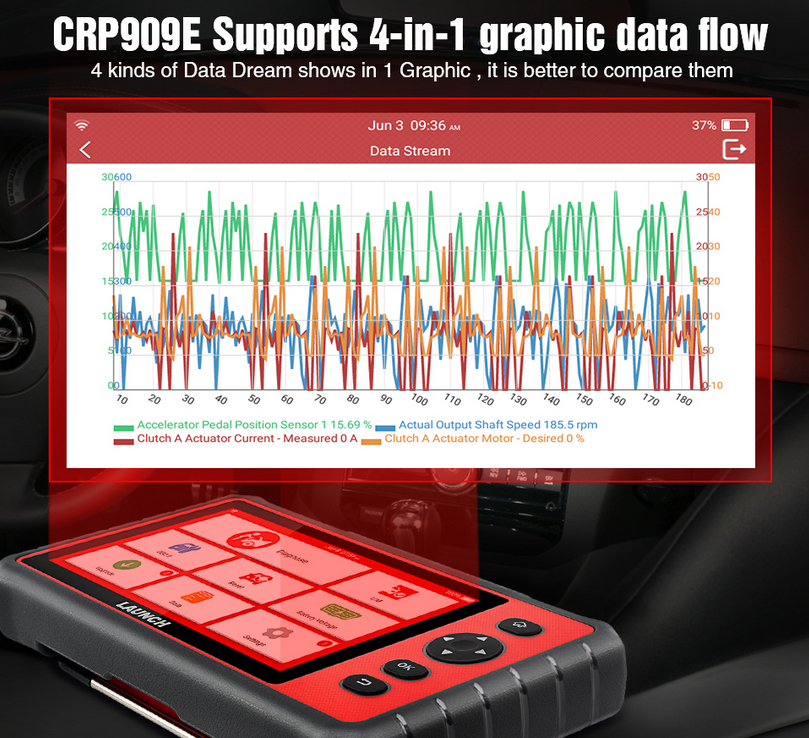

10. LAUNCH CRP909E Supports 4-in-1 graphic data flow :
4 kinds of Data Dream shows in 1 Graphic , it is better to compare them .
Thanks to the LAUNCH CRP909E Scan tool,you don’t need to rely on the mechanics or auto repair shop, you can be the mechanic of your family ,Which is a great money saver for your family
Introduction:
LAUNCH X431 CRP909E Car Diagnostic Tablet is an newest evolutionary Android smart solution for 12V passenger car,light duty,pickup truck diagnosis & maintenance.Covering more than 57 car brands.it's design for car repair garage,car beauty service parlors, auto mechanic and DIY car owners auto scanner . This CRP909E OBD2 Scanner support All systems Diagnoses, All OBD-II functions,15 Reset All OBD-II functions.

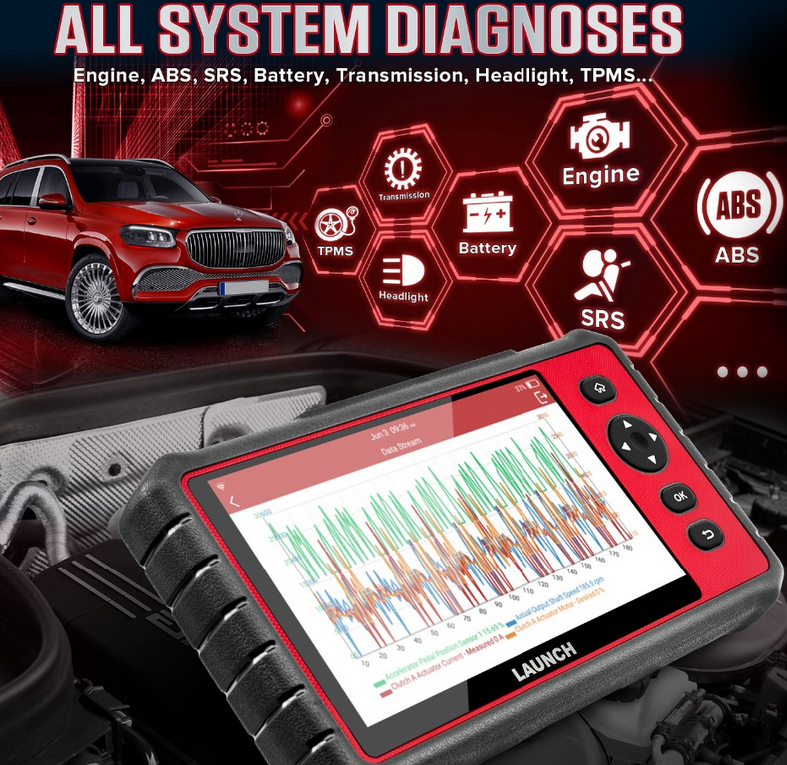

LAUNCH X431 CRP909E Support Diagnose Car Full System
This option allows you to detect whether the system parameters are normal or not.It mainly including Drive System, Chassis System, Body System, Electrical system. Read and erase codes for all available systems, turn off MIL light (Indicator light), display live data in text, graph & analog for easy data review.
1.PCM(Drive System): Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more...
2. Chassis System:Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more...
3.BCM(Body System):SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition.Electric Windows, Telephone, and more...
4.Electrical SystemIncluding Centralized control system for engine and power transmission, Chassis integrated control and safety system,Intelligent body electronic system,Communication and information / entertainment system.

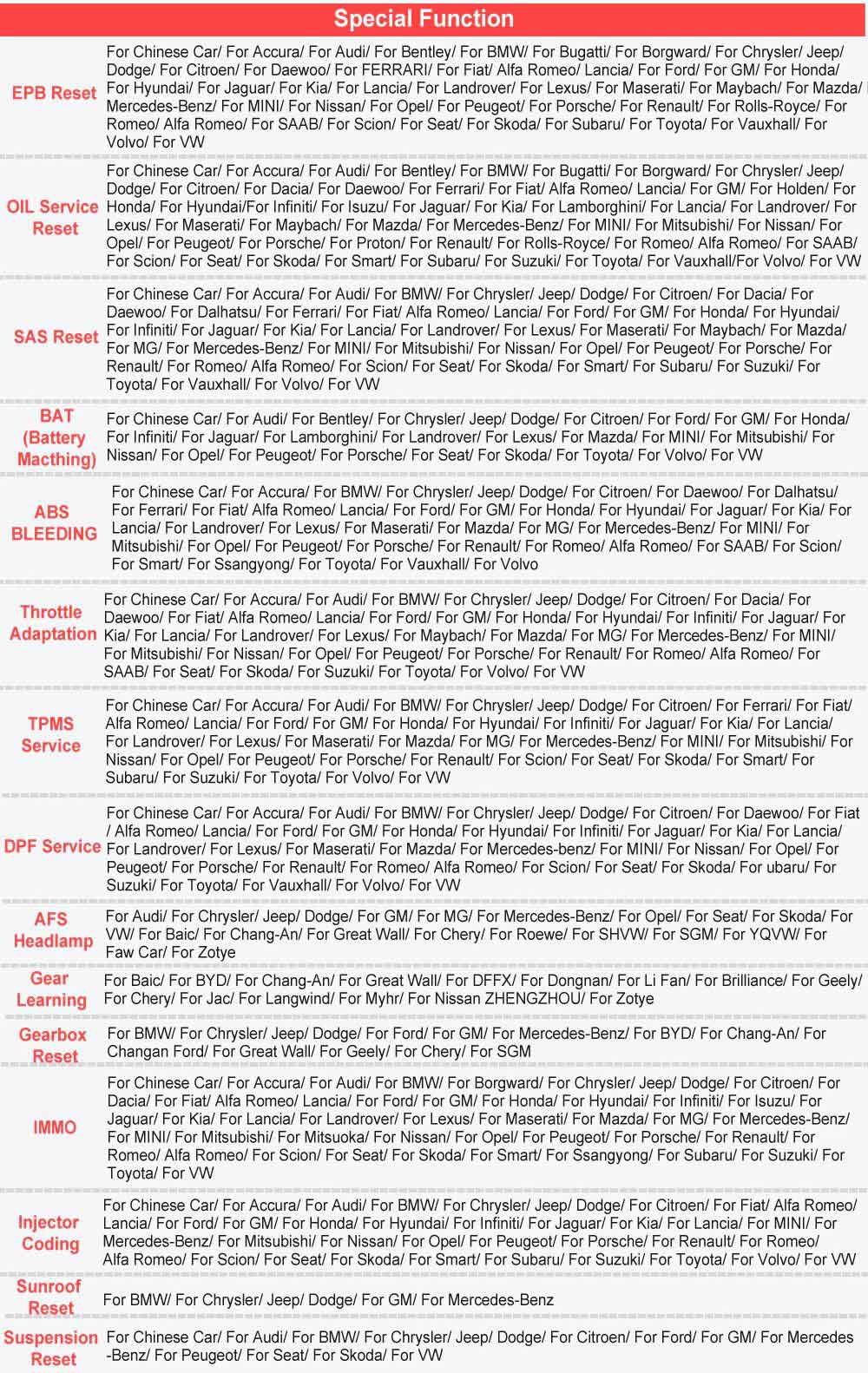

LAUNCH CRP909E Support Below 15 Kinds Maintenance Functions:
In addition to amazing & powerful diagnostic function, CRP909E also features various service functions. The most commonly performed service functions contain：
1.Oil Lamp Reset Service
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
2.EPB Electronic Park Brake Reset
It is important in the maintenance of electronic braking system's safety and efficiency.
3.BAT battery service
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
4.DPF Diesel Particulate Filter Reset
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
5.SAS Steering Angel Sensor Reset
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
6.TPMS Tire Pressure Monitoring System Reset
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
7.IMMO Key Programming
The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.
8.ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.
9.Sunroof Reset
The sunroof needs to be reset when the sunroof control unit have communication problem or changed.
10.Suspension Reset
Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.
11.Gearbox (Transmission )Reset
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.
12.AFS Headlamp Reset
'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.
13.Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.
14.Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.
15.Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.
Full 10 Mode OBDII/EOBD/JOBD Car Diagnostics Functions:
This scanner supports all 10 test modes for OBD-II cars which are great for daily repair work. The table below describes the purpose of each mode of operation:
1.Reading Codes:Show the detailed description of the Diagnostic Trouble Code (DTCs)
2.Erasing Codes & Reset:Turns off Check Engine Light (MIL), clears codes and resets monitors.
3.Data Stream:Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4.I/M Readiness Status:Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5.Read Live Data Stream:Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
6.View Freeze Frame Data:Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7.O2 Sensor Test:Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
8.On-Board Monitor Test:Retrieves and displays test results for emission-related powertrain components and systems.
9.Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10.Component Test:Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
Advance Function of LAUNCH CRP909E
1. Professional Fast Identifies VIN Number:
Once connect with car OBD2 port , CRP909E will AutoDetect car Vin number. Give you a quick access to start the vehicle system detection.

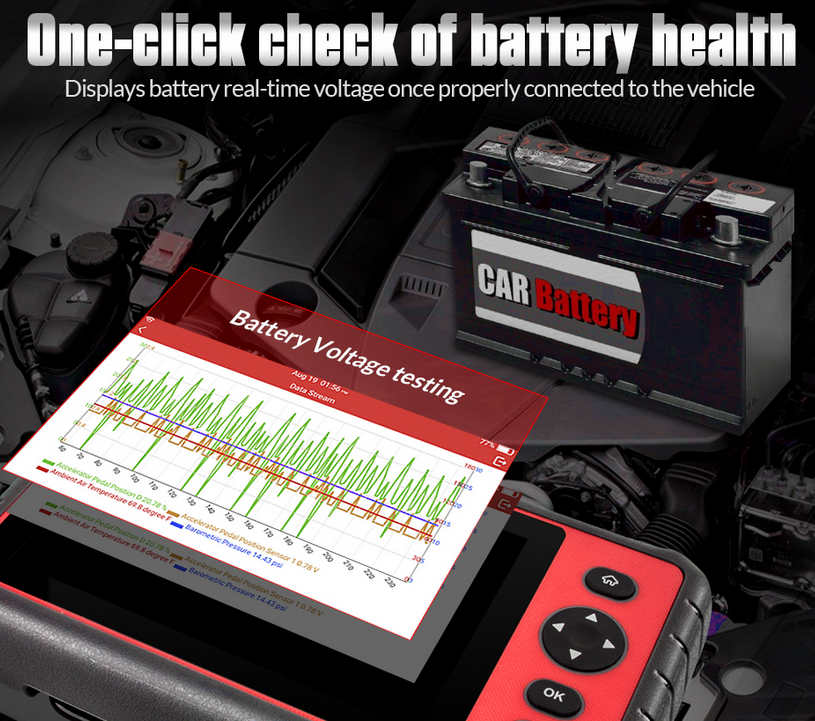

2. Perfect Performs Vehicle Battery Analysis
For 12V car, SUV, Van, Light Truck, Pickup.
Detect real-time data from 12V batteries and display BATTERY DATA with fluctuations ranging from 8V to 16V.
The discharge voltage of a normal battery is about 12V, the starting voltage is generally 12V, and the charging voltage is about 14V.

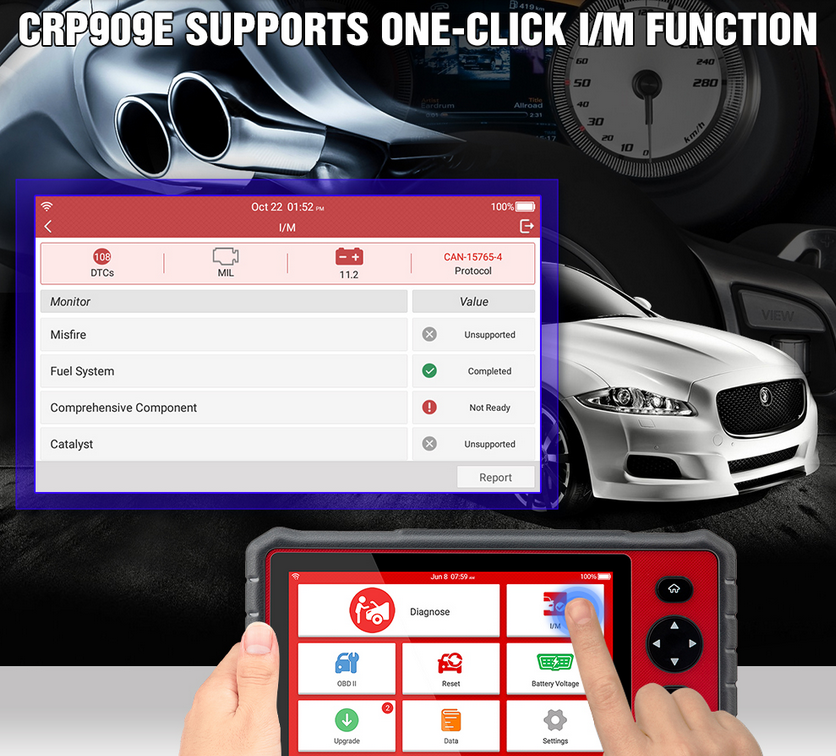

3. One-Key I/M Checking
It support one-key I/M checking for all available emission systems.Help your car pass the emission test simpler.
Deep Dive into Auto Diagnostics with Live Data Graphing, Record, Playback, Sharing.
CRP909E OBD2 scanner can do deep dive into auto diagnostics and also generate the Live Data Stream.
Live Data Stream Graphing provides very detailed data stream data, it could include the change of Accelerator Pedal Position Sensor1 , Actual Output Shaft Speed , Clutch A Actuator Motor , Vehicle Battery and so on. Graphical data allows you to analyze the data changes of each module more clearly and easily, and it is easier to see the problems in it.
Live Data Stream Record allow you to record the live data stream and view the data of a certain point in a targeted manner. So that you can view the data more clearly.
Live Data Stream Playback. After you have recorded the data for a period of time, if you want to view and analyze the data just recorded, you need to use data stream playback function to help you. You can view the data at any time you recorded. Then you can choose " Combine", " Report" and " Record".
Live Data Stream Sharing will let you share any data status and content you want to display anytime, anywhere. You can send it to your friend or mechanic to help you solve complex problems.
One-Click Vehicle Diagnostic Health Report Generate and Share
With Launch CRP909E , you can generate a Vehicle Diagnostic Report by ONE-CLICK,
Health Report will scan all vehicle modules and give you a status list for each modules condition. Also known as “Global Test” or “Full Scan” . You no longer have to worry about potential problems in your car.
System Scan will give you a list of what modules are fitted on the particular vehicle. Let you understand your car more clearly and fully.
System Selection will let you manually enter whatever module you wish to diagnose. In this way, you can not only save the time of diagnosis, but also accurately select the module you want to scan.
Health Report Sharing will provide you the choice to share your health report after diagnosis via WIFI or E-mail. Very convenient and fast, you can share it to your friends or mechanics to analyze the report for you or ask them some questions about it.
Health Report Printing will allow you to print the health report. You can see more clear with it and easy to carry.
Without doubt, this is a super smart scan tool you always need !!!

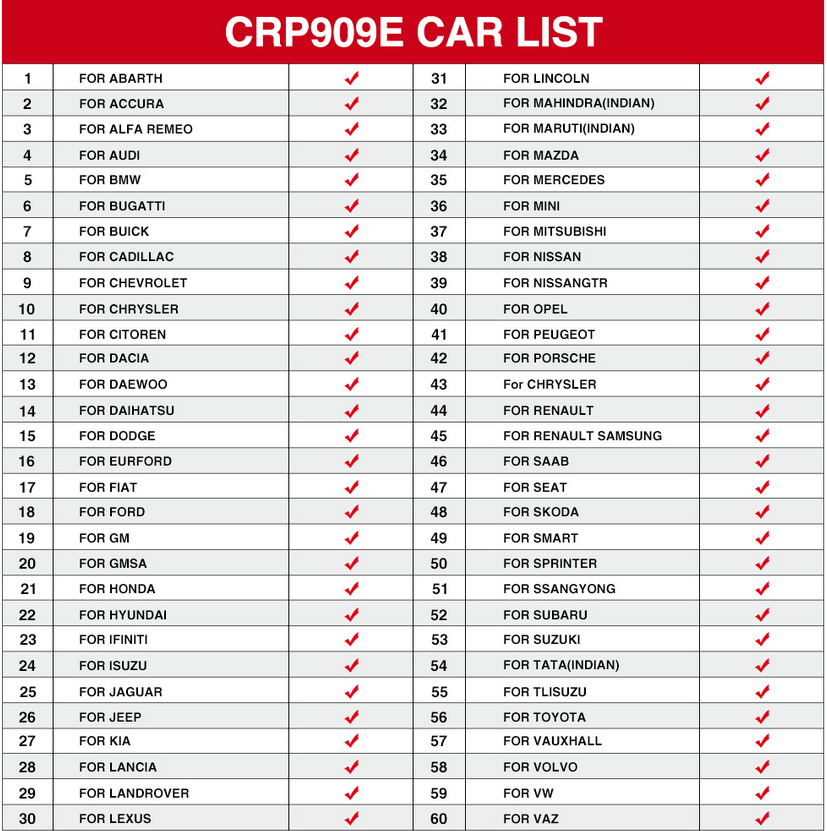

LAUNCH X431CRP909E Car Supported List:
Full System Diagnose Scan car list :
For Abarth, For Accura, For Alfa Remeo, For Audi, For BMW, For Bugatti, For Buick, For Cadillac, For Chevrolet, For Chrysler, For Citoren, For Dacia, For Daewoo, For Daihatsu, For Dodge, For Eurford, For Fiat, For Ford, For GM, For Gmsa, For Honda, For Hyundai, For Ifiniti, For Isuzu, For Jaguar, For Jeep, For Kia, For Lancia, For Landrover, For Lexus, For Lincoln, For Mahindra(Indian), For Maruti(Indian), For Maserati, For Mazda, For Mercedes, For Mini, For Mitsubishi, For Nissan, For Nissangtr, For Opel, For Peugeot, For Porsche, For Renault, For Renault Samsung, For Saab, For Seat, For Skoda, For Smart, For Sprinter, For Ssangyong, For Subaru, For Suzuki, For Tata(Indian), For Tlisuzu, For Toyota, For Vauxhall, For Volvo, For VW, For VAZ
How To Fast Use CRP909E :
Step 1:Choose the area language first , Connect wifi , enter email
Step 2:Download the vehicle brands
Step 3:Connect CRP909E with car use OBD cable , then Diagnose
How to Printer Diagnostic Report of CRP909E :
Step 1:Share the Diagnostic Report via Email
Step 2:Download it from your email to your computer
Step 3:Print it via your computer

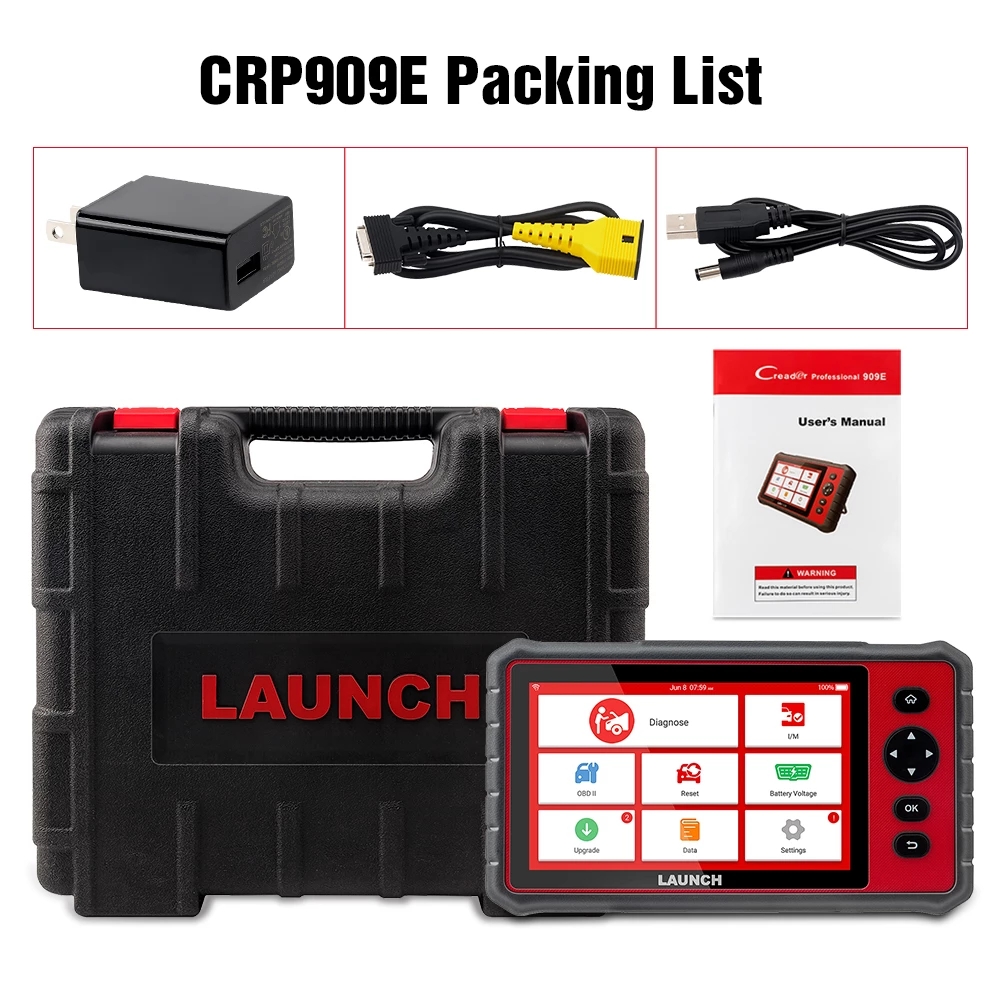

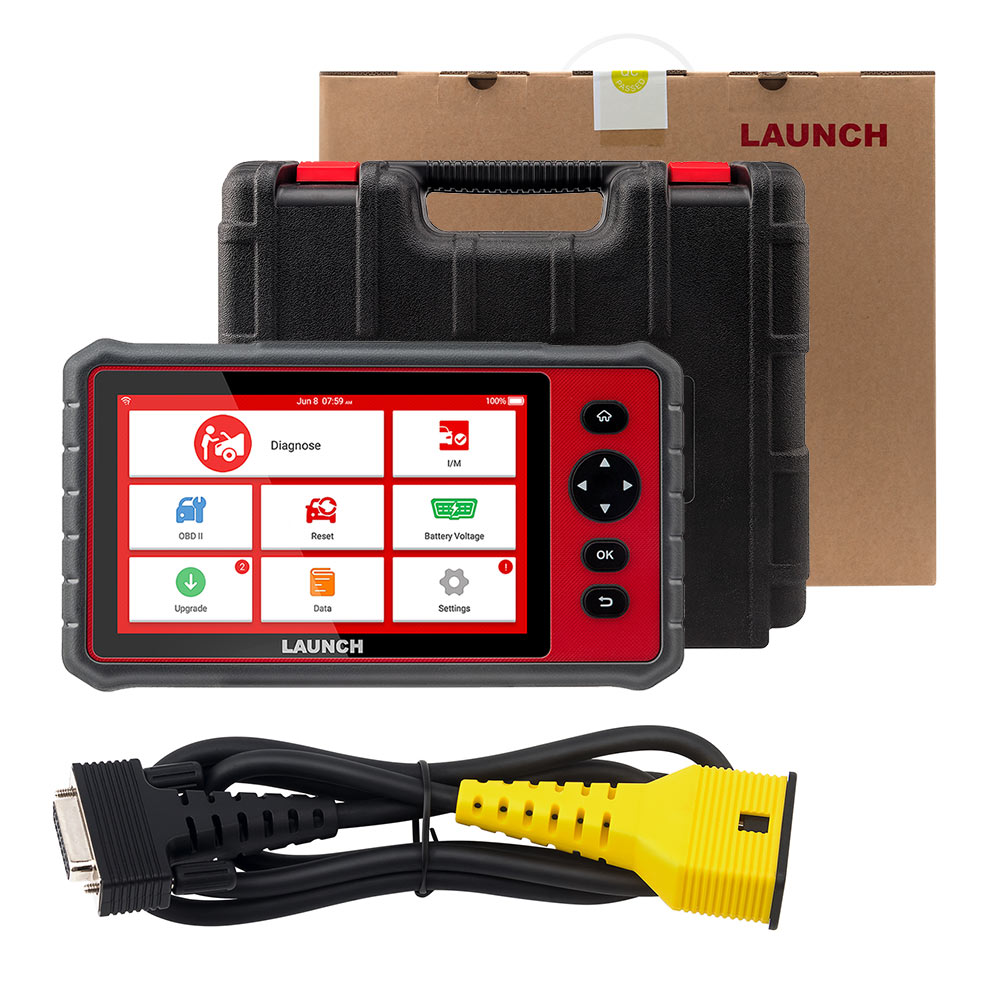

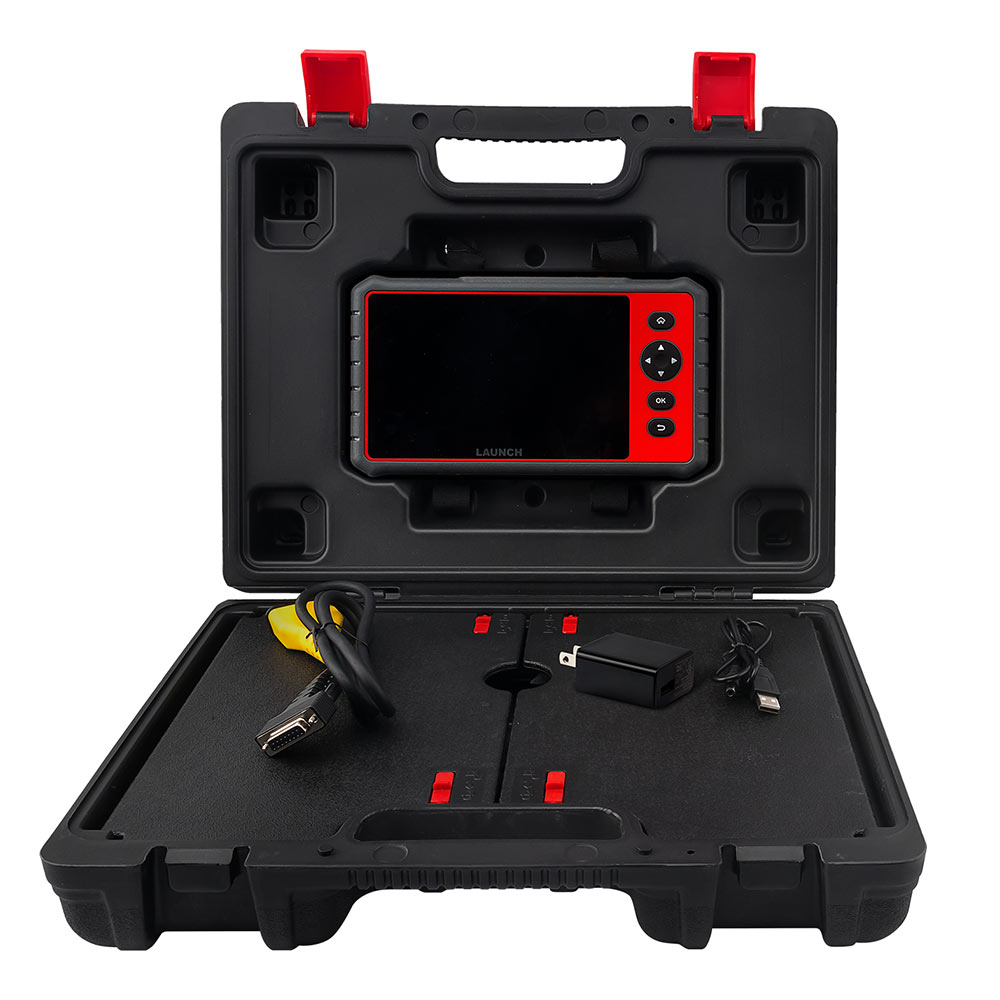

LAUNCH CRP909E Packing List :

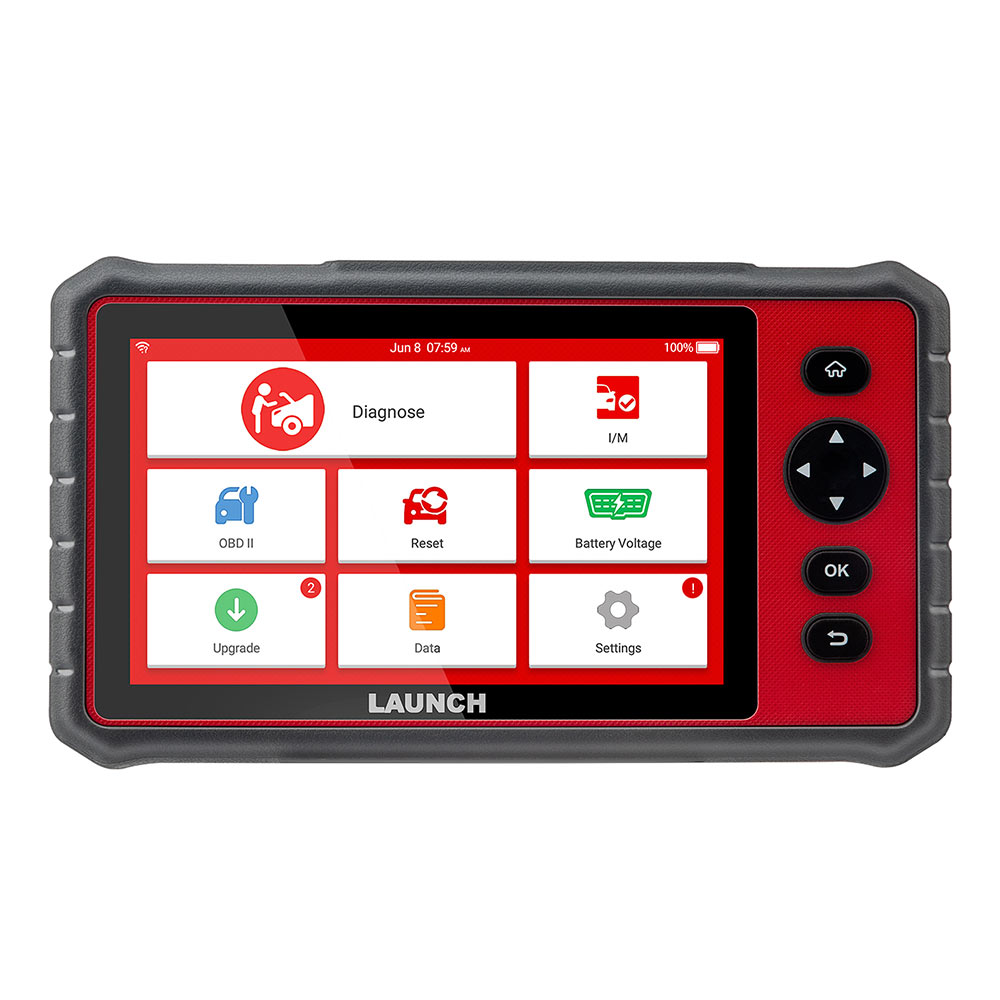

1 * CRP909E Android Tablet

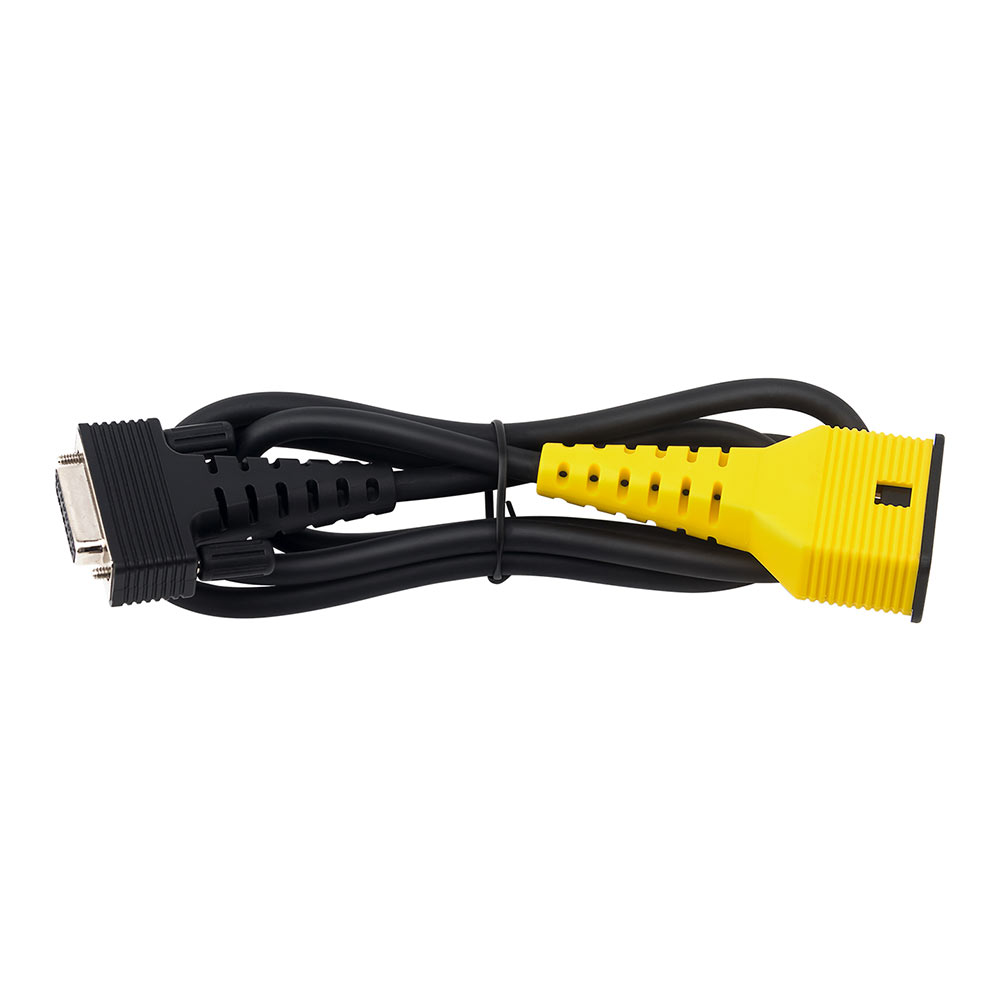

1 * OBD-II Diagnostic Cable
1 * DC Power Charging Cable
1 * User Manual

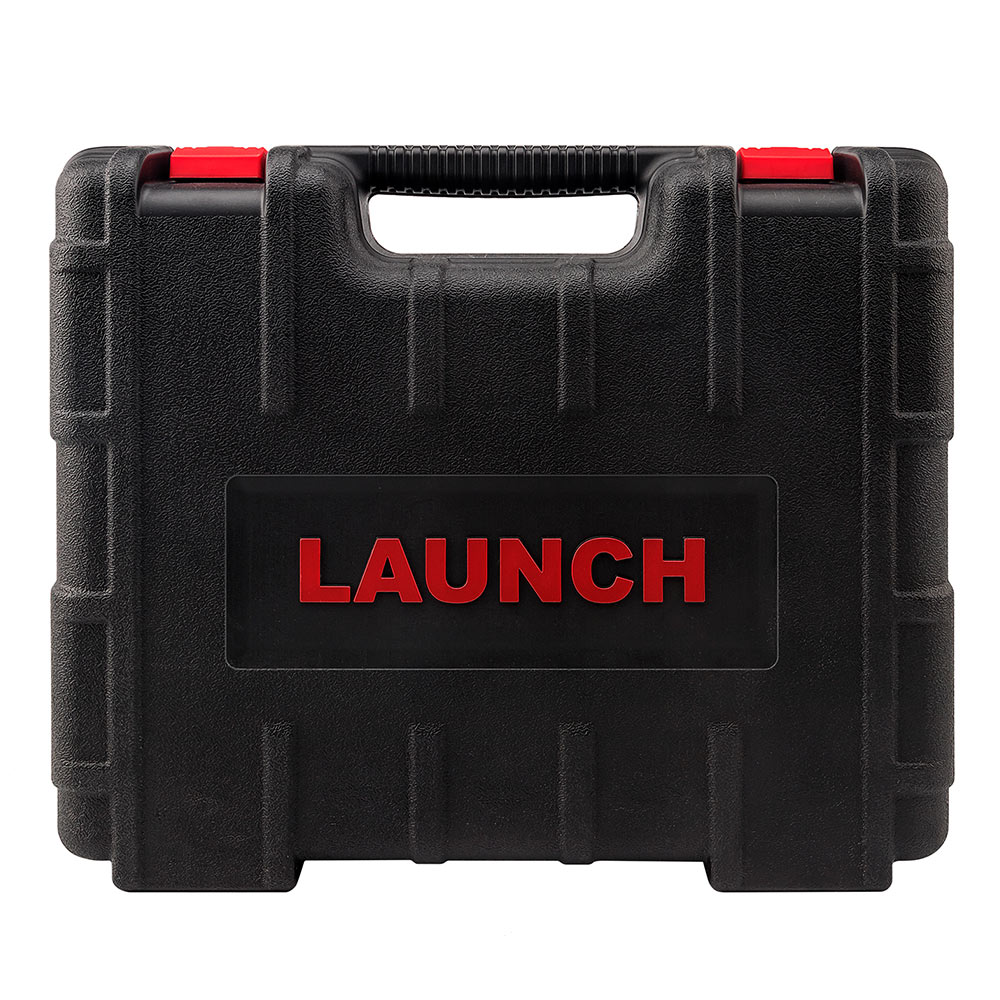

1 * Plactis package
