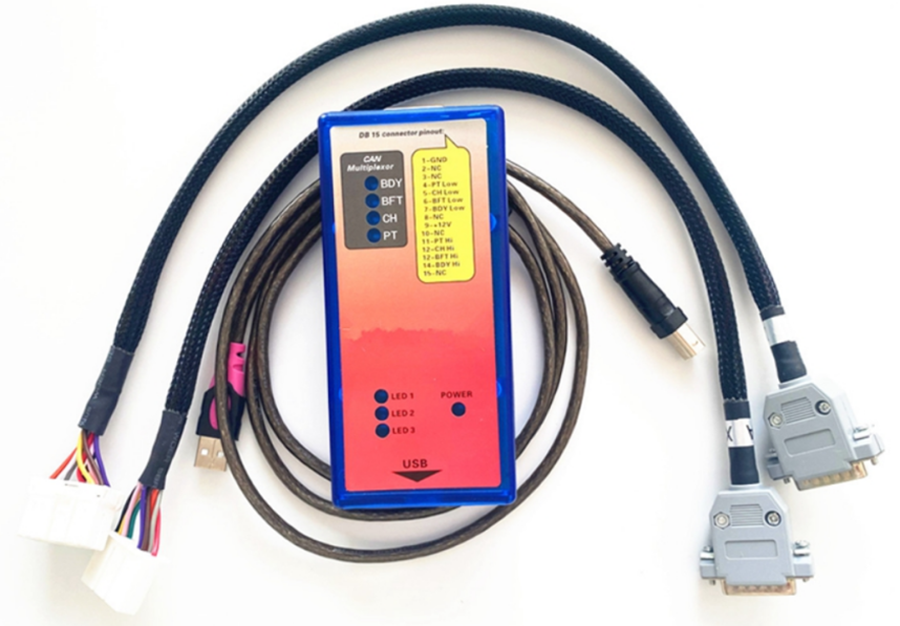

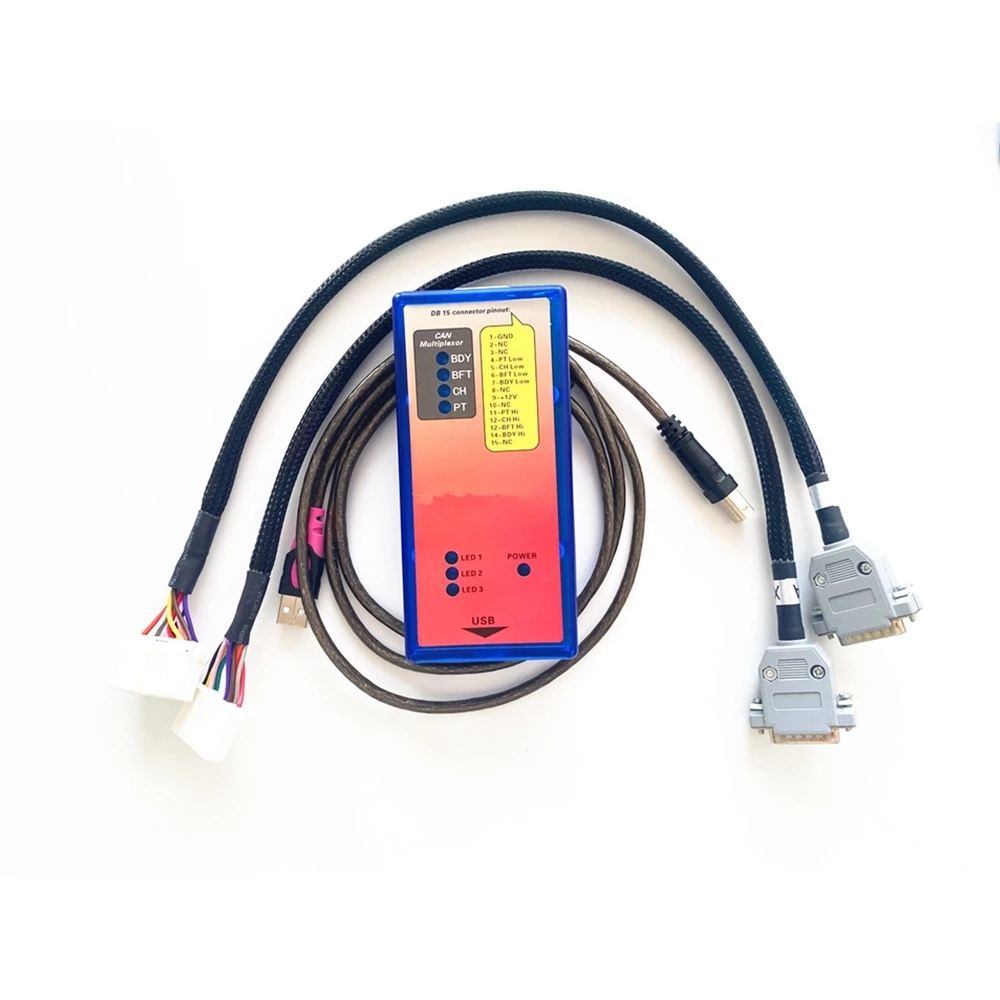

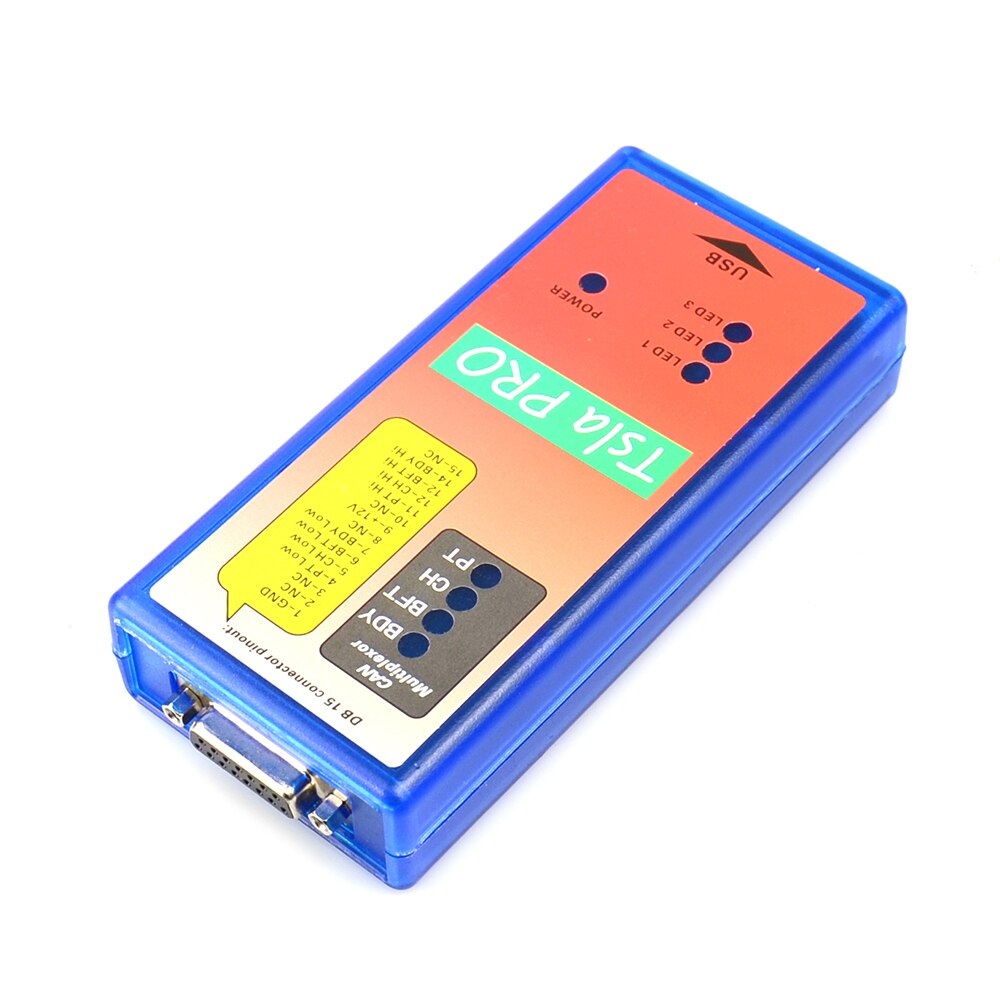

2022 New arrived Tsla PRO scanner Diagnostic and Programming Tool for TESLA S, X, 3
TSLA PRO is the first independent device on the market supporting
diagnostics in TESLA model S, X and 3 so far.
You must be aware that the use of some for Tsla PRO functions in some
countries may be prohibited and against the law.
First of all, what you need to know about the Tsla PRO before work. Tsla PRO:
1.The tool is intended only for qualified personnel!
2.You must be aware of the risk of loss if something went wrong (learn keys or make adaptations of BMS controller or something else)
3.You must have electronic skills which allow you to make adapters yourself and the connection between Tsla PRO and the vehicle's CAN interface.
4.Tsla PRO uses the CAN network to communicate with the ECU. Therefore, you will not have access to firmware, navigation update, configuration because it cannot be done via CAN. All mentioned things do by LAN on IC,CID not via CAN network
TSLA PRO is a young software with small box interface but is constantly being developed.Can help you solve a few problems with the TESLA car.
As so far, for TSLA PRO can work with ECU for TESLA Model S with some function for TESLA Model X and 3

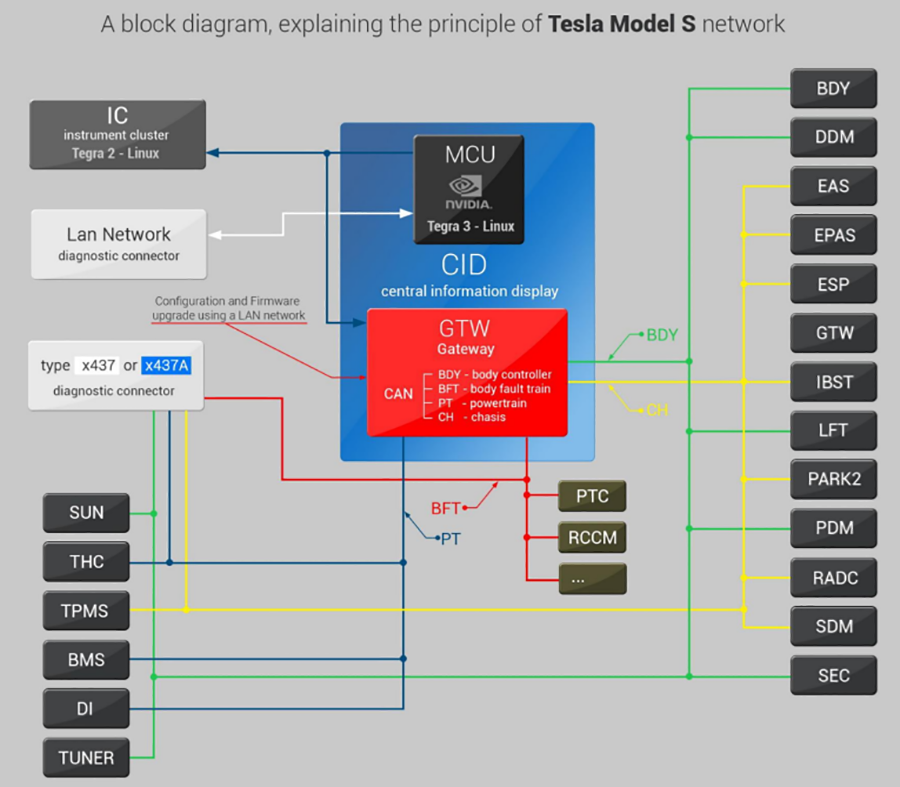

Understanding TESLA network The following diagram of the TESLA “S” network will explain to you what you can use Tsla PROfor.

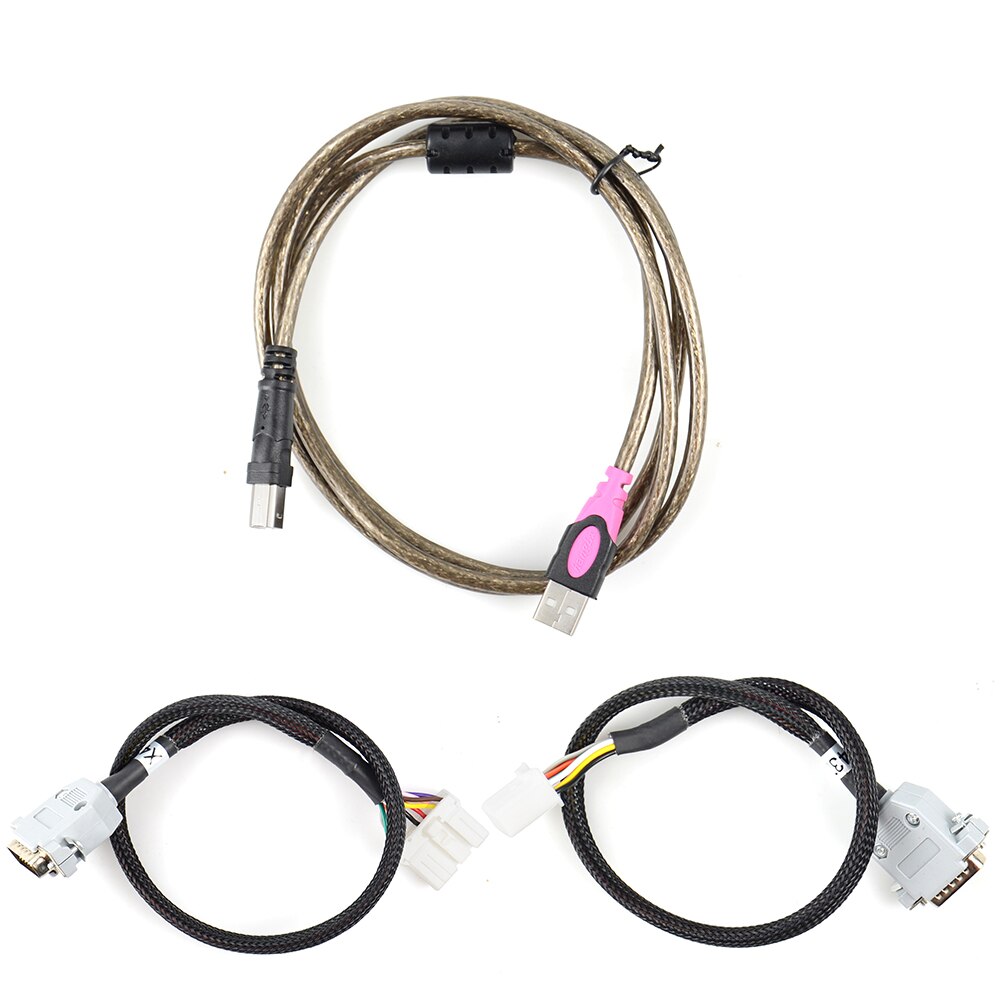

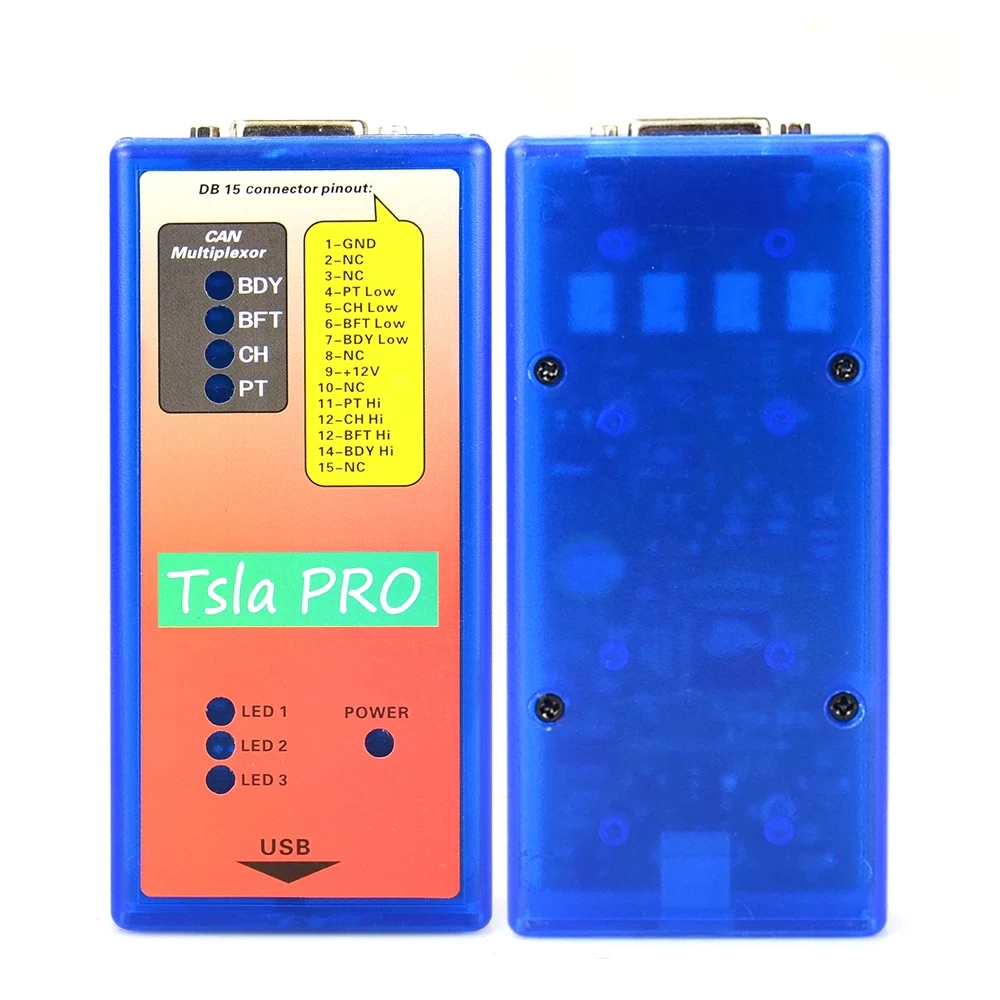

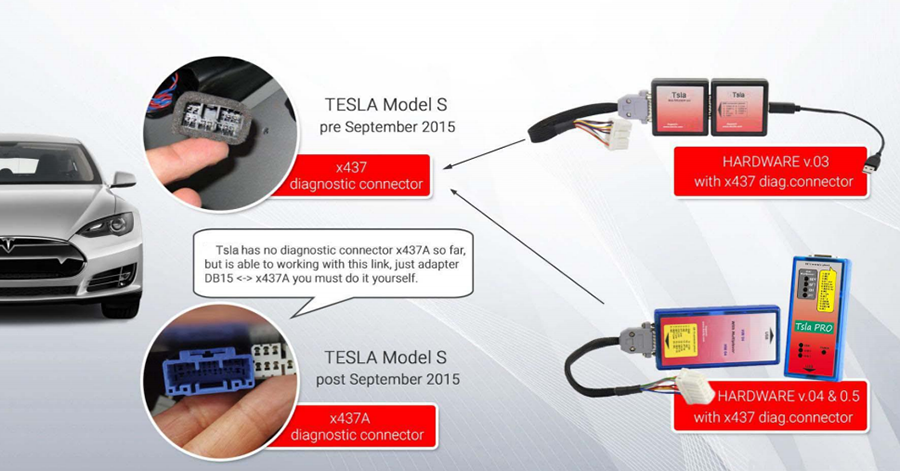

Tsla PRO Diagnostic interfaces Tsla PRO has no diagnostic connector x437A so far, but is able to working with this link, just adapter DB15x437A you must do it

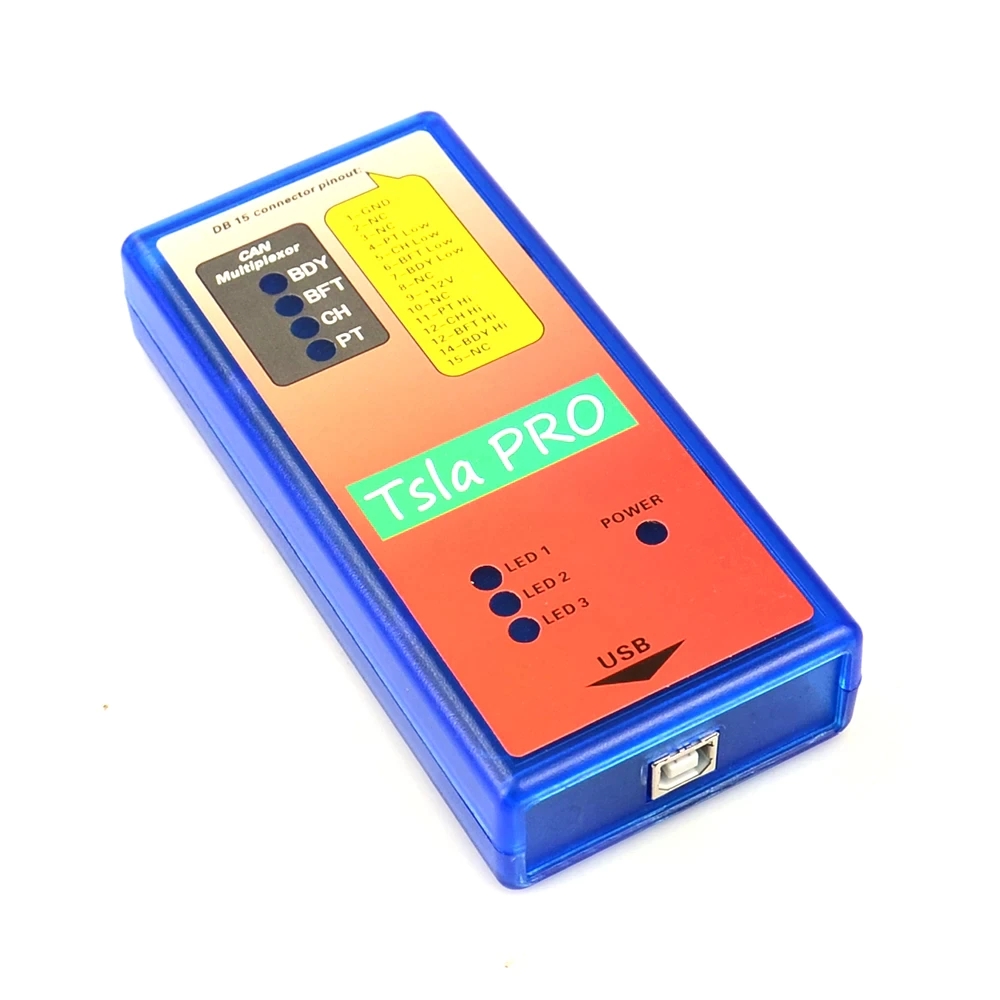

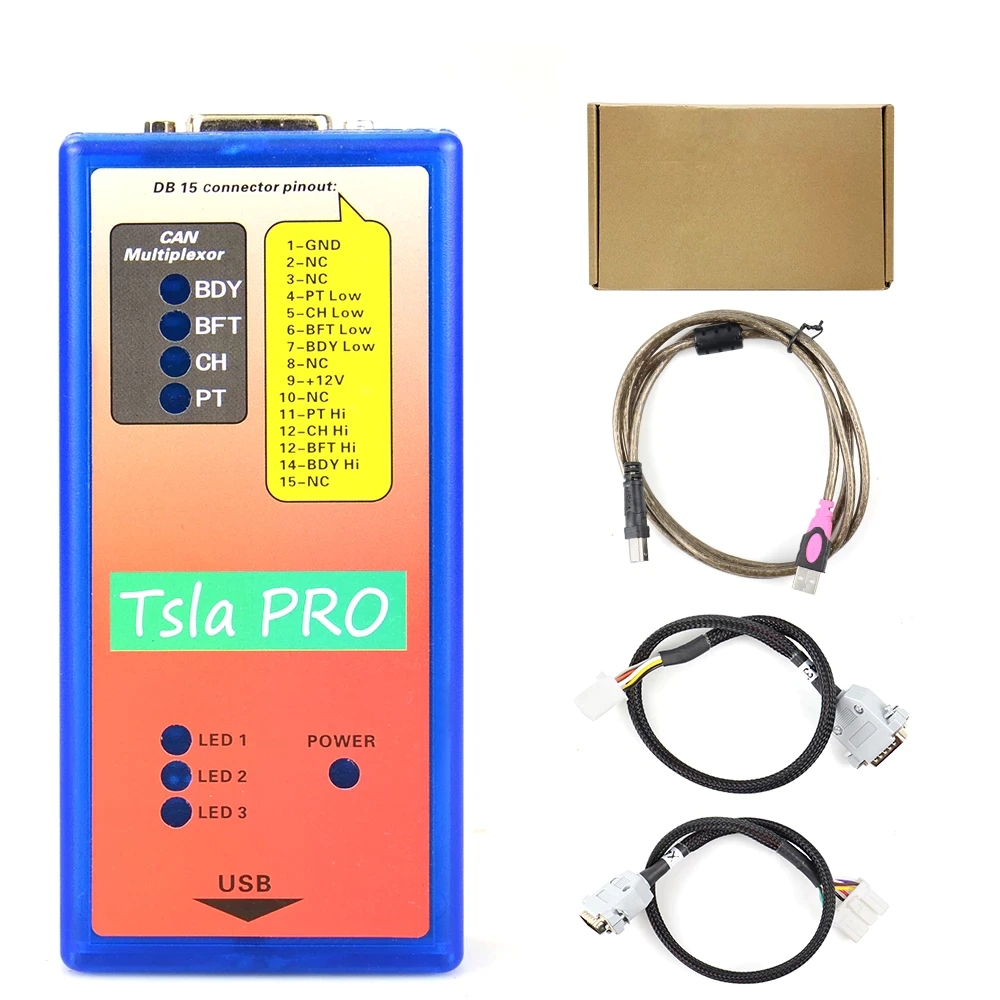

Tsla PRO
Diagnostic and Programming Tool for TESLA S, X, 3

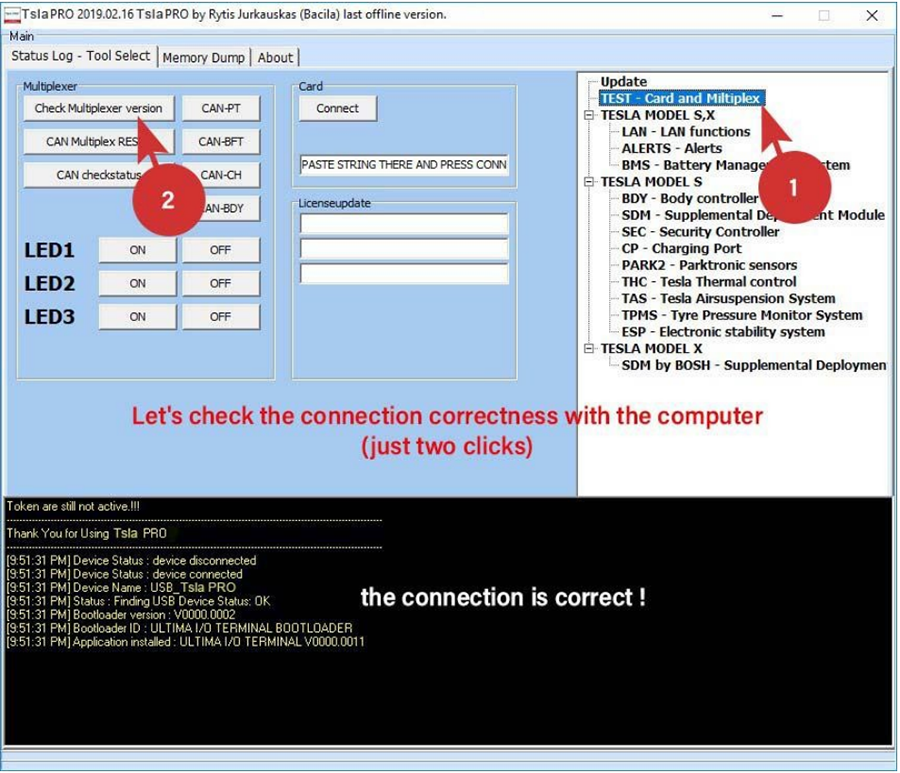

The First Test

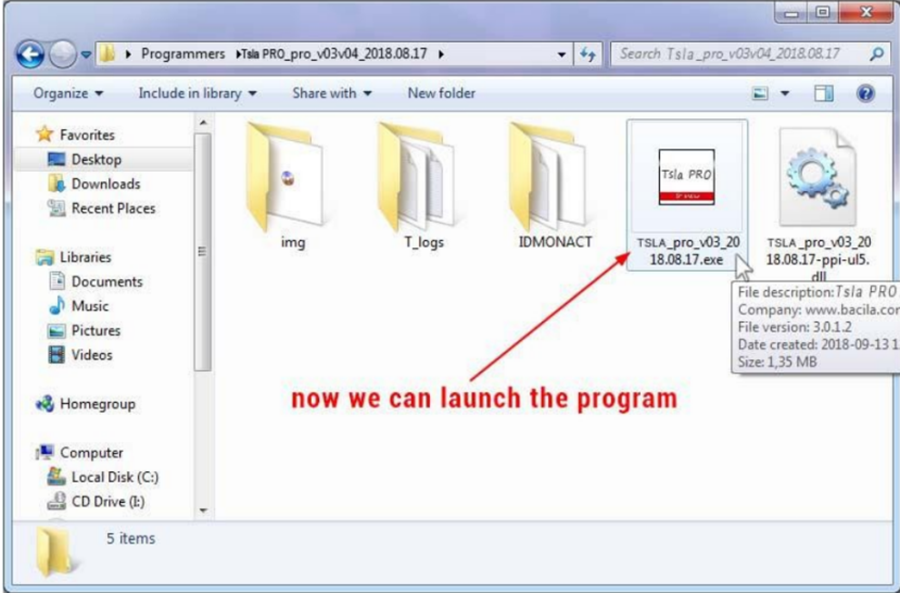

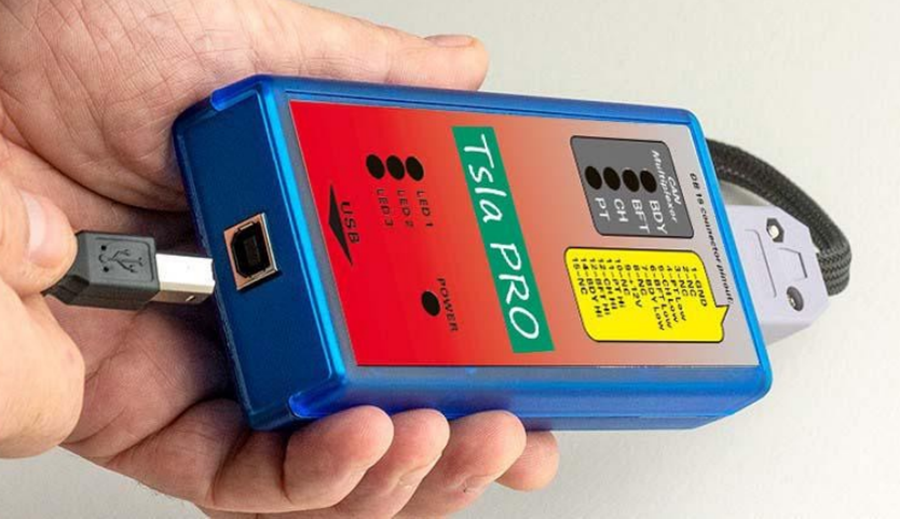

Please attached Tsla PRO to TESLA car now
The Error shown above says that the connection between the Tsla PRO diagnostic tool and the car is incorrect.
Check if the plug is loose and is properly plugged into the diagnostic socket.

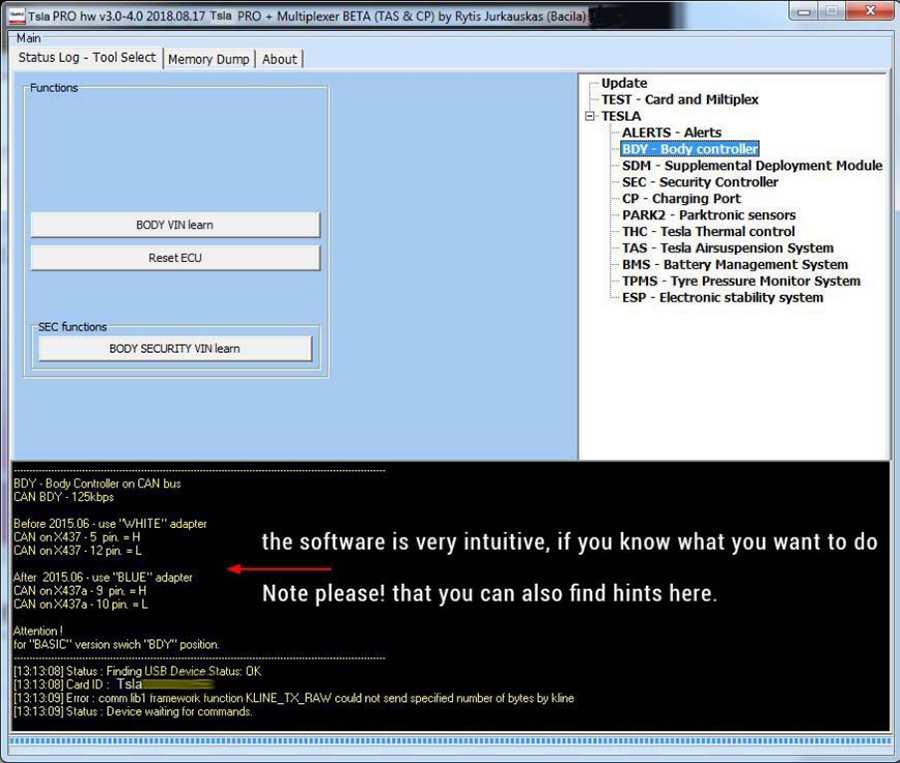

the software is very intuitive
the software is going to be constantly developed, so in the future version you supposed to get more useful information and changes build in
For more detailed function introduction and operation instructions, please see the attachment：
Tsla PRO FOR User Manual

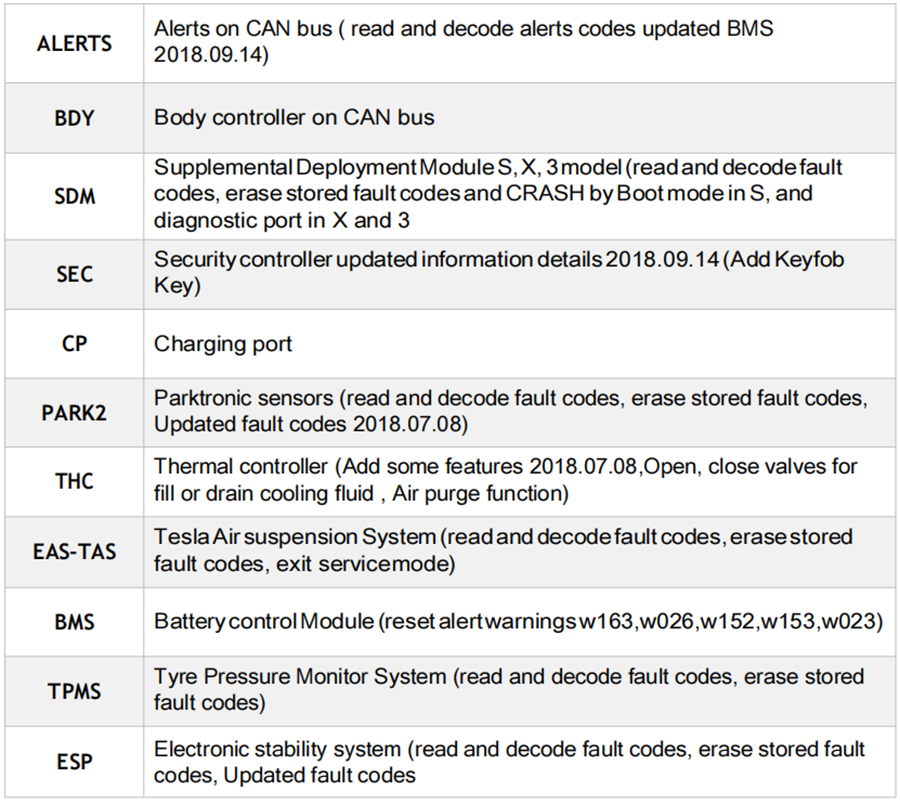

Diagnostic function options：
