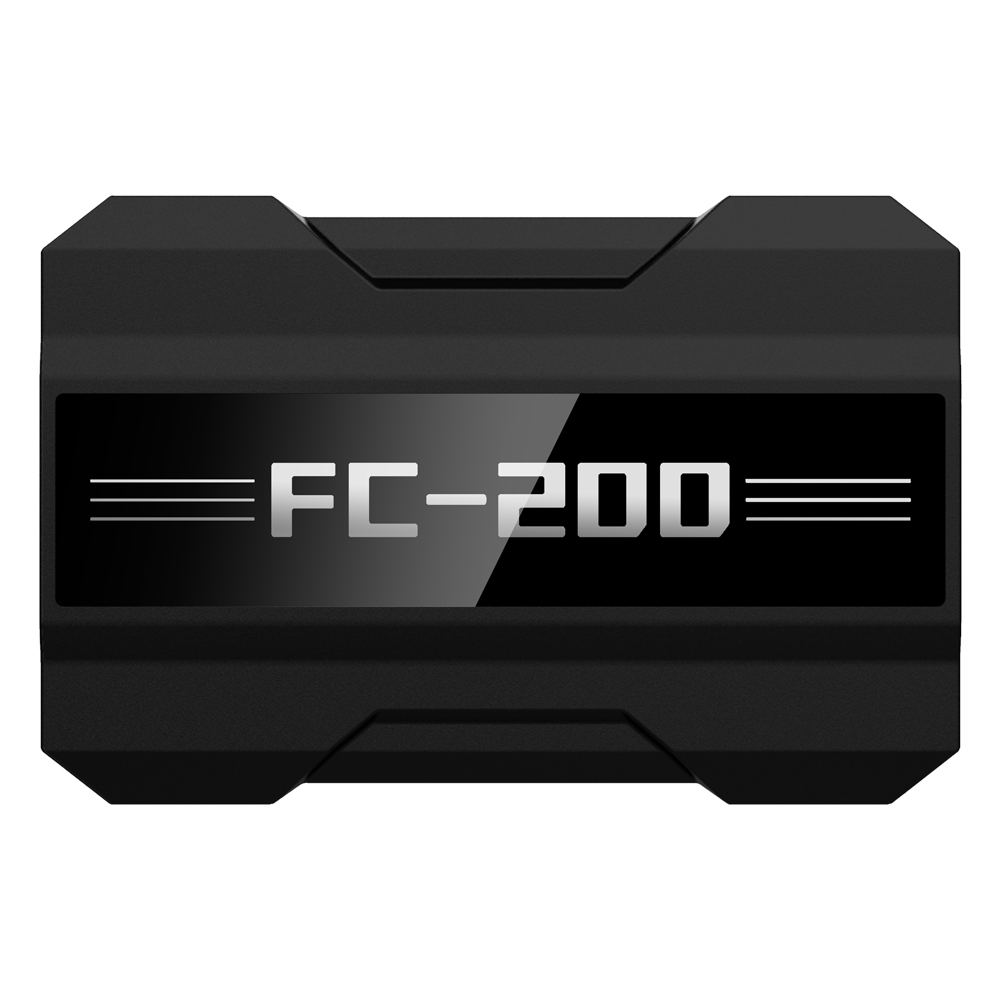

CGDI FC200 ECU Programmer V1.1.7.0 ISN OBD Reader Update Version of AT-200 Supports Calculating Checksum
What is CG FC200?
FC200 ECU programmer is designed for ECU/ EGS clones. Supports data processing, ISN read and write, disassembly matching, VIN modification, and DTC shielding, etc.CG FC-200 ecu programmer is new device which is designed for ECU/EGS clone, supports functions including data reading and writing, ISN acquisition, disassembly matching, module clone, VIN modification and DTC shielding ect FC200 supports 4200 kinds of ECU, 3 tyeps of operation modes, and covers 80% of the models at the market.
CG FC-200 Highlights:
1. Auto ECU Programmer for repair necessary-Support BMW ECU Data reading, writing and clone.
Effectively solve the problem of replacing the second-hand computer after the damage of BMW ECU control unit, just need to read the original computer data and then clone it.
Support almost all the BMW ECU model for reading and writing: MSV90/ MSD85 MSD87 N20 N55 B48 B58 etc.
Successfully make up the market for BMW ECU reading and writing equipment, save you high equipment costs.
2. Auto Locksmith necessary-Support BMW IMMO functions, Read BMW ISN Code by OBD
Quickly solve the problem for data collection of bmw all key lost.
With more stable and efficient unremovable functions.
If you want to do all key lost for BMW 3 Series 5 Series 7 Series X5 X6 GT535 Six-cylinder engine, must need ISN code to program the keys.
3. Original from CGDI and Free Update Online for One Year
After 1 Year Free Update, It will cost $200/year for FC200 Update Service
4. FC200 not only support BMW ECU but also support over three thousands of ECUs like KTAG, Kess,kessy ,Dimsport etc.
Check FC200 Support ECU List
5. Bosch search: Free to find out what ECU type
6. With CAN-bus, and No Disassembly (platform mode) and Boot mode
7. Multi-Language: English, French and Simplified Chinese
Spanish, Polish, Turkish and Traditional Chinese need to pay $130.
8. Full Version with All License Activated and Free.
CG FC200 Latest Updae Information:
FC200 V1.1.7.0 Registered Version (2023.11.24)
1.Add Volvo Electric Equipment ECU: MB279700-9500, MB279700-9801, MB279700-9811
2.Add Audi ECU: Simos8.4x, Simos12.x
3.New Hyundai ECU/TCU: SIM2K-240_ ECU, SIM2K-341_ TCU
4.Fix issues with some ECU cloning failures: MED17.3.1/MED17.7.2/MED117.7.3/MED17.5.5 and general Exx series, etc
5.Fix the issue of some universal ECU recognition failures: E78/E39/E39A/E80, etc
6.Lovol added ECU: EDC17CV43
7.BMW adds ECU: MEVD17.8.4
8.Added ECU for PFlash verification algorithm: MSV90, SID807EVO, EMS3110, SIM2K-240_ ECU, SIM2K-341_ TCU, Simos12. x, Simos8.4
9.Add and modify ECU for VIN: CPGDSH1.21.6, CPGDSH2.2x. x
10.Optimize the PFlash verification algorithm for DQ380
11.Fix some bugs and optimize software performance
FC200 V1.1.6.0 Registered Version (2023.10.16)
1.Added CONTINENTAL TC17 type engine computers (BOOT mode): SID310, SID807EVO, EMS3110;
2.Added CONTINENTAL SPC5xx type engine computers (BOOT mode): GPEC3, GPEC2A, GPEC4, GPEC4LM, GPEC2;
3.Added CONTINENTAL TC17 type engine computer (BOOT mode): SIMOS8.2x, EMS2511, EMS24xx, EMS2205, SDI9, SDI3, SDI4, SDI10.x, SDI21.x;
4.Added new GM type engine computer: E98;
5.Added the Flash verification function of the gear box computer: DQ380, 8HP, 7DCT300, 9GT-VGS-NAG3;
6.Added PFlash verification function for CONTINENTAL TC17 engine computer;
7.Added the function of independently reading and writing DFlash/PFlash/ExtEEPROM/ExtFlash: MSD80/MSD81/MSD85/MSD87/MSV90/SIM271KE;
8.Fix some BUGs and optimize software performance.
FC200 V1.1.5.0 (2023.08.18)
1.New platform mode engine for Bosch MPC5xx class: (Note: To be used with MPC5xx adapter)
EDC16U31、EDC16C1、EDC16C10、EDC16C31、EDC16C32、EDC16C34、EDC16C35、EDC16C36、EDC16C37、EDC16C39、EDC16C41、EDC16C9、EDC16CP33、EDC16CP34、EDC16CP36、EDC16CP39、EDC16U34、EDC16UC40、ME9.1.1、ME9.6.1
2.Newly added BOSCH TC17 series platform and boot mode engines: DCU17HD01、DCU17PC42、DCU17PC43、DCU17CV51、DCU17PC_ DNX
3.KEFICO TC series engines add PFlash verification function
4.GM series engines add PFlash verification function
5.Fix the issue where the 8HP transmission does not support the E-series (R5F72519R)
6.Optimize the verification algorithm for VGS2-FDCT type transmissions
7.Fix some MD1CS089 engine connection failure issues
8.Fix some bugs and optimize software performance
FC200 V1.1.4.0 Registered Version NEW (2023.07.17)
1.Newly added CONNECTAL TC17 platform mode engines: SDI6, Simos8.3x, Simos8.5x
2.Newly added CONNECTAL TC17 BOOT mode engines: SDI6, SDI7, Simos8.1x, Simos8.3x, Simos8.5x, SID208, PCR2.1
3.BOSCH MPC5xx chip ECU adds verification function
4.New platform mode engine: MD1CS089
5.New Volkswagen transmission mileage repair function: DQ200 TC1784
6.Fix the function of modifying the VIN of Volkswagen ME17.5.22/24/26 and other engines
7.Fix some PCR2.1 write PFlash failure issues
V1.1.3.0 Registered Version New (2023.05.24)
1.Newly added CONNECTAL TC17 platform mode ECU: PCR2.1, SDI7, DPS6
2.Add BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8
3.New Volkswagen TCU mileage repair function: DQ200 TC1766, DQ250, VL381, DL382
4.Add Hyundai/Kia/Ssangyong KEFICO CPEGD2.20. x ECU functions: platform mode data read and write, modify VIN functions
5.Add Mercedes Benz CRD2. x MPC556x engine platform mode
6.DELPHI TC17 chip ECU adds PFLASH verification function
7.ECU with PFLASH verification function added to BOSCH ST10F chip: ME7.4.5
8.GM 6T30, 6T80, 6L80 TCU added PFLASH verification function
9.Diesel ECU EDC17C53, EDC17C63, EDC17C81 and other newly added anti-theft system shutdown functions
CG FC200 Version V1.1.2.0 Update Notice on Apr 7th, 2023
1. Fix the problem of engine recognition and read/write failure in GM E38, E67 and E39
2. Add GM E37, E39A, E78, E80 and E83 engine platform mode
3. GM E38, E67, E39 and E39A engines add Ext FLASH verification function
4. Add the "time repair" function of "Lovol harvester" to support the EDC17CV53 engine of Lovol harvester
5. Benz VGS-FDCT, VGS2-FDCT and VGS-FCVT gearbox add PFLASH verification function
6. Volkswagen DL501 Gen2 and DL382 transmissions add PFLASH verification function
7. Add BOSCH ST10 engine: M7.4.4, ME7.3.2, ME7.4.4
8. Fix the connection failure of DELPHI CRD3.10, CRD3.xx TC1797 and other engine platform modes
CG FC200 V1.1.1.0 Software Update Notice on Feb 1st, 2023
1.Setup interface adds-Server Selection function
2.Optimize the device activation interface (add the "Activate" prompt)
3.Repair the failure problem of the Bosch query abroad
4.Added GM AcDelco transmission platform mode: GM 6T30/35/40/45/50, GM 6T70/75/80, GM 6L45/50/80/90
5.New BOOT mode of BOSCH ST10 engine: ME7.1.1, ME7.5.10, ME7.8.2, and MED 7.6.2
6.New BOSCH TC17 engine platform mode: ME17 TC1728 (China)
7.New BOOT mode of KEFICO TC17 engine: CPGDSH2.2x.x, CPGDSH1.26.1, KME 1.9.3.1
8.New BOSCH VAG gearbox PFLASH calibration function: DQ200 TC1784, DQ200 TC1766, DQ250 TC1766, DL501Gen1 TC1766, VL381 TC1766
9.Newly modified VIN model: MED 17.8.3
CG FC-200 V1.1.0.0 Software Update Notice on Dec 13th, 2022:
1. Added DELPHI platform and BOOT engine: CRD3.10, CRD3.E1, CRD3.F1, CRD3E.1, CRD3P.B0, CRD3P.C0, CRD3P.D1, CRD3P.G0, and CRD3xx
2. Added BOSCH BOOT engines: ME7.5.20, M7.9.5, ME7.9.51, and ME7.9.52
3. Add PFLASH check function for MG1C, MD1C SPC5777 and TC298TP engines of BOSCH
4. Added password reading function in the platform mode of GM engine E39
5. Optimize the PFLASH verification algorithm of BOECH's TC17 series engines
6. Added BOSCH platform engine: EDC17CV53
7. Fix some bugs and optimize software performance
CG FC200 ECU Programmer Functions
1. Original Parts Protection
FC200 supports OBD and platform mode for more than 98% ECU and EGS, no need to open shell, no punch, protect original parts of the vehicle. FC200 not only supports BMW ECU but also supports over 3000 ECUs like KTAG + Kess, Kessy, Dimsport, etc.
2.Smart Identification
The "identification" function can help you diagnose whether the ECU module is communicating or not, and check if the wiring is correct or not.
3. Module Clone
Supports ECU/EGS reading& writing and modules clone no need synchronization matching and online programming
4. Read & Write ISN
Supports all BMW series (including Mini) ECU ISN code acquisition, convenient for all keys lost matching and anti-theft fault maintenance. Quickly solve the problem for data collection of BMW all key lost.
5.Write VIN
Solve the problem for double VIN or VIN mismatch of vehicles
6. Data Processing
Supports data analysis and modification for the 4th and 5th generations of Audi/Seat/Skoda/Volkswagen ECUs
Turn off anti-theft system for Bosch MED/EDC17 series ECU
TPROT off function of Bosch VAG MEDC17 series, BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series.
Packing List
1set X CGDI FC200 ECU Programmer
For detailed instructions and operation methods, please see the attachment: FC200 User Manual
FC200 Support ECU List
Software Features

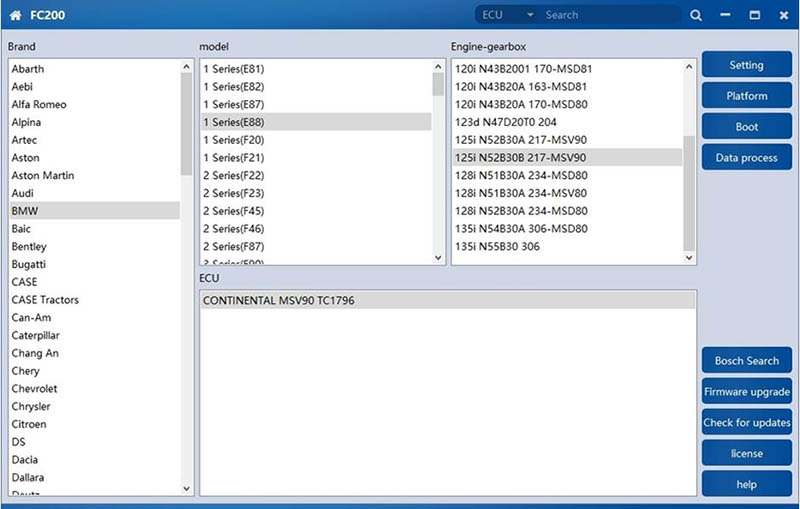

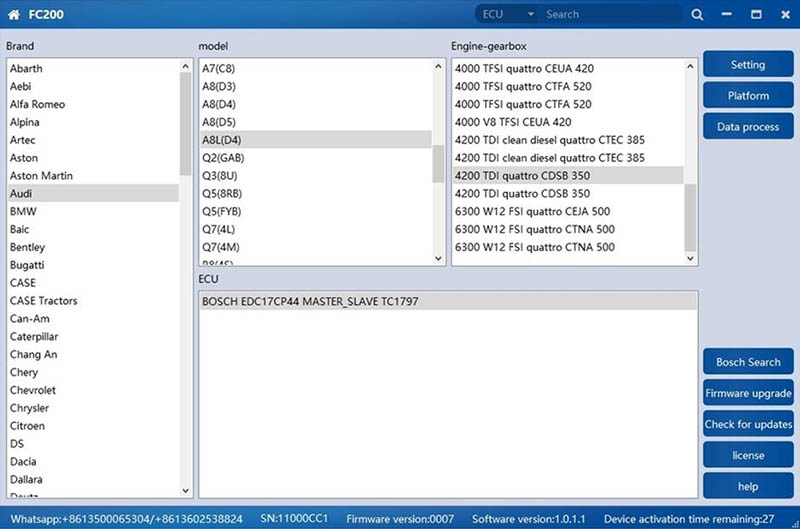

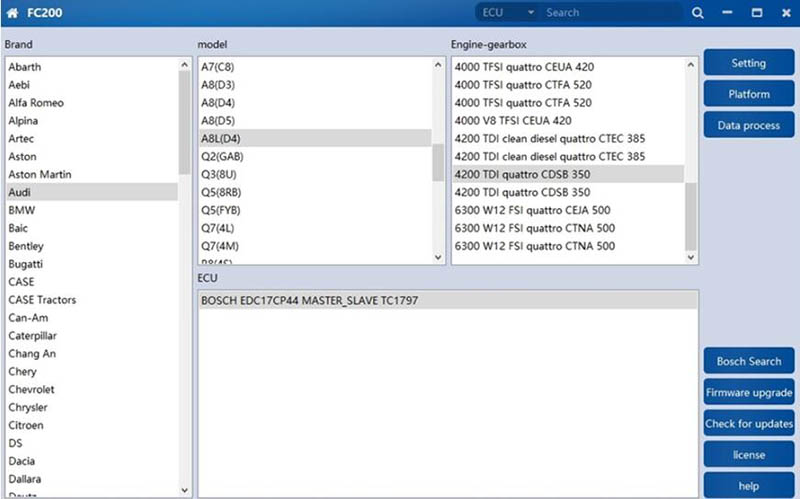

1.Interactive interface
The level is clear, the function is clear, and the "brand-model-ECU" structure is used to help users save time and accurately find the operating directory.
2.Built-in model search
Support ECU model and Bosch number search, avoid the trouble of level selection, and enter the function interface as quickly as possible.
ECU search: Take the BMW MSV90 engine computer as an example. First select "BMW", select "ECU" as the search condition, enter "MSV90", click the search button, and the ECU type will appear.
Bosch number search: Take the Volkswagen engine computer as an example. First select "Volkswagen", select "Bosch Number" as the search condition, and enter "0261S10525". Please note that the Bosch number is a ten-digit number and the letters are capitalized. Click the search button, and the ECU type will appear.

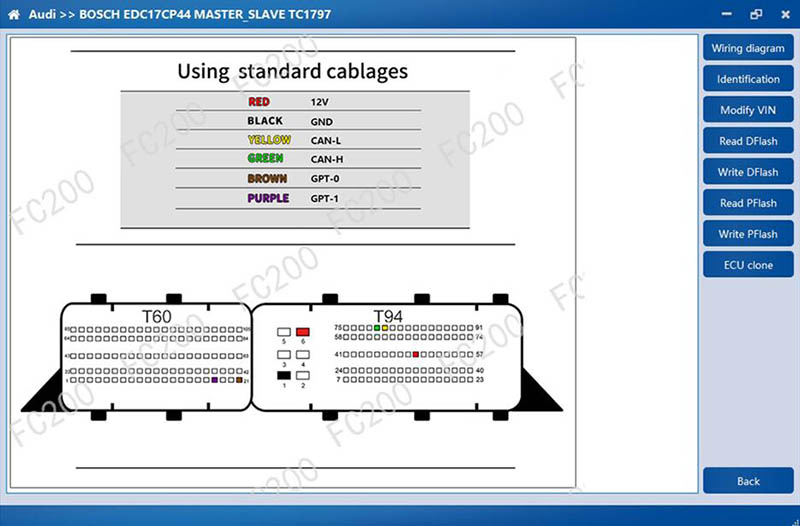

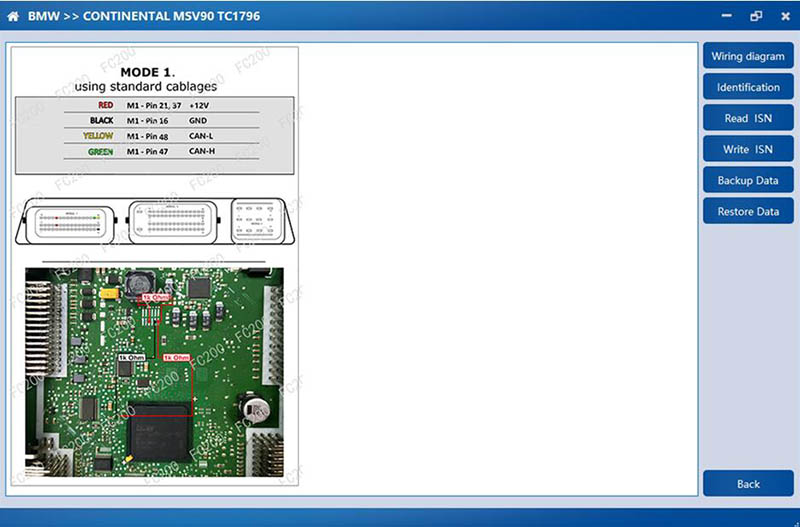

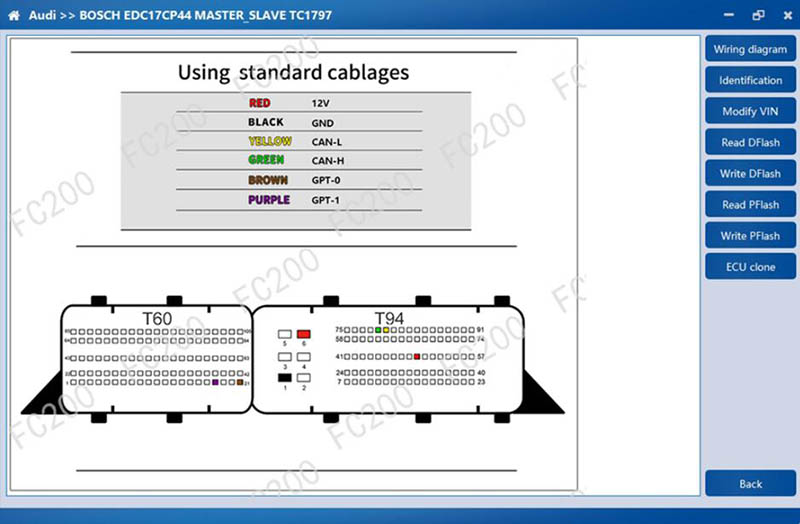

3.Intuitive wiring diagram
Highly paid professional designers are hired to produce, 1:1 simulation, bright colors, to avoid user wiring errors.
FC200 Model Support:
Support 4200 kinds of ECUs, involving 80% of the models on the market.
European Cars: Abbas, Alfa Romeo, Aebi, Artec, Aston, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroen, Dacia, CASE, CASE Tractors, Dallara, Deutz, DS, Ducati, Fendt, Ferrari, Fiat, Jaguar, KTM, Lada, Lamborghini, Lancia, Land Rover, MAN, Maserati, McLaren, Mercedes-Benz, MG, Mini, Opel, Peugeot, Piaggio, Porsche, Renault, Royal Enfield, Saab, SEAT, Skoda, Smart, Steyr, UAZ, Vauxhall, Volkswagen (VW), Volvo, Volvo Penta.
American Cars: Can-Am, Caterpillar, Chevrolet, Chrysler, Dodge, Ford, Ford Trucks, Freightliner, GMC, Indian, Internation, Jeep, Lincoln, New Holland, Polaris, Hidu.
Asian Cars: Force, Genesis Motors, Honda, Hyundai, Infiniti, Isuzu, Kassan, Kia, Kubota, Mahindra, Mitsubishi Fuso, Nissan, Subaru, Suzuki, Toyota.
Chinese Cars: Changan, Chery, Foday, Geely, Great Wall, Iveco, Jianghuai, Jiangling, Lifan, Ferguson, Valtra
FC200 ECU Programmer Connection Diagram:

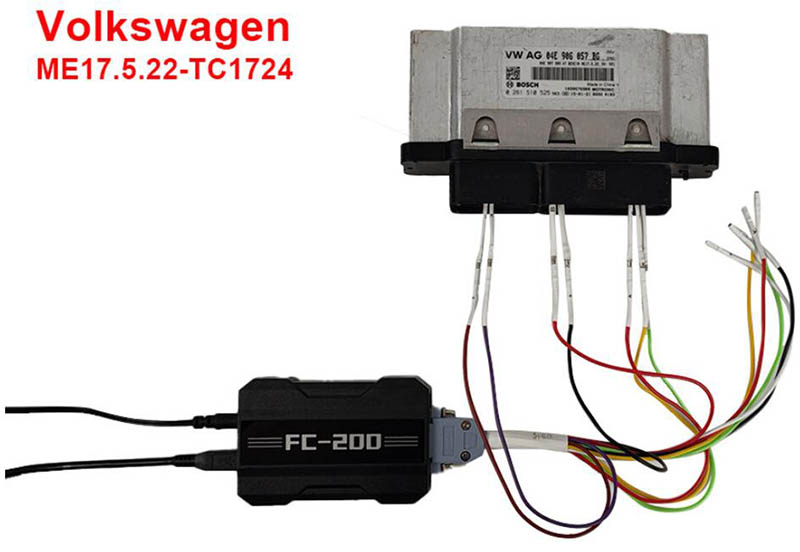

For Volkswagen ME17.5.22-TC1724:

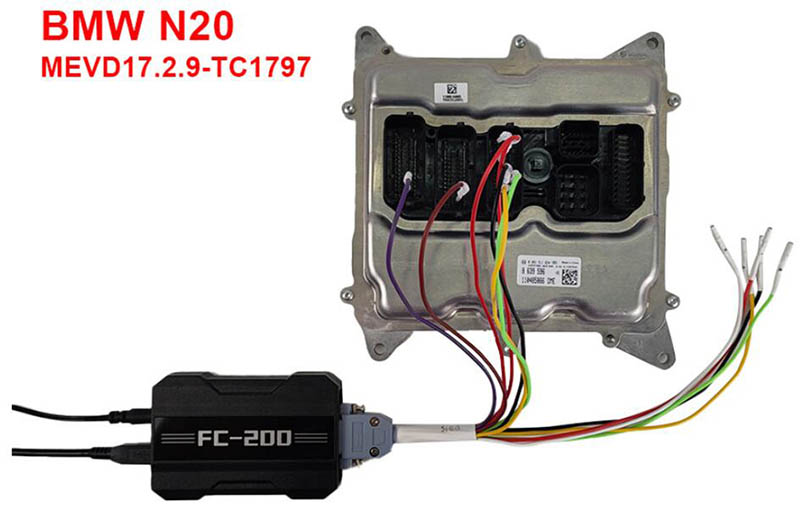

For BMW N20 MEVD17.2.9-TC1797:

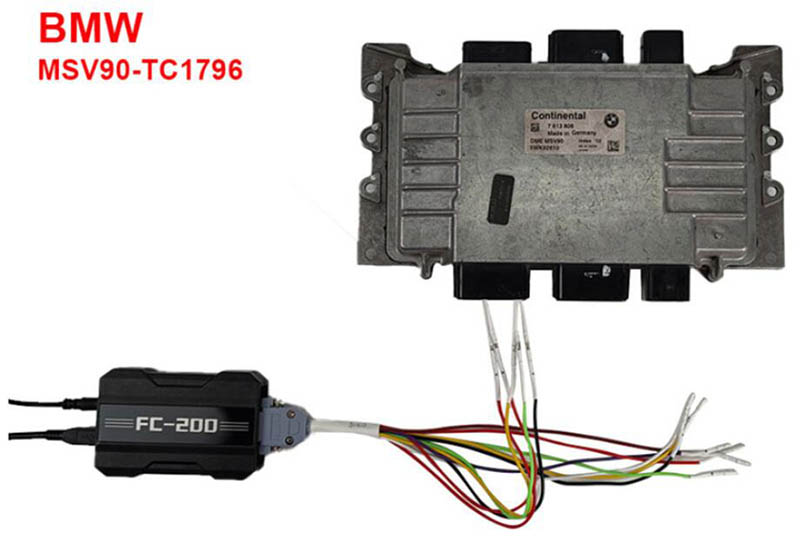

BMW MSV90 TC1796：

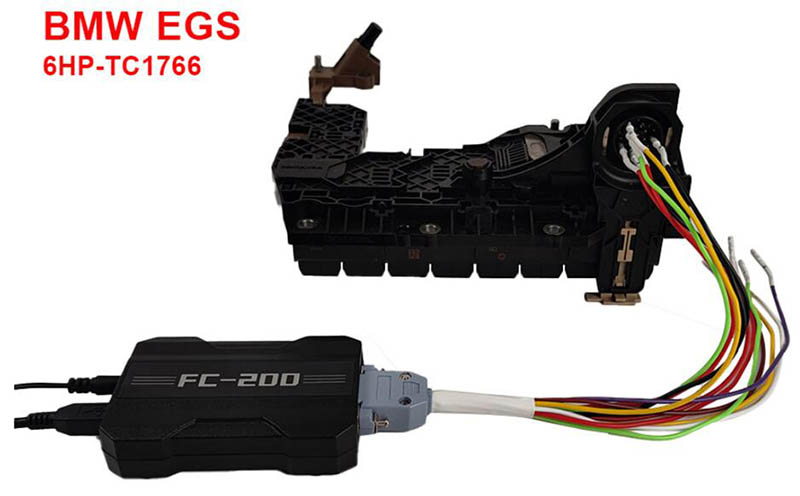

BMW EGS 6HP-TC1766：

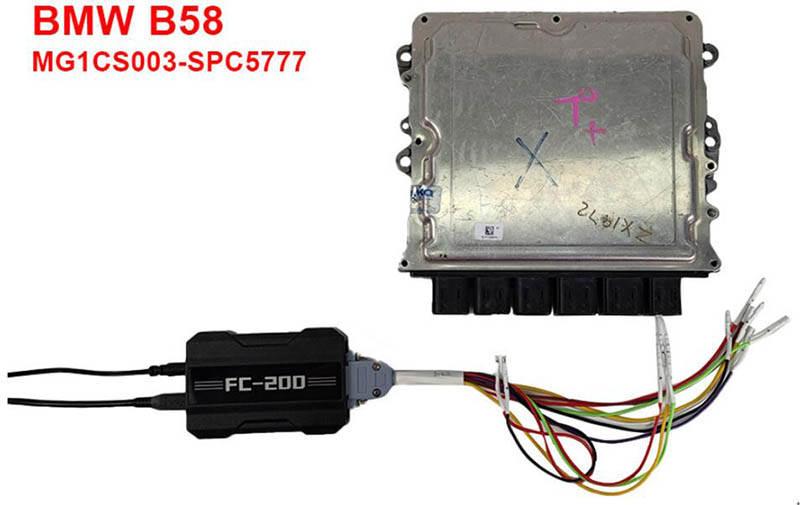

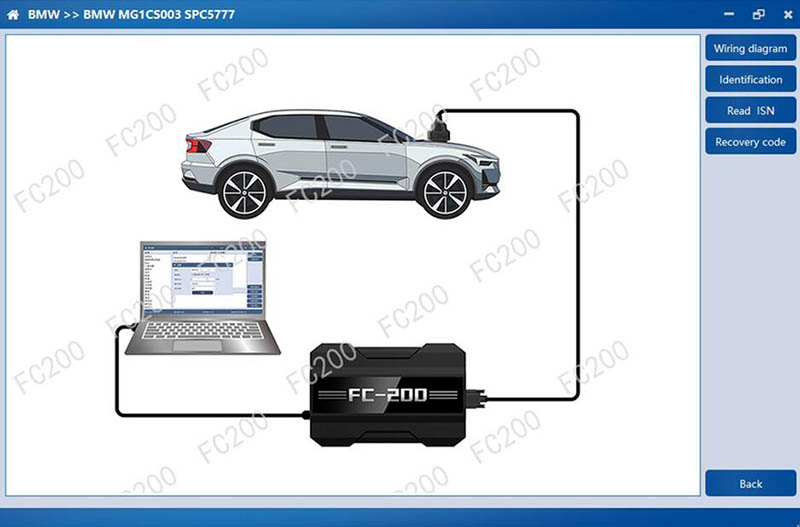

BMW B58 MG1CS003-SPC5777：

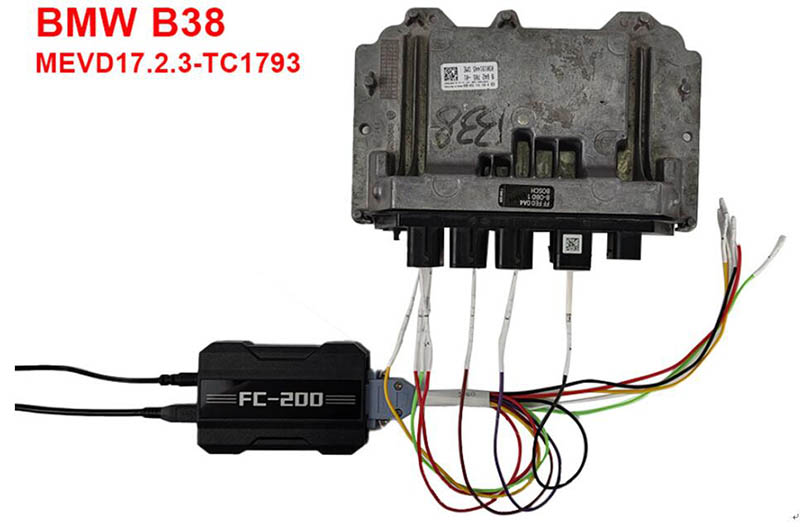

BMW B38 MEVD17.23.-TC1793：

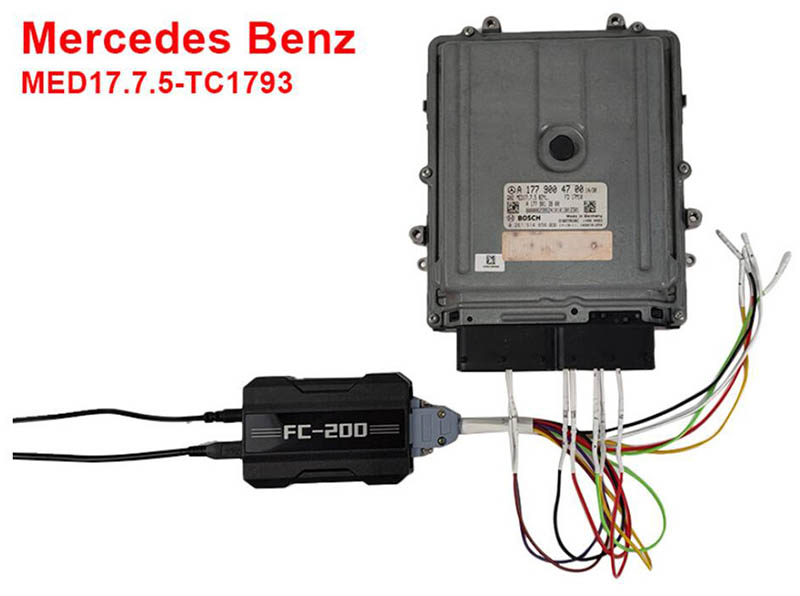

Mecedes Benz MED17.7.5-TC1793：

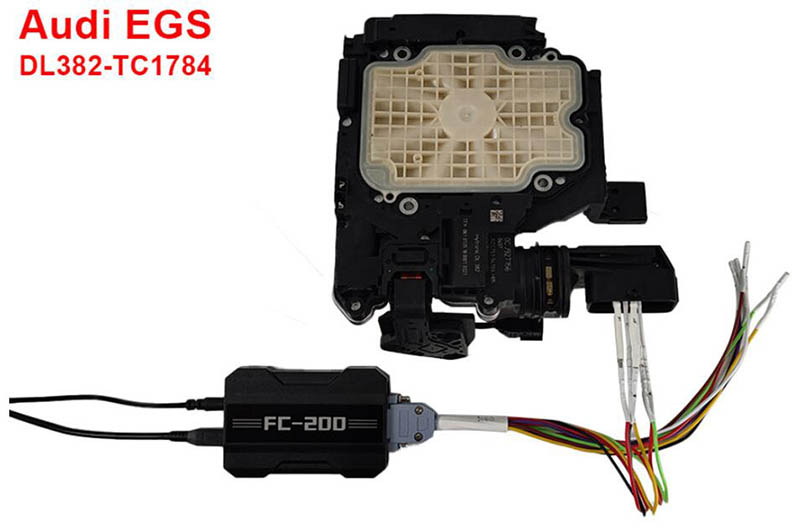

Audi EGS DL382-TC1784：
