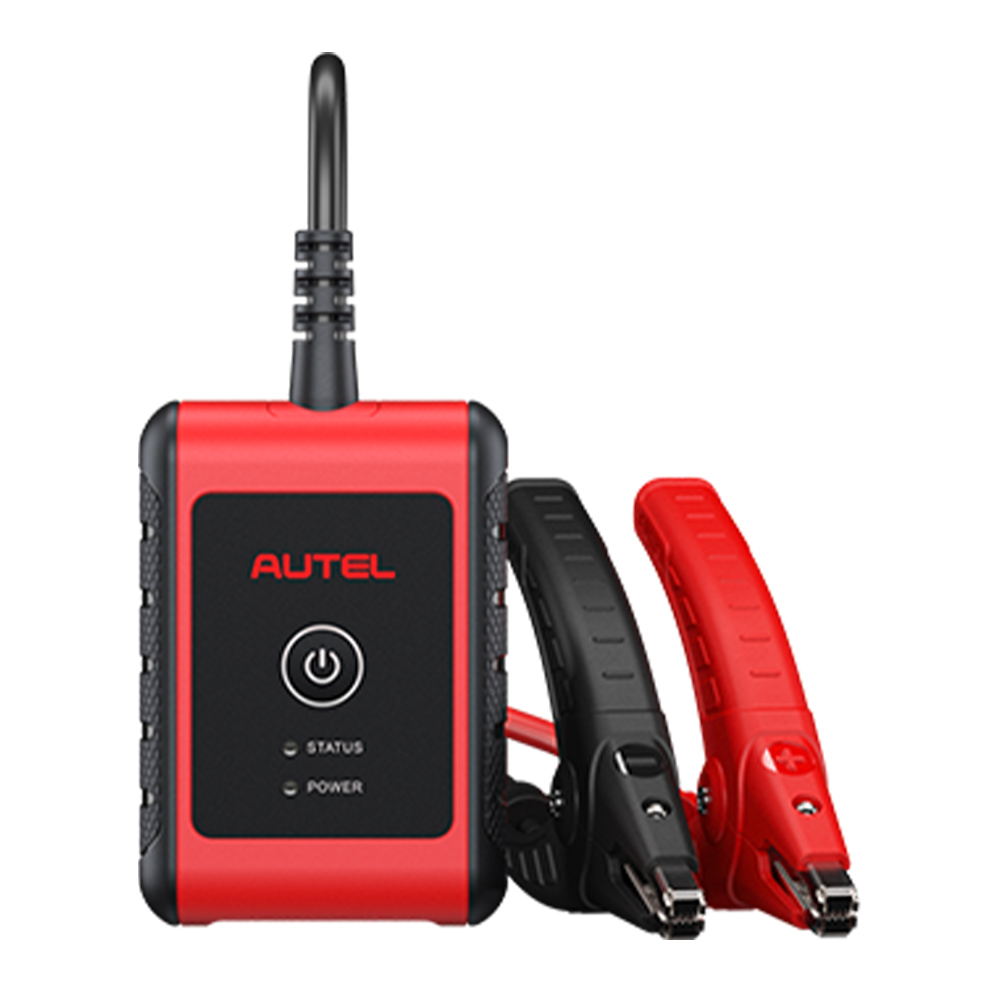

Auto Battery and Electrical System Analysis Tool Autel MaxiBAS BT506
The BT506 is a battery and electrical system analysis tool that use as Adaptive Conductance an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The BT506 enables technicians to view the health status of vehicle's battery and electrical system. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the BT506 to perform testing and display test results.
Note: The BT506 Does Not Have a Screen!

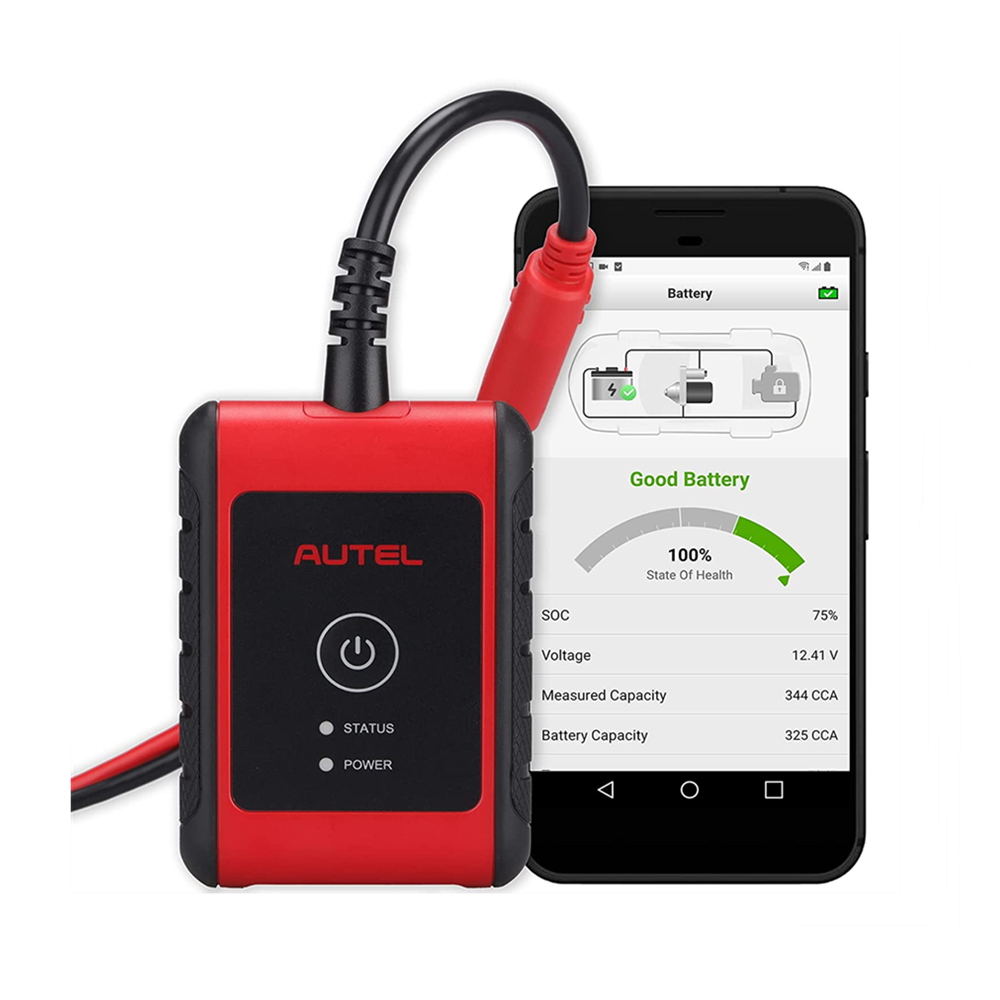

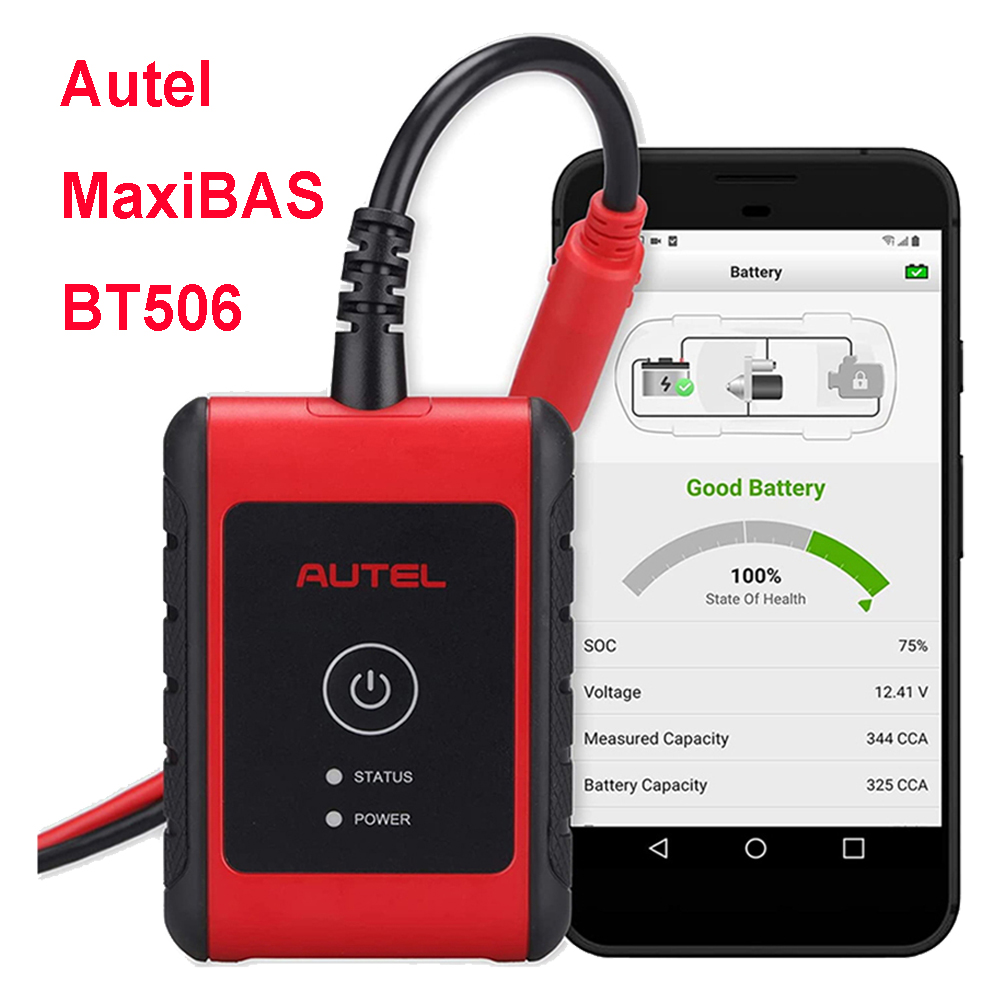

To perform testing and display test results the BT506 must be used with an Autel MaxiSys Tablet or Other Smart Device (Free iOS or Android Apps Available).
BT506 Features:

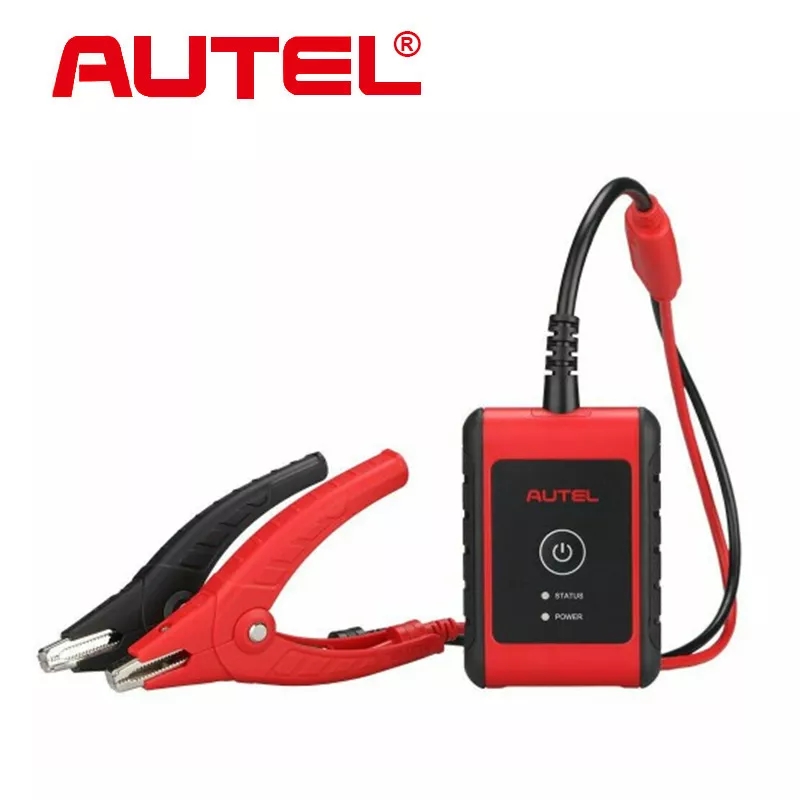

1. Includes Connected Cable with Clamps
2. Test 6- and 12-Volt Batteries: 100 - 2000 CCA
3. Test 12- and 24-Volt Cranking/ Charging Systems
4. Download Free App from Google Play and the App Store
5. Test Flooded, AGM, AGM_Spiral, EFB and GEL Batteries
6. Battery Health Report/ Temperature Compensation / Cloud-Based Service
7. Battery Ratings: Compatible with CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
8. Support In-Vehicle and Out-of-Vehicle Testing of Passenger Vehicle Batteries
* Out-of-vehicle Battery testsing
* In-vehicle testing of Battery, Starter, Charging system voltage (not amps)

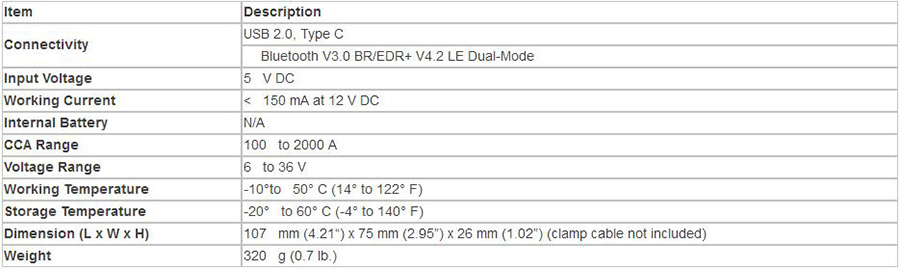

BT506 Specifications:

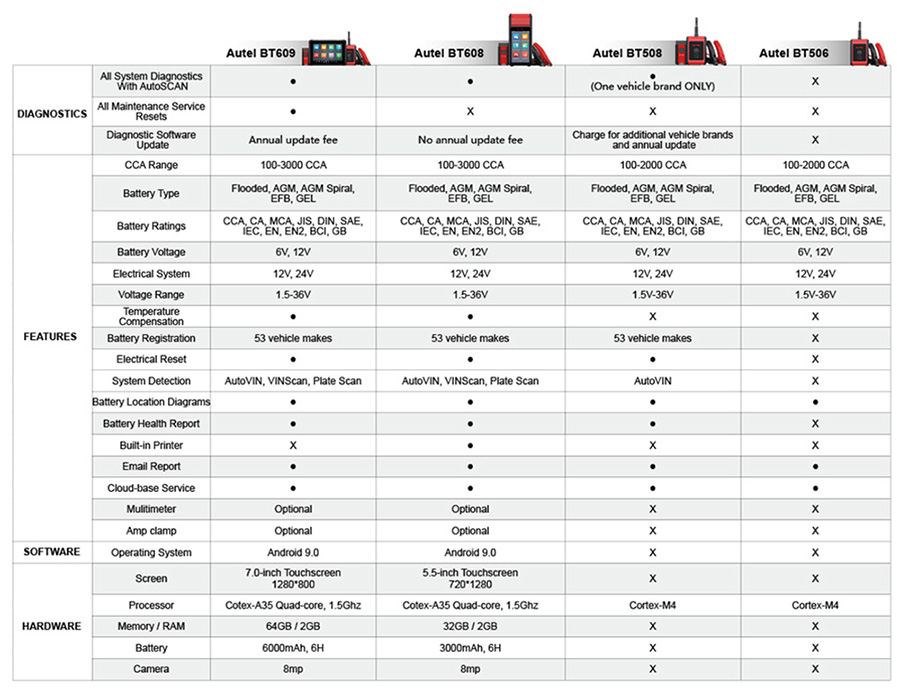

BT506 Comparison ：
