Autel MaxiSYS MS906 Pro OBD2/OBD1 Bi-Directional Diagnostic Scanner and Key Programmer

Autel MaxiSYS MS906 Pro OBD2/OBD1 Bi-Directional Diagnostic Scanner and Key Programmer

Pls note :
1. This product sold in latin America, with 2 years free update.
2. This product sold in other place, need USD350 , and support 2 year free update.

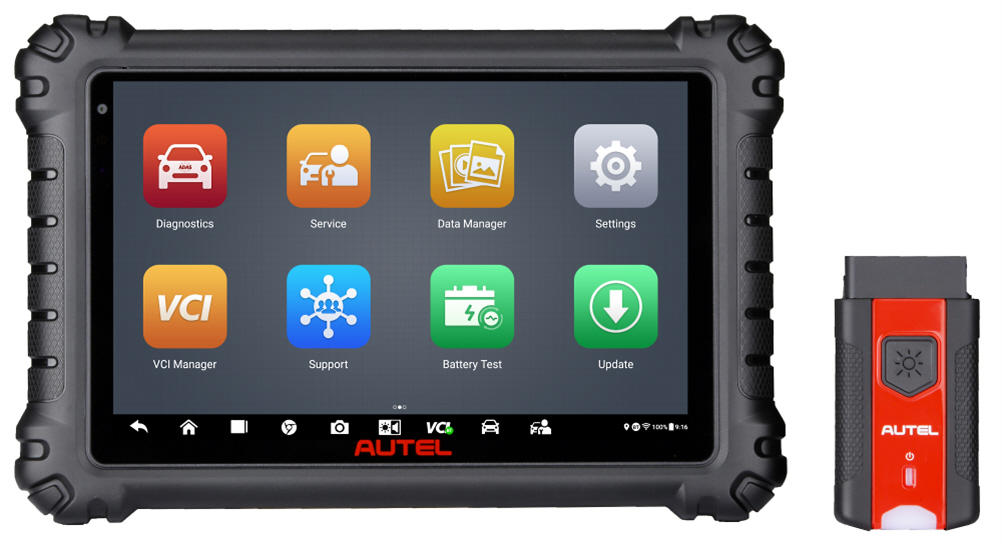

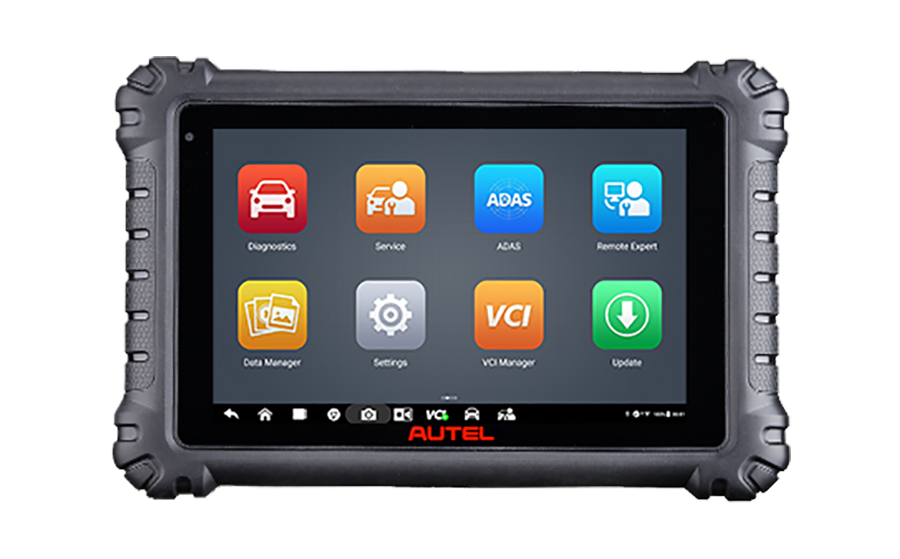

MaxiSYS MS906 Pro is a high-powered eight-inch advanced diagnostic tablet featuring expanded software and cloud-based data and repair services. The MS906 Pro's Octa-core processor, Android 7 operating system, and 128 GB of memory enable the tablet to perform advanced diagnostics, including coding and adaptations, access comprehensive repair information, and conduct battery and electrical system analysis* and ADAS calibrations .

Description
Hardware:

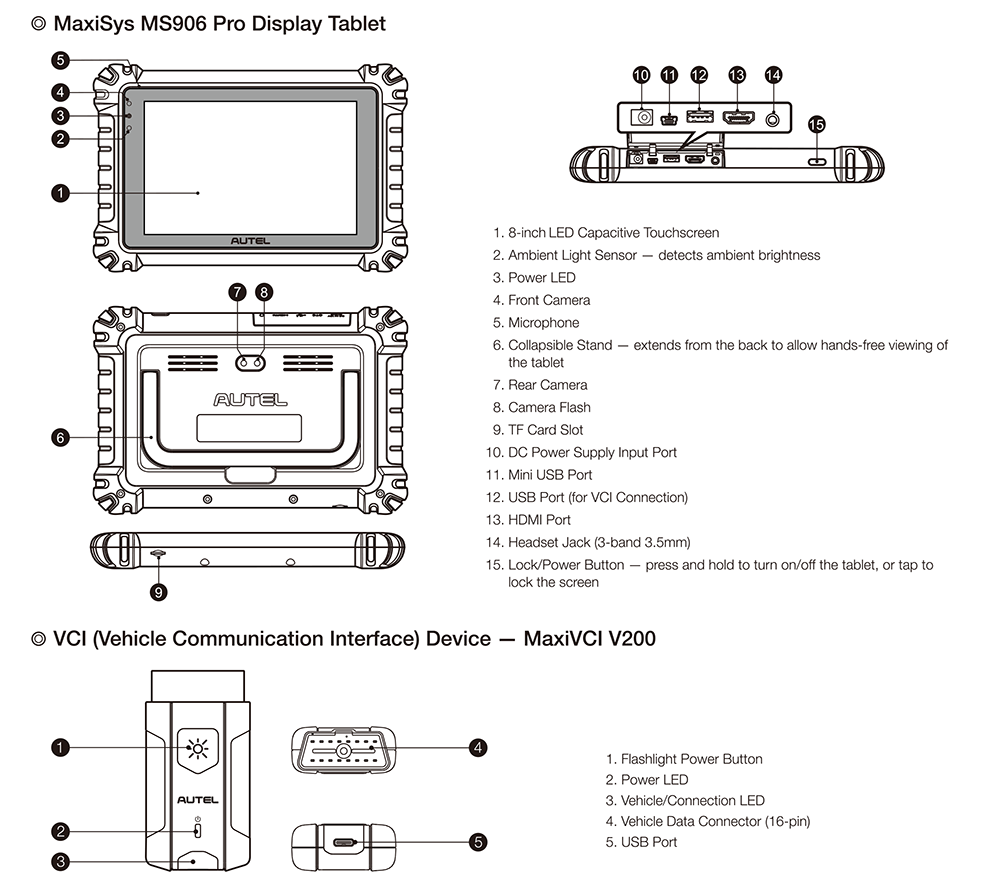

• 8-inch, 1920 x 1200 high-resolution touchscreen tablet, Samsung Exynos Octa-core processor with 128 GB storage and running Android 7 operating system.
• Long-lasting 11,600 mAh rechargeable battery, 5 MP front camera and 16 MP rear camera.

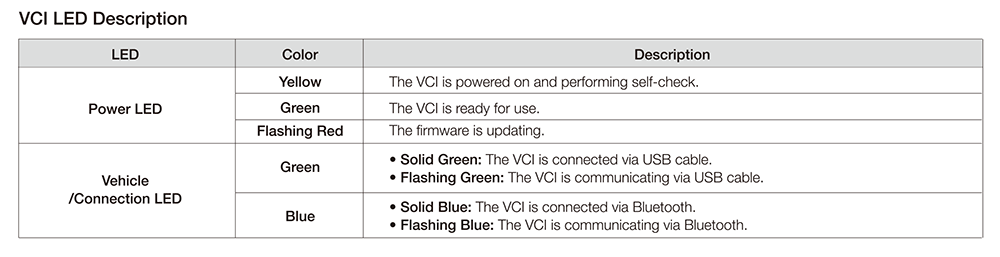

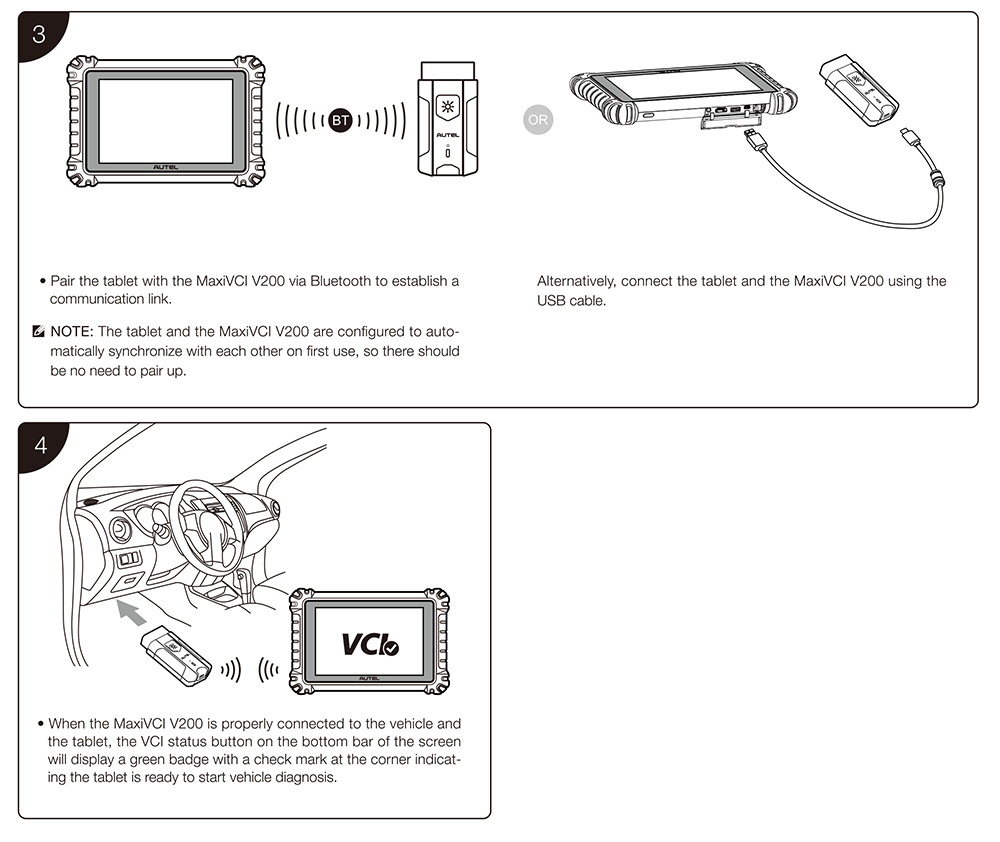

• MaxiCVI V200 wireless Bluetooth vehicle communication interface supporting the latest communication protocols.

Software:
• Comprehensive diagnostics on 1996 and newer U.S., Asian and European vehicles
• AutoScan: Scan all available systems, including ADAS identification
• Read/Erase Codes, View Freeze Frame and Live Data
• Perform Active Tests (bi-directional controls), Coding and Adaptations
• AutoVIN/Scan VIN for rapid vehicle identification
• Perform ADAS (inc. Camera/s, Radar, LiDAR, Night Vision) Systems Calibrations with additional purchase.

New Software Features

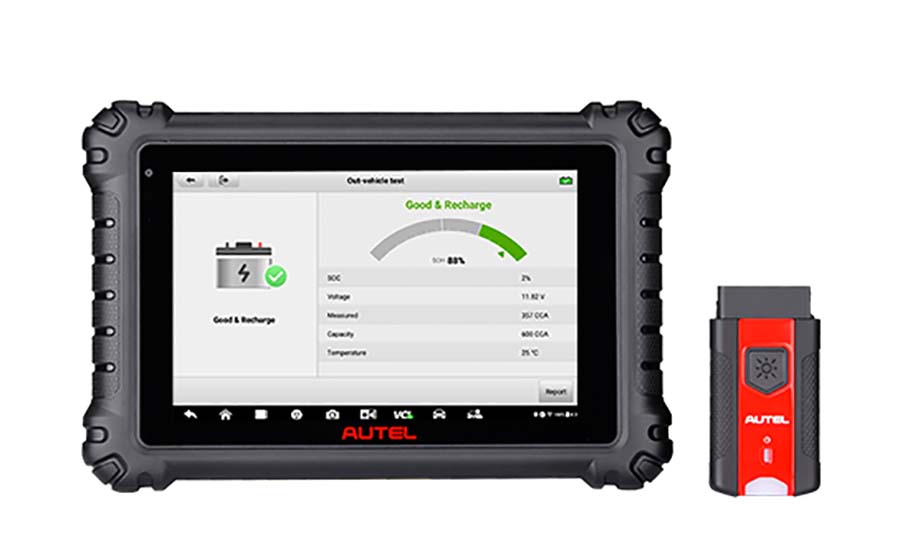

• Battery analyzation capability*
• Cloud-based Reports and Data Management
• Remote Expert (coming soon)
* With additional purchase of the MaxiBAS BT506 battery and electrical system tester.
** with purchase of ADAS calibration frame system and software

Specifications

	MaxiSYS MS906 Pro	MaxiSYS MS906 Pro-TS
Hardware
CPU	Samsung Exynos 8 Core（4*M2 2.3G + 4*A53 1.7G）	Samsung Exynos 8 Core（4*M2 2.3G + 4*A53 1.7G）
Memory	4/128GB	4/128GB
Android	Android 7.0	Android 7.0
LCD	8” 1920*1200	8” 1920*1200
Battery	11 600 mAh	11 600 mAh
Camera	Front: 5 Megapixel Rear: 16 Megapixel	Front: 5 Megapixel Rear: 16 Megapixel
Diagnostic Functions
Special Function	26	26
Guide Function	Support Volkswagen,Audi	Support Volkswagen,Audi
Coding and Adaptation	BMW F and E chassis coding  Porsche Coding Ford offline adaptation	BMW F and E chassis coding  Porsche Coding Ford offline adaptation
Expanded Function
TPMS	No	Included
ADAS	Support	Support
Battery and Electrical System Testing	Support	Support
Cloud Services	Support	Support
Remote Expert(Coming Soon)	Support	Support
Cloud Report Storage	Support	Support

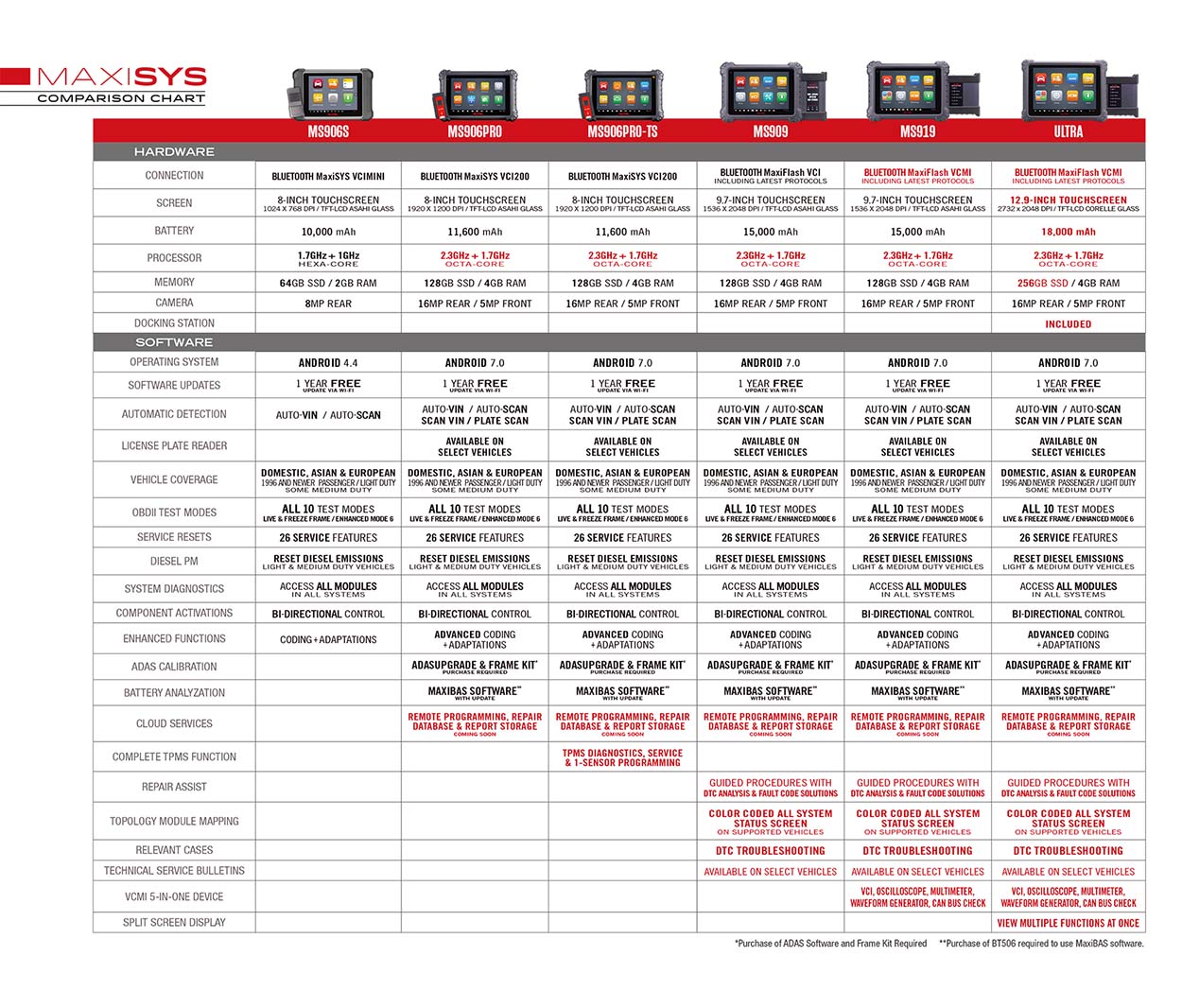

Comparison:
