Volvo 88890300 Vocom Interface PTT 2.8.240 / PTT 2.8.150 Truck Diagnostic Tool for Volvo, Renault, UD, Mack Truck
Volvo 88890300 Vocom Interface is a diagnostic application that covers the whole repair process through the use of plug-ins. With Volvo 88890300 Vocom Interface you can diagnose, test, calibrate, and program a product (a vehicle, engine, or a machine). Volvo 88890300 Vocom Interface also provides functions for updating the tool, communication with the product, and other external applications. Users can setup plug-ins, user authorizations, and available languages as they want.
Note:
1. If you choose the property 1, you need the PTT Software by yourself .
2. If you choose the property 2, PTT2.8.150 version of the software, please prepare the laptop, the hard disk installed into the laptop can be used directly.
3. If you select attribute 3 or 4， you will be able to use it directly when you receive the device.
Volvo 88890300 Volvo vocom adapter description:
Volvo 88890300 Vocom Interface is a diagnostics application that covers the whole repair process through the use of plug-ins. With Volvo 88890300 Vocom Interface you can diagnose, test, calibrate, and program a product. A product could be a vehicle, engine, or a machine. Volvo 88890300 Vocom Interface also provide functions for updating the tool, communication with the product, and other external applications. The set of plug-ins, user authorizations, and available languages is adjustable to provide every user with what they need.
Latest Version PTT 2.8.240 Software:
1. Multi-Languages
Čeština, Dansk, Deutsch, English, Espanol, Francais, Italiano, Latviešu, Lietuva, Magyar, Nederlands, Polski, Portugues, Română, Srpski, Suomi, Svenska, Turkce, Ελληνικά, Pусски, Chinese, Japanese, Korean.
2. Support Volvo Renault UD Mack Truck Diagnose
Only work with original nexiq,Vocom 2, Vocom 1.(for other interface please use 2.7 version)
Date of update:2024
ACPI update:APCI+ 2024.01
3.Update online
4.Expiration:No expiration
Volvo 88890300 Vocom Interface Supported Companies and Electrical Systems:
Volvo Trucks (Older electrical system, Vehicle electronics '98, V2, V3, V4);
Volvo Buses (Conventional, Multiplexed, Multiplexed v2, Multiplexed v3);
Volvo Construction Equipment;
Volvo Penta (VERSION2,VERSION3);
Volvo OEM Component Customer (VERSION2);
Mack Trucks (V-MAC I/II/III, ITC, IV, IV+);
Renault Trucks (VERSION2,VERSION3,VERSION4);
UD Trucks (VERSION2)
Eicher Trucks and Buses(VERSION3）
Volvo 88890300 Vocom Interface Functions:
Identify a product.
View information history.
Diagnose a selected product.
Test a selected product.
Program a selected product.
Calibrate a selected product.
Volvo VOCOM 88890300 Support Models List:
For Volvo Trucks:
AC Compo4 F10 F12 F16 FE FH FH12 FH16 FH565 FL FL10 FL12 FL6 FL7 FM FM10 FM12 FM9 FM7 Nh12 NH525 NH565 NL10 Nl12 VAh VHD Vm VN VT WC WG WI WX
For Volvo Busses:
B10B B10L B10M B10R B11R B12 B12B B12M B12R B13R B58 B5LH B5RH B6 B6R B7FB B7L B7R B9L B9R B9S B9TL BXRC COMP12 PREVH PREVX OLYMPIAN SUPEROLY
Volvo Construction Equipment:
Wheel Loader:
L110E L110F L110G L120E L120F L120G L150E L150F L150G L180E L180F L180G L220E L220F L220G L250G L330E L350F L45F-TP L45F-TPS L50F-TP L50F-TPS L50G-TP L50G-TPS L60E L60F L60G L70E L70F L70G L90E L90F L90G
Aryiculated Hauler :
A25D A25E A25F A30D A30E A30F A35D A35E A35F A40D A40E A40F T450D
Excavator:
EC135B EC140B EC140C EC140D EC160B EC160C EC160D EC180B EC180C EC180D EC200B EC210B EC210C EC235D EC240B EC240C EC250D EC290B EC290C EC300D EC330B EC330C EC340D EC360B EC360C EC380D EC460B EC460C EC480D EC700B EC700C ECR145C ECR235C ECR235D ECR305C EW140B EW140C EW140D EW145B EW160B EW160C EW160D EW180B EW180C EW180D EW200B EW210C EW210D EW230C FB2800C FBR2800C FC2121C FC2421C FC2924C FC3329C PL3005D PL4608 PL4808D PL7015
Grader:
G710B G720B G726B G730B G740B G746B G780B G930 G930B G940 G940B G946 G946B G960 G960B G970 G976 G990
Skidsteer Loader:
MC110B MC60B MC70B MC80B MC90B
Compact Excavator:
EC55C EC80D ECR88 EW60C
Paver:
ABG7820B ABG8820B P7820C L882C

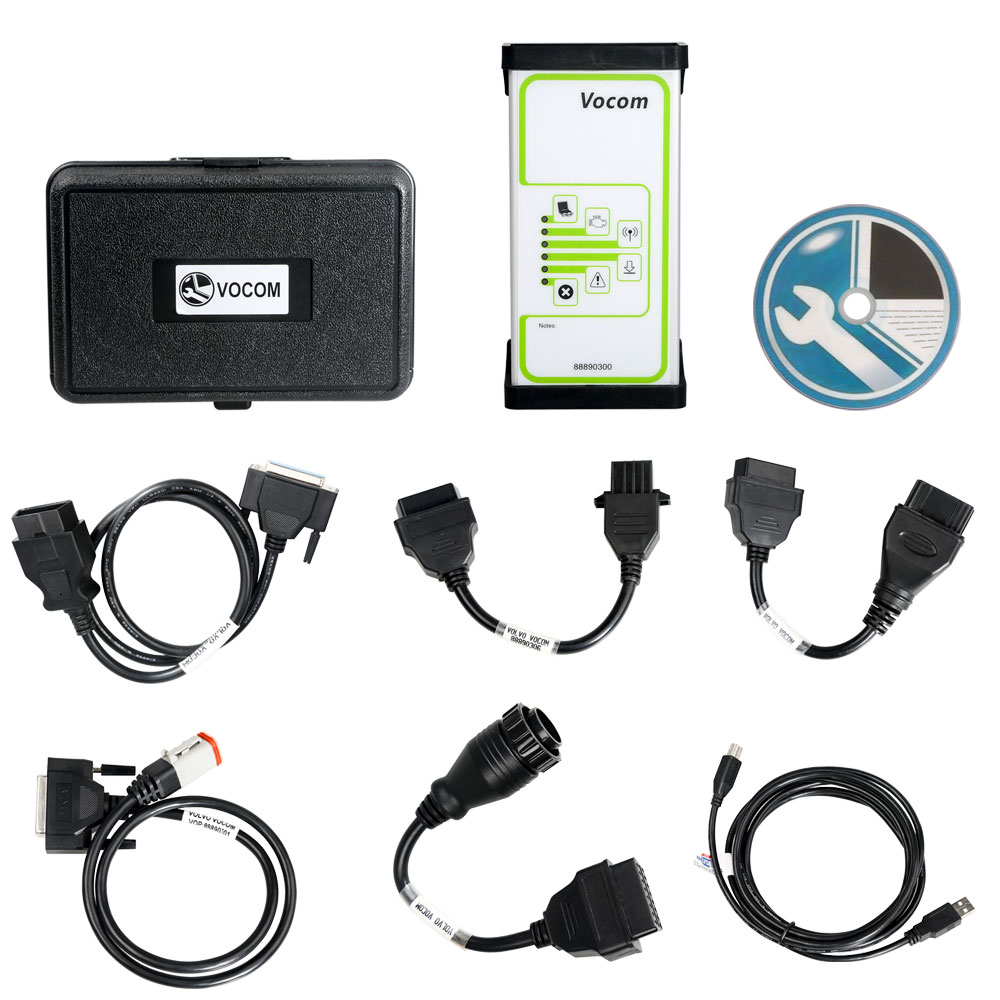

Packing list :

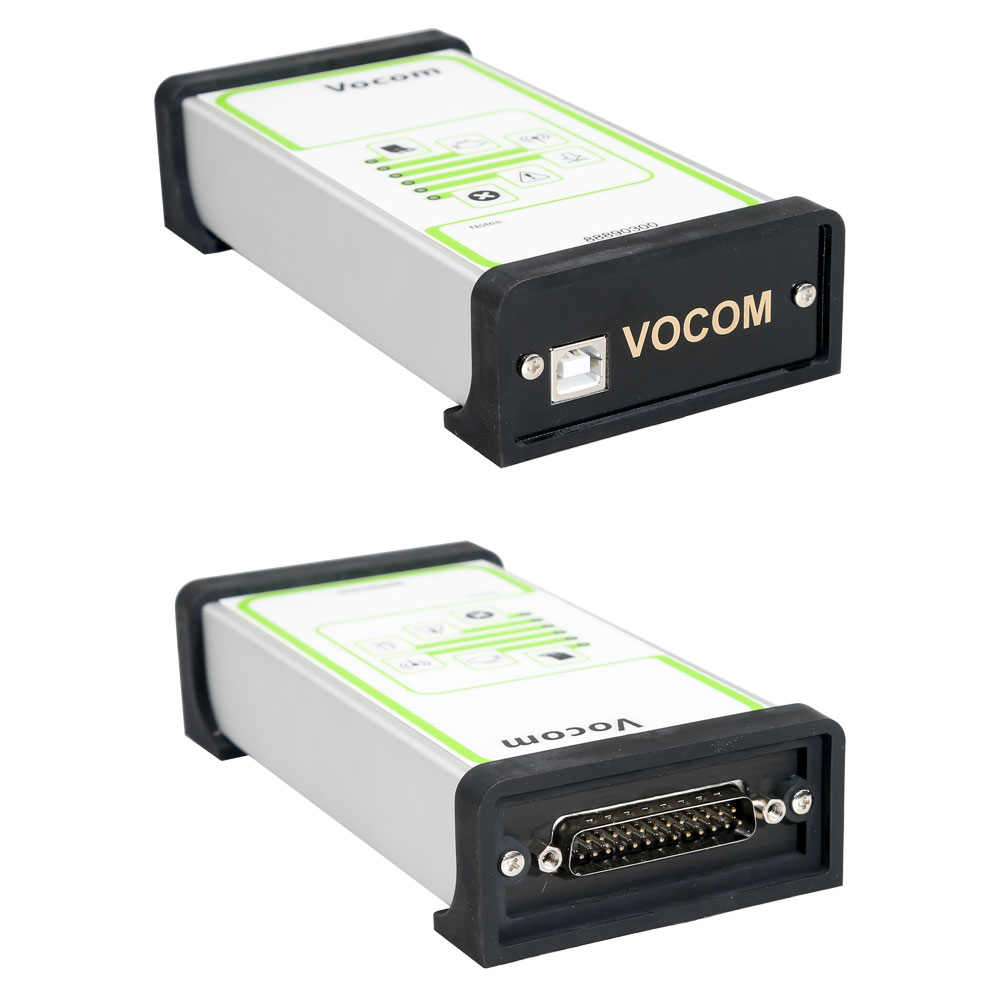

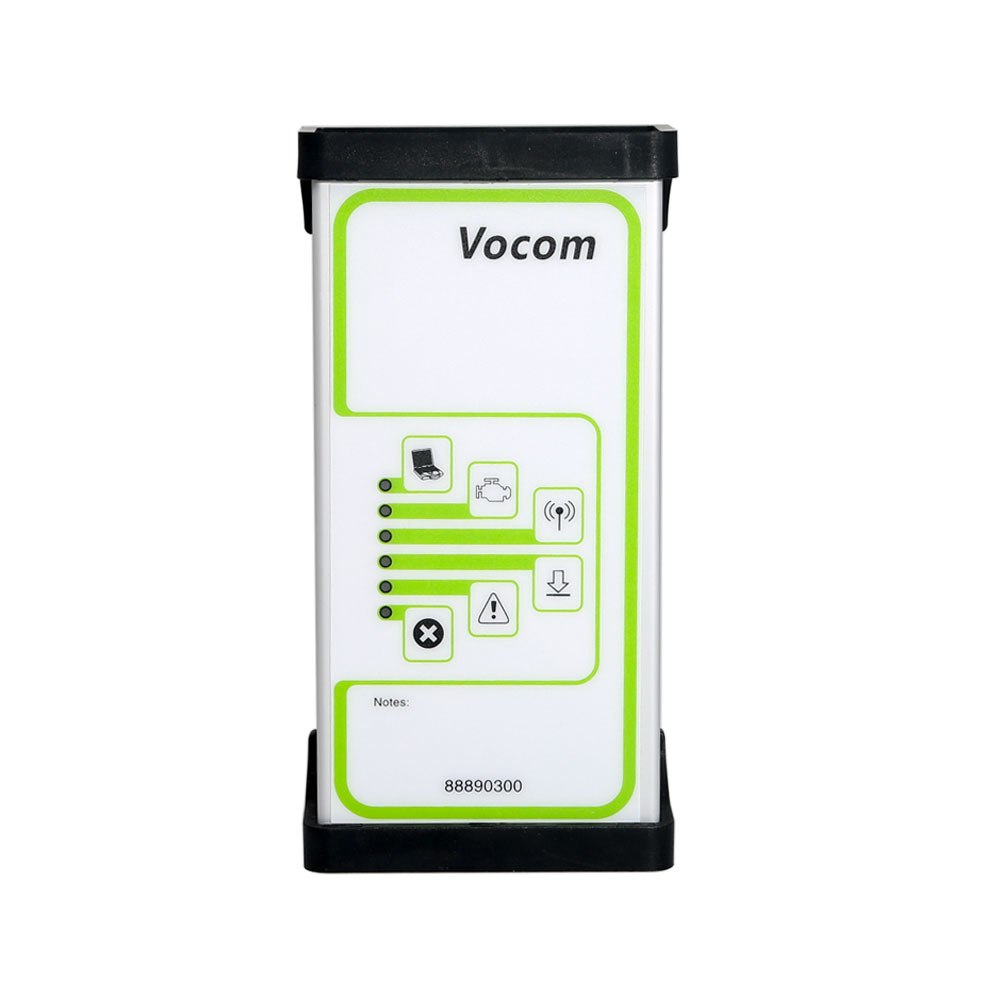

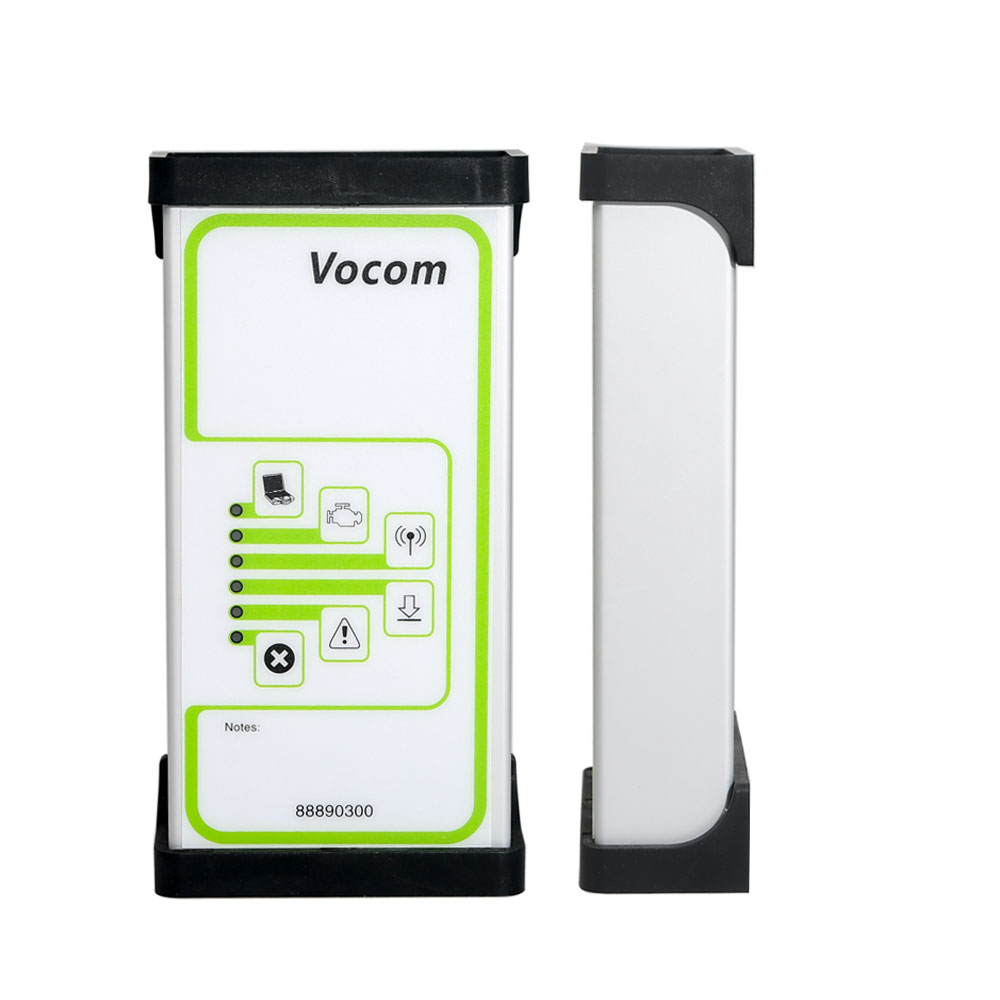

1pc x 88890300 Vocom Interface

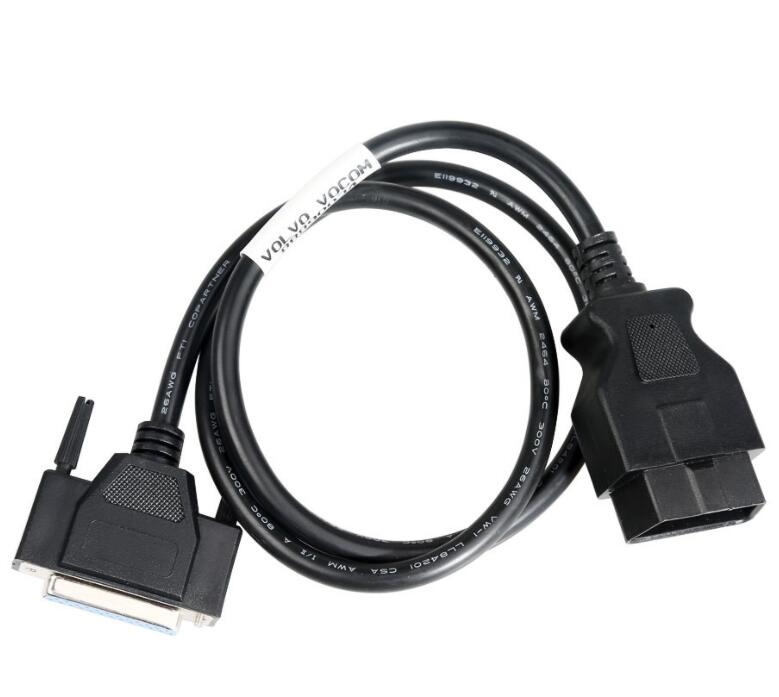

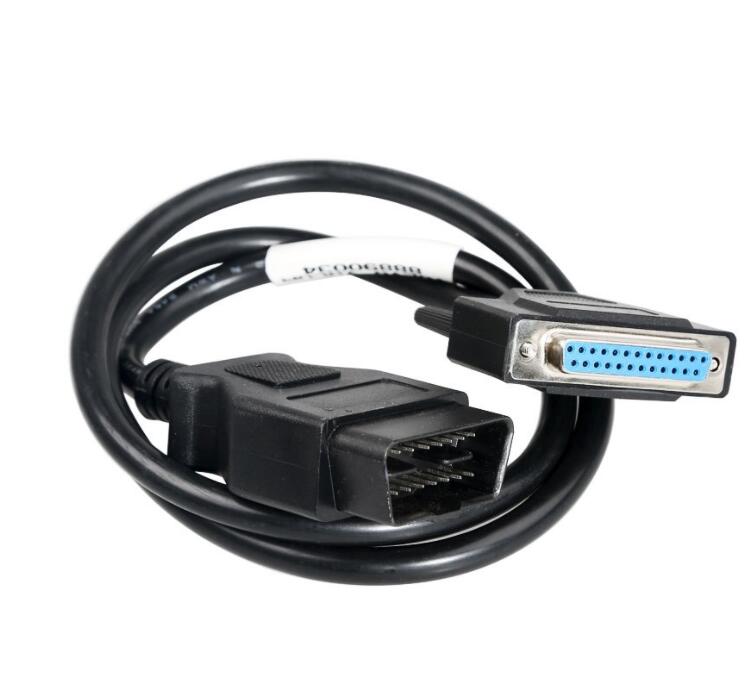

1pc x OBD2 Cable

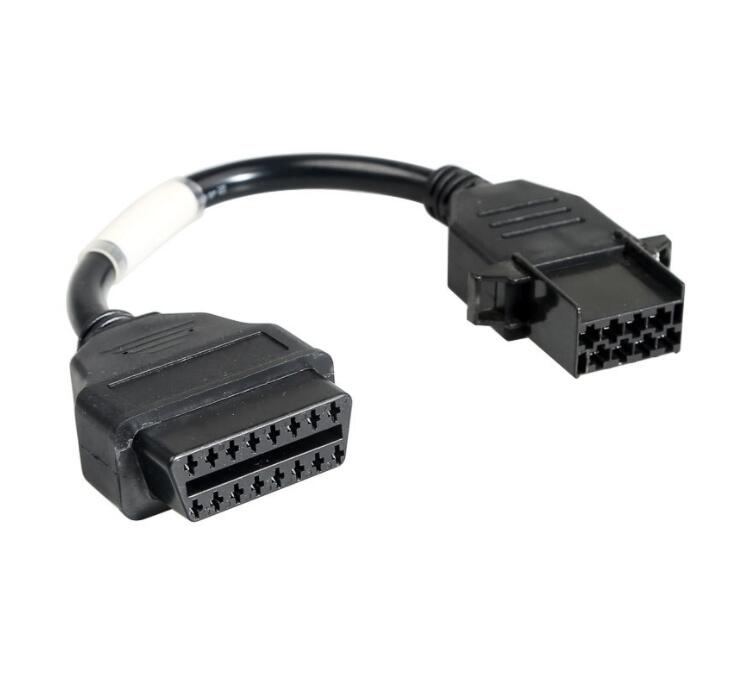

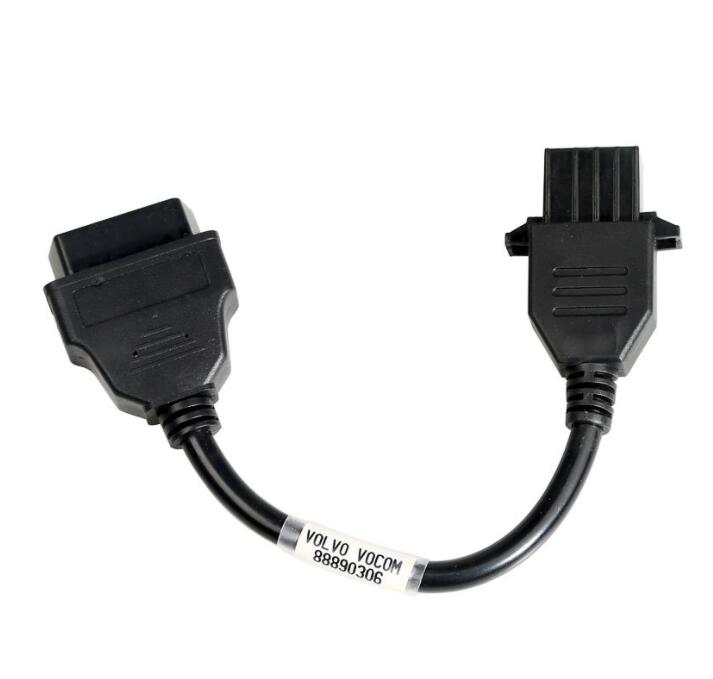

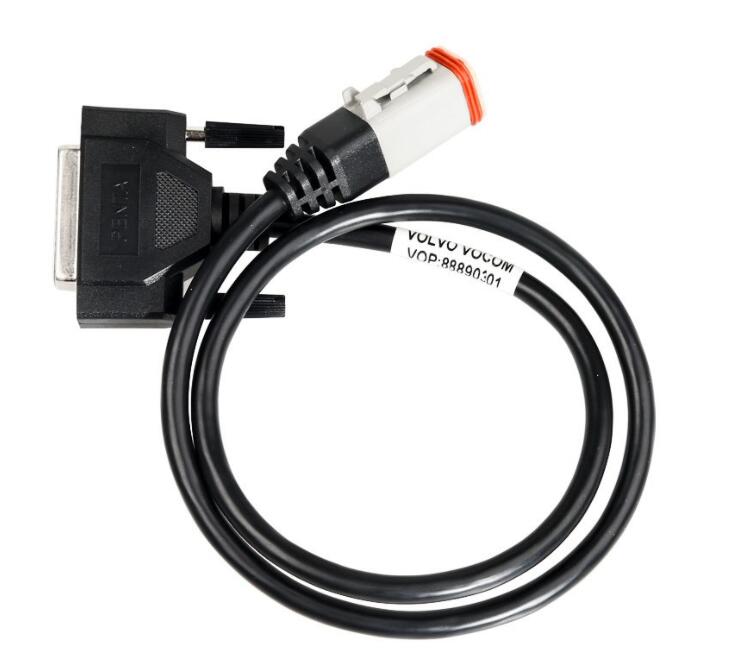

1pc x 8pin Cable

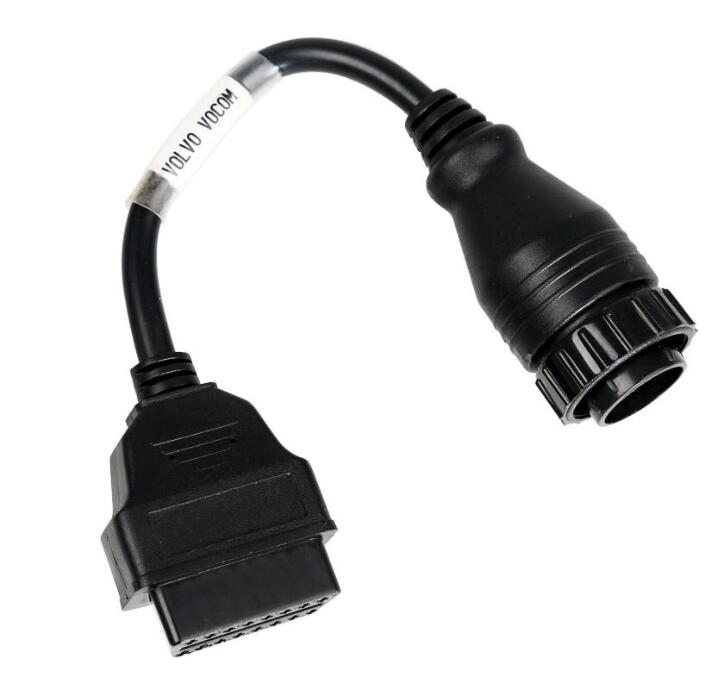

1pc x 14pin Cable

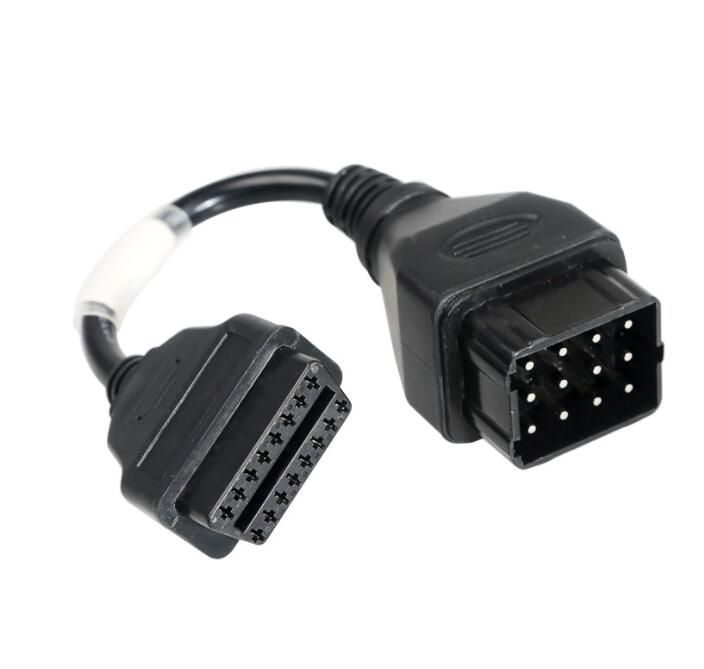

1pc x 12pin Cable for Renault trucks

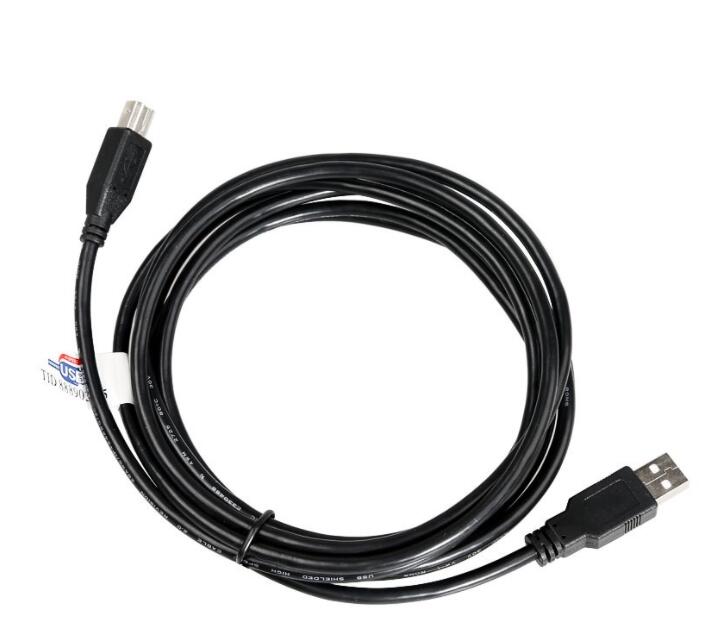

1pc x USB cable

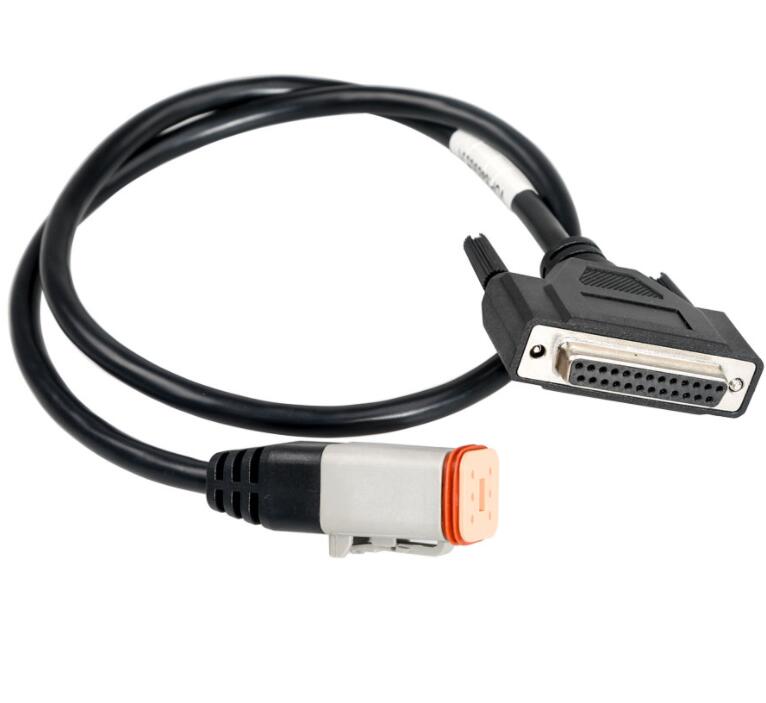

1pc x 9 Pin Duytsch Cable (Optional)
1pc x CD or HDD or Second hande Lenovo T420 Laptop（According to your selection）

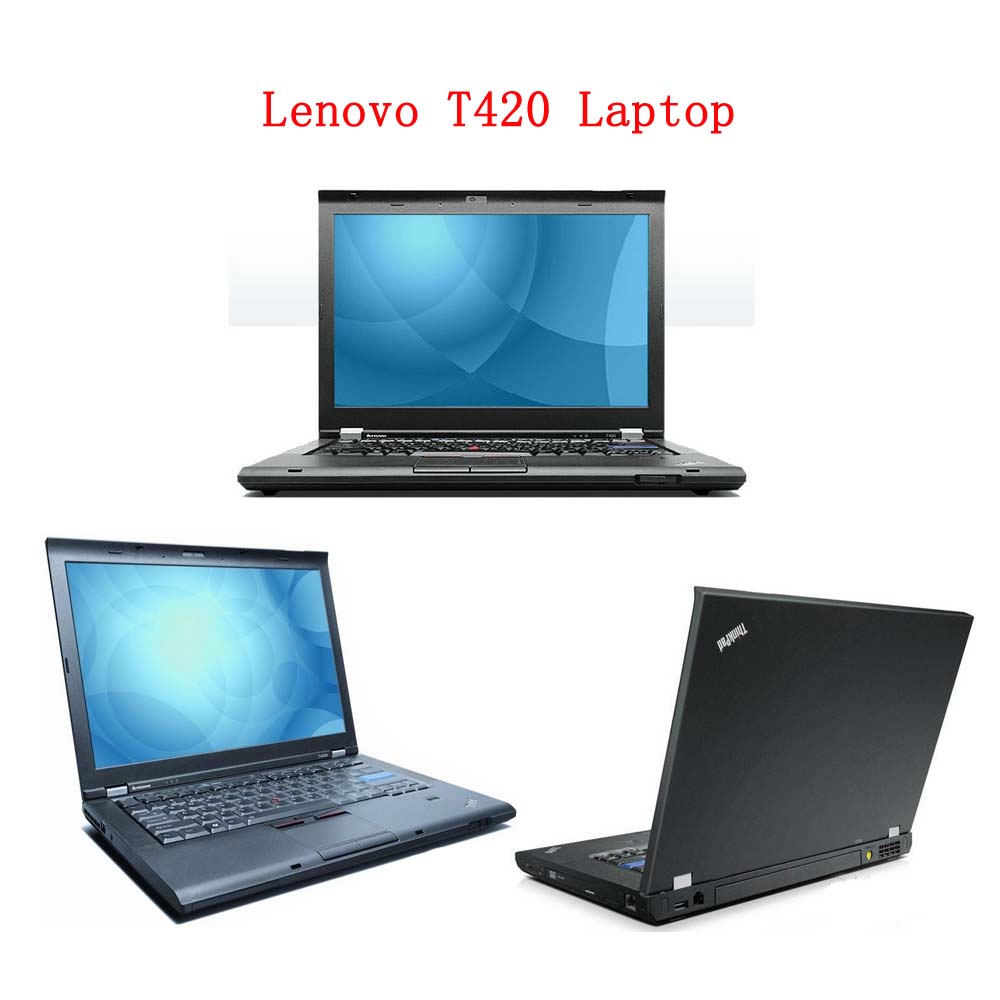

Second Hand Lenovo T420 Laptop Configuration:
Condition: Used: for car Diagnostic software has been installed previously.
Note: The item may have some signs of cosmetic wear, but is fully operational and functions as intended.
Brand: Lenovo
Condition: Used
Type: Laptop/Notebook
Screen Size: 14.0
Processor Type: Intel (R) Core(TM) I5-2520M CPU
Processor Speed: 2.50 GHz
Processor Configuration: Dual Core
Memory: 4GB
Compared with other laptop, this one is better quality and run faster.
