OBDSTAR CAN Direct Kit for X300 DP Plus X300 Pro4 Toyota Corolla Levin 4A Proximity Key Programming Free Pin Code
product description ：
CAN DIRECT KIT is used to read ECU data of gateway vehicles. Split design is easy to connect with more ECU cables, similar to COROLLA 4A.
Product Highlights：
Support Toyota 4A smart key password-free matching; (no need to remove the ECU from the car to the workbench to read data)
No disassembly, no need to connect BOX box!

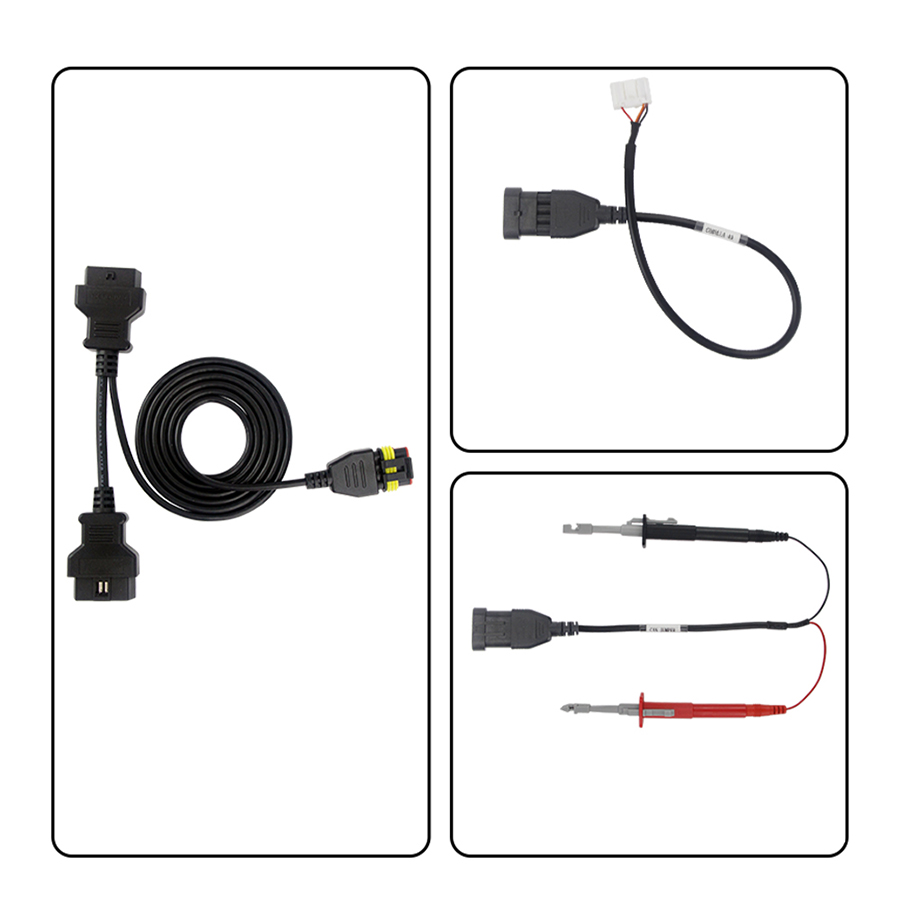

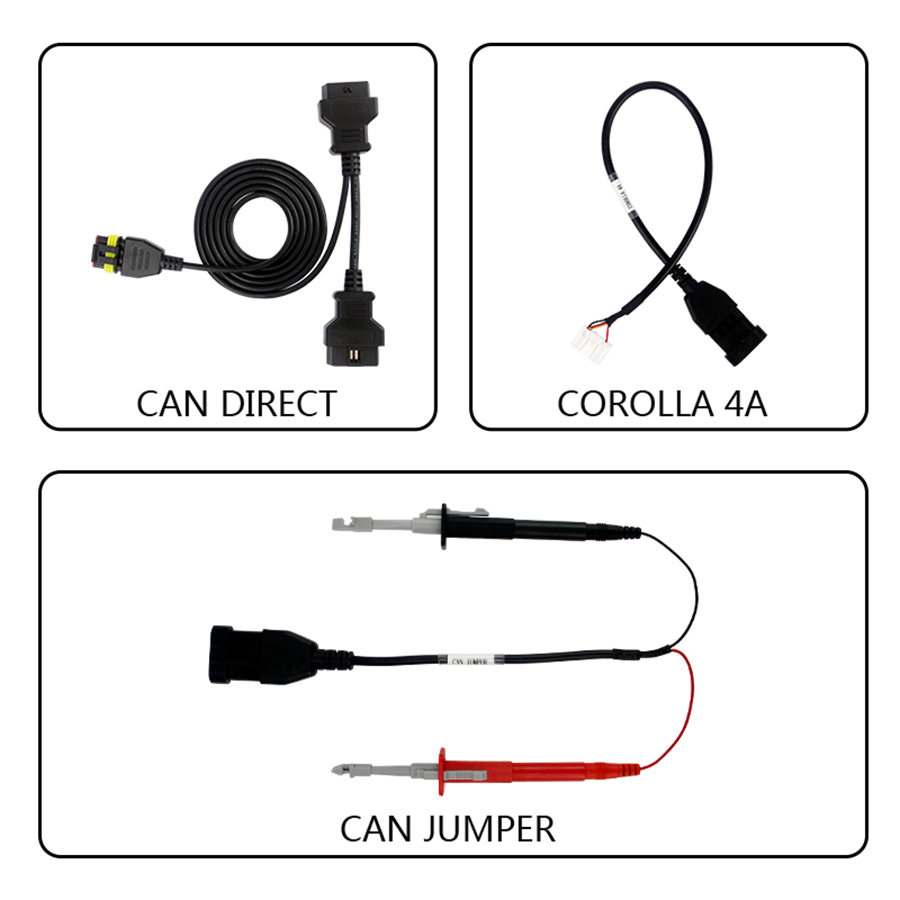

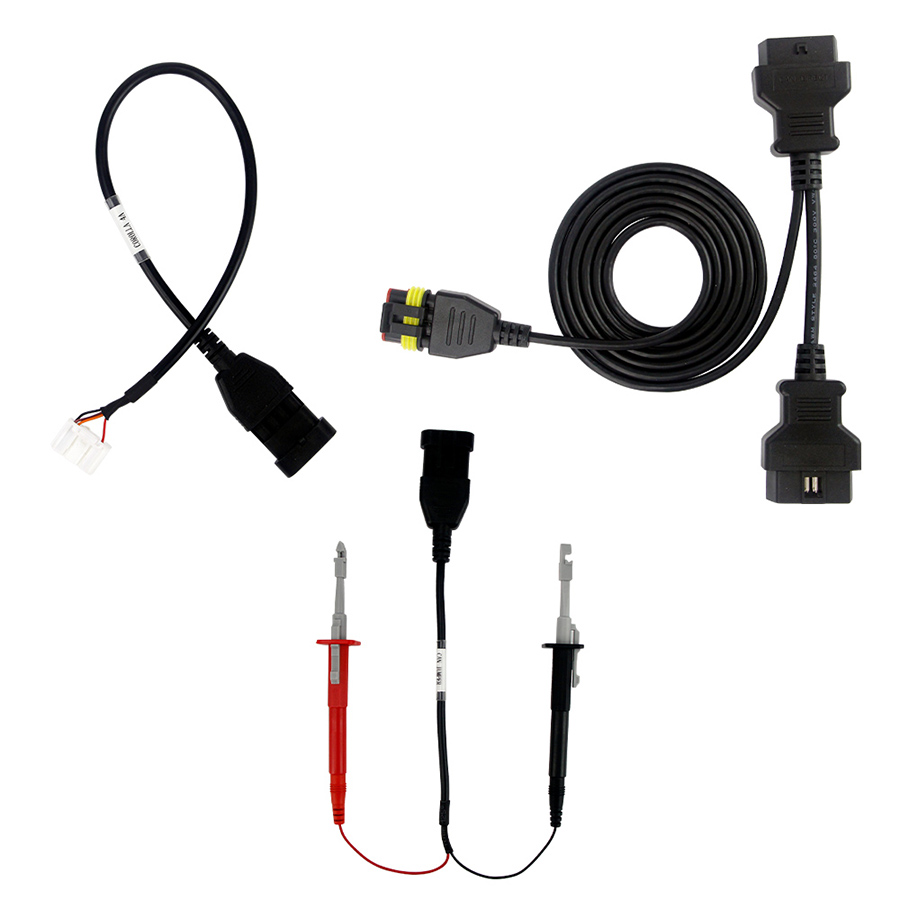

CAN DIRECT KIT Accessories：

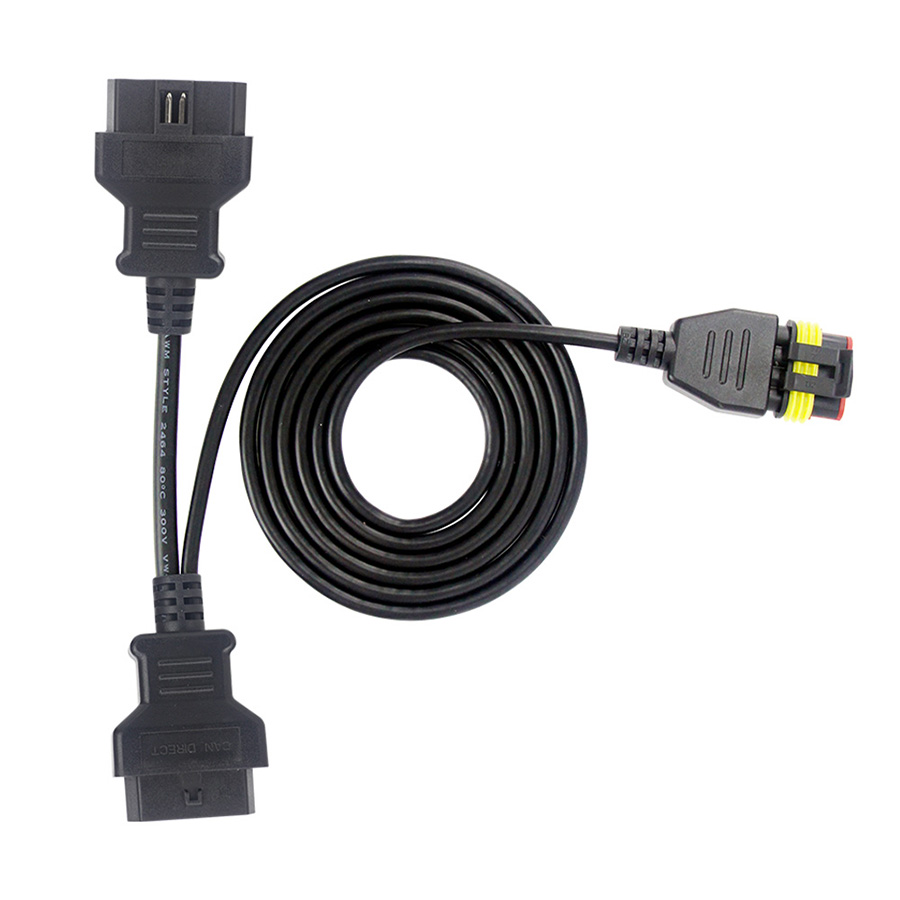

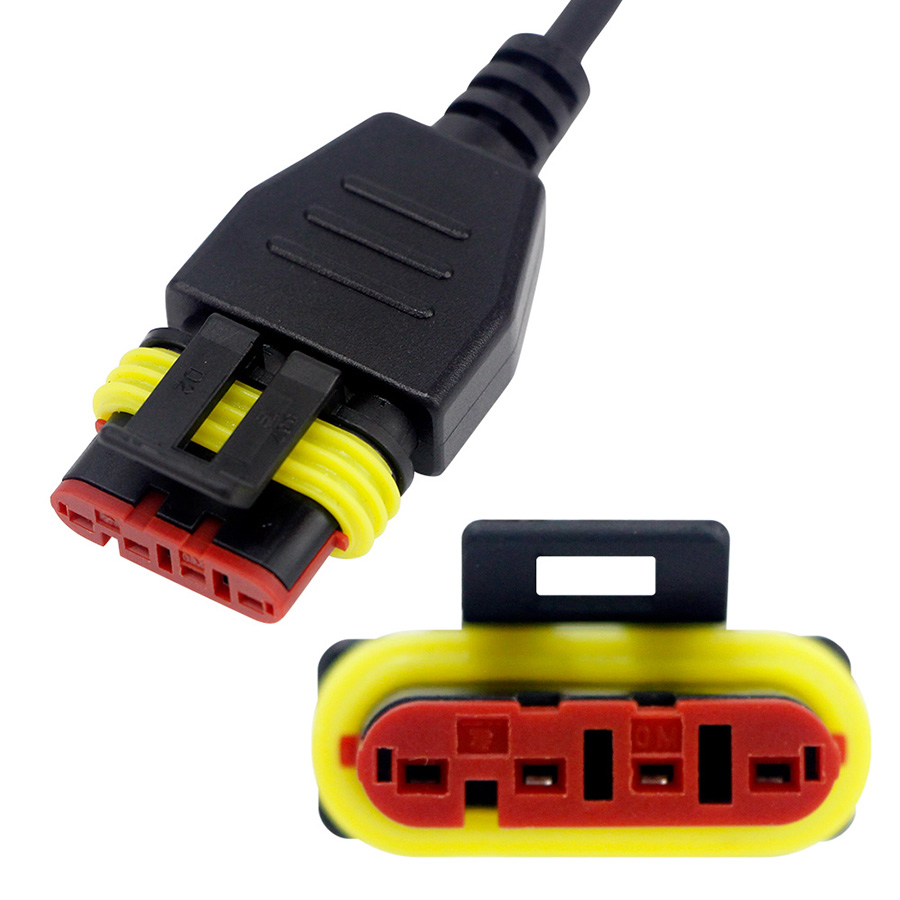

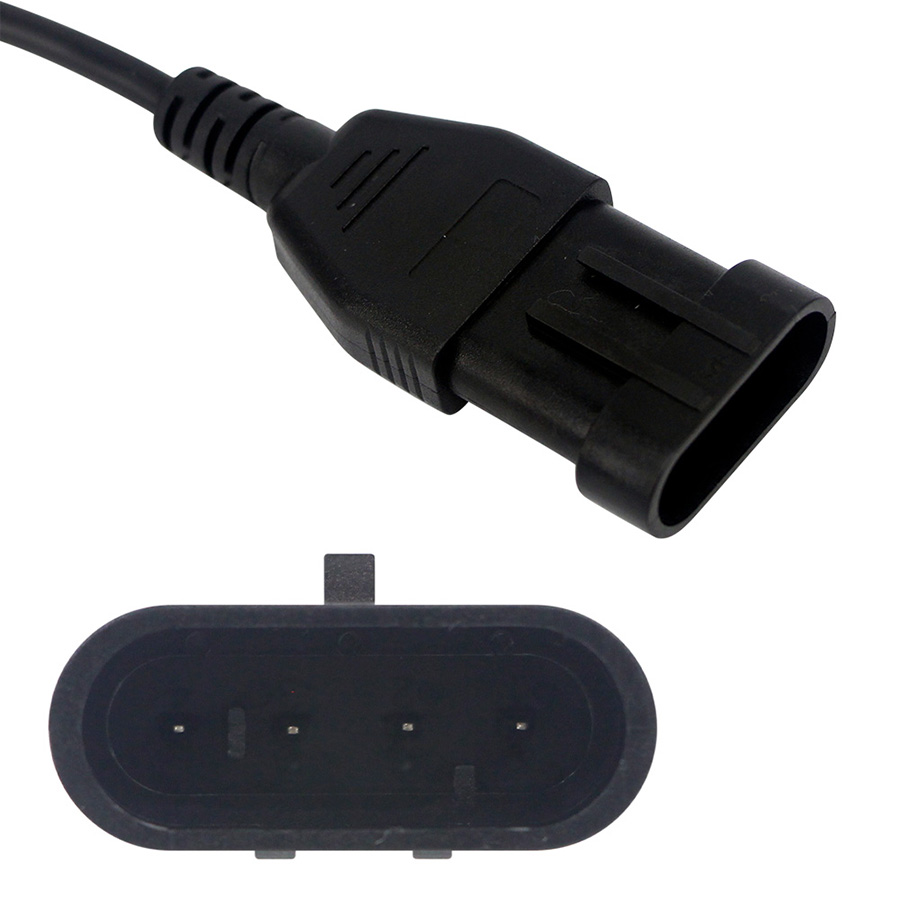

CAN DIRECT

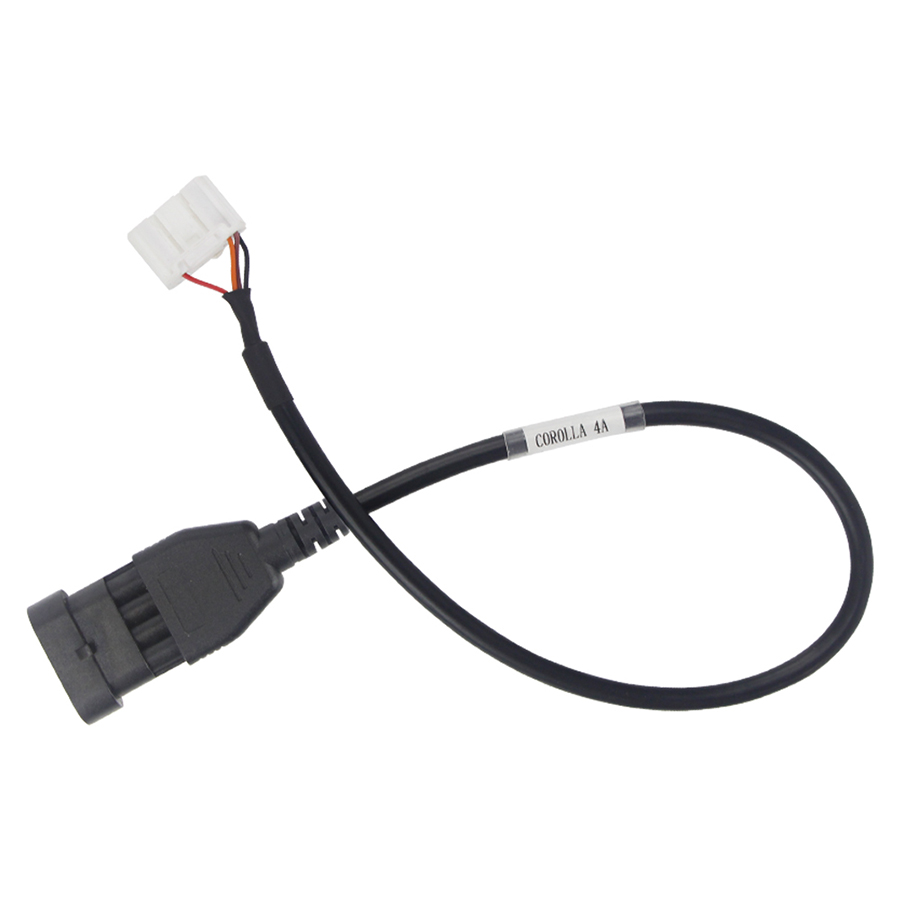

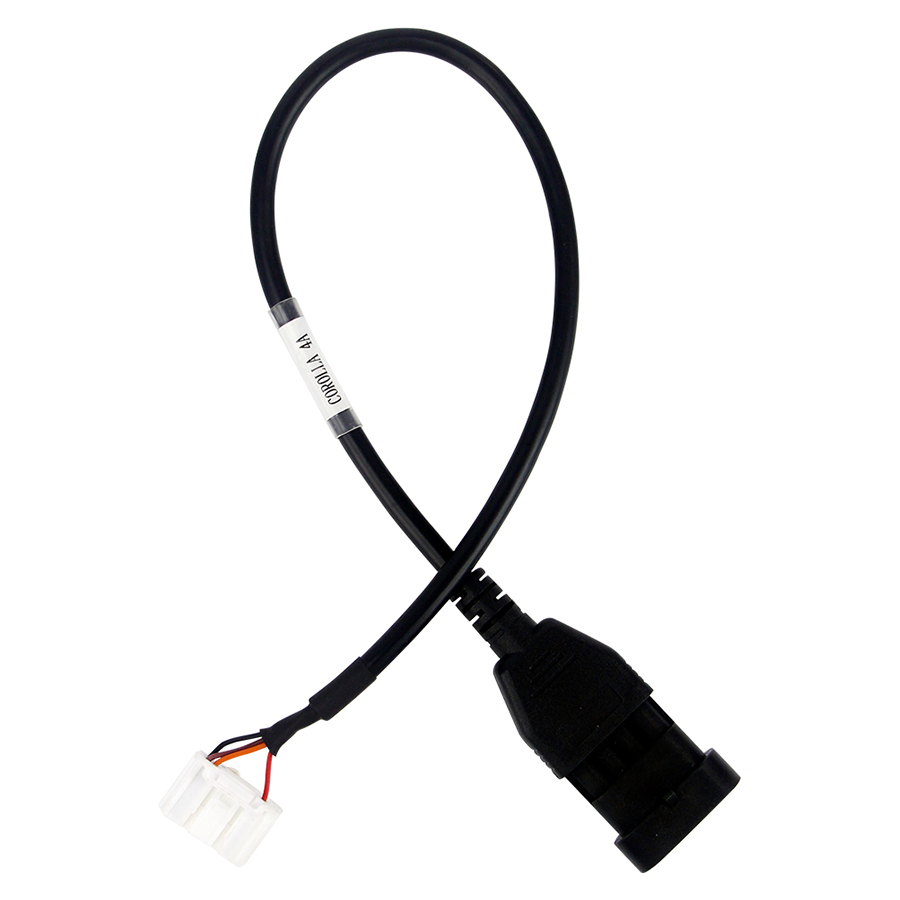

COROLLA 4A(for TOYOTA 4A)

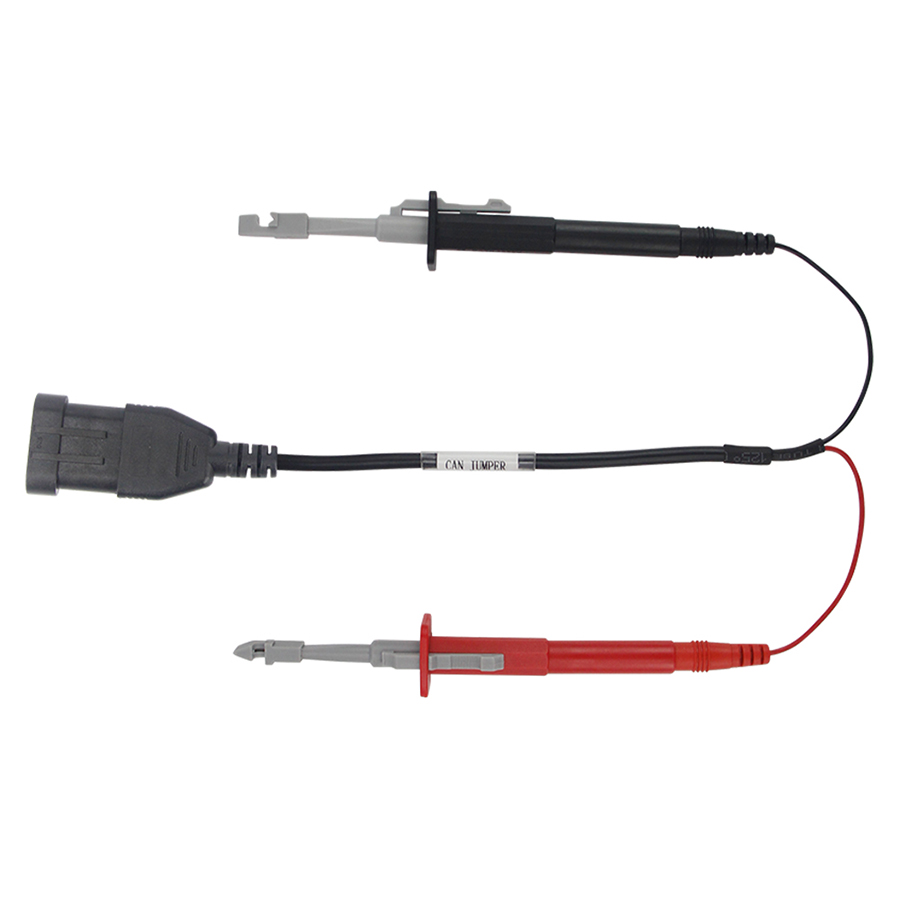

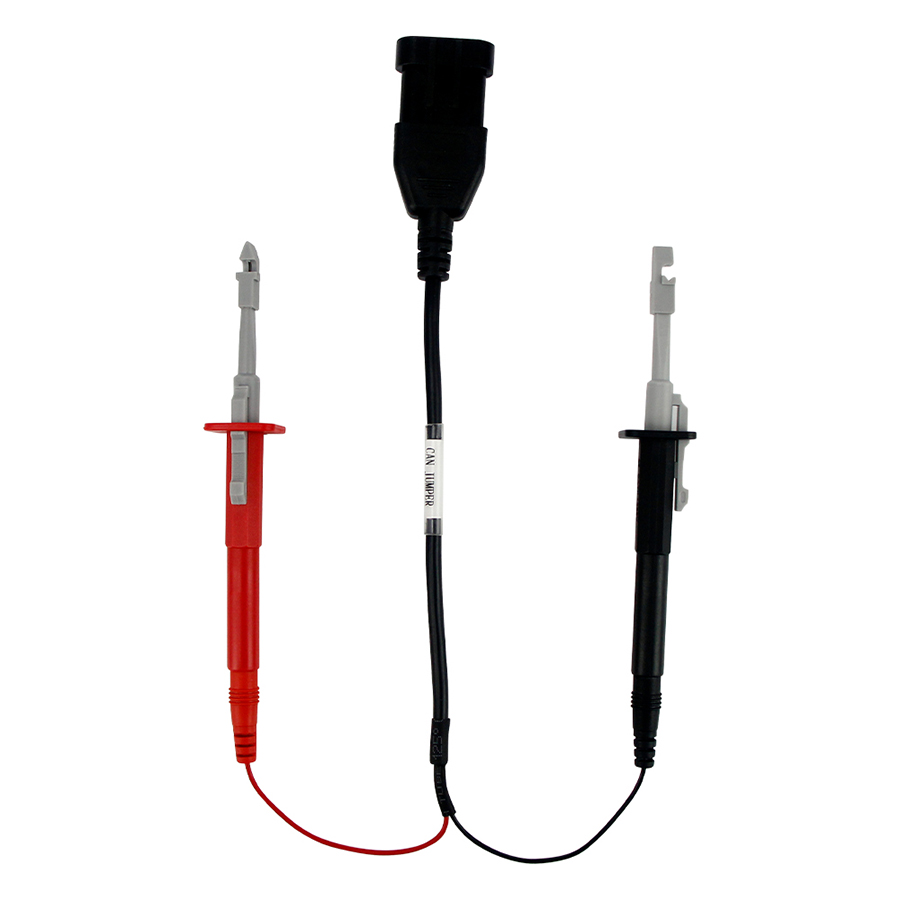

CAN JUMPER(for reading all canbus data)
Functions：
2019- COROLLA 4A proximity key programming(free pincode);
2021- COROLLA CROSS 4A proximity key programming(free pincode);
2021- COROLLA CROSS HV 4A proximity key programming(free pincode);
2021- COROLLA SPORT 4A proximity key programming(free pincode);
2021- COROLLA SPORT HV 4A proximity key programming(free pincode);
2021- COROLLA TOURING 4A proximity key programming(free pincode);
2021- COROLLA TOURING HV 4A proximity key programming(free pincode);
2021- COROLLA HV 4A proximity key programming(free pincode);
2019- LEVIN 4A proximity key programming(free pincode);
2021- LEVIN HV 4A proximity key programming(free pincode);
2021- ALLION 4A proximity key programming(free pincode);
2021- LIVIN 4A proximity key programming(free pincode).
Development Background：
With the development of the automobile industry, more and more vehicles are equipped with gateway modules for communication safety. Therefore, our company has developed CAN DIRECT KIT for reading ECU data of gateway vehicles. (Note: If reading data of a gateway vehicle by an OBD diagnostic connector, it will be blocked!).

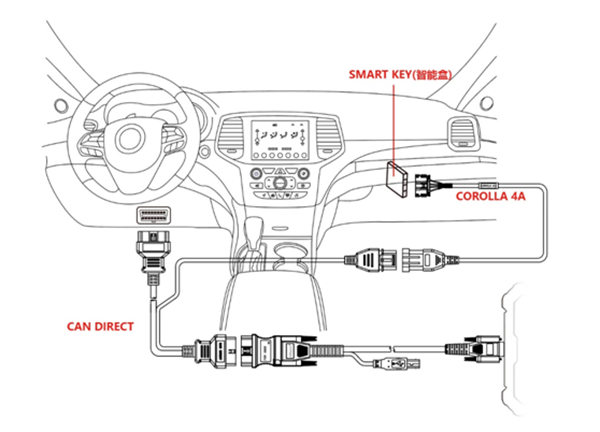

Connecting Method：
2021 TOYOTA COROLLA
