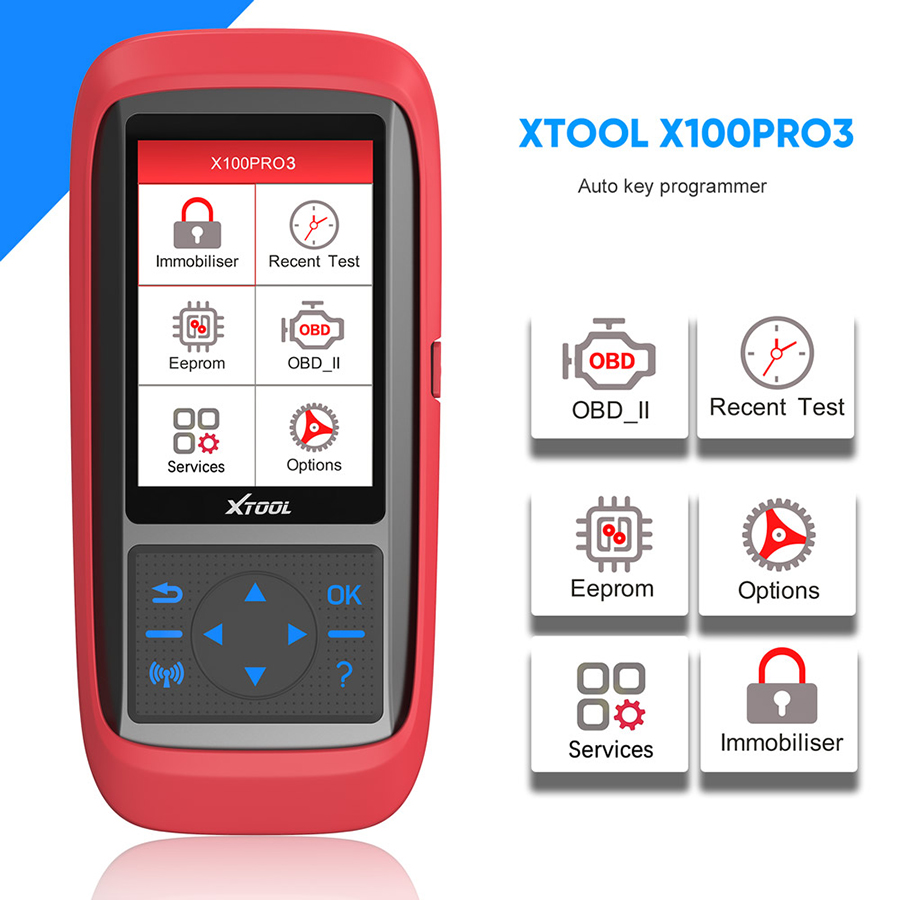

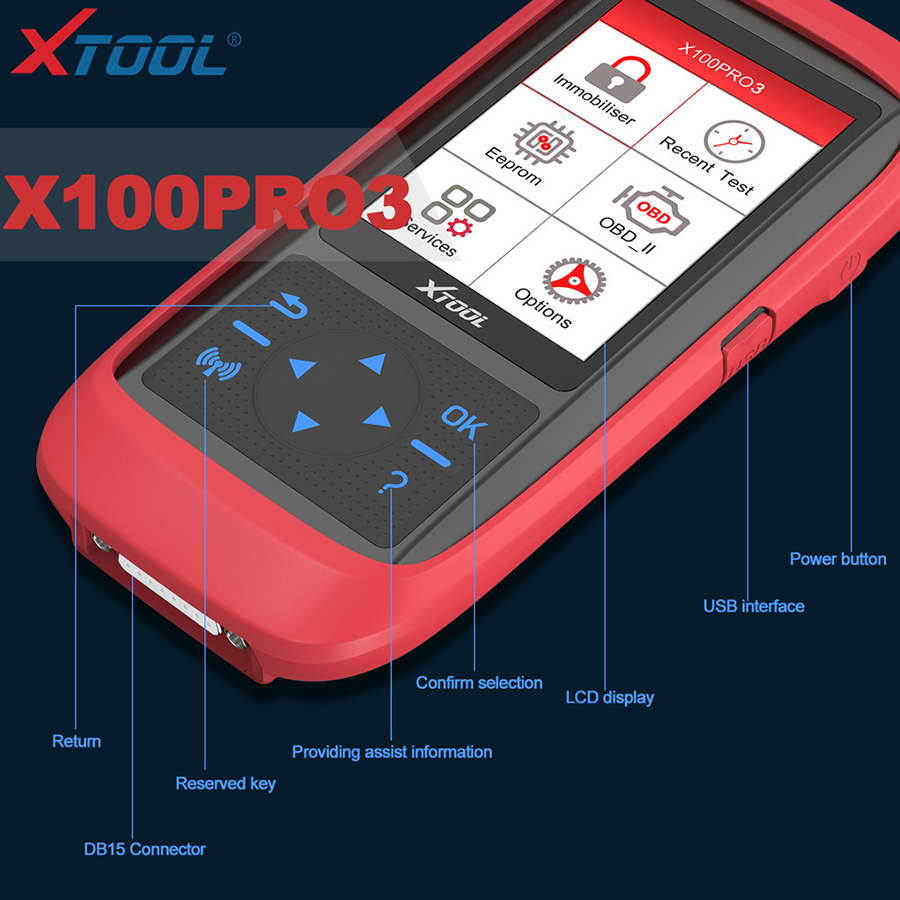

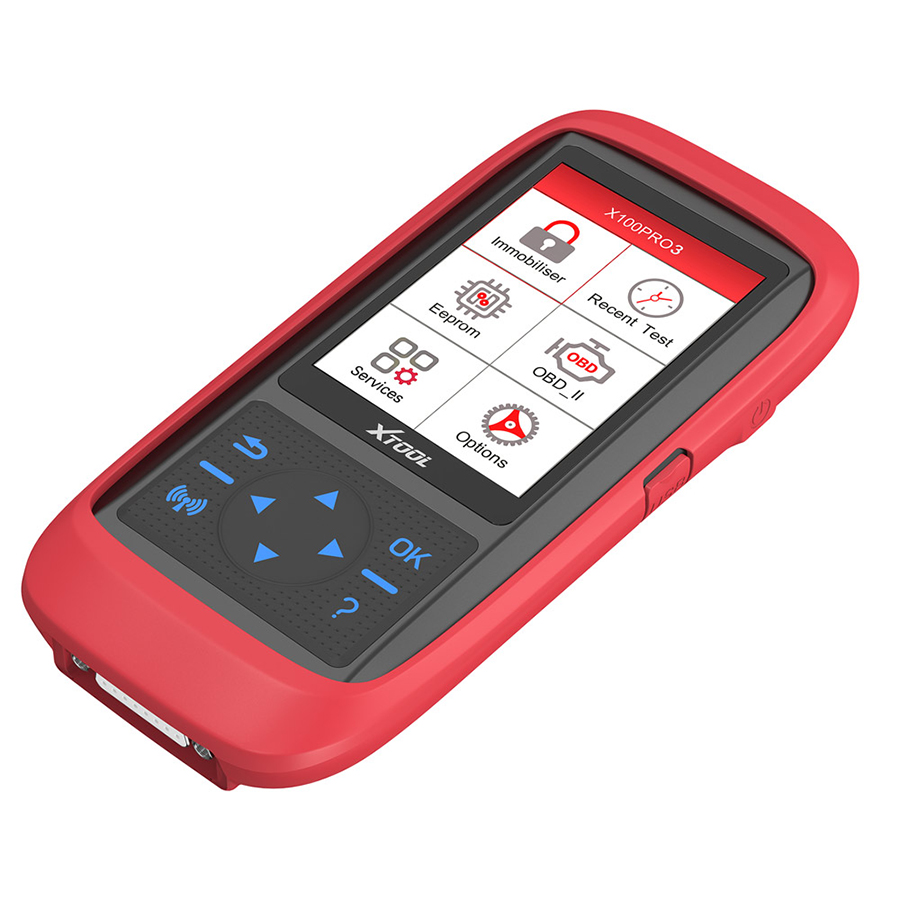

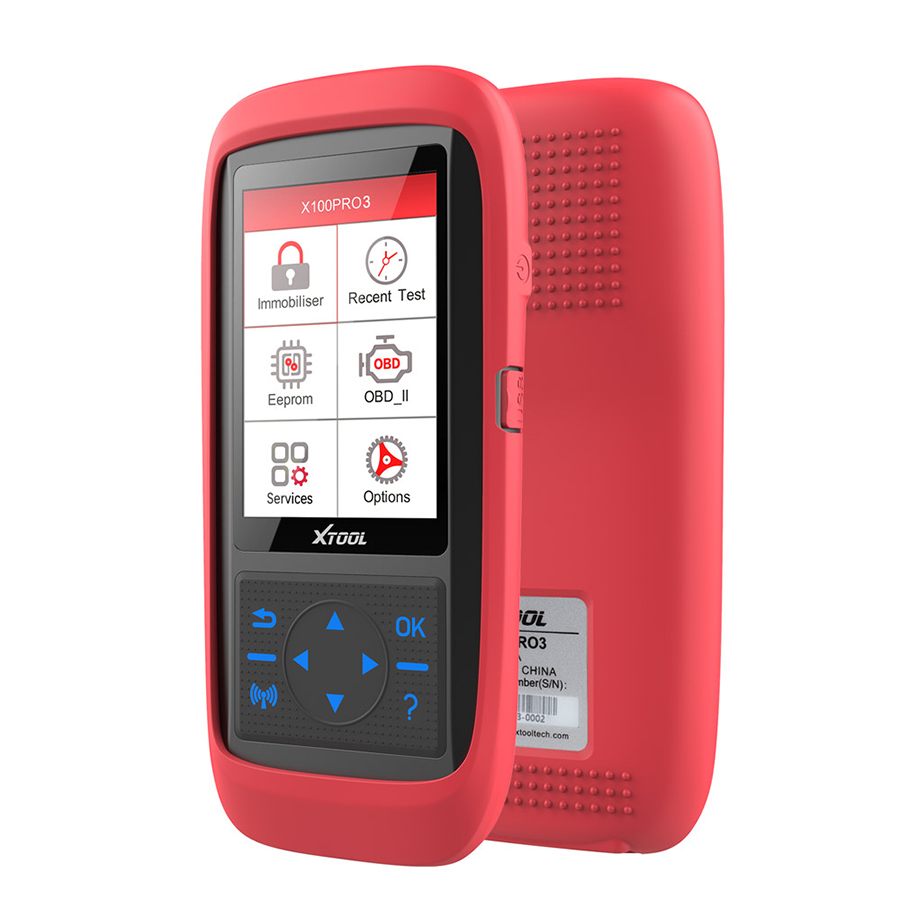

Xtool Pro3 is a professional key programmer tool + obd2 diagnostic+special functions

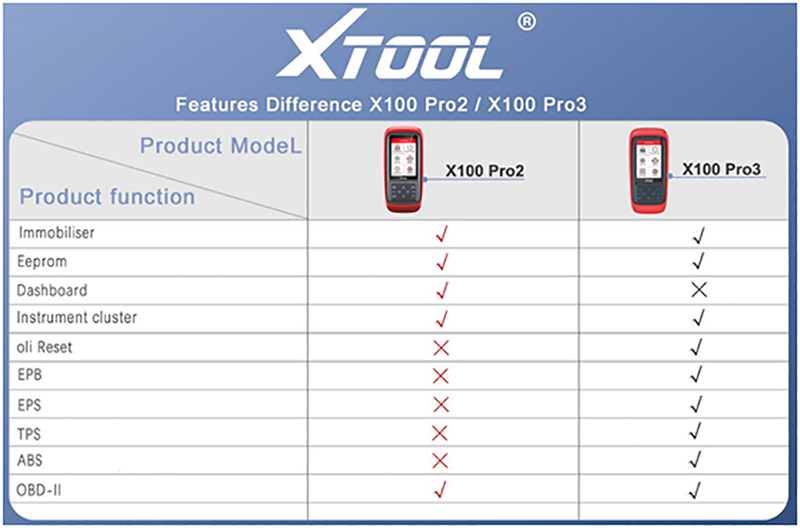

X100PRO3 is a professional key matching machine with 7 special functions OBD2/EOBD diagnostic function. It is an upgraded version of X100PRO2, adds EPB, ABS, TPS reset functions, which can meet the needs of more The needs of multiple car owners
7 Kinds of Special Reset Service Functions
*Oil Reset Service: Performs reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and turns off the warning light;
*Electronic Parking Brake (EPB) Service: Maintains the electronic braking system safely and effectively through deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
*Steering Angle Sensor (SAS) Service: Performs calibration for the Steering Angle Sensor (SAS), which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. On successful completion of the calibration, the steering angle sensor fault memory is automatically cleared.
*IMMO Service: enables you to disable the lost vehicle keys and program a replacement key fob.
*ABS Bleeding：ABS brake bleeding to get a firm brake pad after air exhaustion.
*Throttle Relearn: Need to perform throttle matching: 1. After replacing the electronic control unit, the electronic control unit has not stored the relevant characteristics of the throttle valve. 2. After the electronic control unit is powered off, the memory of the electronic control unit memory is lost. 3. After replacing the throttle assembly. 4. After replacing or disassembling the air inlet. 5. After cleaning the throttle.
And many more ...

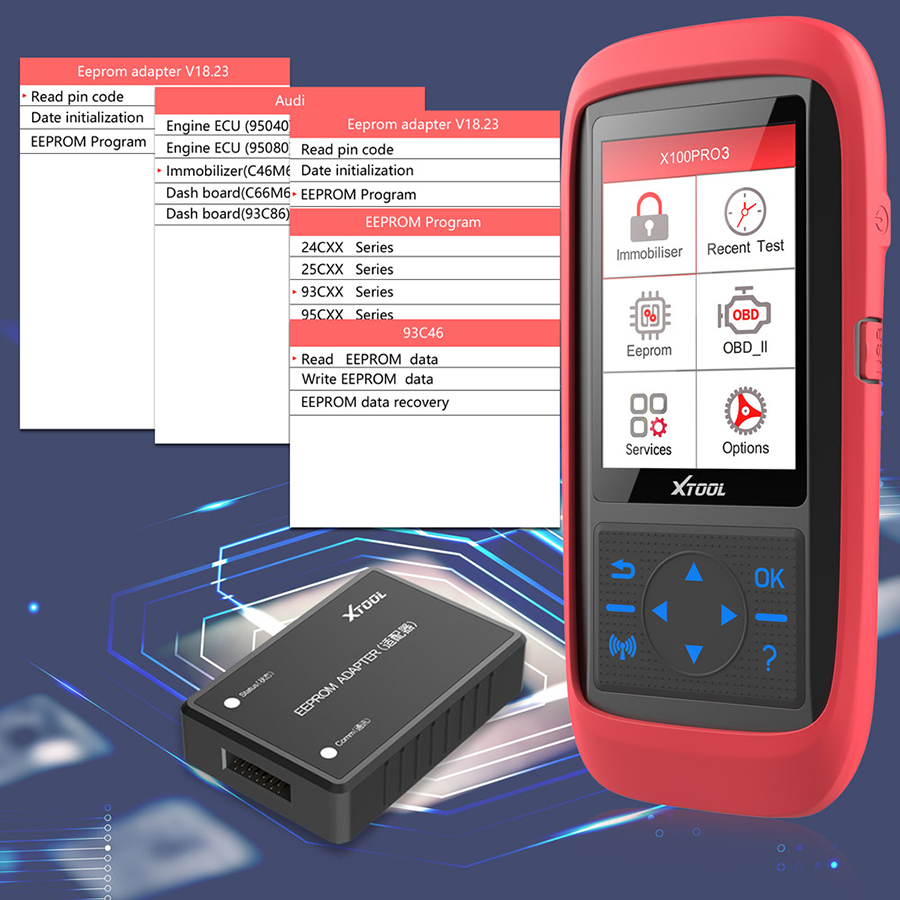

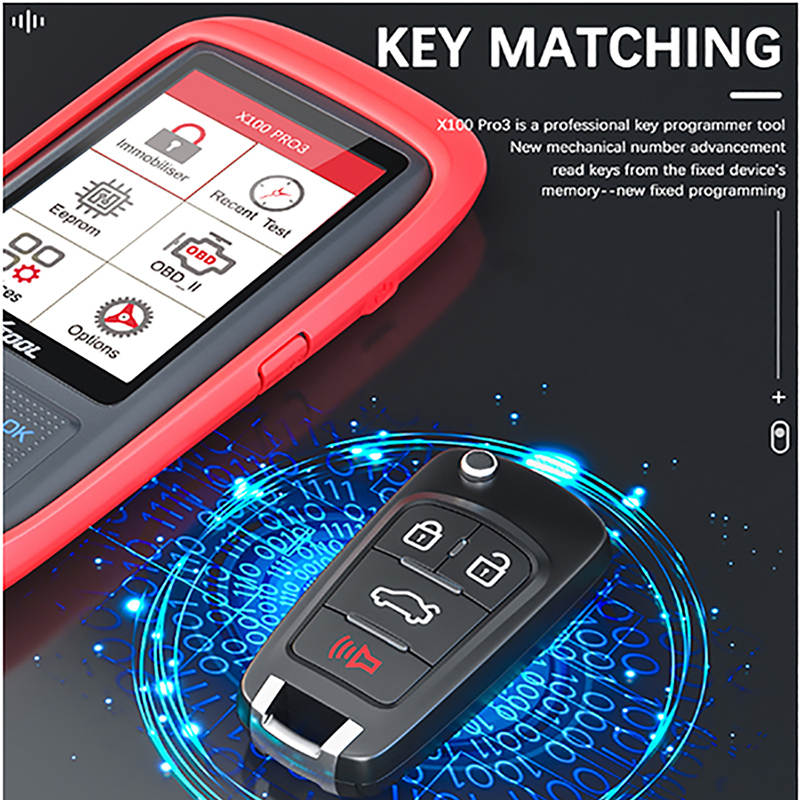

XTOOL X100PRO3 is an extremely cost-effective key matching device. It connects to the car ECU through the OBD interface, performs key matching, and generates a key. X100PRO3 supports EEPROM Adapter, including Read/Write/Backup IMMO Data with EEPROM adapter. NOTE: IMMO & Programming are NOT universally compatible
1.New keys programming
2.Reads keys from immobilizer's memory
3.New immobilizerprogramming
4.New remote controller programming
5.New mechanical key number programming
6.Vehicle Identification Number programming
7.Reset ECM & reset immobilizer

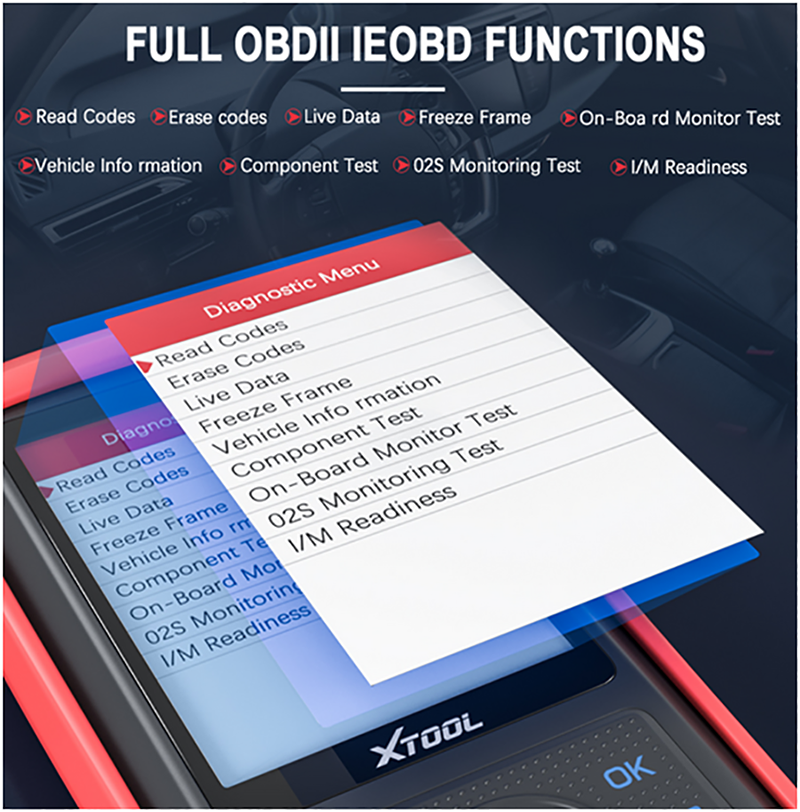

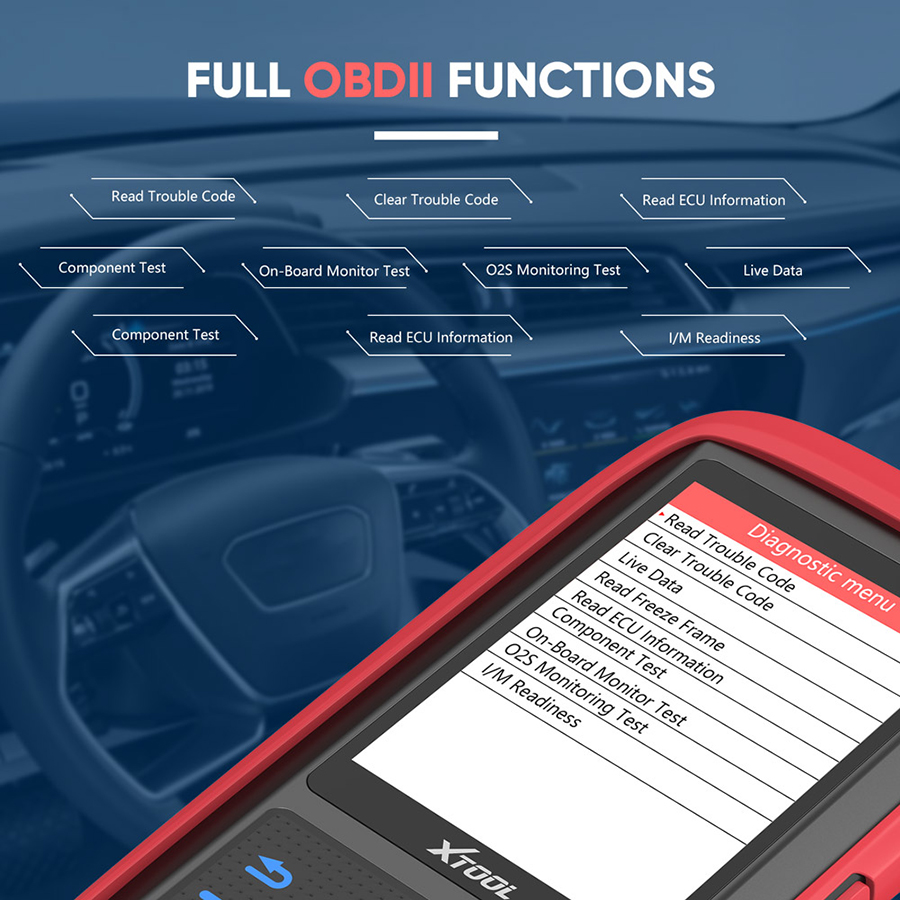

X100 PRO3 support OBD2 function : Reading Codes, Erasing Codes & Reset, Data Stream, I/M Readiness Status, Read Live Data Stream, View Freeze Frame Data, O2 Sensor Test, On-Board Monitor Test, Read Vehicle Information, Component Test
Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
Read Live Data StreamRead Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer
On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability
Support OBD2 engine diagnostic functions including
The SAE J1850 PWM
The SAE J1850 VPW
The ISO 14230-4
The ISO 9141-2
The ISO 15765-4
.....
X100 PRO3 support more then 1000+ car model (you also can contact us for check before buying)
Key Programmer Support Car List
For VW,For Toyota,For Lexus,For Isuzu,For Honda,For Mazda,For Great Wall Car,For GMC,For Cadillac,For Hummer,For Chevrolet, For Pontiac,For Buick,For Subaru,For Skoda,For Alfa Romeo,For Renault,For Porsche,For Peugeot,For Nissan,For Infiniti,For Geely, For Ford/Auford,For Mitsubishi,For Jaguar,For Hyundai,For Lincoln,For Landrover,For KIA,For Flat,For Citroen,For Chrysler, For Chery,For BYD
Maintenance lamp reset support car list
America--for BUICK，for Cadillac，for Chevrolet，for GMC，for Holden，for HUMMER，for Chrysler/for Dodge/for Jeep
，for FORD/for MERCURY/for LINCOLN，for OLDSMOBILE，for PONTIAC，for SATURN，for SCION
Asia-for Akula，for Honda，for Toyota，for Lexus，for Nissan，for Infiniti，for HYUNDAI，for Kia，for Mitsubishi
，for Mazda，for Subaru，for Isuzu，for SUZUKI，for Proton，for Mahindra
China-for BAIC，for BaoJun，for ChangAn，for JETOUR，for EXEED，for CHERY，for GREATWALL，for Geely，for ROEWE，for MG，for BARGWARD，for Brilliance，for BYD，for ChangHe，for ChangFeng，for DFFS，for Soueast，for FOTON，for Qoros，for HanTeng，For HaiMa，For JMC，For JAC，For JunMa，For COWIN，For LiFan，For Suzuki，For LYNK&CO，For NAVECO，For Luxgen，For Rover，For MAXUS，For SWM，For FAW，For FawHongQI，For FawDaihatsu，For Yema，For ZOTYE，For ZhengZhou Nissan，For ZXAUTO
Europe-For PORSCHE，For VW/For AUDI/For SEAT/For SKODA，For Bentley，For BENZ，For BMW，For VOLVO，For LandRover，For SAAB，For PEUGEOT，For CITROEN，For OPEL/For VAUXHALL，For JAGUAR，For Smart，For Maserati，For Smart，For FERRARI，For LAMBORGHINI，For BUGATTI，For FIAT，For LANCIA，For ALFAROMEO，For Renault，For Aston Martin
Electronic brake pads
America-For CHRYSLER/For DODGE/For JEEP，For FORD，For LINCOLN，For GM
Asia-For ACURA，For HONDA，For HYUNDAI，For KIA，For LEXUS，For NISSAN，For SCION，For Subaru，For TOYOTA，For MAZDA，For MITSUBISHI
China--For Qoros，For Baojun，For Wuling，For Borgward，For BESTUNE，For Beijing Auto，For Beiqi Foton，For BYD，For Changan,For Chery,For COWIN,For JETOUR,For Dongfeng For Fengshen,For Soueast,For Dongfeng scenery,For Dongfeng For fengxing,For GEELY,For GREAT WALL,For HongQi,For LUXGEN,For MG,For Roewe,For GAC Trumpchi,For Zotye,For Han Teng,For DORCEN,For Mustang,For CHANGFENG MOTOR,For JAC,For Landwind,For FAW Daihatsu,For Datong,For Haima,For SWM,For Brilliance,For TRAUM,For LYNK&CO,For Lifan,For Naihai FODAY,For Changhe,For BISU,For ZTE Automobile
Throttle matching
America--For Ford，For CHRYSLER，For DODGE，For FORD，For GM ，For JEEP，For LINCOLN
Asia--For INFINITI，For LEXUS，For NISSAN，For TOYOTA，For SUBARU，For ACURA，For DAEWOO，For HYUNDAI，For KIA，For LEXUS，For MITSUBISHI，For NISSAN，For HONDA，For TOYOTA，For INFINITI，For MAZDA
China--For BAIC MOTOR，For BAIC GROUP，For BAIC HYOSOW，For BAIC WEIWANG，For BRILLIANCE，For GREATWALL，For GEELY，For KARRY，For RELY，For RIICH，For CHANGAN，For CHANGAN KUAYUE，For CHANGAN SUZUKI，For WULING，For BAOJUN，For DFFX，For DFPV，For DFSK，For DFFG，For ROEWE，For MG，For BYD，For JAC，For Jiangling，For LIFAN，For HNMAZDA，For TIANJIN FAW，For ZZNISSAN，For ZZHAIMA，For CHANGHE，For CHANGHE SUZUKI。For ENRANGER，For FAW，For FAW XENIA，For FAW HONGTA，For FAW JIQING/For JIABAO，For LIEBAO，For FOTON，For ZOTYE，For SOUEAST，For HAFEI，For MIANYANG HUARUI，For LANDWIND，For ZXAUTO，For XIAMEN KING LONG，For XIAMEN BIG KING LONG，For SUZHOU KING LONG，For MUSTANG，For HANTENG，For MAXUS，For IVECO，For SHANGHAI HUAPU，For KOWLOON，For KAWEI，For QILING，For AEROSPACE MITSUBISHI，For HUIZHONG，For FODAY，For GAC GONOW，For HAWTAI，For QNLOTUS，For SHUANGHUAN，For COWIN
Europe-For Peugeot，For Citroen，For AUDI,For BENZ,For BMW,For CITROEN,For FIAT,For ABARTH,For LANCIA,For DACIA,For ALFA ROMEO,For JAGUAR,For LANDROVER,For OPEL,For PORSCHE,For RENAULT,For Maserati,For SAAB,For SEAT,For SKODA,For VOLVO,For VW
Steering angle matching
America--For GM-Buick，For GM-Cadillac，For GM-Chevrolet，For GM-Daewoo，For GM-GMC，For GM-Holden，For GM-Pontiac，For GM-Saturn，For CHRYSLER/For JEEP/For DODGE，For Ford，For LinColn
Asia--For Nissan,For Infiniti,For Toyota,For Lexus,For Subaru,For Honda,For Acura,For SUZUKI,For Mazda,For HYUNDAI,For Kia
,For Ssangyong,For Mitsubishi,For Daihatsu
China--For BaoJun,For BAIC,For BAIC FOTON,For BISU,For BYD,For LYNK,For Changan,For Great Wall,For CHANGFENG Cheetah,For CHANGHE,For DONGFENG FENGGUANG,For DONGFENG For NISSAN,For DFSK,For SOUEAST,For TRUMPCH,For HaiMa,For HANTENG,For HAWTAI,For GEELY,For JAC,For KAIRUI,For COWIN,For LIFAN,For LandWind,For LUXGEN,For Chery,For EXEED,For JETOUR,For RUIQI,For MG,For ROEWE,SW,TianJin FAW,For SGMW,For FAW,For Mustang,For DAIHATSU,For Zhengzhou Nissan,For ZhongHua,For ZOTYE,For QOROS,For JunMa,For MAXUS,For NJ Iveco
Europe--For PEUGEOT,For CITROEN,For VW,For AUDI,For SKODA,For SEAT,For LAND ROVER,For JAGUAR,For VOLVO,For BENZ,For SMART,For BMW,For MINI,For PORSCHE ,For RENAULT,For DACIA,For FERRARI,For MASERATI,For Opel,For Fiat,For Lancia,For Abbas,For Alfa Romeo,For SAAB

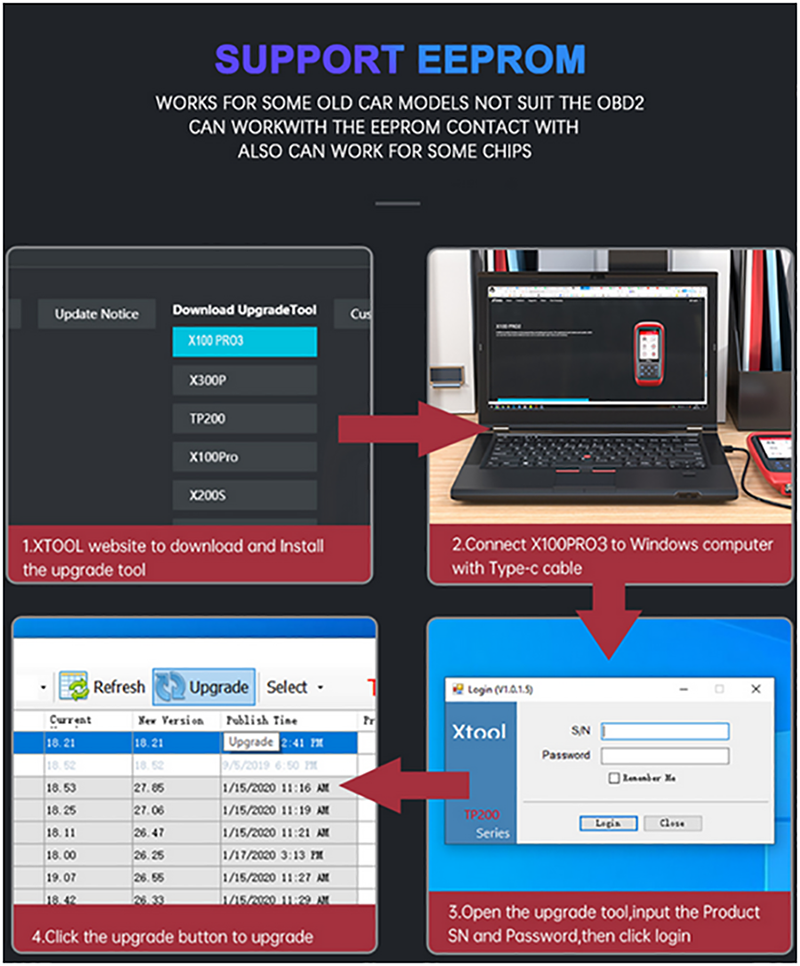

Xtool X100Pro3 Can Support Update Free Via USB
1.Log in the Xtool webstie to download and install the upgrade tool.
2.Connect the X100pro3 to Windows computer with type-c cable.
3.Open the upgrade tool,input the product SN code and Password,then click login.
4.Click the upgrade button to upgrade it.

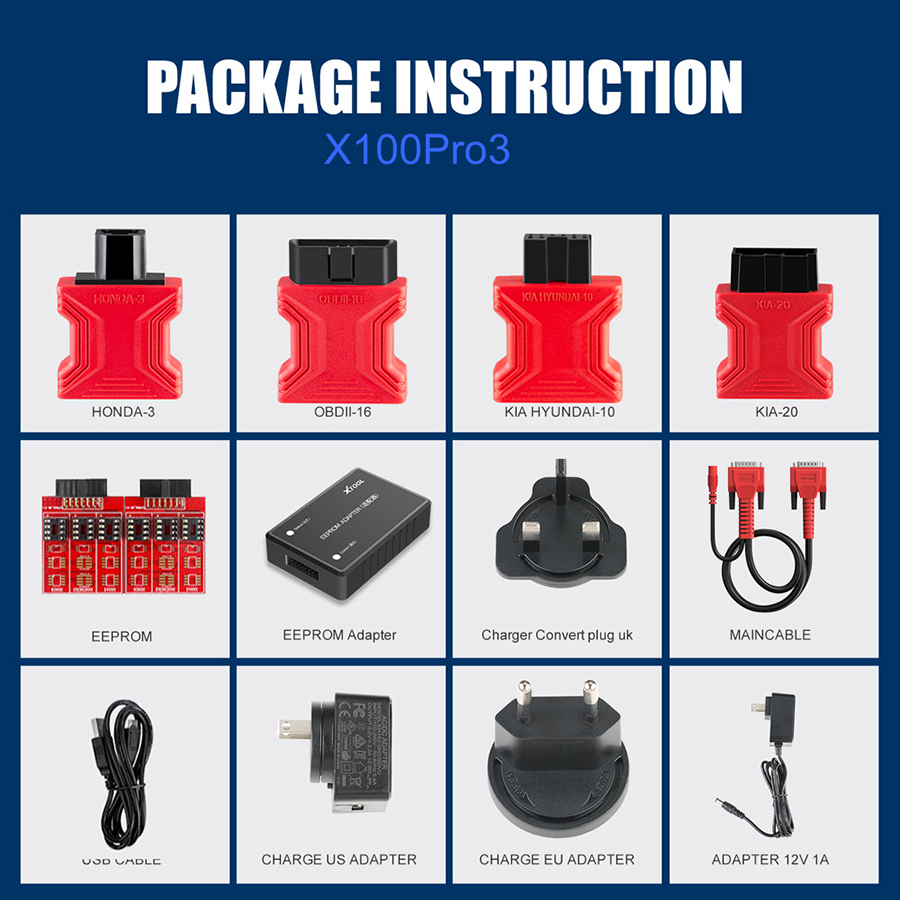

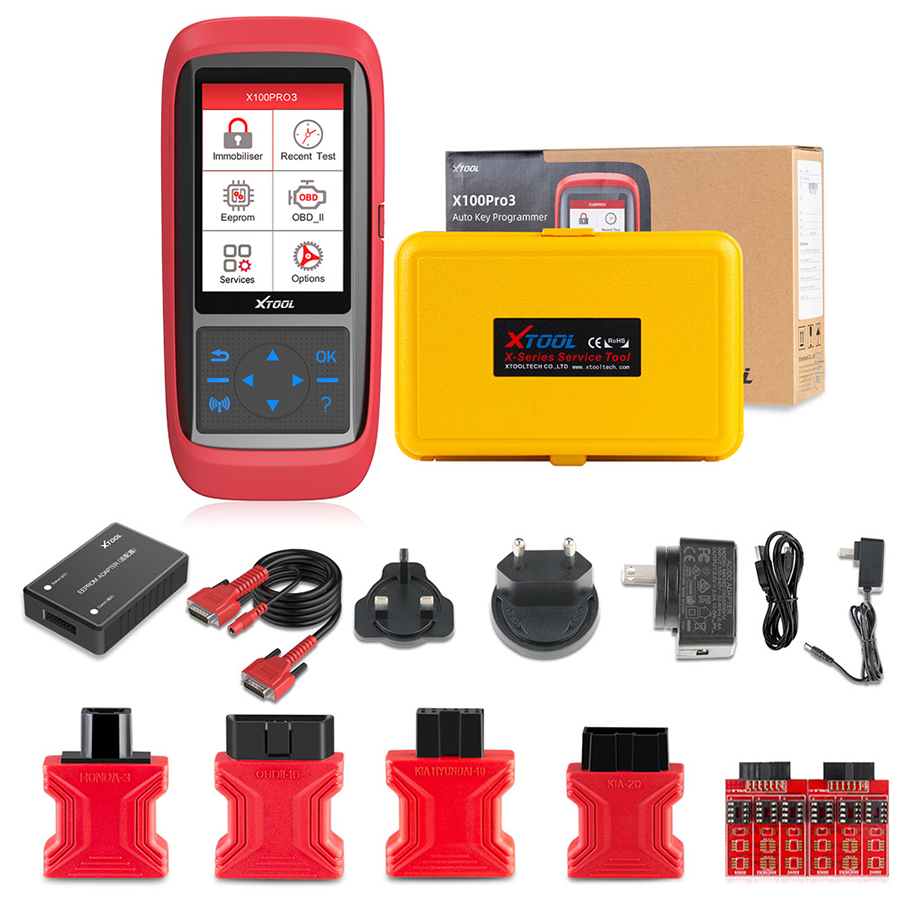

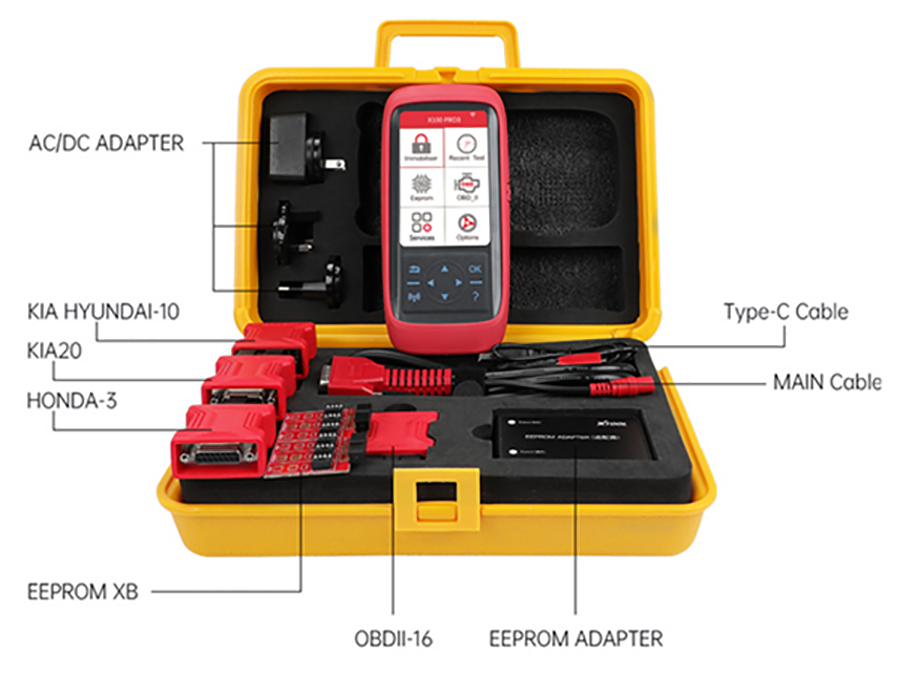

Packing List
1set X Xtool X100 PRO3
