Notice:
Operate System: Windows XP and Win7

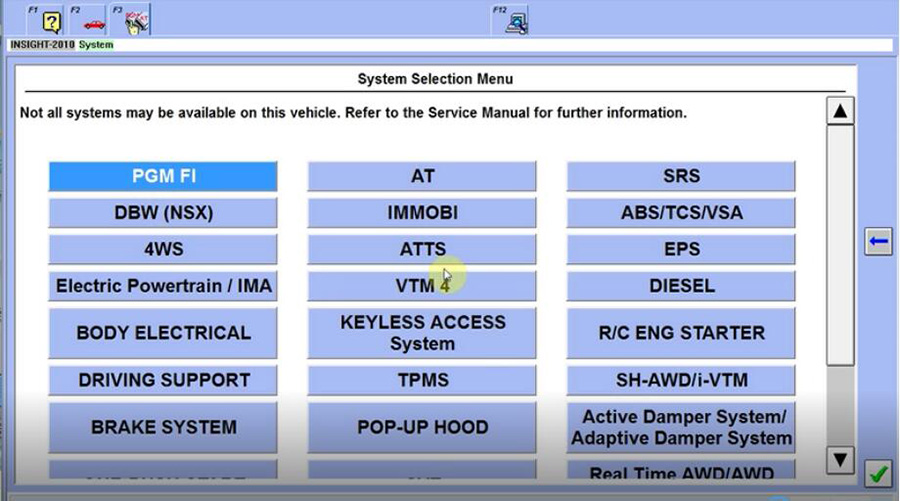

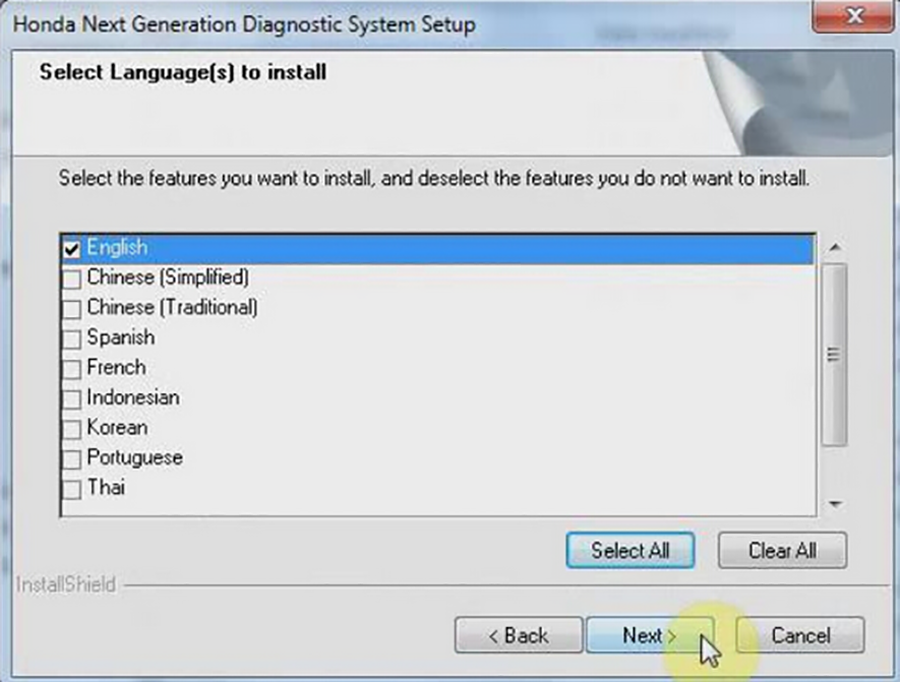

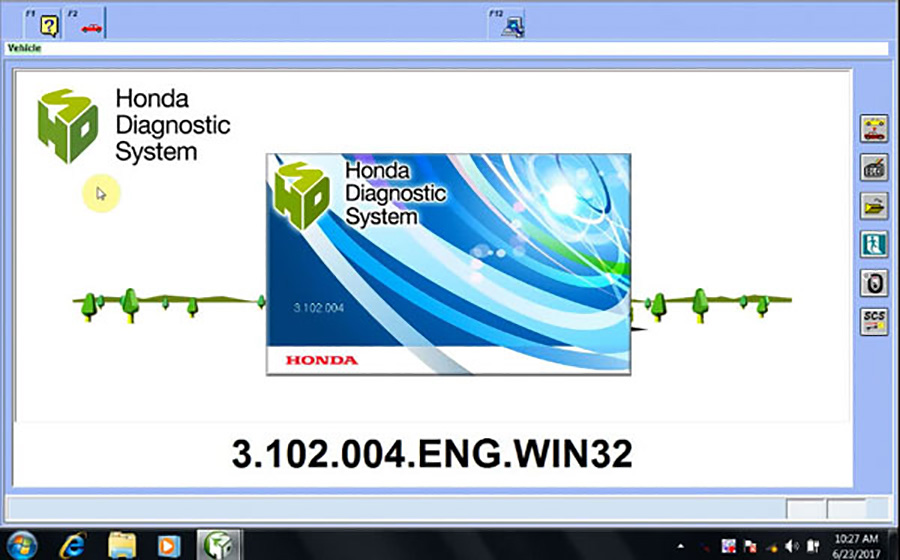

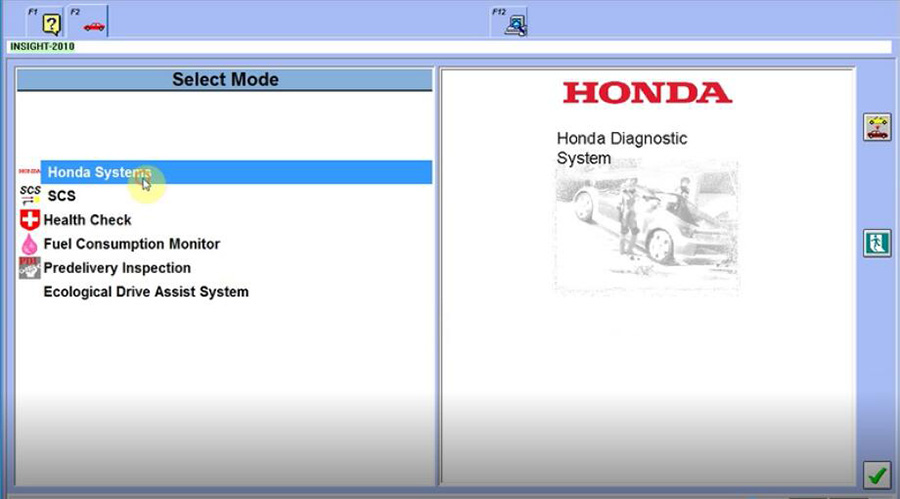

V3.102.051 Honda HDS HIM Software Display:
Honda HDS HIM Function:
1. Functions Supported by Honda/Acura Protocols
Reading and decoding fault codes from control blocks memory
Deleting fault codes
Displays system current parameters in digital form
Combined displaying of data
Management of executive devices
Logs keeping - writing and keeping of digital parameters in memory
Special functions - changing of permissible settings of blocks, programming etc.
2. Functions Supported by OBD-II Protocols
Mode $01 - Displays system current parameters in digital form (up to 8 parameters at once)
Mode $02 - Displays parameters of freeze frame
Mode $03 - Reading and decoding of fault codes from control block? memory
Mode $04 - Deleting of fault codes (memory clearing)
Mode $05 - Displays results of oxygen sensors
Mode $06 - Displays results of changeably controlled systems and components
Mode $07 - Displays results of constantly controlled systems and components
Mode $08 - Management of executive devices
Mode $09 - Displays car identification info

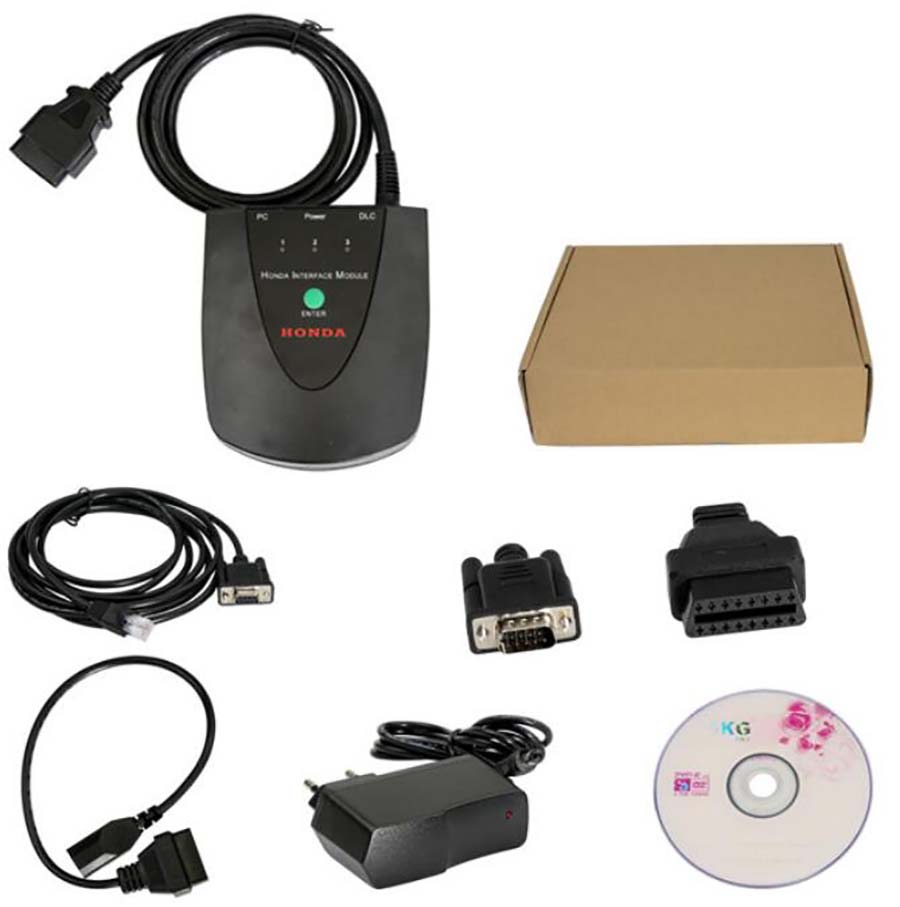

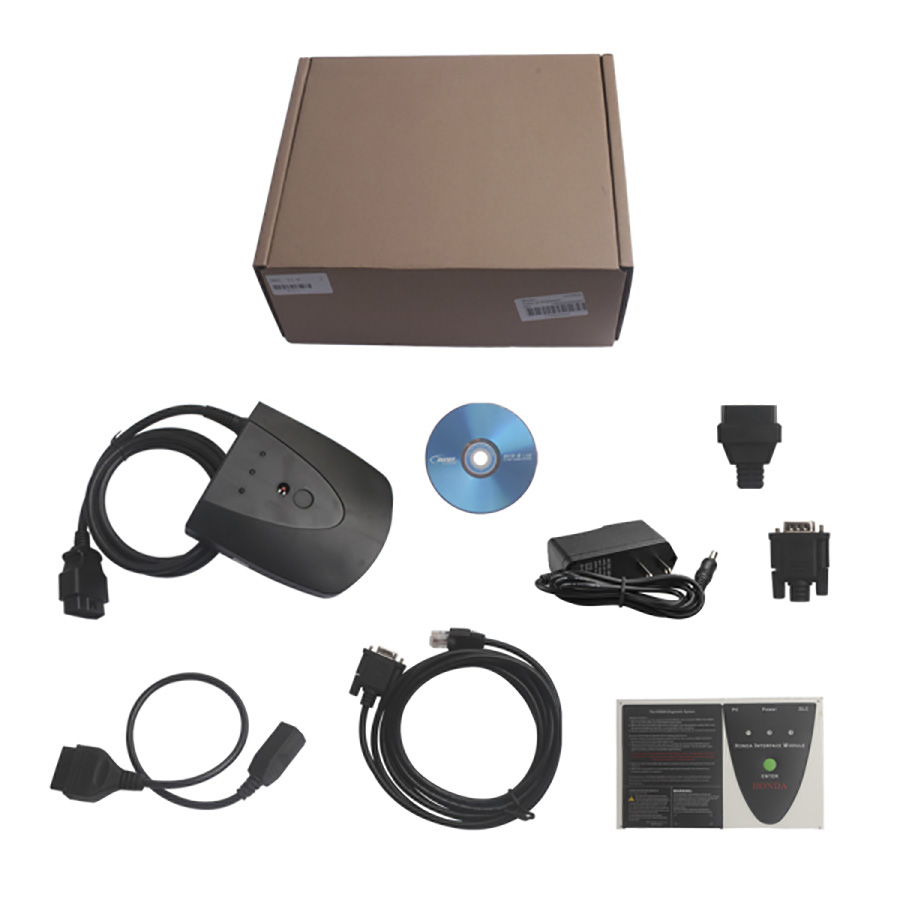

Honda HDS HIM Package List:
Option 1 :

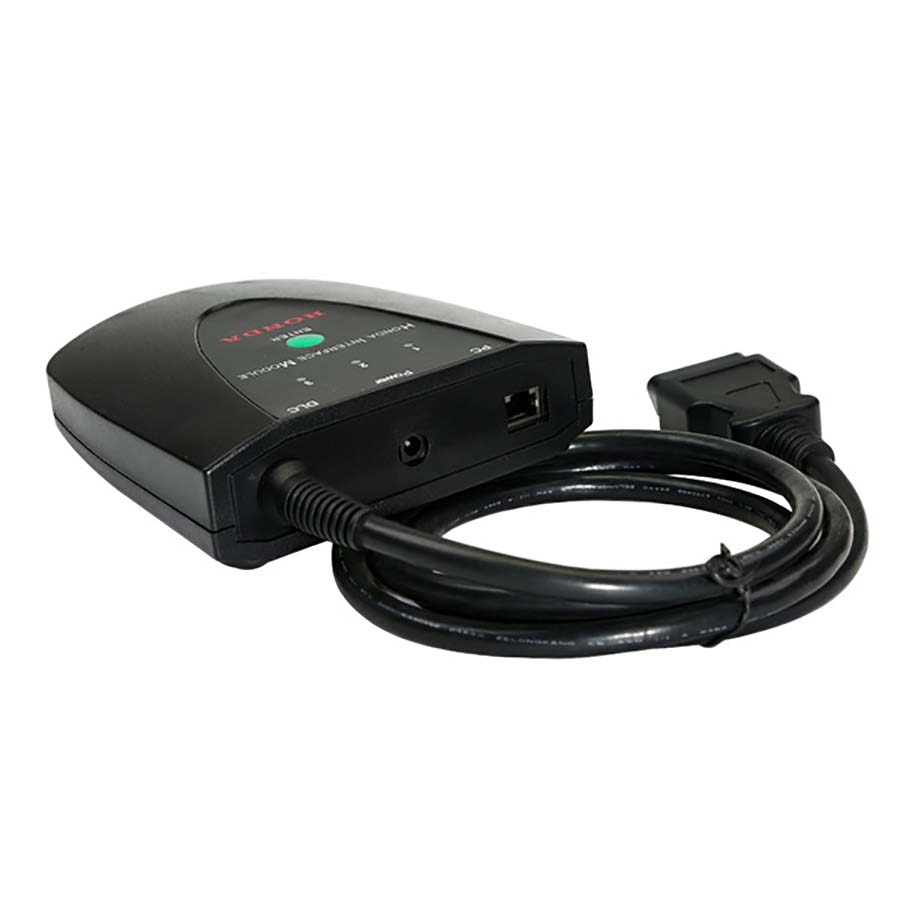

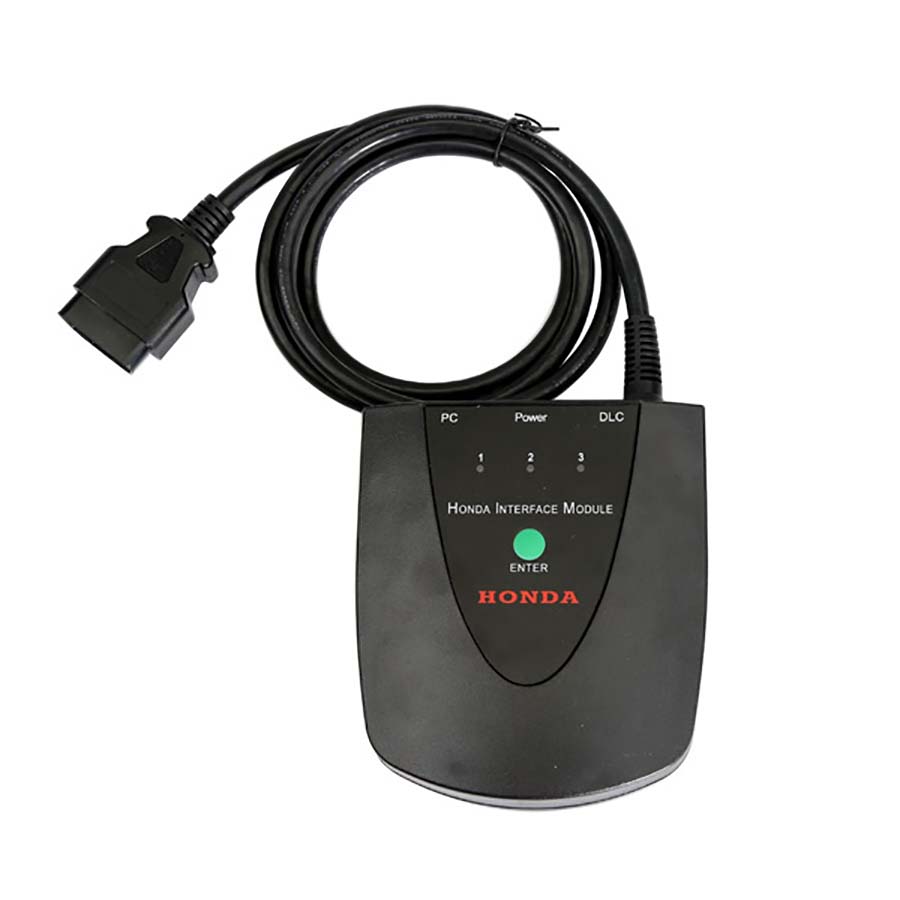

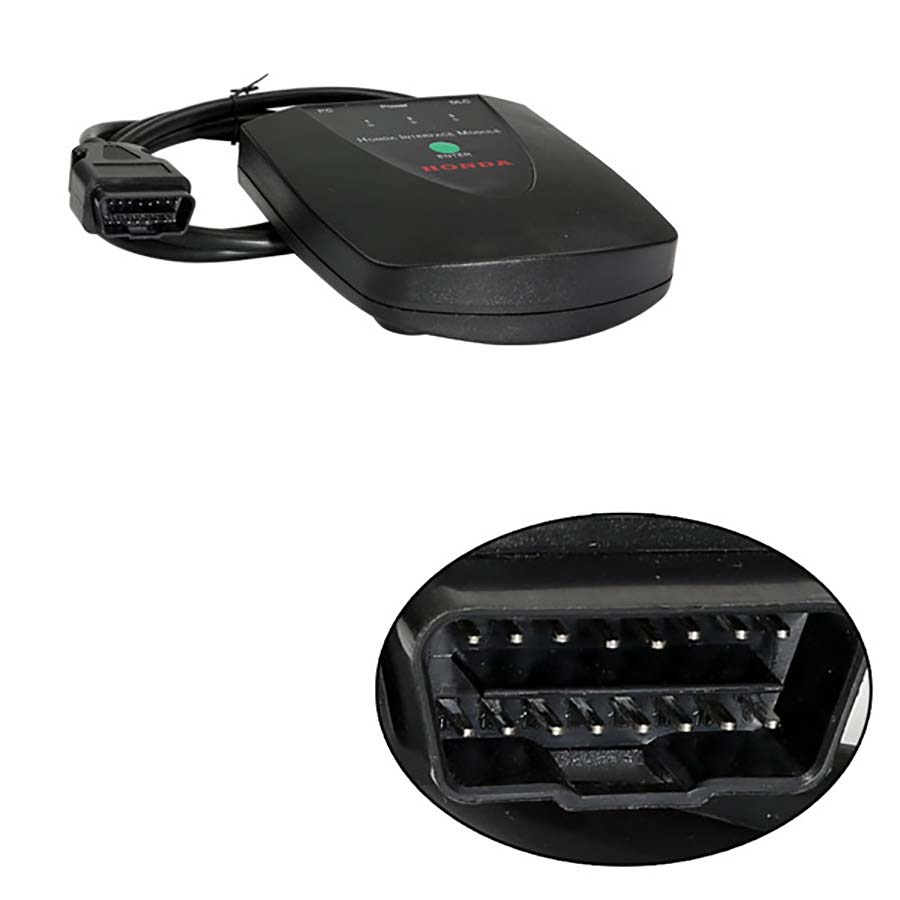

1 x HIM with OBD II Cable

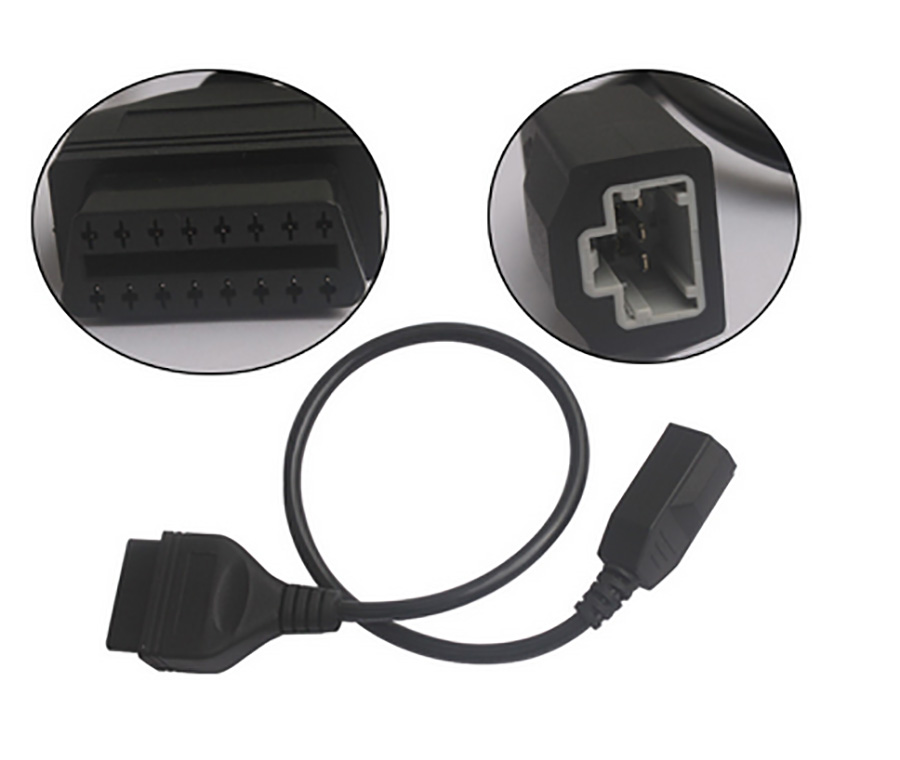

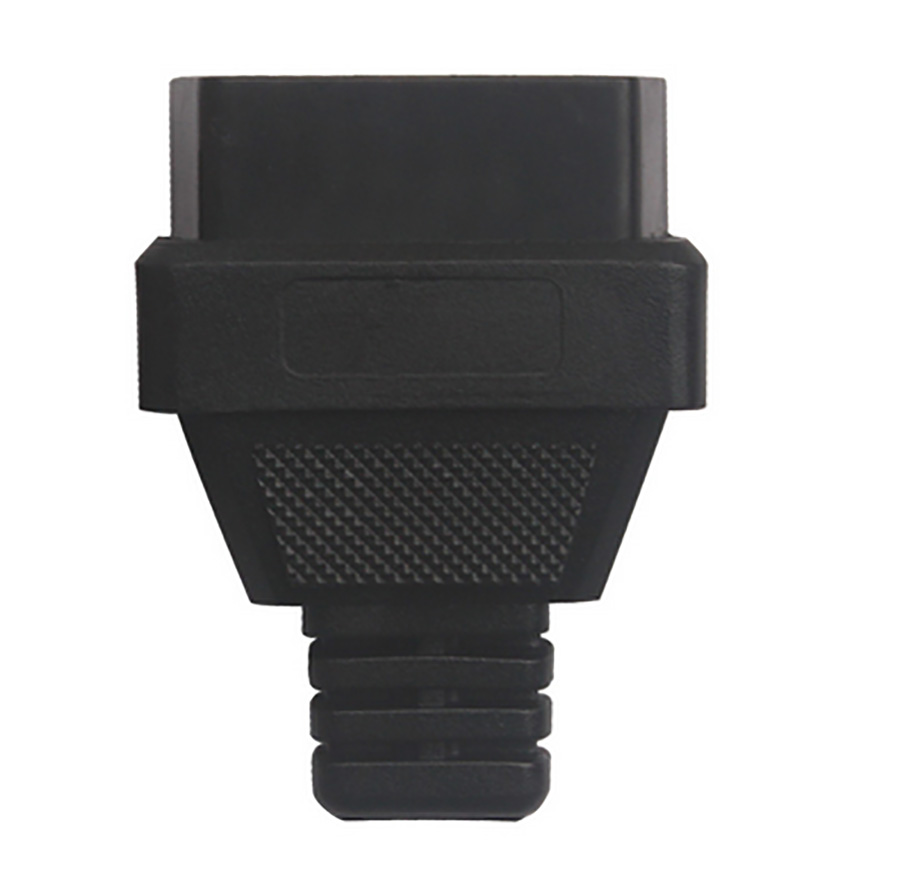

1 x 3 Pin Cable
1 x RS232 Cable

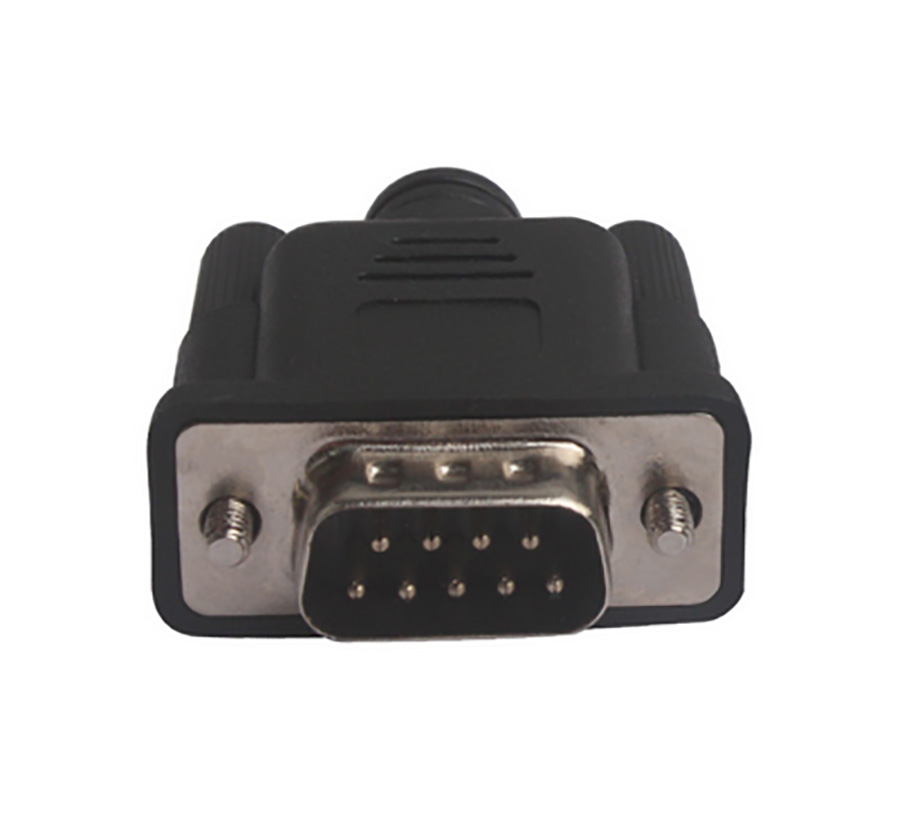

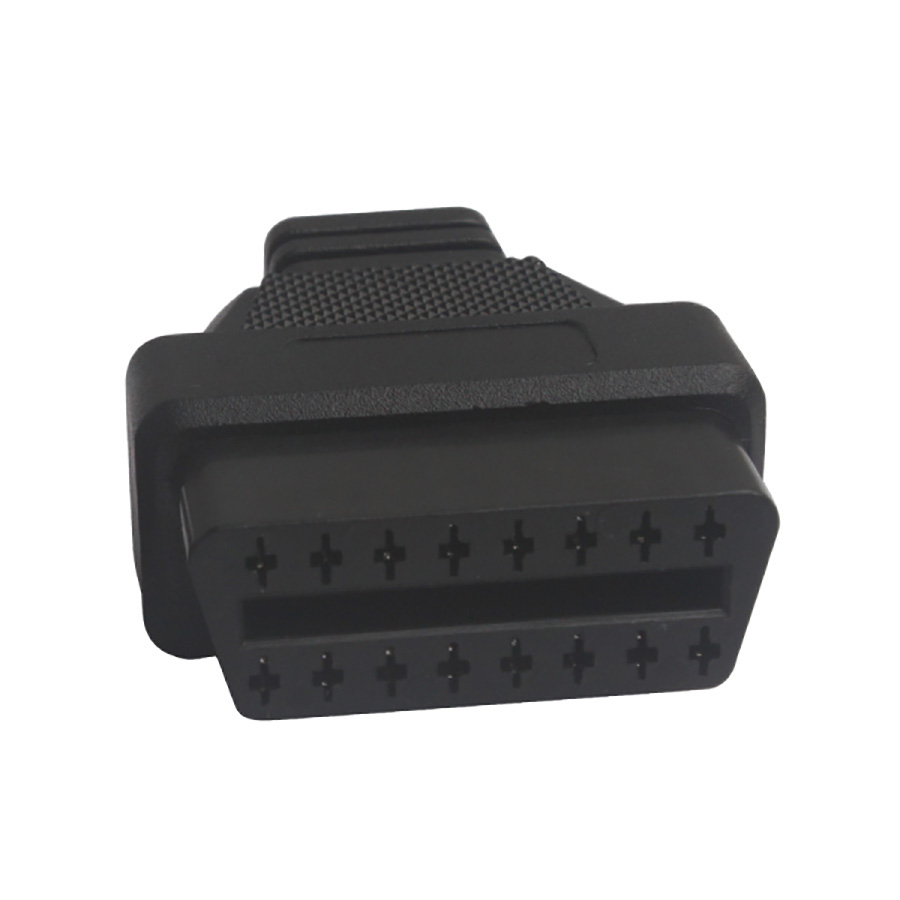

2 x Self test Adapter

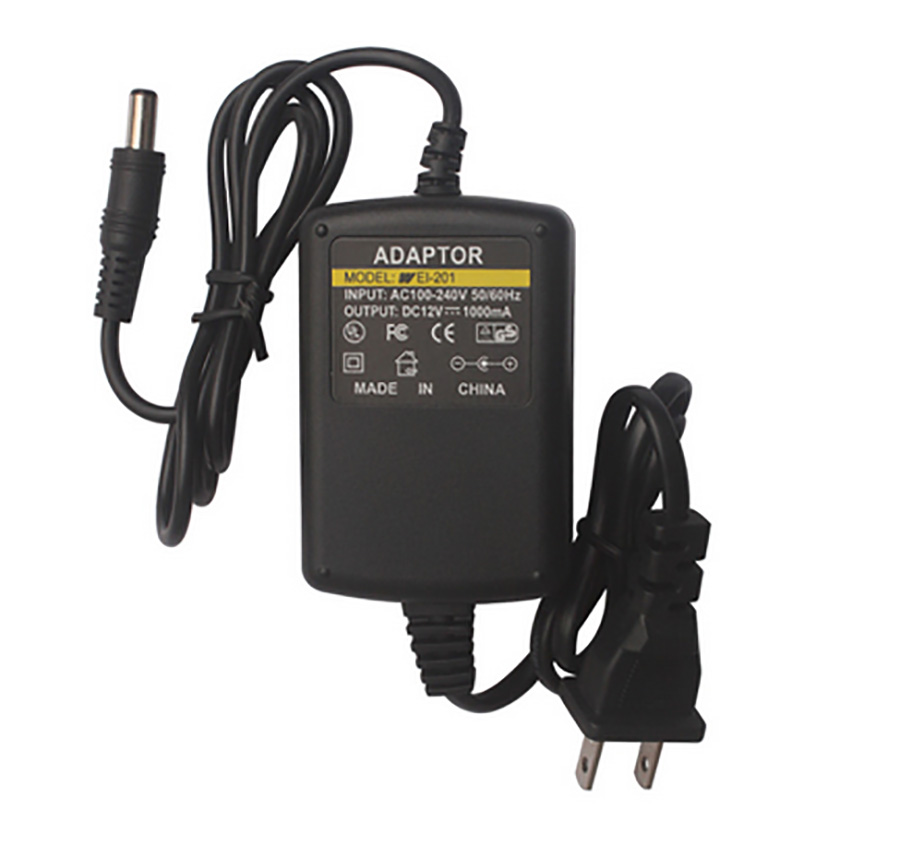

1 x AC Adapter
1x Z-TEK USB1.1 To RS232 Convert Connector

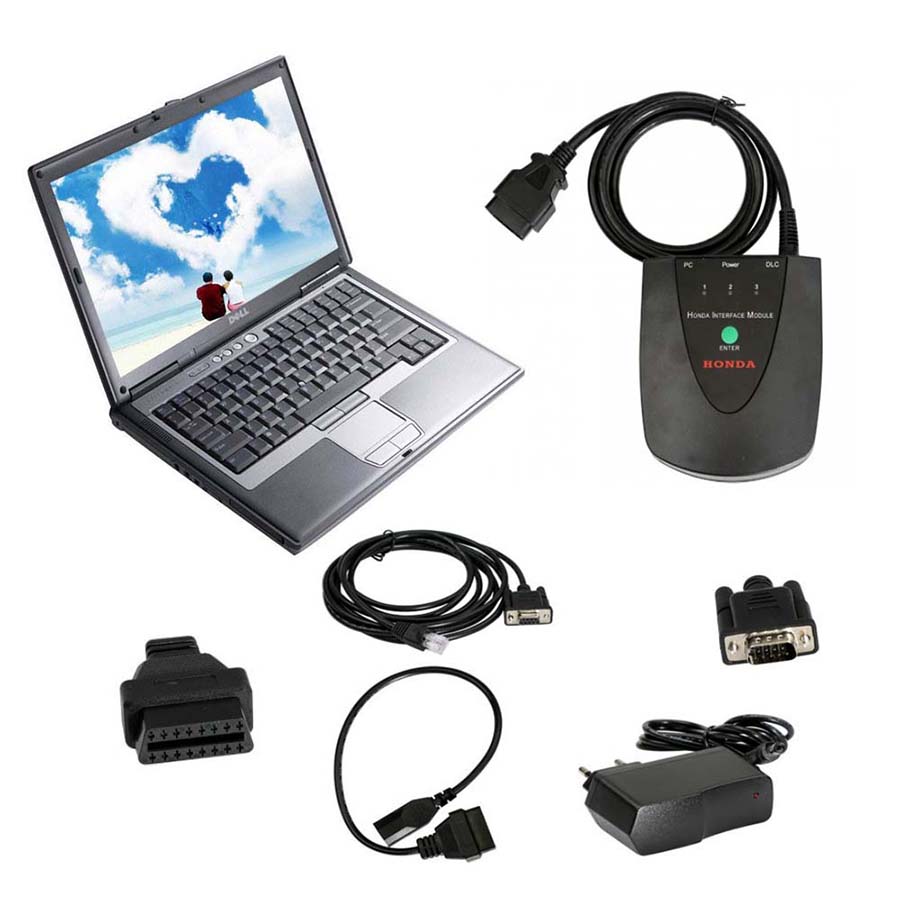

Option 2 :
1 x HIM with OBD II Cable
1 x 3 Pin Cable
1 x RS232 Cable
2 x Self test Adapter
1 x AC Adapter
1x Z-TEK USB1.1 To RS232 Convert Connector
1pc x Second hand DELL D630 Laptop with software

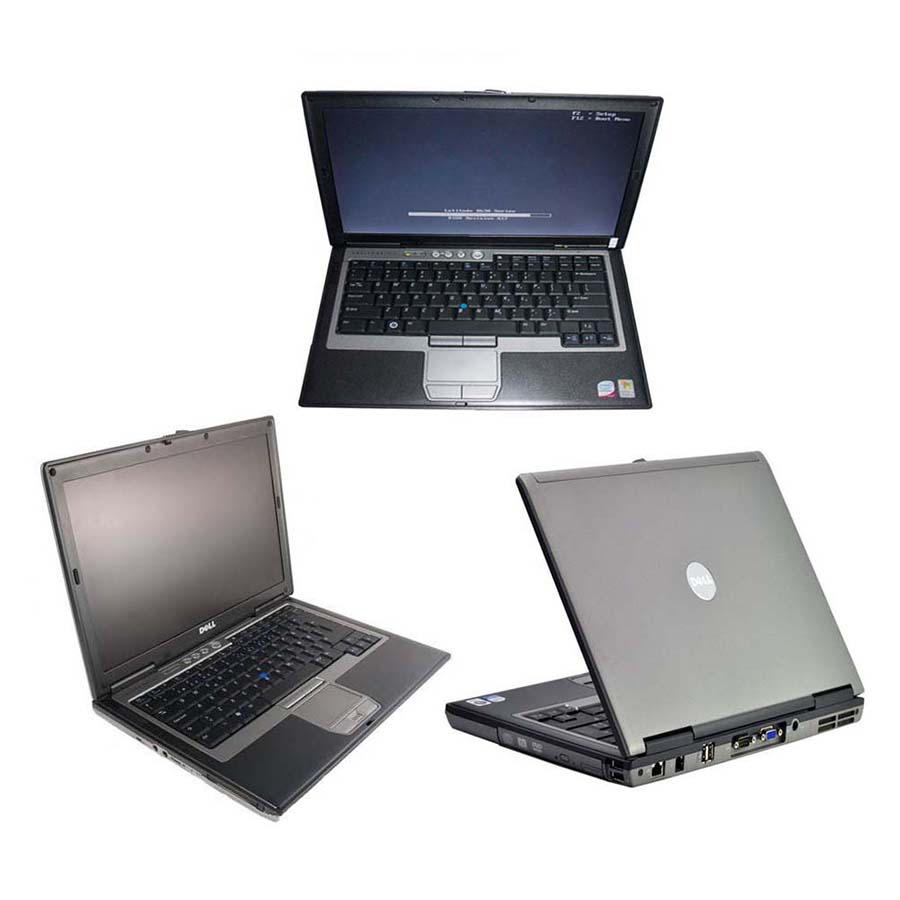

DELL D630 Laptop description：
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.
Brand: Dell
Type: Laptop/Notebook
Screen Size: 14.0
Memory (RAM): 2000 Processor Type: Intel Core 2 Duo
Primary Drive: DVD+/-RW Processor Speed: 1.80 GHz
Processor Configuration: Dual Core
Memory: 4GB

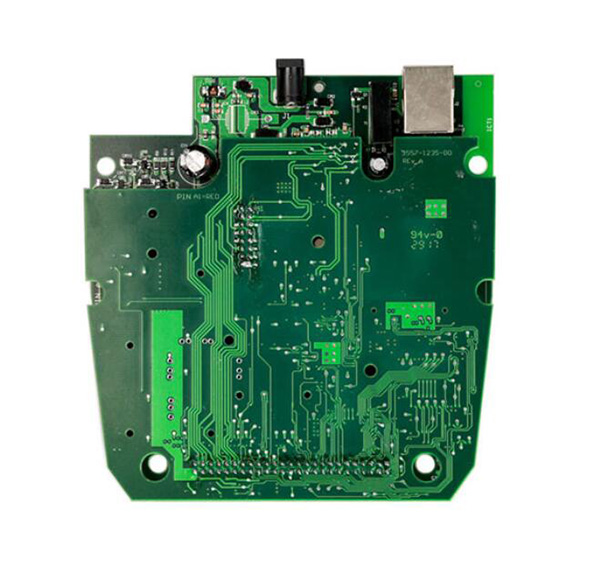

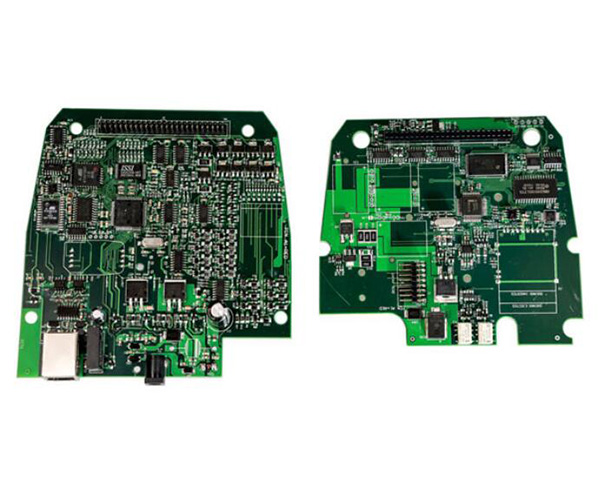

Honda HDS HIM PCB pictures :
