Tactrix Openport 2.0+ECUFLASH Cable For Toyota, Jaguar And LandRover Diagnose
Important Notes:
1. Now there is a New version of 1444870_win software on the official website, Please DO NOT install this new software, it will cause the product to not light up and directly damage it !
2. The latest version of the USB driver can not be used ！Please Only Use our CD's USB driver ! Otherwise the product will be damaged!
3. The product can only use the old version of CD software and the driver in the CD, and cannot use the new version of software and USB Driver !
4. The product can be used with the XENTRY program, but only use the USB driver in the CD!
5. If a new version of the software has been installed on the computer, you can only reinstall the WIN system, Deleting and uninstalling is invalid, and the computer system must be reinstalled。 And then reinstall the CD software to connect and operate with the product.
6. The product can only be used on a computer system that has not been connected to the Internet!
If the computer has been connected to the network before, Then disconnect the network, this situation，Now the computer is not available,You can only reinstall the computer system！！！disconnect the network, and then use the product device again!
If the customer's computer is connected to the Internet, it will cause problems with the product hardware. can not fix!
Notice:
1.It can not update online.Please disconnect internet,Do not connect the Internet when you use it otherwise device will damaged.
2.Computer System Requirement: Windows XP/Win 7 32bits
3.Please close anti-virus programmer when run software.
4.According to buyer feedback, openport can support For Mercedes-benz, but we are not sure about the specific model and year. Please Note that we do NOT provide XENTRY software! ! !
Top 5 Reasons To Get Tactrix Openport 2.0+ECUFLASH
1.Field upgradeable software
2.Standalone datalogs to microSD / microSDHC card without a laptop
3.Supports these major OBD protocols:CAN 2.0 (CAN/ISO15765) and K-line (ISO9141/ISO14230(KWP2000)/dual K line)
4.Tactrix Openport 2.0 can works for Toyota, Jaguar and LandRover diagnose. The OEM software we have test in TOYOTA ,LOANDROVER and JAGUAR.all work excellent.!!!
5.The OpenPort 2.0 combined with our EcuFlash software, the OpenPort 2.0 is capable of reflashing a large number of newer Subaru and Mitsubishi vehicles, and support for other cars is in progress.
Tactrix Openport 2.0+ECUFLASH Specifications:
1. 72Mhz 32-bit processor
2. USB 2.0 full speed device (USB-A/Mini cable included)
3. RGB status LEDs
4. Able to log from Innovate Motorsports 2.5mm stereo MTS data bus
5. J2534 PassThru support with Windows DLL
6. Able to apply GND or 5V-25V to OBD pins 1,3,9,11,12,13 or AUX 2.5mm stereo connector
For ecu flash you can get info from this list
|
US Domestic Market Vehicles currently supported by EcuFlash
|
|
Make
|
Model
|
Year(s)
|
Compatible OpenPort Interfaces
|
Init Connector Needed?
|
|
Subaru
|
Impreza WRX
|
2001-2002
|
1.2 1.3S 1.3U 2.0
|
2001-2002
|
|
|
|
2003-2005
|
1.2 1.3S 1.3U 2.0
|
2003-2005
|
|
|
|
2006-2007
|
1.2 1.3S 1.3M 2.0
|
|
|
|
|
2008-2009
|
2.0
|
|
|
|
Impreza STi
|
2004-2007
|
1.2 1.3S 1.3M 1.3U 2.0
|
|
|
|
|
2008-2009
|
2.0
|
|
|
|
Impreza 2.5RS
|
2005
|
1.2 1.3S 1.3M 1.3U 2.0
|
|
|
|
Impreza 2.5i
|
2005-2006
|
1.2 1.3S 1.3M 1.3U 2.0
|
|
|
|
|
2007-2009
|
2.0
|
|
|
|
Forester 2.5
|
2005-2006
|
1.2 1.3S 1.3M 1.3U 2.0
|
|
|
|
|
2007-2009
|
2.0
|
|
|
|
Forester XT
|
2004-2006
|
1.2 1.3S 1.3M 1.3U 2.0
|
|
|
|
|
2007-2009
|
2.0
|
|
|
|
Tribeca
|
2006
|
1.2 1.3S 1.3M 1.3U 2.0
|
|
|
|
|
2007-2009
|
2.0
|
|
|
|
Legacy / Outback 2.5i / 3.0r
|
2005-2006
|
1.2 1.3S 1.3M 1.3U 2.0
|
|
|
|
|
2007-2009
|
2.0
|
|
|
|
Legacy GT / Outback XT
|
2004-2006
|
1.2 1.3S 1.3M 1.3U 2.0
|
|
|
|
|
2007-2009
|
2.0
|
|
|
|
Baja
|
2004-2006
|
1.2 1.3S 1.3M 1.3U 2.0
|
|
|
Mitsubishi
|
Evo 5
|
|
1.3M 1.3U 2.0
|
Mitsu (for 2.0 only)
|
|
|
Evo 6
|
|
1.3M 1.3U 2.0
|
Mitsu (for 2.0 only)
|
|
|
Evo 7
|
|
1.3M 1.3U 2.0
|
Mitsu (for 2.0 only)
|
|
|
Evo 8
|
|
1.3M 1.3U 2.0
|
Mitsu (for 2.0 only)
|
|
|
Evo 9
|
|
1.3M 1.3U 2.0
|
Mitsu (for 2.0 only)
|
|
|
Evo 10
|
|
2.0
|
|
|
|
(all 2nd Gen)
|
1996-????
|
1.3M 1.3U 2.0
|
Mitsu (for 2.0 only)
|
|
|
Eclipse GS/GT
|
2001-2003
|
1.3M 1.3U 2.0
|
Mitsu (for 2.0 only)
|
|
|
Lancer OZ
|
2002-2004
|
1.3M 1.3U 2.0
|
Mitsu (for 2.0 only)
|

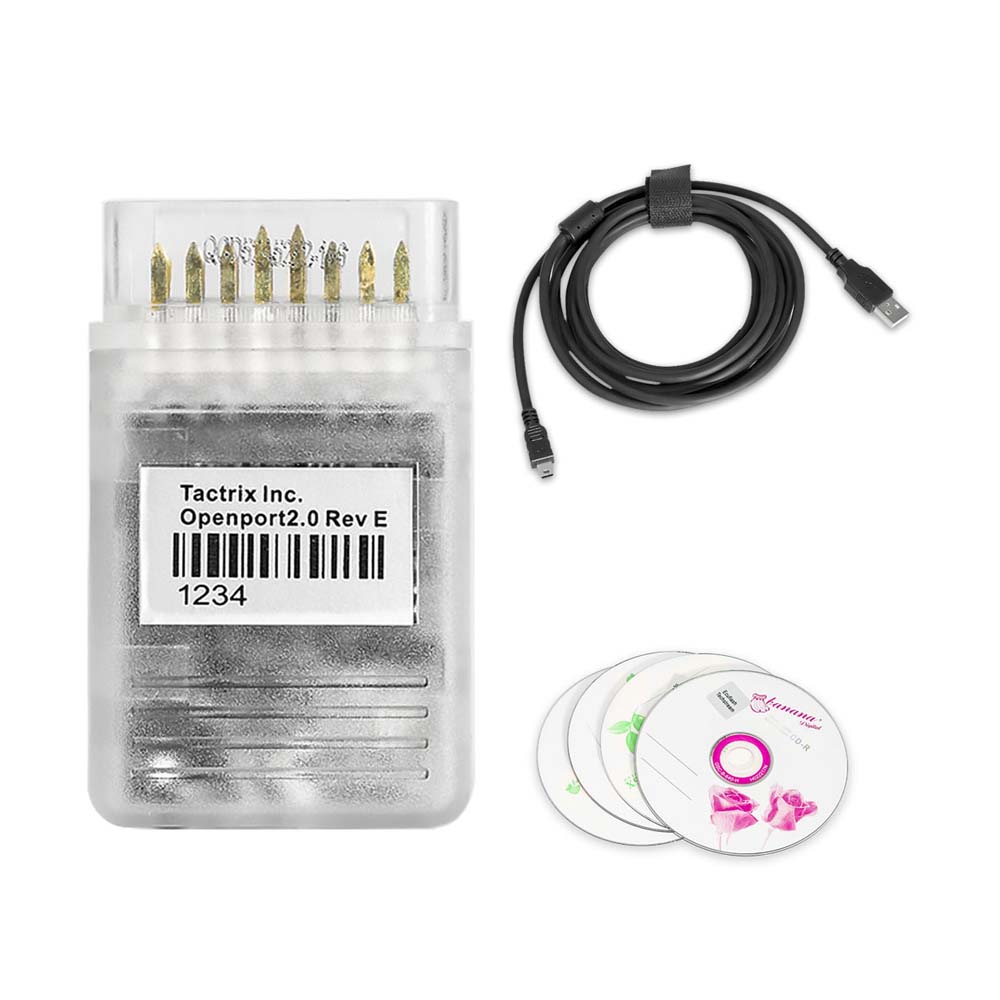

Package list:
1 pc x Tactrix Openport 2.0+ECUFLASH Cable

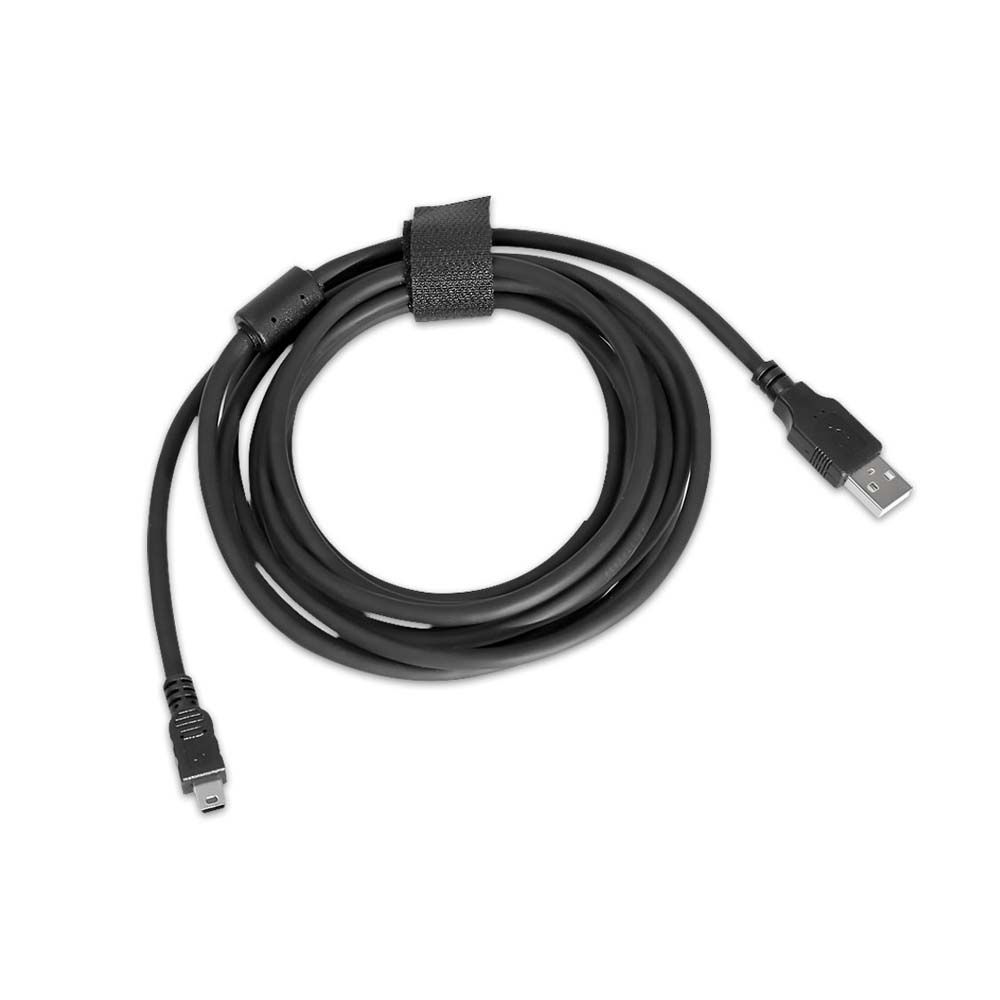

1 pc x USB Cable
1 pc x CD
