Product Description

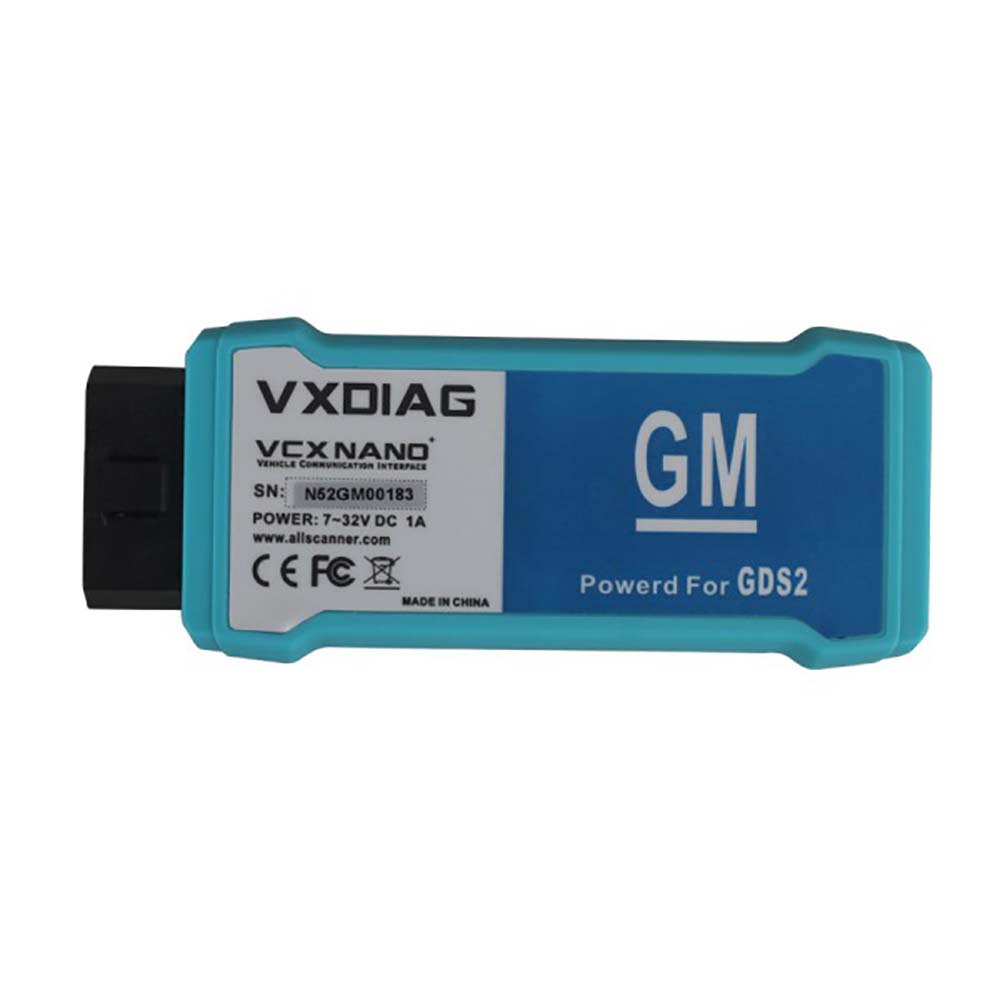

VXDIAG VCX NANO for GM/OPEL GDS2 Diagnostic Tool WIFI version
Notice:
1. The software of VXDIAG VCX NANO includes two parts: tech2win and GDS2.
Version of tech2win: V16.02.24
Version of GDS2: V2022.05
GDS2 can only work on win 7 64 bit and win 8 64 bit, Tech2win can work on both win7/win8/XP 32bit and 64 bit.
2. The software is updated by CD while the firmware is updated online.
3. Only GDS2 Software support Opel and SAAB. Please do not use Tech2 win to test Opel or SAAB, Tech2 win DOES not support!
Top 6 Reasons to Get VXDIAG VCX NANO for GM/OPEL:
1. Flexible configuration supports wired or wireless connectivity
2. Compatible with applications that diagnose engines, transmissions, ABS, instrument panels and more
3. Mixed fleet capabilities with broad protocol support
4. Quick access to vehicle data for maintenance or management reports
5. Quickly attaches to vehicle's diagnostic connector
6. May be used with desktop PC or laptop
VXDIAG VCX NANO for GM/OPEL FEATURES:
* Fully compatible with SAE-J2534-1 & SAE-J2534-2
* USB vehicle-to-PC connectivity
* All current and most legacy vehicle protocols: CAN, UART, KW2000, Class2, GM LAN, etc.
* CE and FCC compliance for hardware
* Firmware Updatable
VXDIAG VCX NANO for GM/OPEL Compatible Software:
* Support PC-based diagnostics with rollout of the Global Diagnostic System GDS & GDS2
* Support GM TIS2WEB online Service Programming System (SPS) with your own GM account.
* Support Tech2Win application to offering a larger screen with all of the Tech 2 tool functionality
Global Diagnostic System (GDS & GDS2)
* New Diagnostic Application Software required for all GM Global Architecture (Global A) Vehicles.
* GDS & GDS2 is software which runs on a specific PC. Updates received via TIS2Web.
VCX Nano GM Kit support both GDS & GDS2. GDS 2 works similar to the original GDS. easier and faster
GDS 2 Provides the Following Capabilities in Multiple Languages:
* Read codes, code status, Freeze Frame data and Clear Codes.
* Read VIN, ECU part numbers and software numbers.
* Record, store and replay Stored data.
* Control and monitor Output Control functions.
* Configure and Reset functions.
* Record or display history of the previous vehicle diagnostic sessions.
Service Programming System (SPS):
You need have your own GM account if you want to do online programming.
* Passthrough programming on GM past model and Global A vehicles
* Increase reprogramming speed 20-70% and get ready to service new models
For pass-through programming of electronic control units on all vehicles built since 1996 and future model releases. The VCX Nano Prime GM KIT is between 20% and 70% faster than Tech 2.For example, on a new Tahoe hybrid with 7 ECUS, it would normally take 2 full hours to reprogram. But, with VCX Nano the process is completed in just 45 minutes. That’s a 64% difference and means you could service 10vehicles rather than 4in an 8-hour day! The potential to increase revenues is dramatic.
New Vehicles Model list:
VCX Nano Prime GM KIT is the only full-spectrum diagnostic and reprogramming tool capable of servicing new Delta and Epsilon vehicles (with auxiliary CAN bus that cannot be serviced by Tech2).Below is the list of vehicles being delivered this year that will rely exclusively on this tool for service.
Tech2Win Function:
Tech2Win, an application version of the Tech 2 and CANdi (Control Area Network diagnostic interface) moduleTech2Win can be used during a vehicle road
test, offering a larger screen with all of the Tech 2 tool functionality. The Tech2Win application offers all of the features and functions of the Tech 2 for Opel, Saab etc.

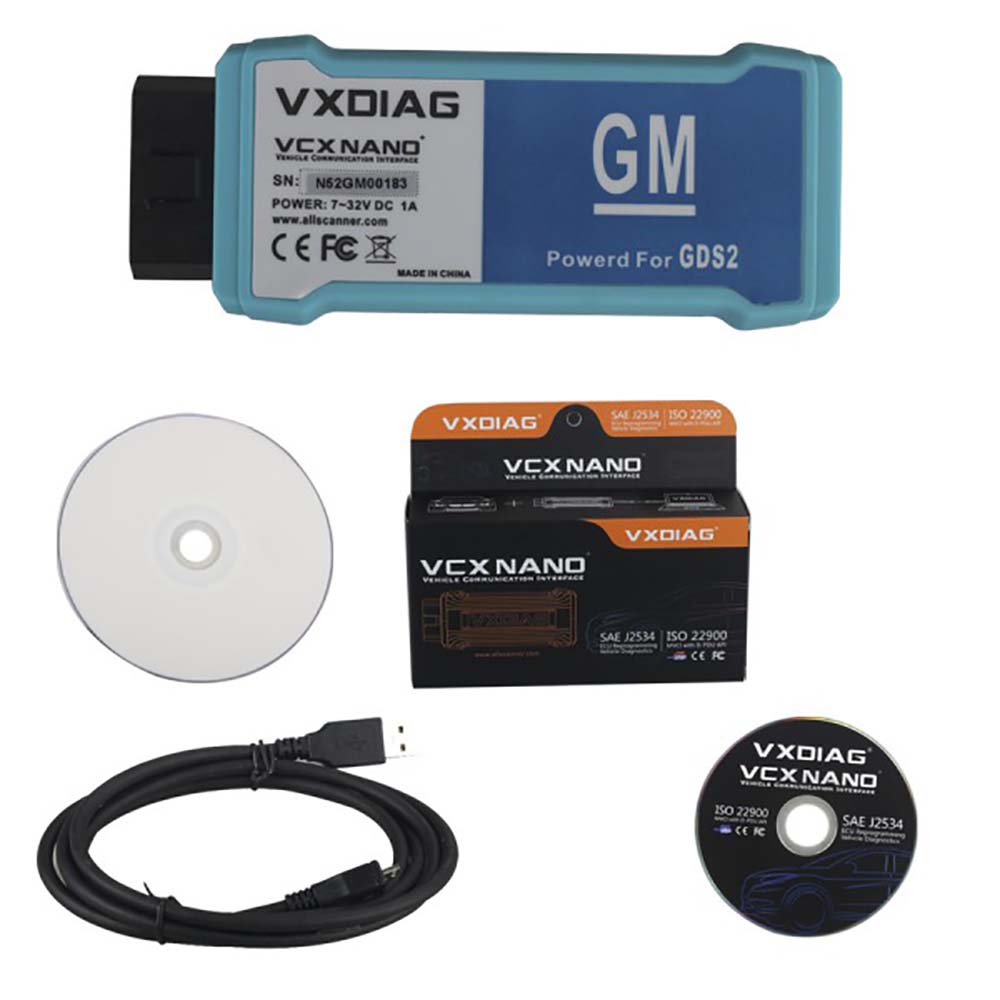

Packing Including:
1pc x VXDIAG VCX NANO for GM WIFI Version

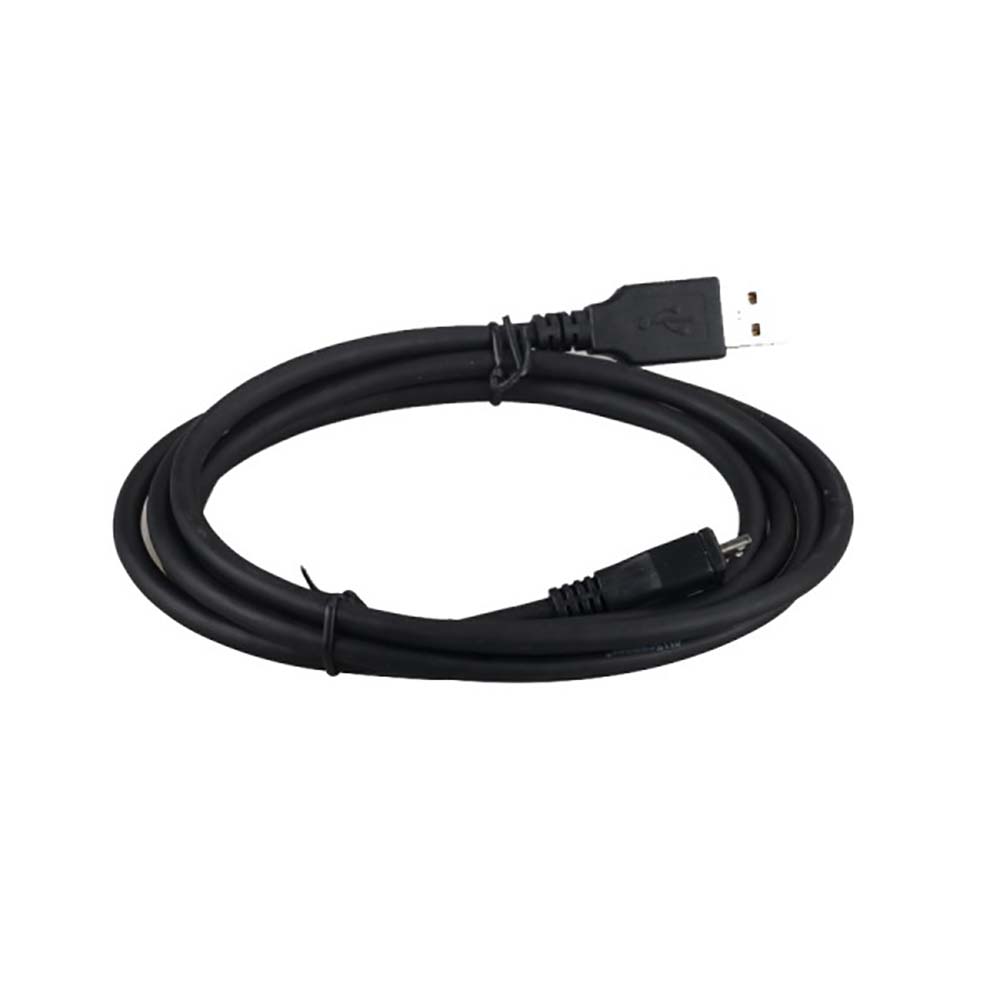

1pc x USB Cable
1pc x Driver CD
