OBDSTAR P003 Bench/Boot Adapter Kit for ECU CS PIN Reading with OBDSTAR IMMO Series Tablets X300 DP X300 Pro4 X300 DP Plus

OBDSTAR P003 Bench/Boot Adapter Kit for ECU CS PIN Reading with OBDSTAR IMMO Series Tablets X300 DP X300 Pro4 X300 DP Plus

Advantages
1. Portable Design
2. Easy Operation
3. High Performance

Feature:
For BOSCH ECU data reading, CS, Pincode reading etc., including Audi, Citroen, DS, Mahindra, Peugeot, Skoda, SEAT, Volkswagen etc.
More models are in development...

Functions
1. Continental PCR 2.1 reading CS, PinCode, MAC value
2. Bosch MED17.4.4 reading eeprom , PinCode
3. Bosch EDC17C60 reading eeprom , PinCode
4. Bosch MD1CS018 reading eeprom, PinCode
5. Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
6. Bosch ME17XX reading & writing eeprom, flash

Compatible OBDSTAR tablets:
Used with OBDSTAR IMMO series tablets.
X300 DP/Key Master DP
X300 Pro4/Key Master 5
X300 DP Plus/Key Master DP Plus

Supported ECU list:
1. Continental PCR2.1(TC1796) [SIMOS PCR 2.1 IMMO Data Reading Guide]
2010-2014 Audi A1 (8X) 1.6L Diesel
2009-2012 Audi A3 (8P) 1.6L Diesel
2009-2013 Seat Altea 1.6L Diesel
2010-2016 Seat Ibiza IV (6J) 1.6L Diesel
2010-2012 Seat Leon II 1.6L Diesel
2014 Seat Toledo (KG) 1.6L Diesel
2010-2013 Skoda Octavia II (1Z) 1.6L Diesel
2010-2013 Skoda Fabia II (5J) 1.6L Diesel
2010-2011 Skoda Roomster (5J) 1.6L Diesel
2013-2014 Skoda Rapid (NH) 1.6L Diesel
2011-2013 Skoda Superb (3T) 1.6L Diesel
2012/2015 Skoda Yeti (5L) 1.6L Diesel
2010-2015 VW Caddy (2K) 1.6L Diesel
2009-2013 VW Golf VI 1.6L Diesel
2010-2013 VW Golf Plus 1.6L Diesel
2011-2014 VW New Beetle (9C) 1.6L Diesel
2011 VW Passat (B7) 1.6L Diesel
2009-2014 VW Polo V 1.6L Diesel
2010-2015 VW Touran (1T) 1.6L Diesel

2. Bosch MED17.4.4(TC1793)
Citroen C3 Mk2
Citroen C4 Gran Picasso
Citroen C4 MK2
Citroen C5 (RD/TD)
Citroen C6
DS DS3
DS DS5
DS DS6
Peugeot 2008
Peugeot 208
Peugeot 3008 (P84)
Peugeot 3008 (T84)
Peugeot 308 (T9)
Peugeot 4008
Peugeot 408
Peugeot 508

3. Bosch EDC17C60(TC1793)
Citroen Berlingo
Citroen C-Elysee
Citroen C3 Aircross
Citroen C3 MK2
Citroen C3 Picasso
Citroen C4 Cactus
Citroen C4 MK2
Citroen C4 Picasso
Citroen Jumpy
Citroen Spacetourer
DS DS3
DS DS4
DS DS5
Peugeot 2008
Peugeot 208
Peugeot 3008 (P84)
Peugeot 308 (T9)
Peugeot 5008 (T87-P87)
Peugeot 508
Peugeot Expert
Peugeot Ranch/Partner
Peugeot Traveller
Opel/Saturn/Vauxhall Combo E
Opel/Saturn/Vauxhall Crossland X
Opel/Saturn/Vauxhall Grandland X
Toyota Proace

4. Bosch MD1CS018
Mahindra BS-6

5. Bosch MED17XX/EDC17XX
EDC17U01(TC1766)
EDC17C46(TC1767)
EDC17C54(TC1797)
EDC17C64(TC1797)
EDC17CP44(TC1797)
EDC17CP44 MS(TC1797)
MED17.5(TC1766)
MED17.5.1(TC1766)
MED17.5.20(TC1766)
MED17.5.5(TC1766)
MED17.5.5 HW2(TC1766)
MED17.5.2(TC1767)
MED17.5.5(TC1767)
MED17.5.5 HW2(TC1767)
MED17.5.21(TC1782)
MED17.5.25(TC1782)
MED17.1.1(TC1797)
MED17.1.1 MS(TC1797)
MED17.1.6(TC1797)
VW/Skoda/Audi/Seat, Bentley, Lamborghini, Porsche...

6. Bosch ME17XX
ME17.5.6(TC1767)
ME17.5.20(TC1767)
ME17.1.1(TC1797)
ME17.1.6(TC1797)
VW/Skoda/Seat, Bentley
...

Specifications:
Voltage 12V
Weight 100g
Dimension 113*75*31mm

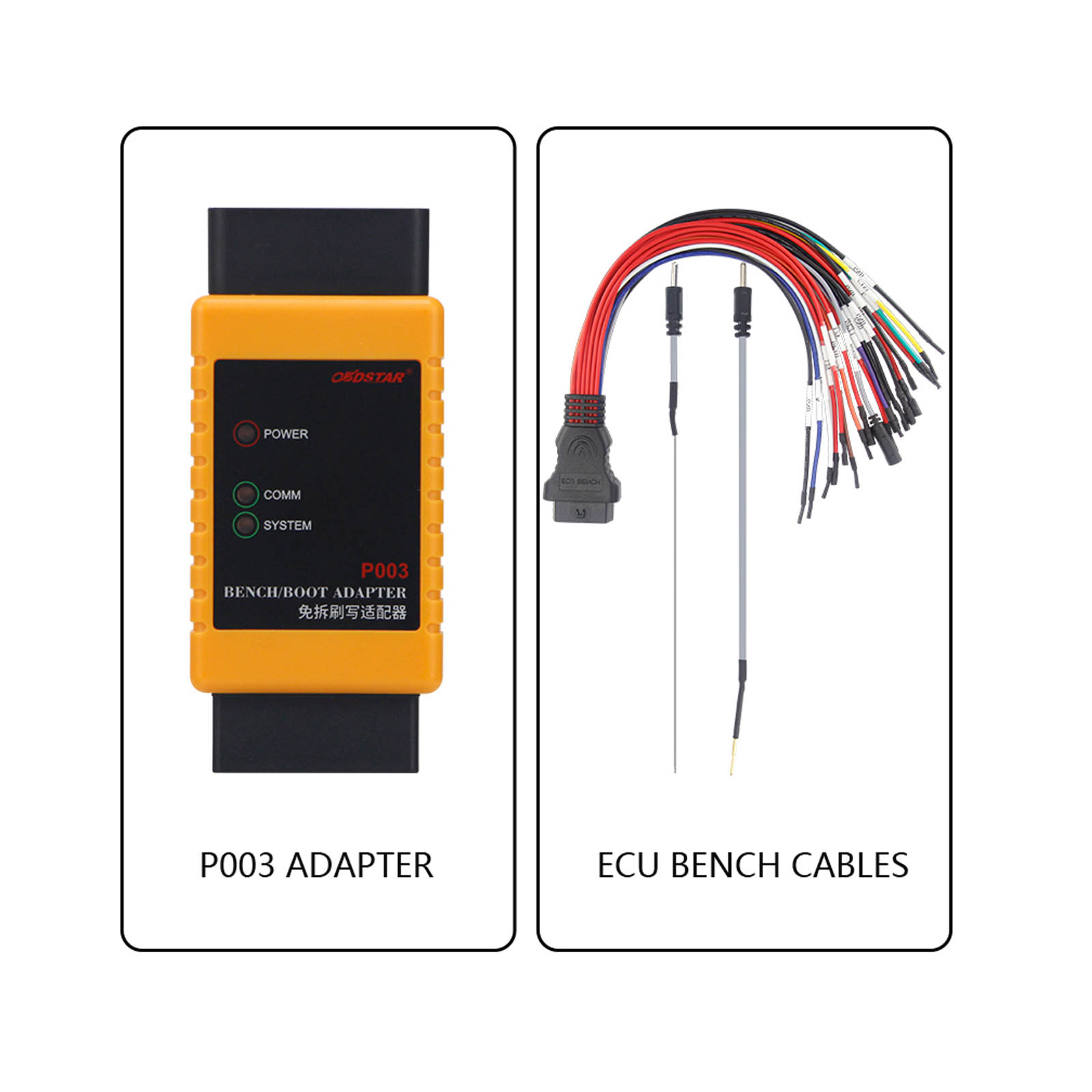

Accessories:

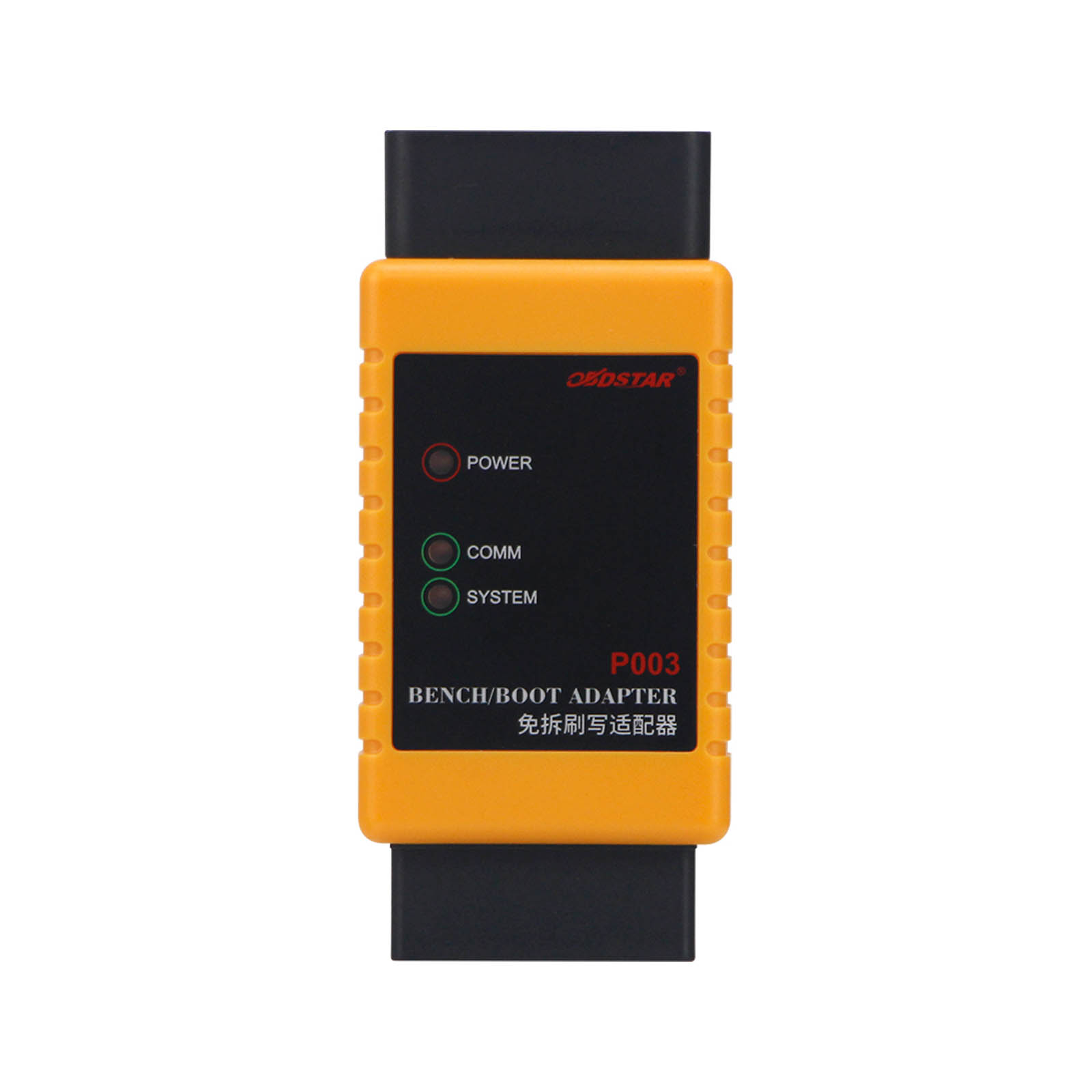

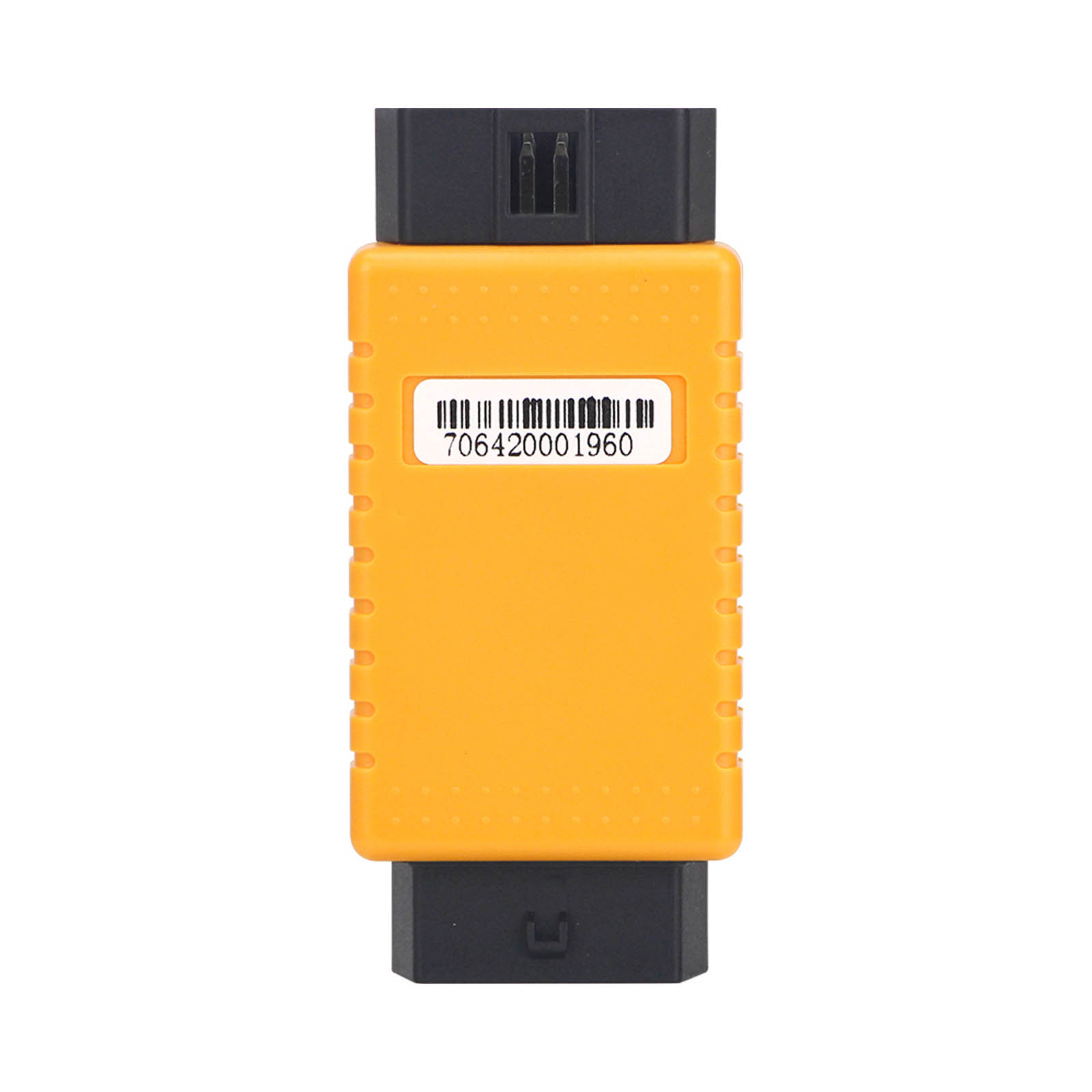

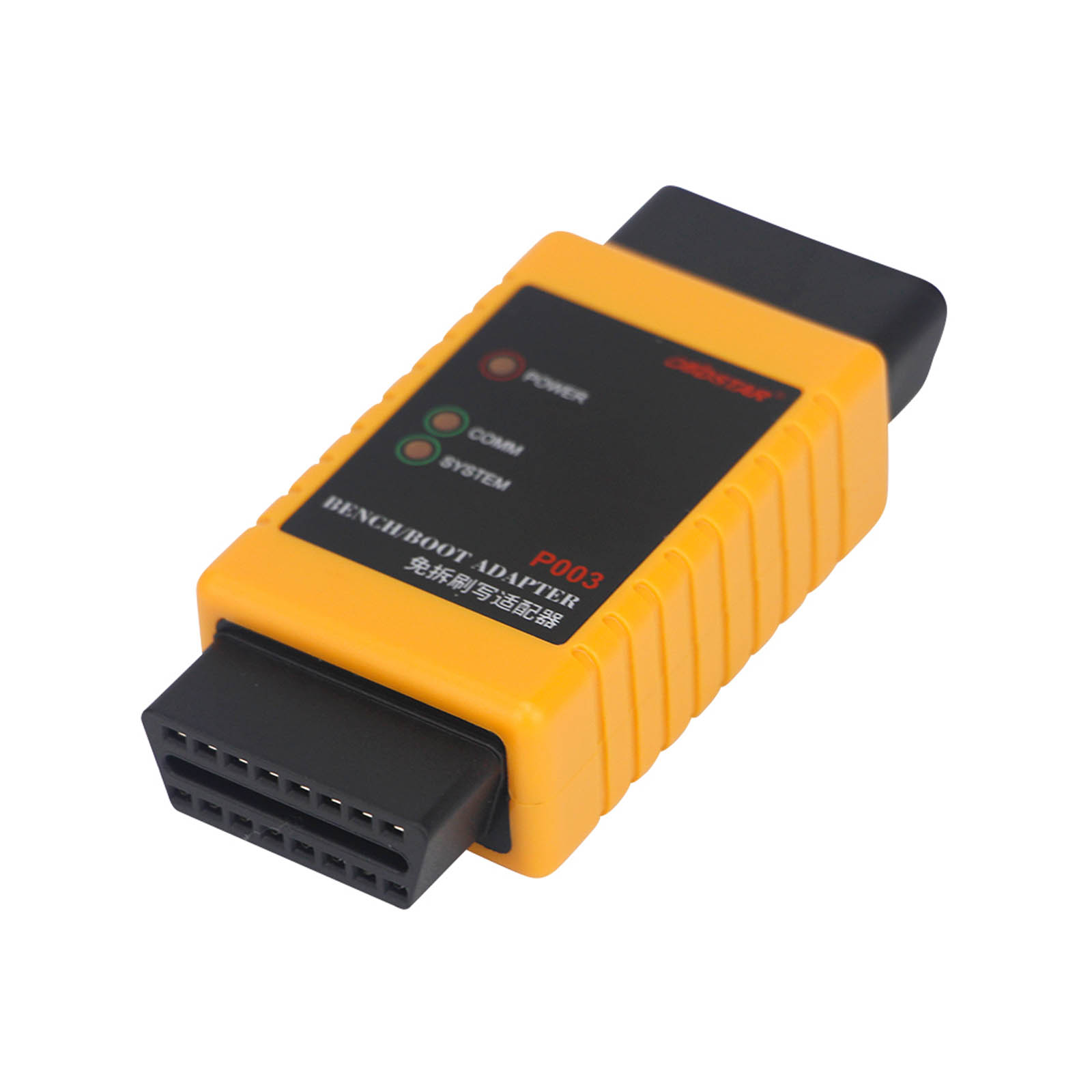

1. P003 adapter

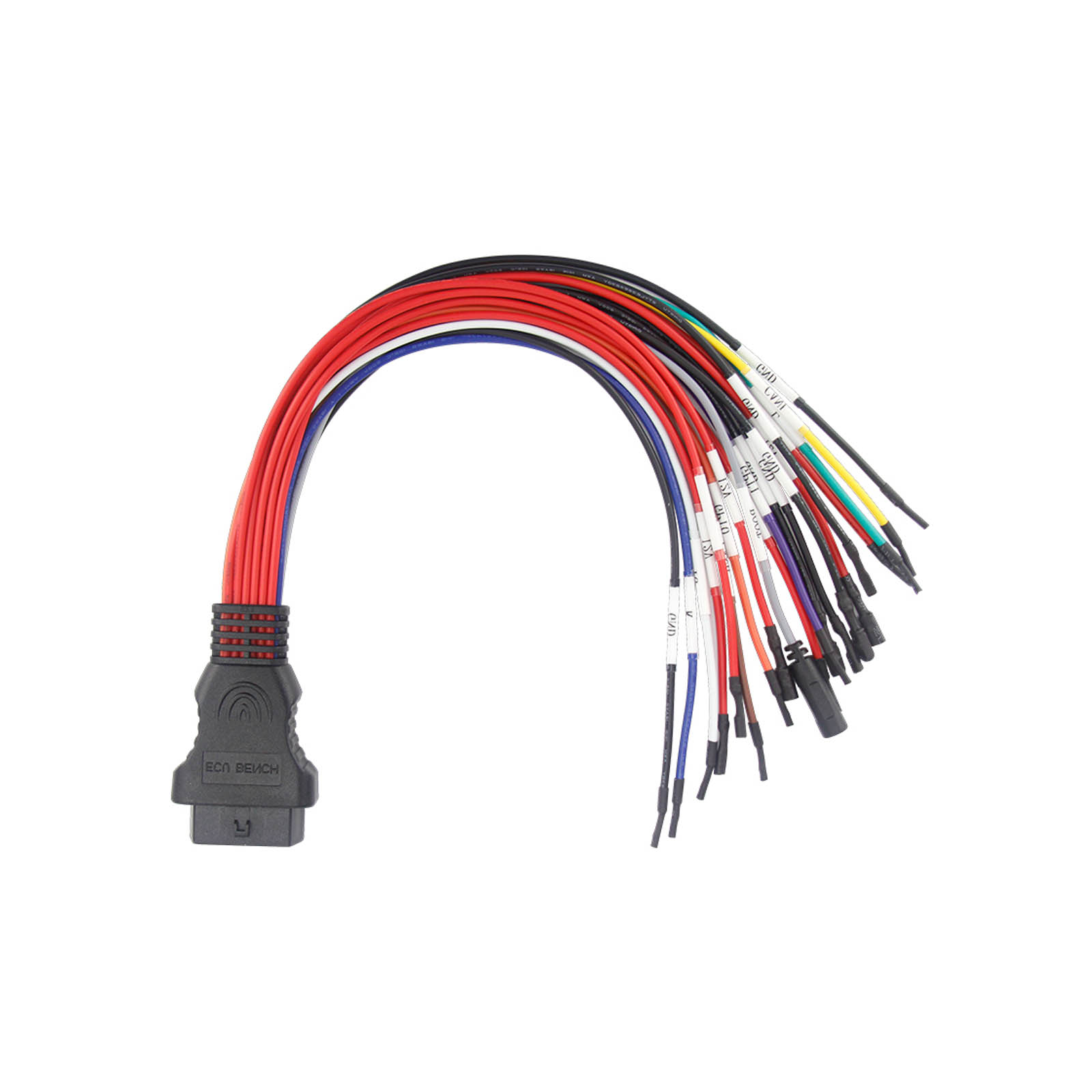

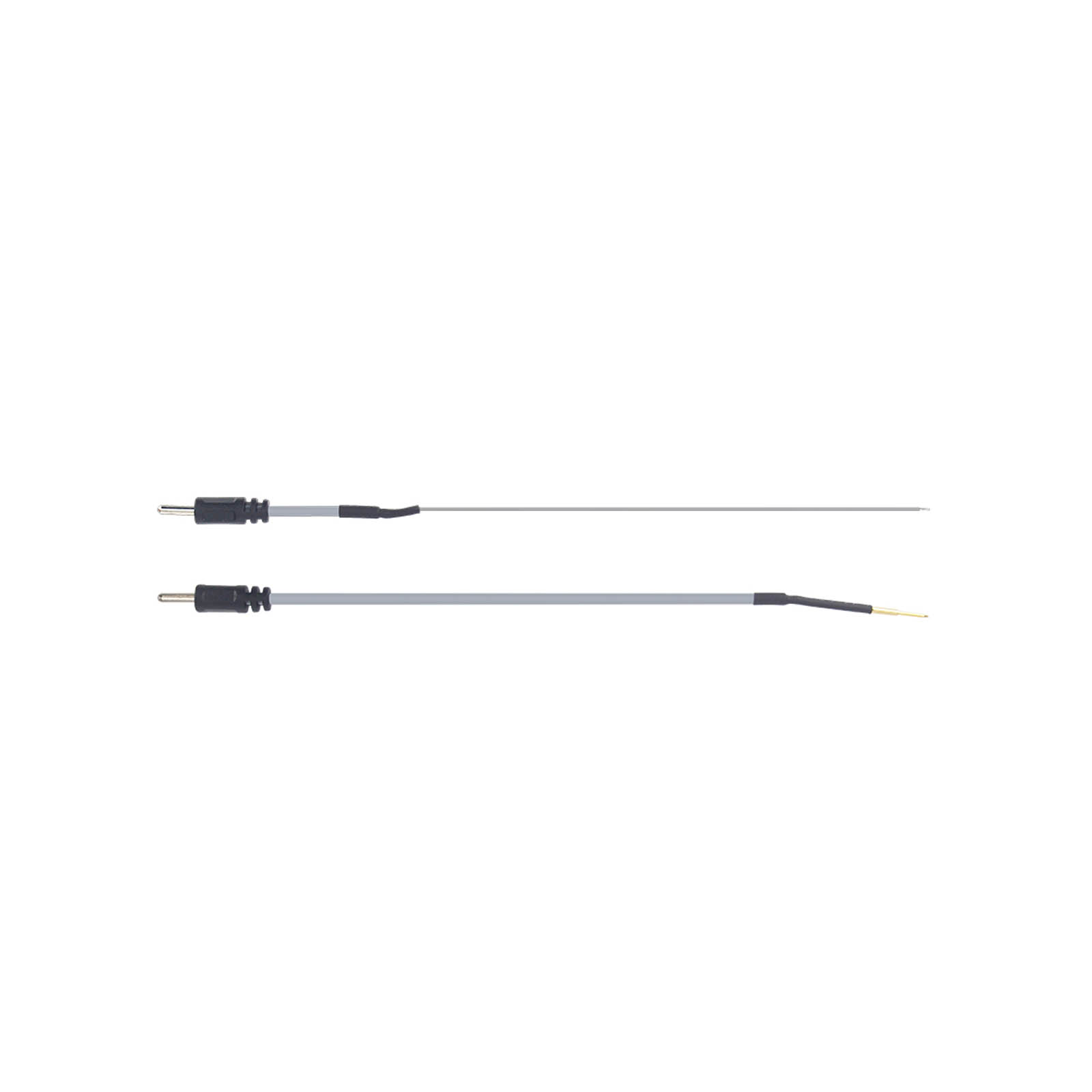

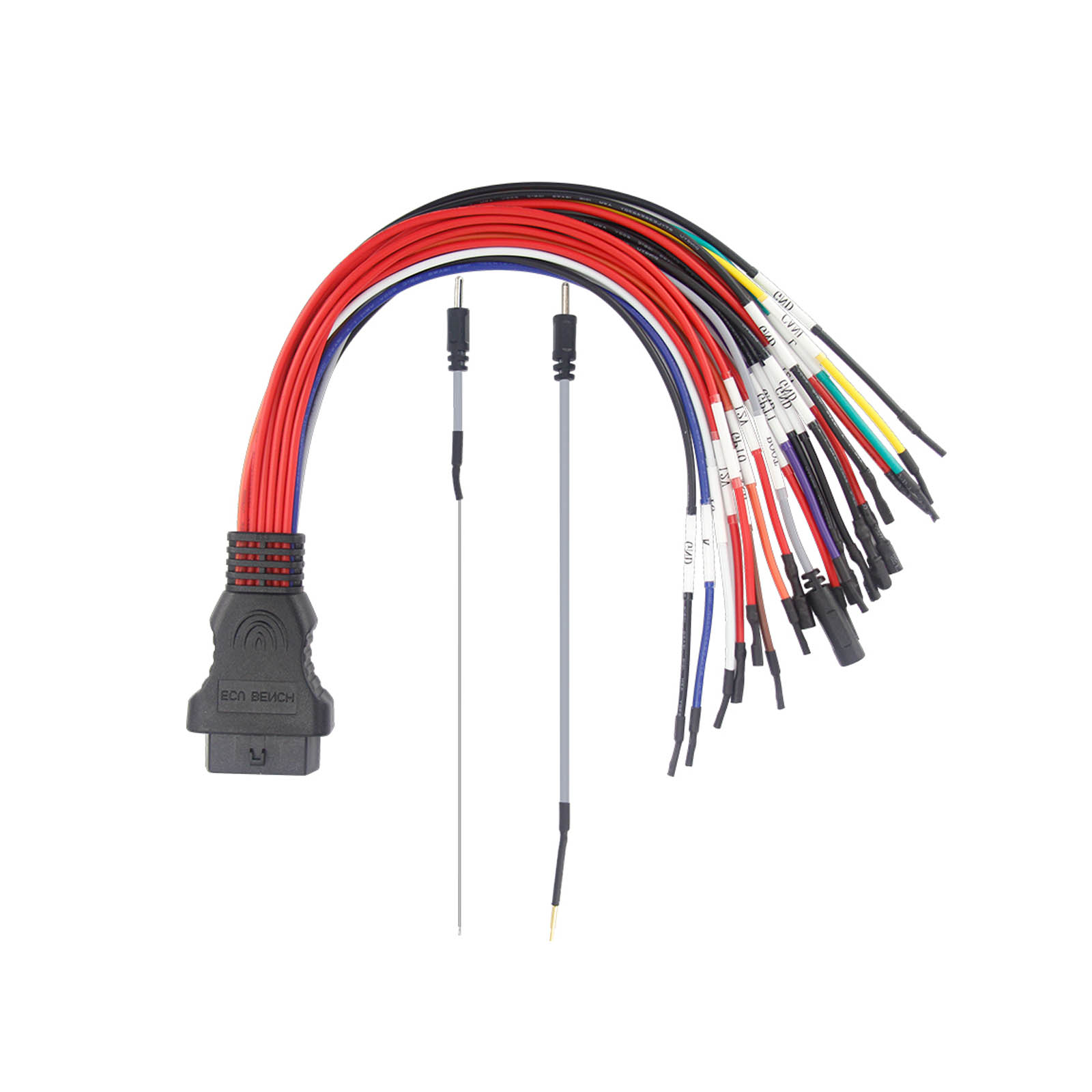

2. ECU BENCH cables
