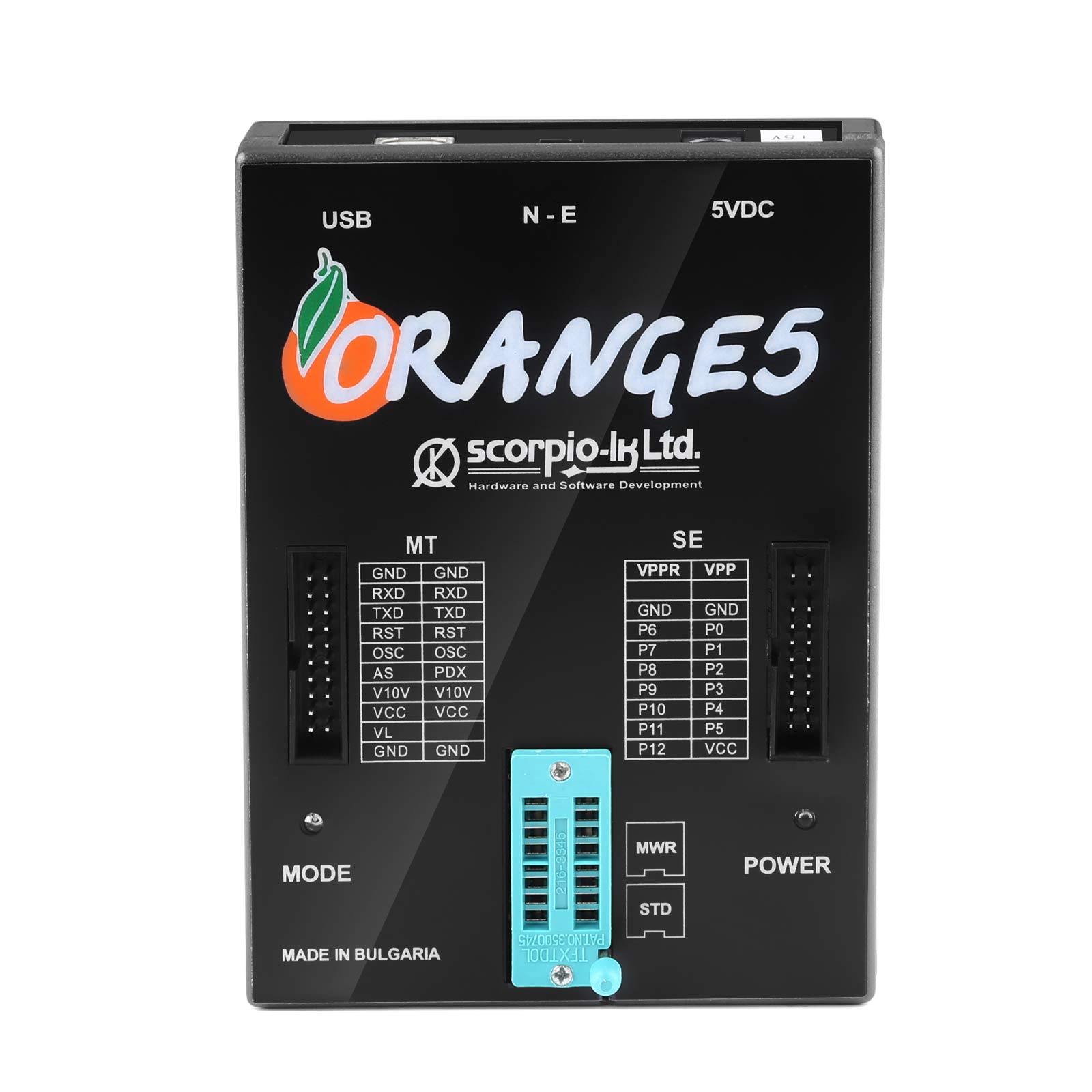

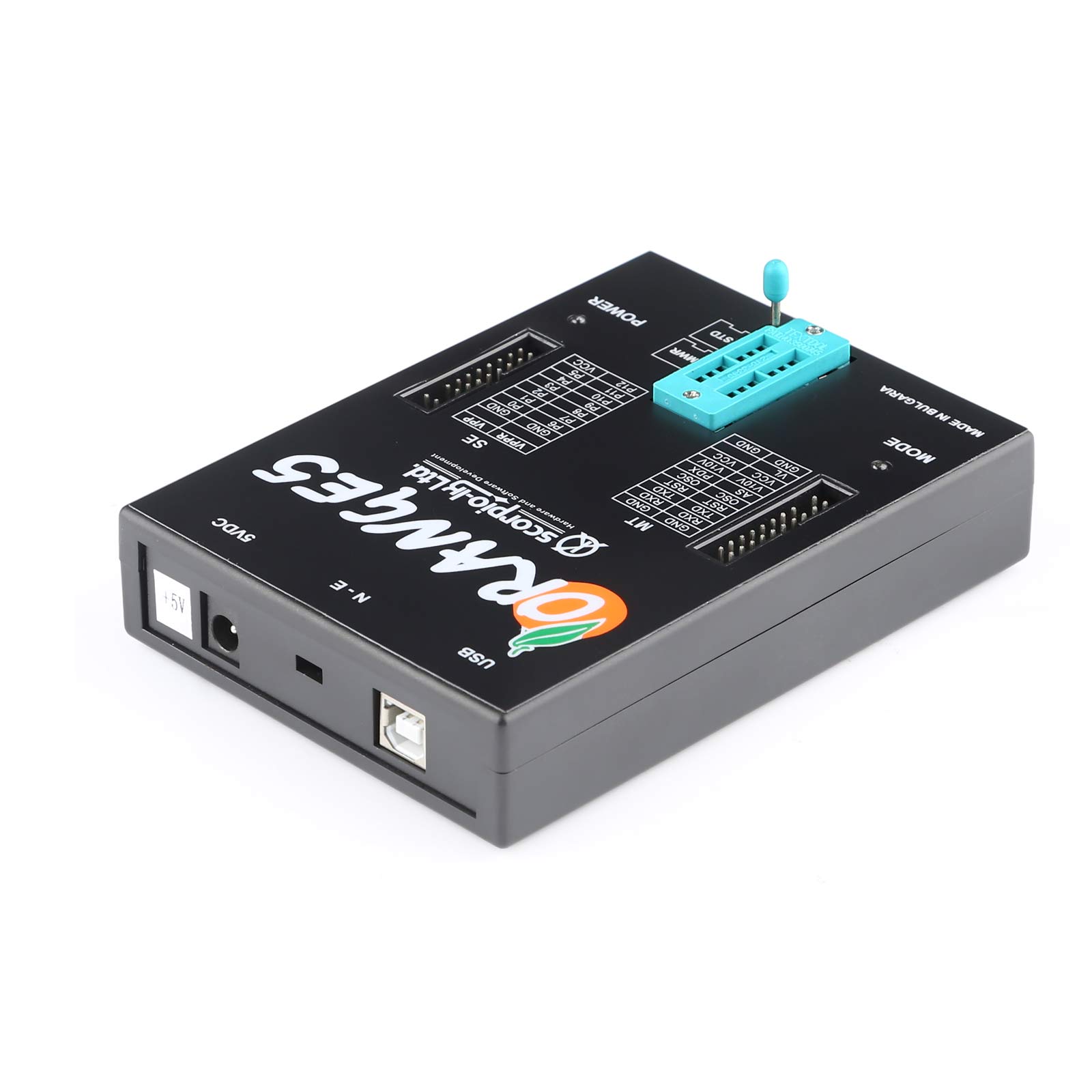

Orange5 Orange 5 Super Pro Professional Programming Tool With Full Adapter
Orange 5 super pro programmer is a professional programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro language for writing down protocols, which gives fast and easy capability to add new types of micro schemes, precisely meeting manufacturers' requirements to read/write algorithms.
Software Version:V1.36 and orange 5 super pro v1.35 full function.
Language:English,Russian
Systems:WIN XP/WIN7 （32bit and 64 bit）
Note:Dongle use to 08-airbag and 09-dashboard moudels.
Orange5 Super Pro Burst Points:
1. Adds new licenses : 08-airbag and 09-dashboard, A-car radio, B-airbag, C- immo&pin, D-car mileage, E-motorbike mileage, F- dash tractor
2. Adds more Renesas licenses for H8SX, HD64F, V850 UART, V850 SPI, RH850 V3, RL78 than others

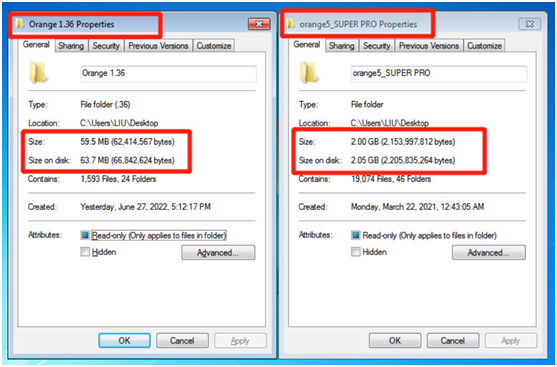

3. Send orange 5 v1.36 software as a gift. Support more scripts and Wiring diagrams, v1.36 just about 60MB ,but super pro is 2GB .

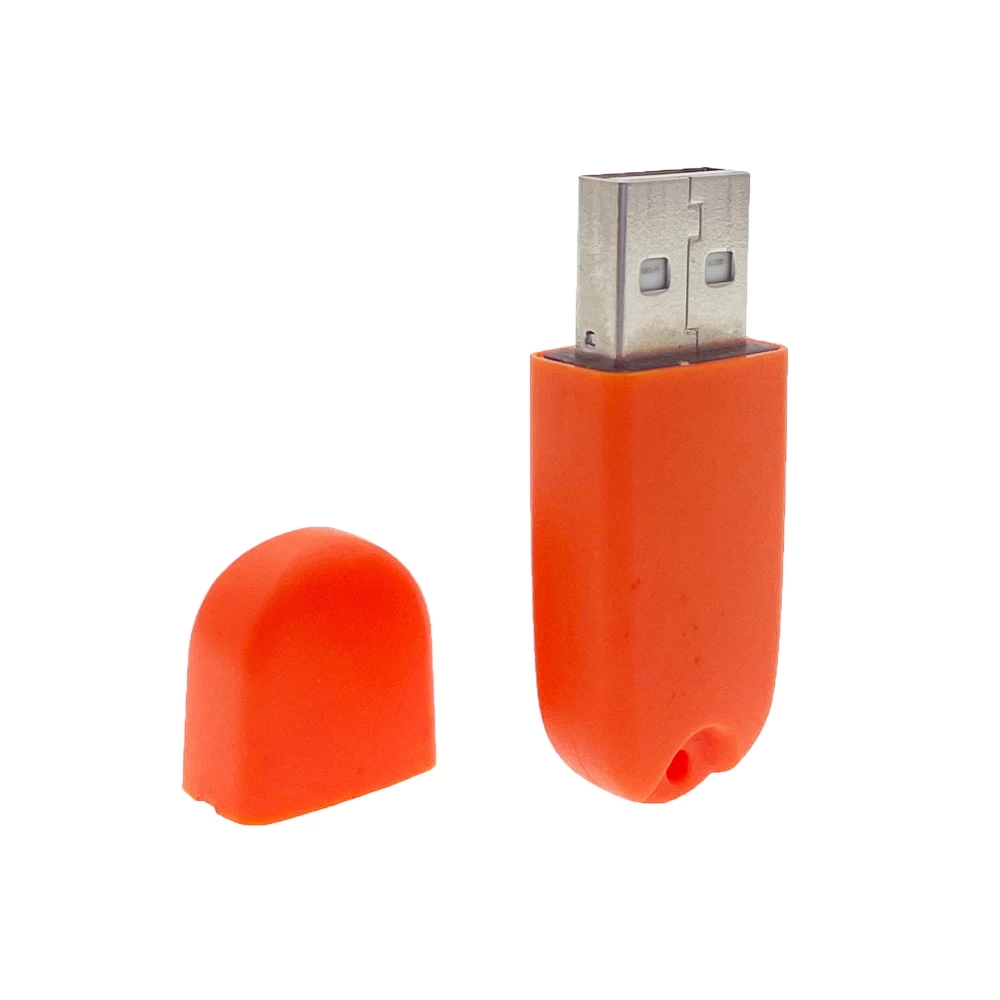

4. With USB Dongle. Dongle uses 08-airbag and 09-dashboard moudels.

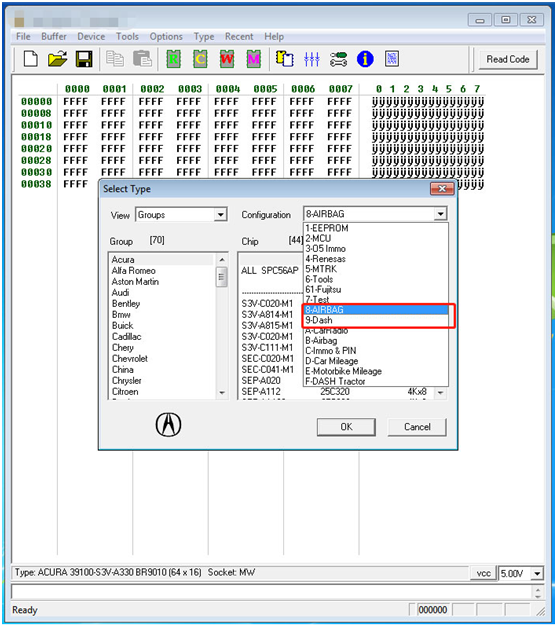

orange5 super pro uses 08-airbag and 09-dashboard
Software Licenses:
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW
New license:
MCU ( Infineon，ST and MicroChip)
Renesas: H8SX，HD64F，V850 UART，V850 SPI，RH850 V3，RL78
Special_05
AIRBAG
Dash
Fujitsu
F-DASH Tractor
EEPROM
A/B/C/D/E moudels

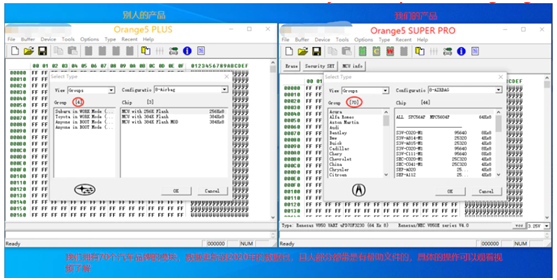

The differences between orange 5 super pro and orange 5 plus:

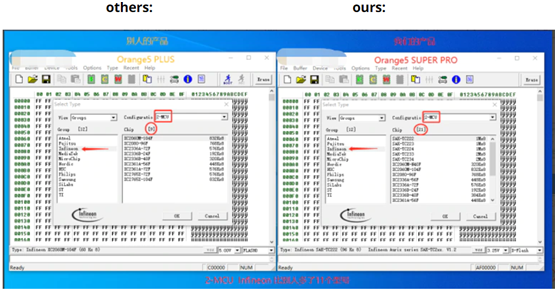

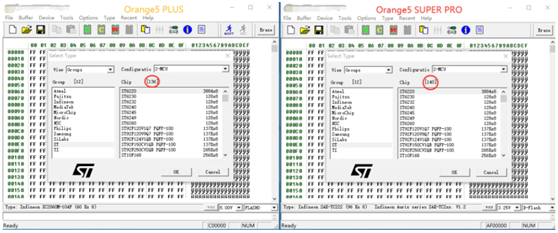

More chip models than others in Infineon, ST, and MicroChip of MCU, as shown in the figure:
2-MCU,SUPER PRO has 11 mudels more than orange 5 plus

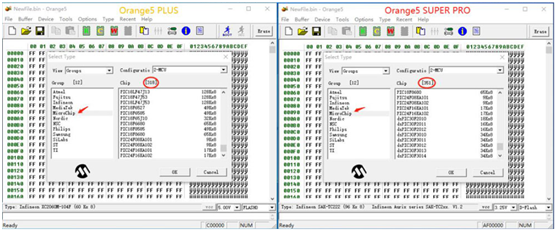

Microchip add more 30 models:

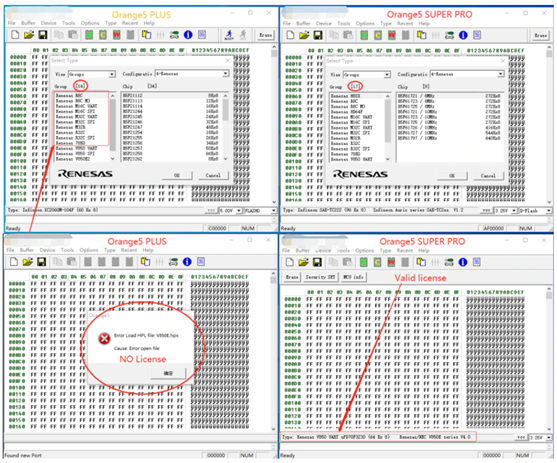

Renesas: We have more licenses for H8SX, HD64F, V850 UART, V850 SPI, RH850 V3, RL78 than others
Orange5 plus:Although there are 14 models,But only the 10 modules in the red frame can work
Orange5 super pro :Our 17 models have activated the license and can be used normally, more than others, such as H8SX, V850 UART, V850 SPI, RH850, etc.
Special_05:We guarantee that everything displayed can be used, no fake stuff, so we will not show this module option in the file we send to customers
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Management of DTR, RTS chains, visualizing DSR, CTS, CD, RI
The program doesn't need to be installed
Supports Orange5 programmer in emulation mode.
Orange5 Programmer Chip List:
Immo HPX 9V0
EEPROM: MicroWire, 4Wire, Adesto, AKM, Altera, Amic, Atmel, BOSCH, Catalyst, Chingis, Dallas/Maxim, EON, ESMT, EXEL, Fairchild, Fujitsu, GI, GigaDevice, Grundig, HOLTEK, Hynix, ITT, KHIC, Macronix, MicroChip, Micron, for Mitsubishi, for Motorola, NEC, NSC, Numonyx, OKI, PCT, Philips, Pioneer, PMC, Ramtron, Rohm, Samsung, Seiko, for Siemens, Sony, Spansion, SST, ST, Winbond, Xicor, XUSSR, YMC, MCU, Atmel, Infineon, MediaTek, MicroChip, Nordic, NSC, Philips, for Renesas, for Samsung, SiLabs, ST, TI, for Motorola, for Freescale, MC68HC11, MC68HC12

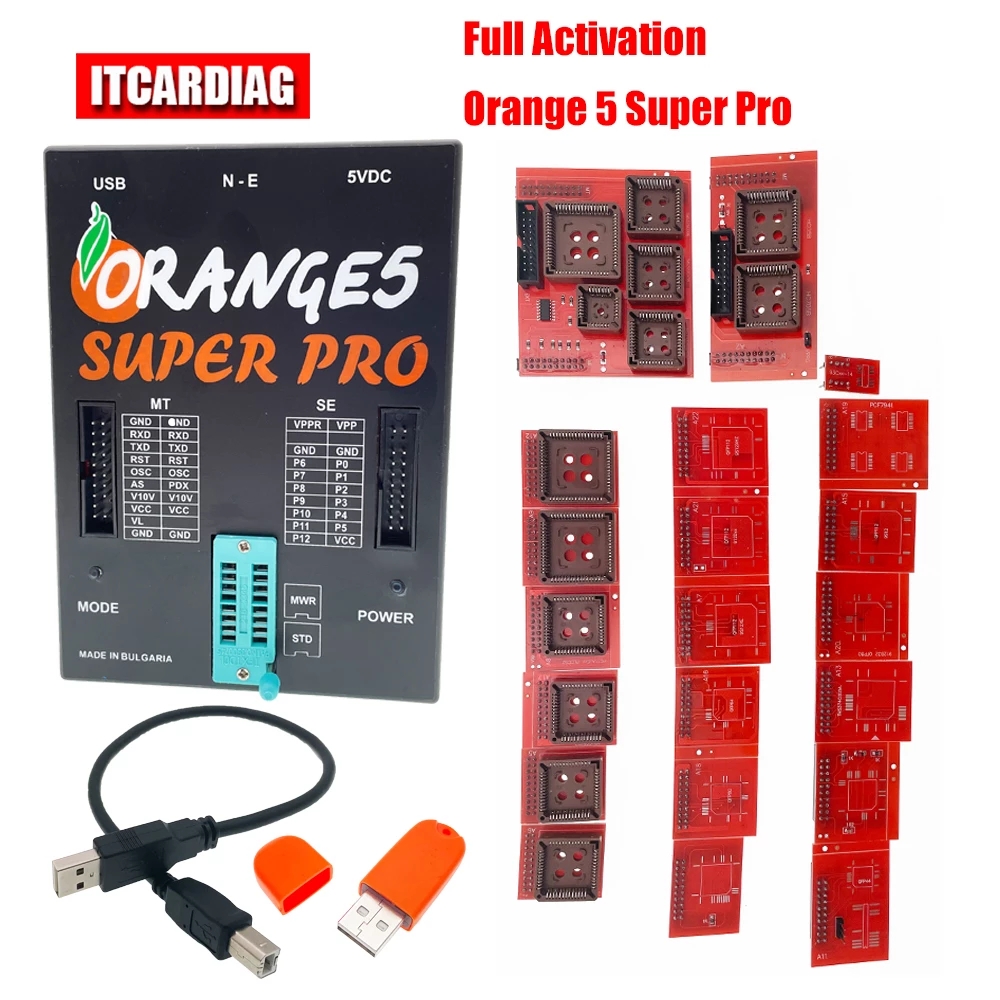

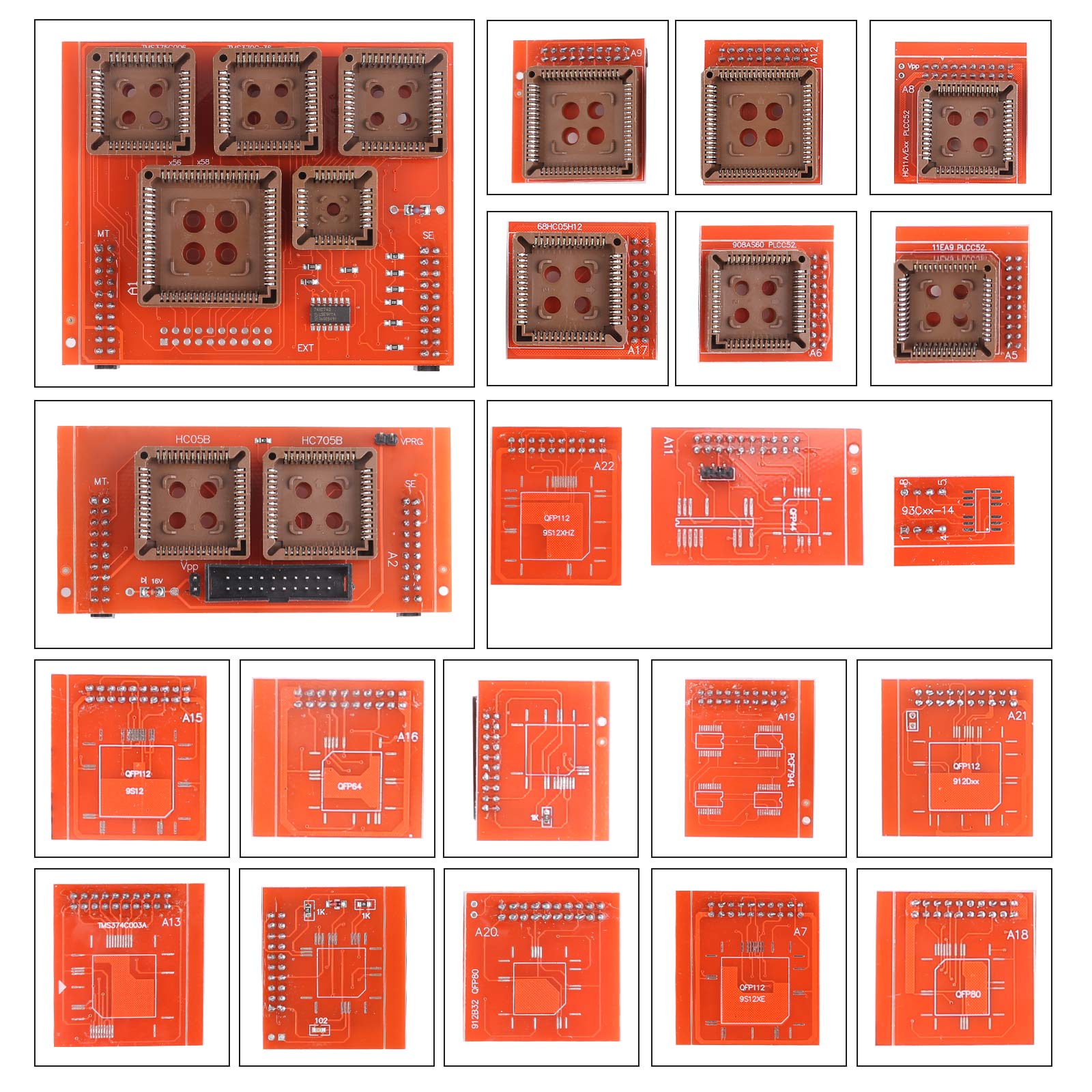

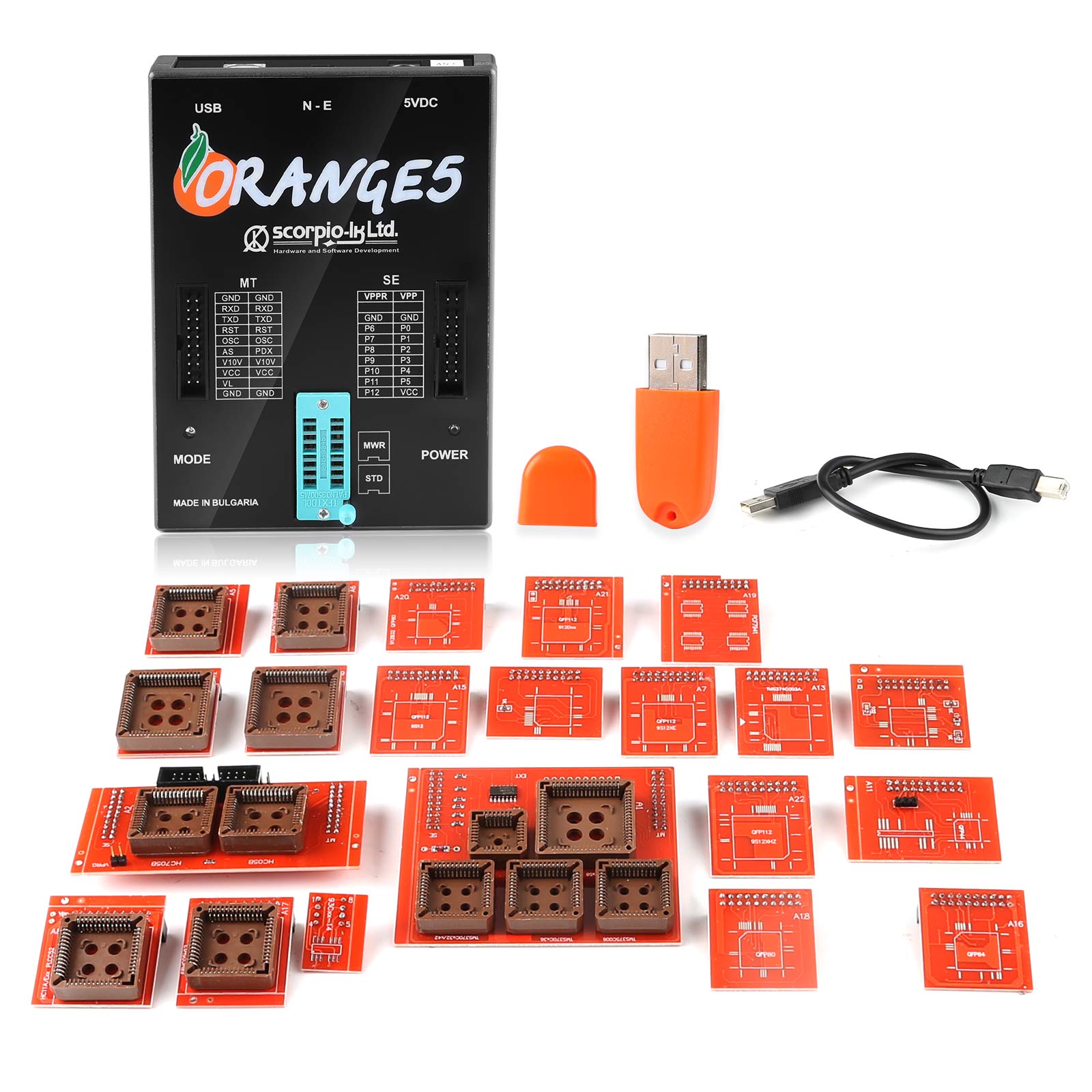

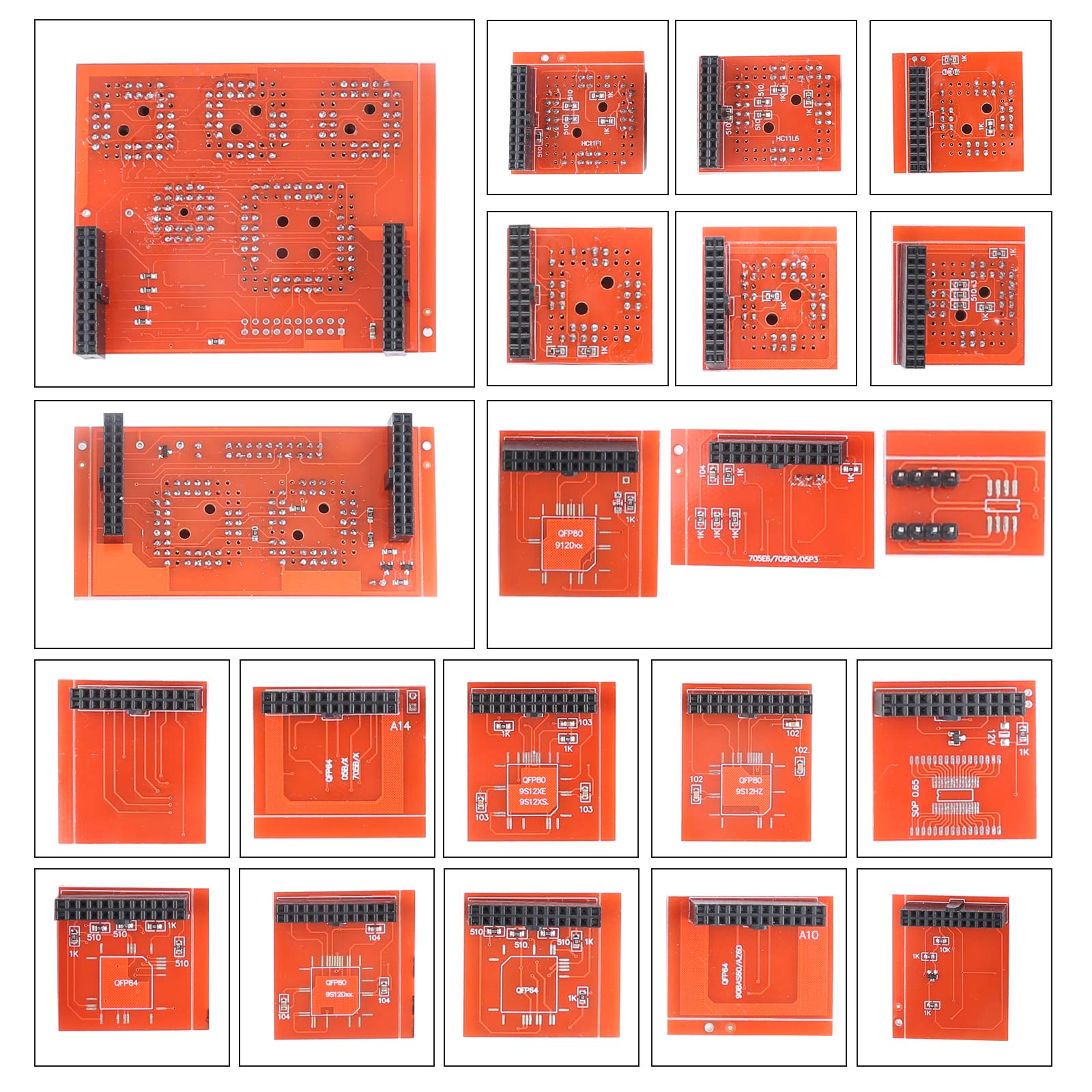

Packing List

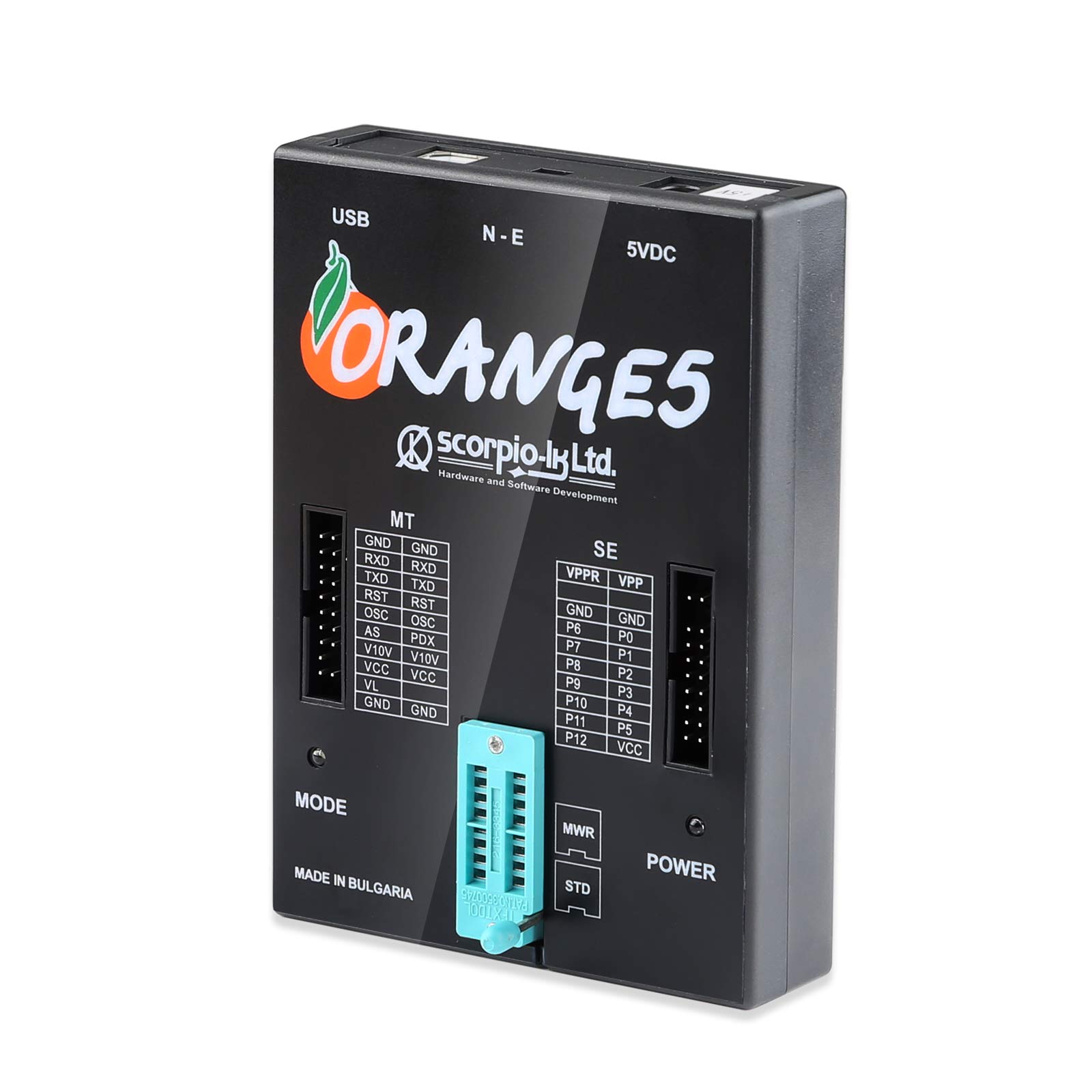

1 x Orange 5 super pro Programmer
1 x TMS375C006/TMS370CX36/TMS370CX32/X42 A1
1 x HC05B/HC705B A2
1 x Adapter 11EA9/PLCC52 A5
1 x Adapter 908AS60 PLCC52 A6
1 x Adapter QFP112/9S12XE QFP80/9S12XE/9S12XS A7
1 x HC11A/EXX PLCC52 A8
1 x Adapter HC11F1 A9
1 x Adapter 908AS60/AZ60 QFP64 A10
1 x 705E6/705P3/05P3 A11
1 x Adapter 68HC11L6 A12
1 x Adapter TMS374C003A A13
1 x Adapter 05B/X_705B/X QFP64 V2 A14
1 x Adapter QFP112/9S12 QFP80/9S12DXX A15
1 x Adapter QFP64 A16
1 x Adapter 68HC05H12 A17
1 x Adapter QFP64/QFP80 A18
1 x Adapter PCF7941 A19
1 x Adapter 912B32 QFP80 A20
1 x Adapter 912Dxx A21
1 x Adapter 9S12HZ/QFP80 1 9S12XHZ /QFP112 A22
1 x Adapter 93CXX-14
1 x USB cable
