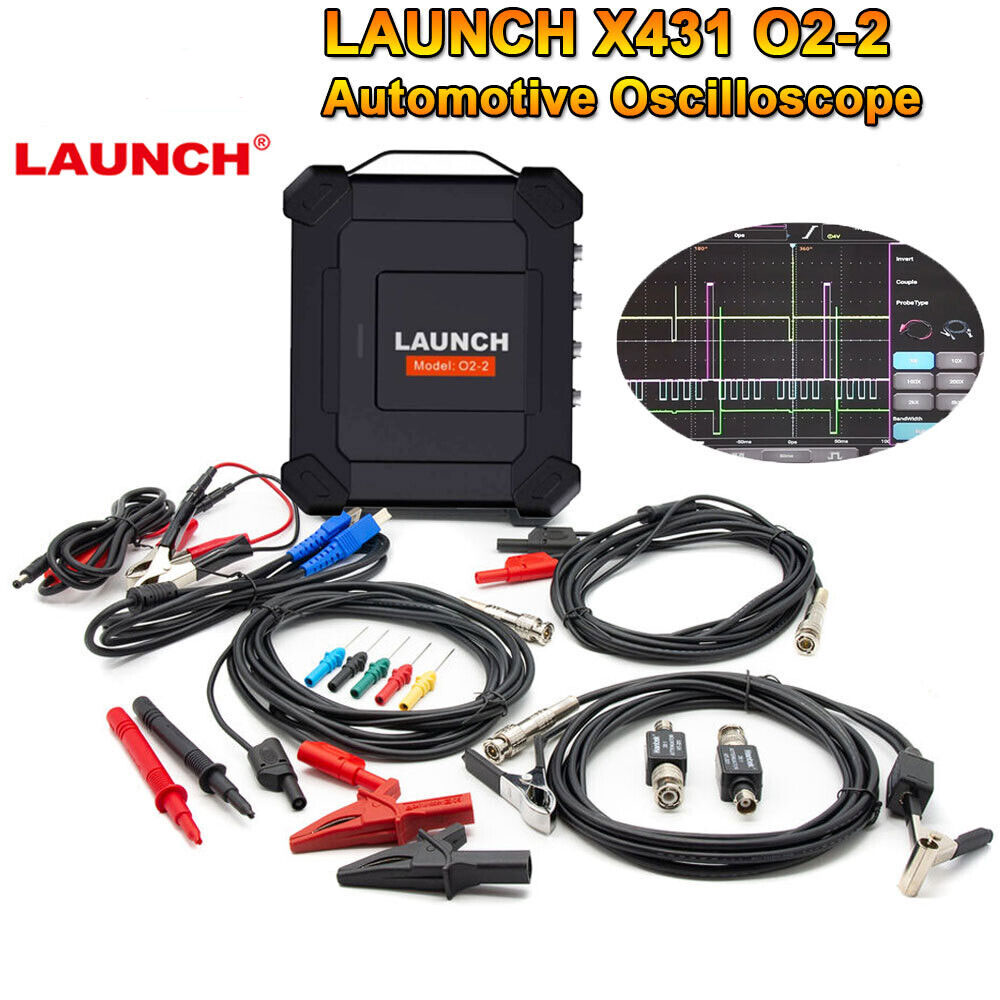

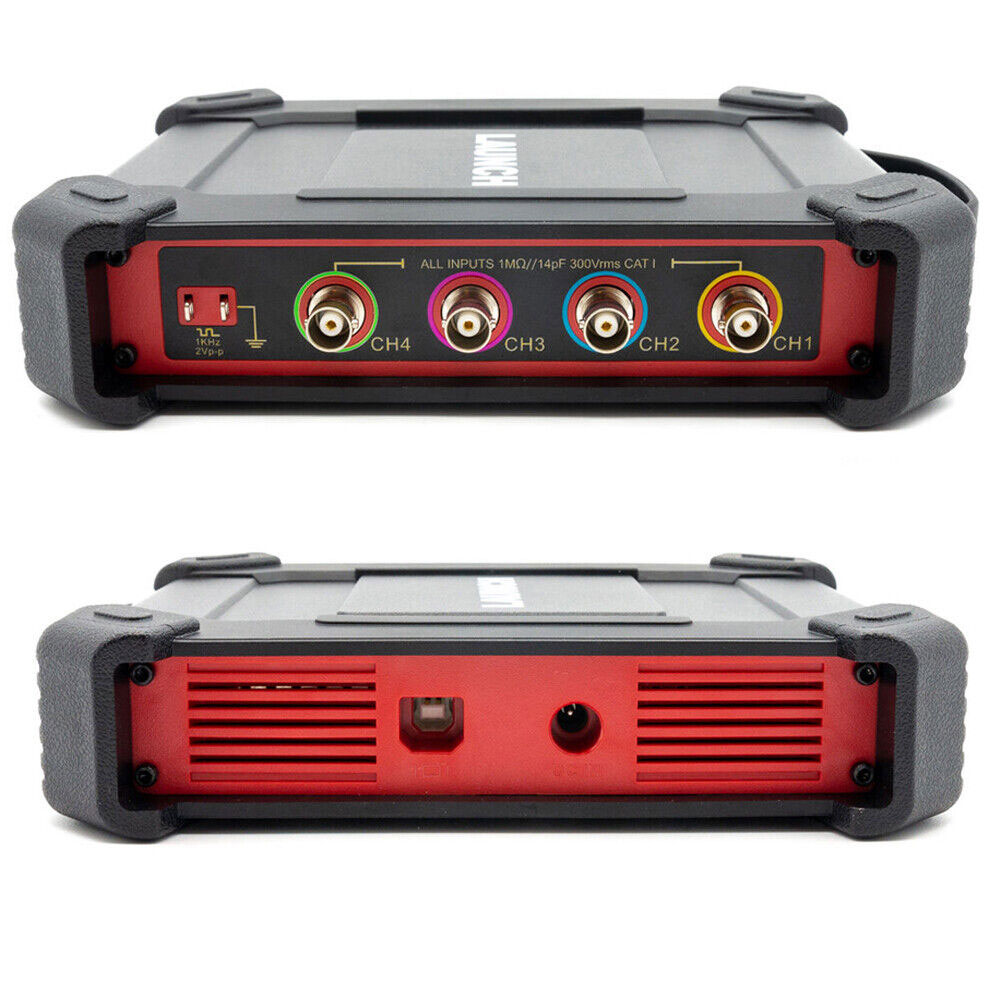

LAUNCH X431 O2-2 Scope Box Oscilloscope 4 Channels Automotive Oscilloscopes Work with PRO3S+ V5.0/PAD V/ PAD VI

Launch O2-2 Scope Box allows the user to capture a particular waveform which makes the process 70% more dfficient as compared to other scopes. It features the ability to record and playback high-resolution waveform data for future analysis. Its ability to input names and characters directly by clicking on the virtual keyboard streamlines the process and contributes to 90% of efficiency improvement.

LAUNCH O2-2 Scope Box For Solving Complex Electrical Faults
Featuring a new design and upgraded hardware, the LAUNCH O2-2 Scopebox is a versatile and easy to use add-on module that can detects high level faults on various electrical components, such as sensors, acturators and circuits. By integrating with the X-431 series scan tools via O2-2 application, it delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge their scan tool's functionality.

Integrate with X-431 series scan tools (such as X431 PRO ELITE, X431 Throttle, X431 Pad II AE, X431 Torque, X431 Turbo, X431 Pro3S+, X431 PAD V, X431 PAD VII, X431 IMMO Elite, X431 IMMO PLUS) through the O2-2 application for conclusive diagnostic results.

Highligts:
4 channels
Bandwidth 100MHz
Auto configuration
Save waveforms with one click
Cursor measurement
One-click preset waveform parameter settings
Demo mode
Online help
Waveform math operations
23 automatic measurements

Features:
1. ECU troubleshooting and Diagnostics
2. Features the alility to record and palyback high-resolution waveform data for future analysis. One key enable function allows the suers to capture
3. A particular waveform which makes the process 70% more efficient as compared to other scopes
4. Access to 23 variants of automatic measurements that  are displayed on one screen for an easy switch
5. Ability to input names and characters directly by clicking on the virtual keyboard, this operation streamlines the process and contributes to 90% efficiency
6. Buffer memory up to 50M
7. Use the zoom in/out feature to review precise details
8. Customizable personal system settings that can be saved as configuration files for viewing
9. The Self-calibration function allows optimization of the oscillosope signal path for maximum measurement accuracy
10. Magnifies waveform math operations, such as affition, subtraction, multiplication and FFT function for high level waveform anlysis
11. Multiple automotive tests that include circuits, sensors, actuators, ignition tests and more
Multi language user interface
12. USB Sunc data transfer to external devices such as laptoop, tablet, etc..

Functions:
Supports multiple vehicle preset project tests
Supports a variety of automotive preset project tests, such as circuits, sensors, actuators, ignition tests, communication tests and combination tests, and presets various parameters and specific connection methods for each test.

23 automatic measurement settings
23 automatic measurement settings are displayed on one screen, which is clear at a glance and can be clicked with a light touch. It supports one-click clearing, eliminating the tediousness of turning pages and searching multiple times, making automatic measurement easy to use and convenient.

Quick trigger source switching
Supports edge, pulse and other triggers. Simple and intuitive trigger settings and fast trigger source switching methods make the most difficult part of oscilloscope application extremely easy.

Quickly create waveform preset parameters with one click
When testing waveforms, you can save the existing settings on the current interface as waveform preset parameters with one click. When testing similar waveforms later, you can directly load the preset parameters without repeated settings.

Quickly save waveforms with one click
Quickly save the waveform currently displayed on the screen with one click and automatically save it in the specified format. It can be directly used as a reference channel waveform for display later.

Convenient cursor operation
Turn on the horizontal and vertical cursors with one click respectively. Each cursor can be dragged independently, and cursor tracking is also directly implemented through simple highlight touches, improving overall efficiency by more than 80%.

Support cursor/phase ruler changes accordingly
When the waveform is zoomed in/out, the cursor and phase scale can change accordingly, keeping the measurement range unchanged.

Supports 2-point touch, the waveform can be zoomed in or out vertically or horizontally
Drag horizontally or vertically with 2 points to zoom in or out the waveform horizontally or vertically.

Support demonstration function
Preset sine waveforms to demonstrate common functions without connecting an oscilloscope.

Supports waveform math operations
Supports addition, subtraction, multiplication and division calculations of two channel waveforms, in addition to fast Fourier transform.

Detailed Comparison Between Launch O2-2 Scope Box and Launch O2-1 Scope Box

Model

O2-1

O2-2

Channel

4

4

Bandwith

100MHz

100MHz

Rise Time

3.5ns(typical)

3.5ns

Maximum sampling rate

1Gbps(for four channels)

1Gbps

Input resistance

1MΩ±1.5%

1MΩ±1.5%

Storage depth

50M

10M

Number of sampling bits

8bit

8bit

vertical accuracy

3%

3%

Vertical gear

5mV~10V

5mV~10V

Inverting

Support

Support

Channel coupled

DC, AC

DC, AC

Time base gear

5ns~1ks

1ns-1ks

Time base accuracy

20ppm

20ppm

Sampling mode

Normal

Normal

CANBus decoding

CAN, LIN

CAN, LIN

Trigger type

Edge, Pulse width

Edge, Pulse width

Trigger mode

Normal, Auto and Single SEQ

Normal, Auto and Single SEQ

Trigger coupling

DC, Noise rejection

DC, Noise rejection

Math

Double wave\FFT

Double wave\FFT

Display

YTZoomRoll

YTZoomRoll

Roll mode

200ms/div~1000s/div

200ms/div~1000s/div

Auto configuration

Support

Support

Auto measurement

23

23

Cursor

Horizontal cursor, Vertical cursor

Horizontal cursor, Vertical cursor

Powered by

USB port, DC IN port

USB port, DC IN port

Data transmission method

USB

USB

Vehicle configuration options

Circuits, sensor, actuators, ignition

Circuits, sensor, actuators, ignition

Operating temperature

0~50

0~50

Power supply range

USB:5V/1A
DC:12V/24V

USB:5V/1A
DC:12V/24V

Compatibility

Different tablet resolutions require different APPs

One APP can be compatible with multiple tablet resolutions

Multi-touch gestures

No

Supports 2-point touch, the waveform can be zoomed in or out vertically or horizontally

Vehicle configuration

No

Each test project can support online help documentation (help documentation will be compiled according to needs later)

Firmware upgrade

Manual upgrade

Support online upgrade

Trigger

Waveform observation cannot be expanded during normal trigger waiting.

Can be used normally during normal trigger waiting.

Demo function

No

Yes

Split-screen

No

Yes

Sampling rate

Single channel 1G/s, more than 2 channels only 250M/s

Single channel 1G/s, 2 channels 500M/s, multiple channels 250M/s

Start time

2-3S

about 16s

Power consumption

about 6W

about 7.5W

How to Connect the Cables?
Different application scenarios require different connection methods (no matter which application scenario, the following connections are required):

First, power the oscilloscope box through the double-clip power cable: Connect one end of the double-clip power cable to the power interface of the oscilloscope box, and the other end to the vehicle battery to draw power (red is connected to the positive pole, black is connected to the negative pole).

Note: * PADVII series tablets support USB power supply.

2. Connect the Type B terminal of the USB cable to the Type B interface of the oscilloscope, and connect the other end to the USB interface of the diagnostic device.

Specification:

Channels

4

Bandwidth

100MHz

Rising Time

3.5ns (typical)

Accuracy

±3%

Input Impedance

1M ±1.5%

Input Type

Single-ended, BNC Connector

Input Coupling

DC, AC

Overload Protection

±200V on single input

Timebase Ranges

1ns~1ks (1 Channel)
1ns~1ks (2 Channels)
1ns~1ks (4 Channels)

Vertical Resolution

8bits

Buffer Memory

10M (for 4 Channels)

Power Interface

USB port, DC IN port

Data Exchange Via

USB

Trigger Mode

Normal, Auto and Single SEQ

Advanced Triggers

Edge, Pulse width

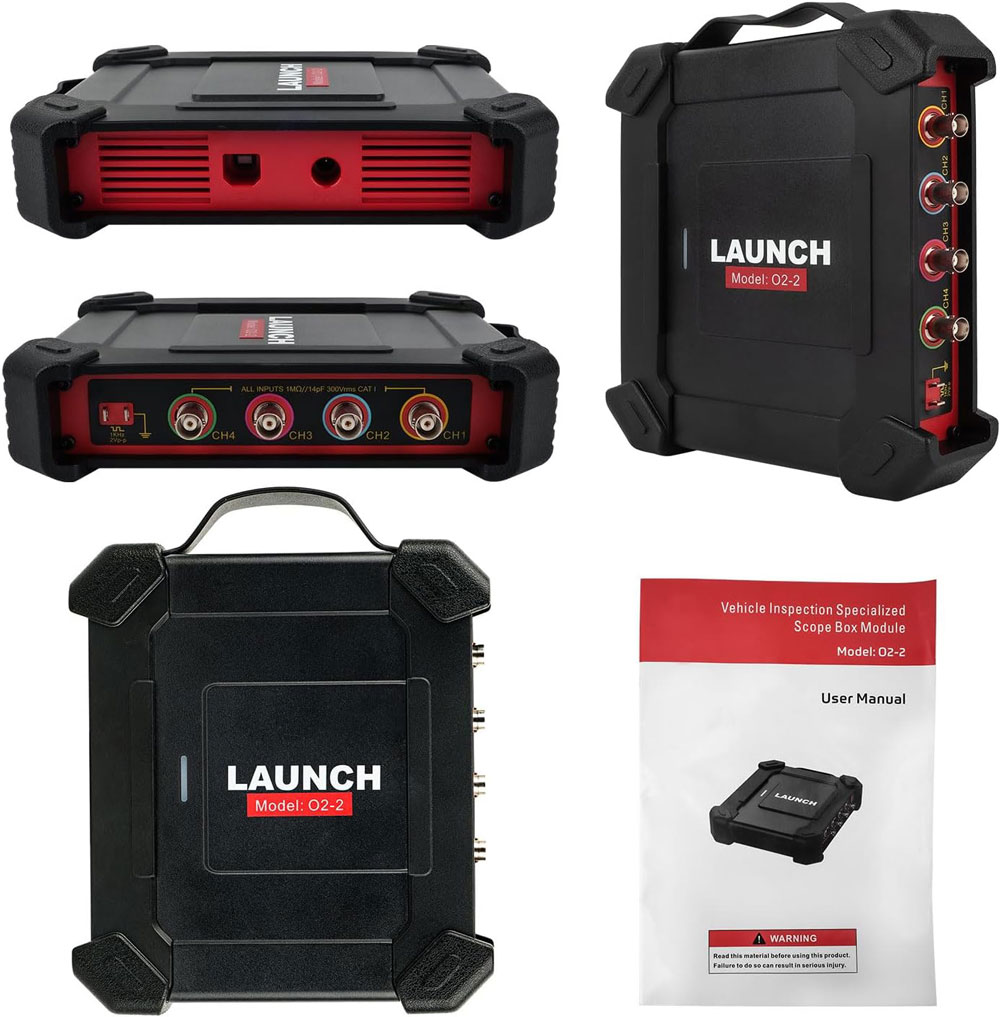

Package List:

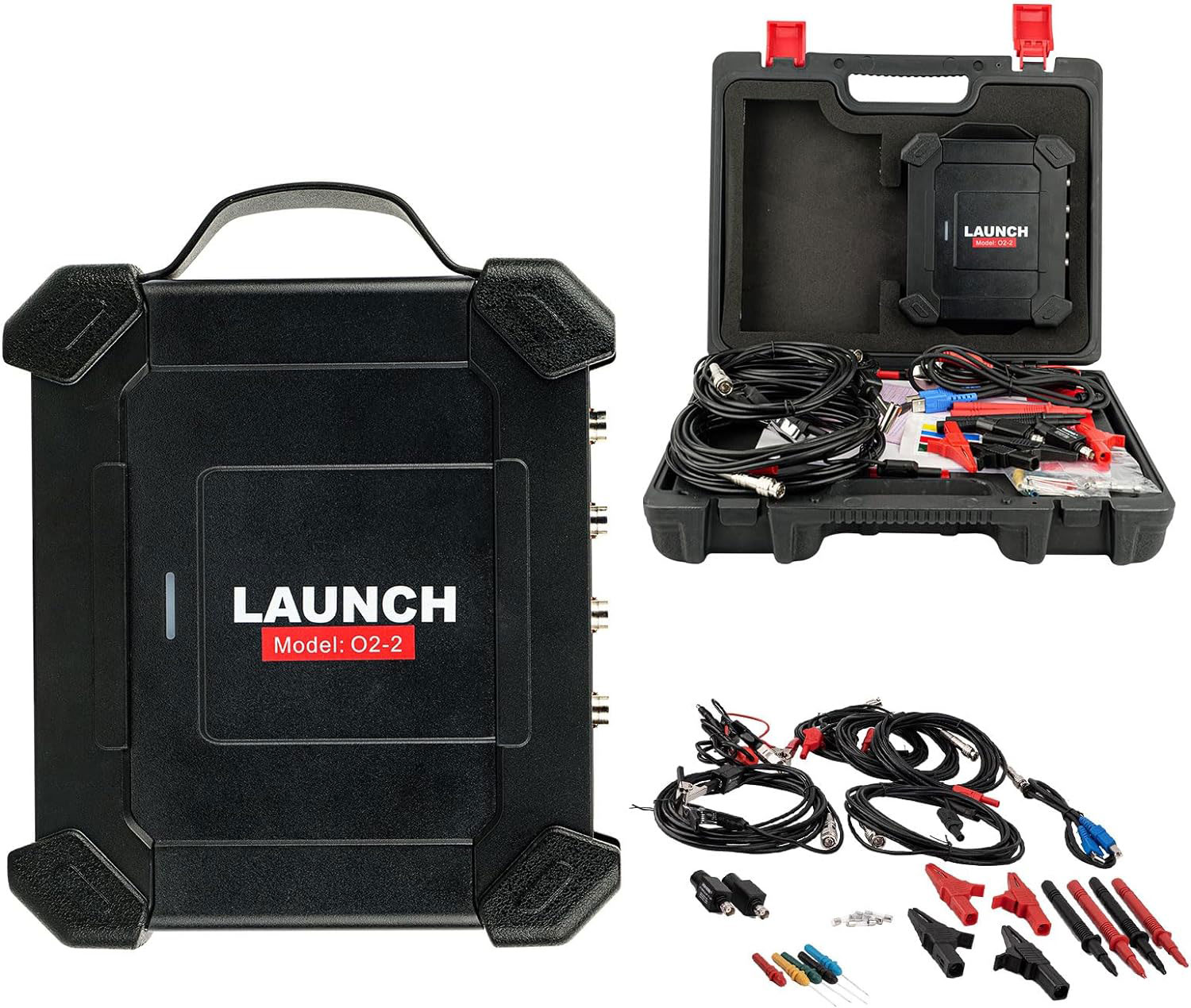

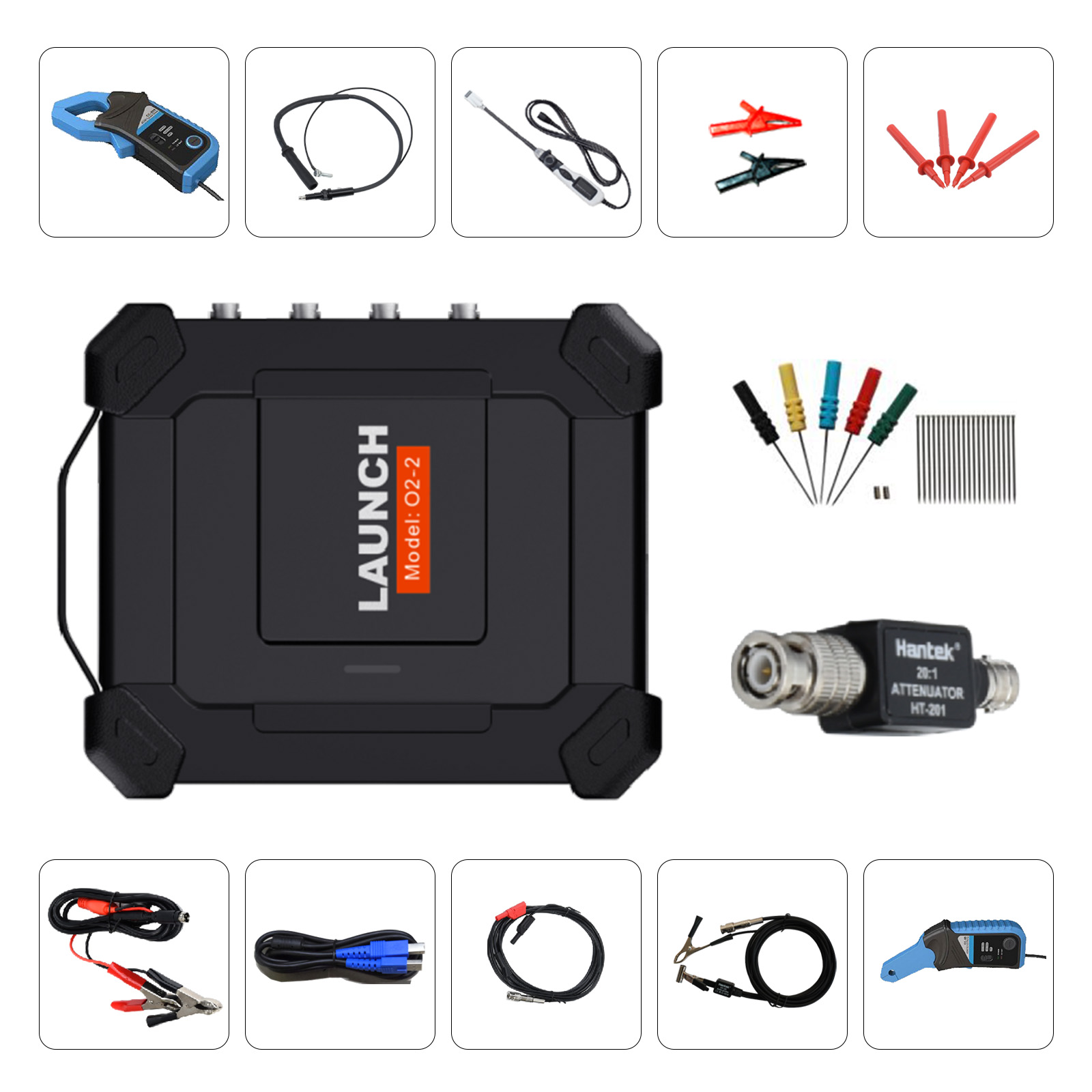

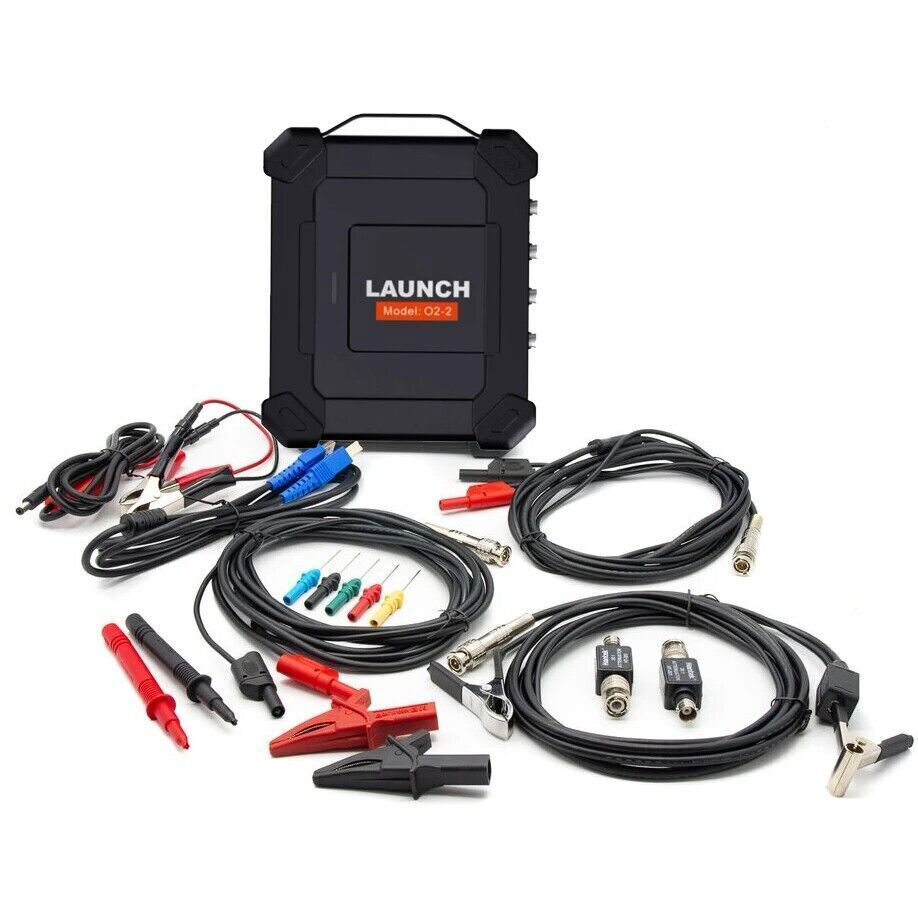

1pc x Launch O2-2 main unit
1pc x BNC to 4mm interface test cable
1pc x Secondary ignition pickup cable
1pc x USB cable
1pc x 20:1 attenuator
1pc x multimeter probe
1pc x Battery clips
1pc x Piercing Probe set
2pcs x crocodile clips
1pc x Independent ignition extension cable
1pc x COP independent ignition probe
