Product Description

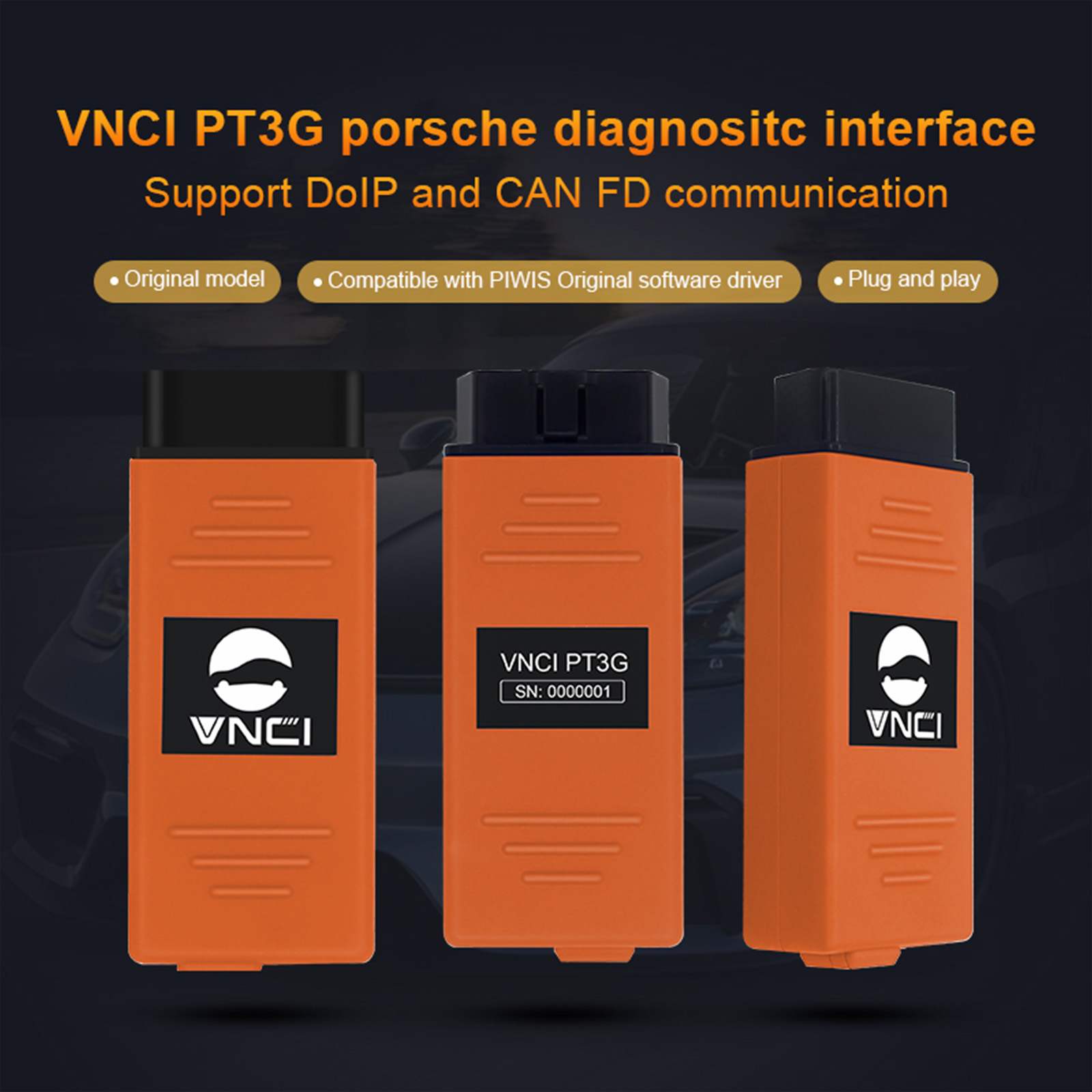

VNCI PT3G Diagnostic Scanner for Porsche Compatible with Original PIWIS Software Drivers Plug and Play

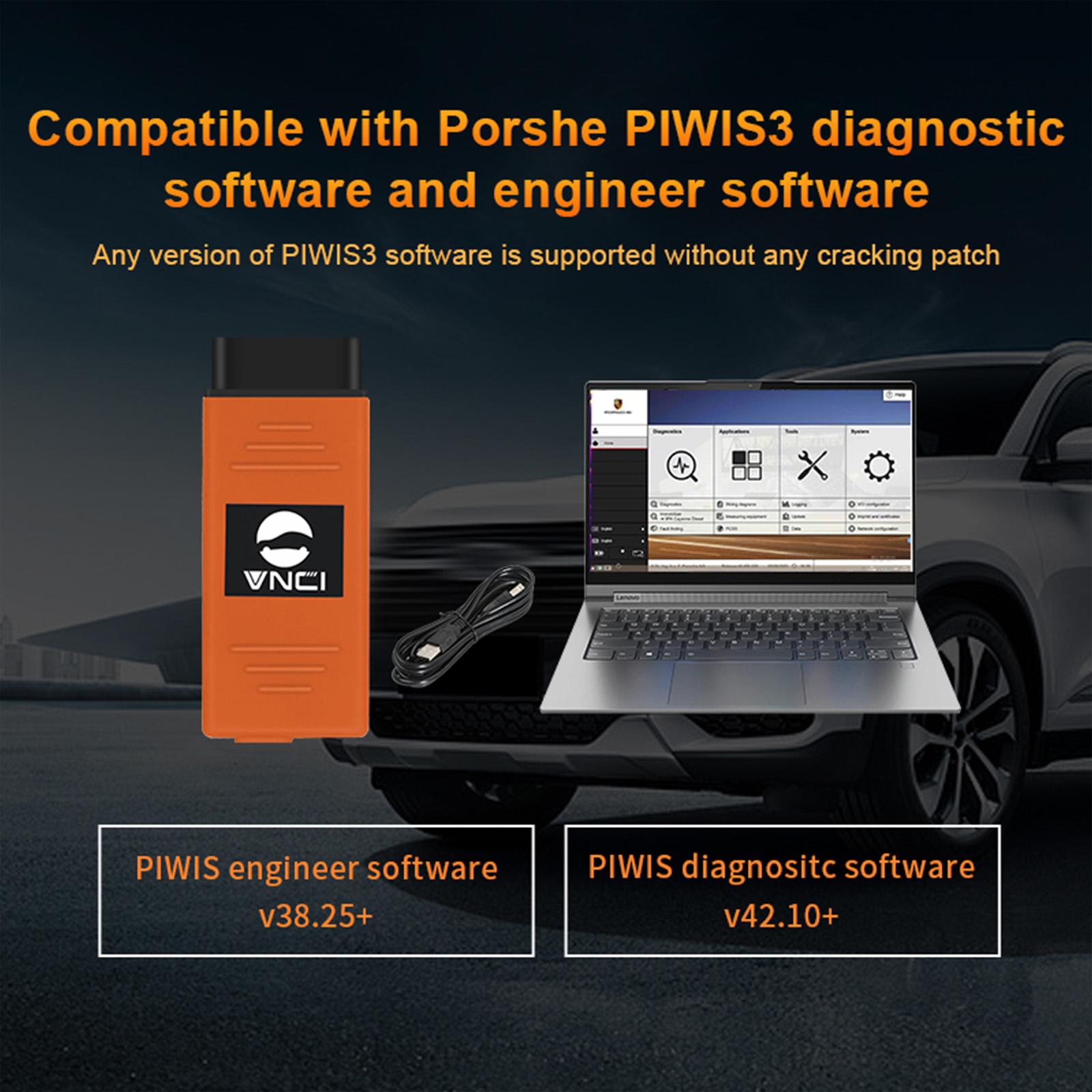

The VNCI PT4G Porsche Diagnostic tool is designed for diagnostic, programming and immobilizer operations on both old and new Porsche models. Compatible with the original Porsche diagnostic system PIWIS software driver, supports the latest PIWIS software and any PIWIS version. It can completely replace the original Porsche diagnostic tool PT3G. VNCI PT3G supports USB, WIFI direct connection and WIFI LAN three kinds of connection.
1.Compatible with original PIWIS driver
2.Supports both old and new Porsche

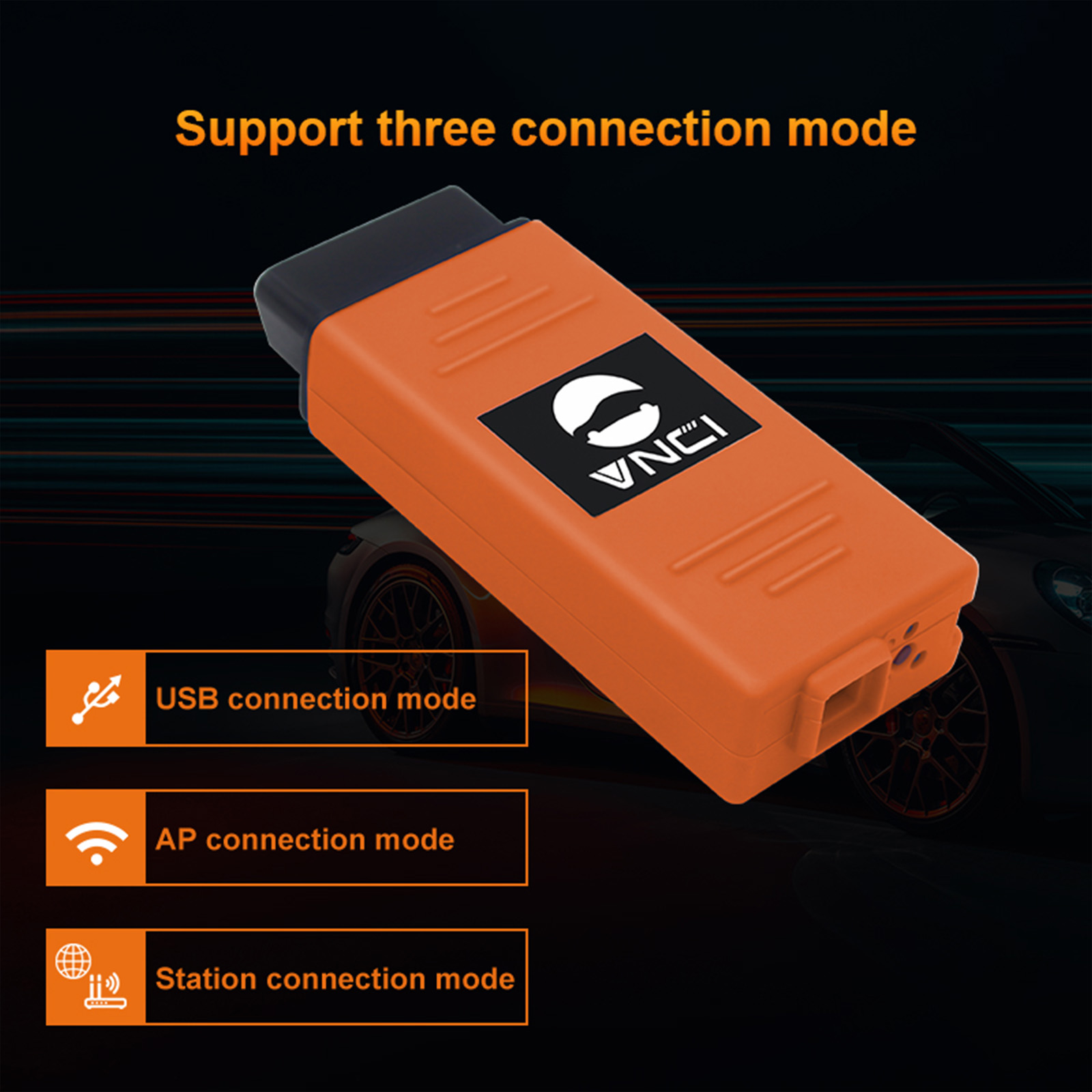

3.Supports USB, WiFi and LAN connection
Highlights:
1. Compatible with original PIWIS driver
2. Supports latest PIWIS software

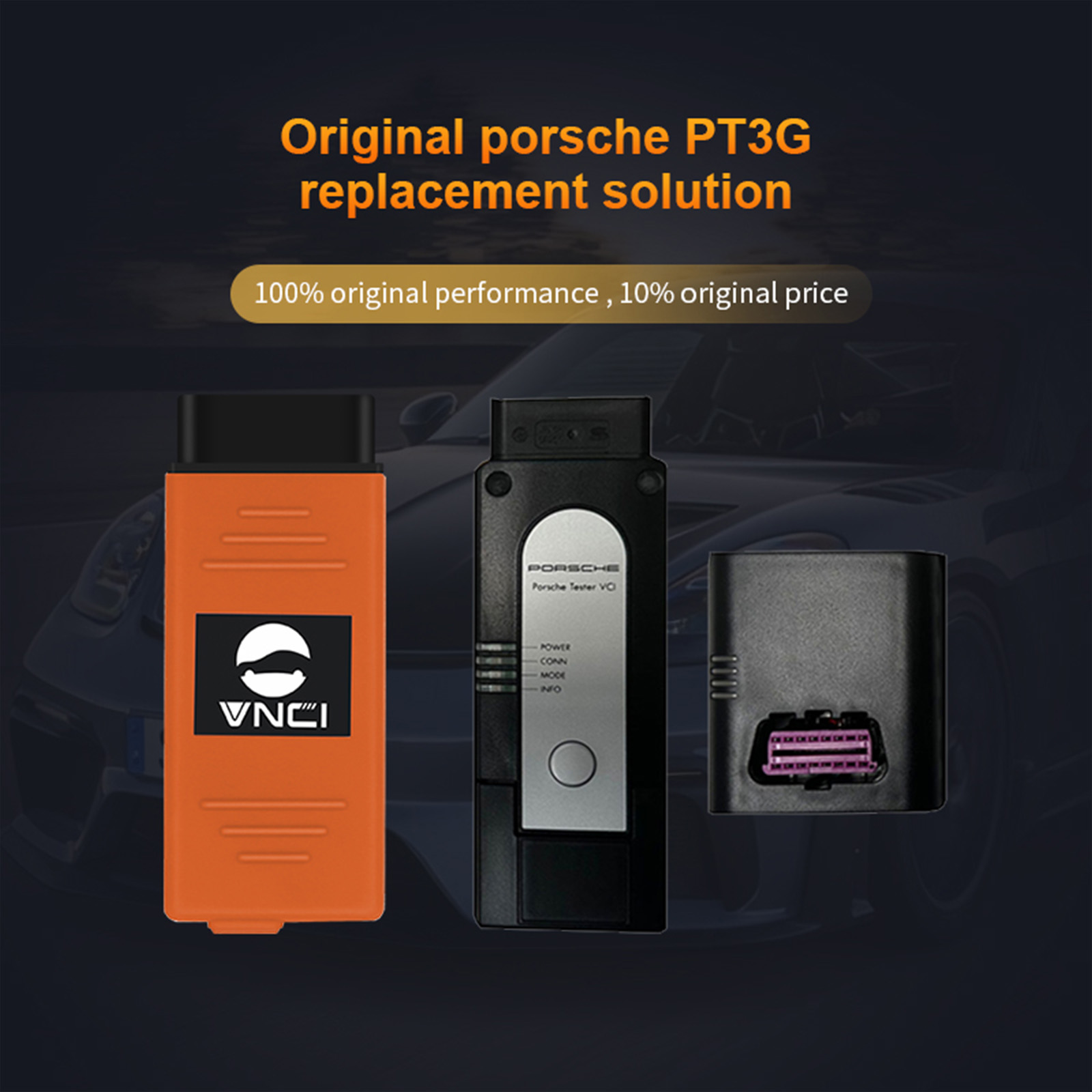

3. Replace original Porsche diagnostic tool PT3G
4. Supports USB, WiFi and LAN connection
5. Multi-language: 23 languages, including German, English, Chinese, French, Italian, Spanish, Japanese, Polish, Portuguese, and Dutch
6. Support Porsche 9PA 9YA 9YB 92A 95B 918 970 971 981 982 986 987 991 992 996 997 Y1A and all Porsche models from 1996 to the present.

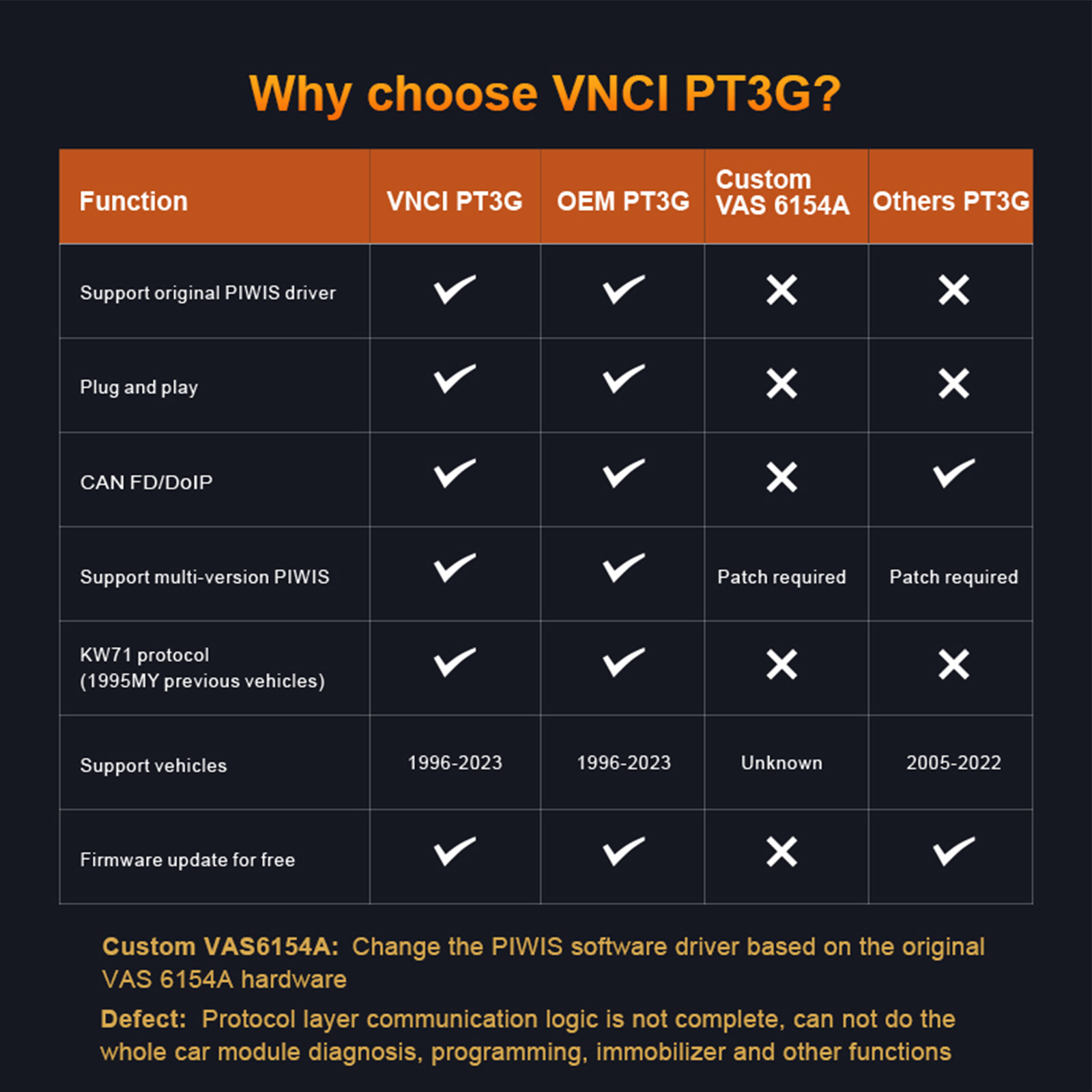

VNCI PT3G vs OEM PT3G vs Custom VAS 615A vs Other PT3G
Introduction to PIWIS3 diagnostic system
The PORSCHE PIWIS Diagnostics system is used for fault finding diagnostics and code refresh programming of the control unit for Porsche vehicles, and the PIWIS3 TESTER integrates complete diagnostic functions for all Porsche models. PIWIS3 also allows different control units to be read simultaneously, simplifying diagnostics. Ecus can be coded automatically, individually, or from a control table. The PIWIS3 vehicle status record (known as the VAL Protocol - Vehicle Analysis Log) is now automatically registered when the vehicle is in use, during maintenance, and after maintenance has been completed. The PIWIS3 can be used for DC and AC voltage measurement, DC and AC current measurement, diode test, resistance measurement, on/off or open circuit test to show the change of voltage, current and resistance over time, with oscilloscope function.
PIWIS3 Software system Troubleshooting Guide is faster and easier to use. It can display all diagnostic information, initiation procedures, and possible fault sources, and significantly revised "guided fault finding" (GFF) means that repeated repairs (" first fix ") are further reduced. Integrated online teaching function, easy operation, integrated new database, direct access to the Porsche PIWIS workshop technical information system
Piwis3 features:
1. Diagnose the application
2. Boot Fault Finding (GFF)
3. Actual value/input signal function
4. Drive link/test function
5. Maintenance/repair function group
6. Coding/programming function group
7. Logging8. filter
8. Application of wiring diagram
Supports Porsche PPN online remote, has the latest PIDT engineering database, allows you to code Panamera, Cayenne E3, Taycan and more
Features and specifications of the PIWIS system
Read/clear error codes, capture data flow, computer programming matching, component testing, service information consulting, component field drawing, wiring diagram.
Porsche Piwis Tester IV works with old and latest Porsche cars. It comes with a Panasonic laptop and original test software. The Porsche Piwis Tester IV helps you diagnose and program the latest and old Porsche cars. Examples include the 911(997)(991), Boxster/Cayman(987), 2010-2010 Cayenne, 2011-2011 Cayenne, and Panamera.
The new Panamera can only be diagnosed using the Porsche Piwis Tester IV. According to the current project plan, all early models will be gradually replaced by the new Porsche Piwis Tester IV by the end of 2010. The Porsche PIWIS Tester IV covers all-new Porsche models such as the all-new Panamera 971, Cayenne 9Y0 E3, Panamera 992, Cayman 982 GT4 Clubsport, etc., which do not support the PIWIS II at all. Will not support it in the future.
Support Porsche. Once the early diagnostic procedures are transferred to the Porsche Piwis Tester IV, the Piwis Tester I will no longer be available. When Porsche Piwis Tester IV is distributed, it will include a basic software. This is necessary to start and configure the tester. This system will support Porsche Macan CarPlay activation and PPN online remote support, it does not support Porsche CarPay full screen activation.
Porsche Piwis Tester IV support system
Engine automatic transmission, air conditioning, SRS, ABS, ASR, MPL, GM, original anti-theft system, keyless system, OBDII system.
BGM gateway module online programming
Porsche Tekken Sport software update
The rear/front modules are programmed, new or used depending on the state of the car
Key programming (keys sorted by VIN)
Second-hand ECU CP module is unlocked
Engine control module replacement programming
Transmission module PPN online programming
VTS disable
OEM renovation project PPN coding programming
2019-2022 Sport Chrono Sport plus remote activation of PIWIS4 and 5054A VCI
Each project checks the OEM retrofit wiring diagram, such as 360 Surround view, ACC, AMP
OEM modification remote guide technical support hourly or per VIN login check
OEM Apple CarPlay activation for the Porsche Macan 95B via PPN online
PIWIS 4 System update supports PPN online and PIDT new
Gateway module online programming
Porsche Taycan Sports Software Update
Back/front end module programming
Key programming (key press VIN order)
Used ECU module CP unlock
VTS Disable
OEM retrofit project PPN coding programming
Check the OEM retrofit wiring diagram for each project
OEM retrofit remote guide technical support every hour
Porsche OEM refit, please specify item
OEM Apple CarPlay online activation via PPN
PIWIS3 System update supports PPN online and PIDT new
SMARTPCM Device Suite for PCM Solutions
PCM5 MH2p Full screen CarPlay enabled
PCM5 MH2p Android automatic activation
PCM4/4.1 MHI2 Android Automatic activation

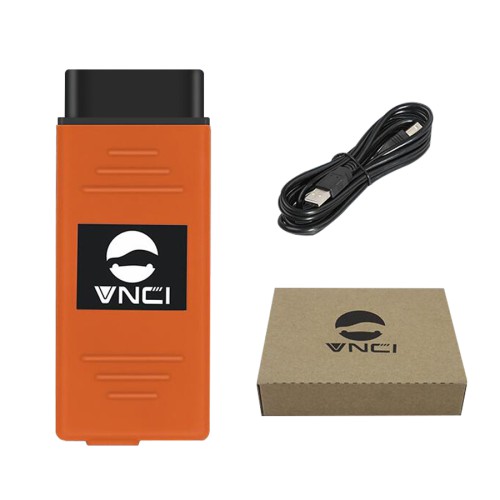

Package Includes:
1pc x VNCI PT3G
1pc x USB Cable
1pc x Paper Box
